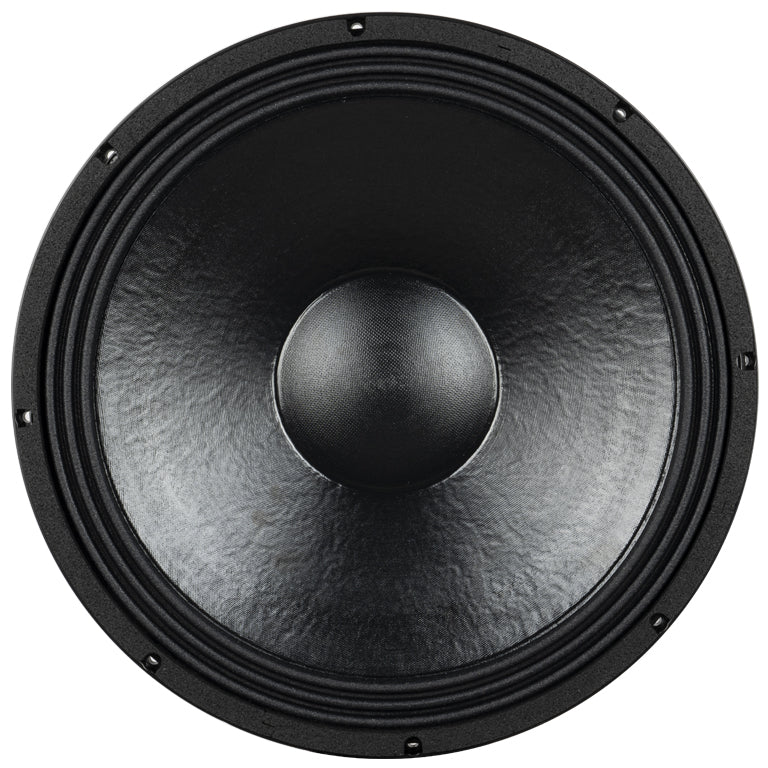

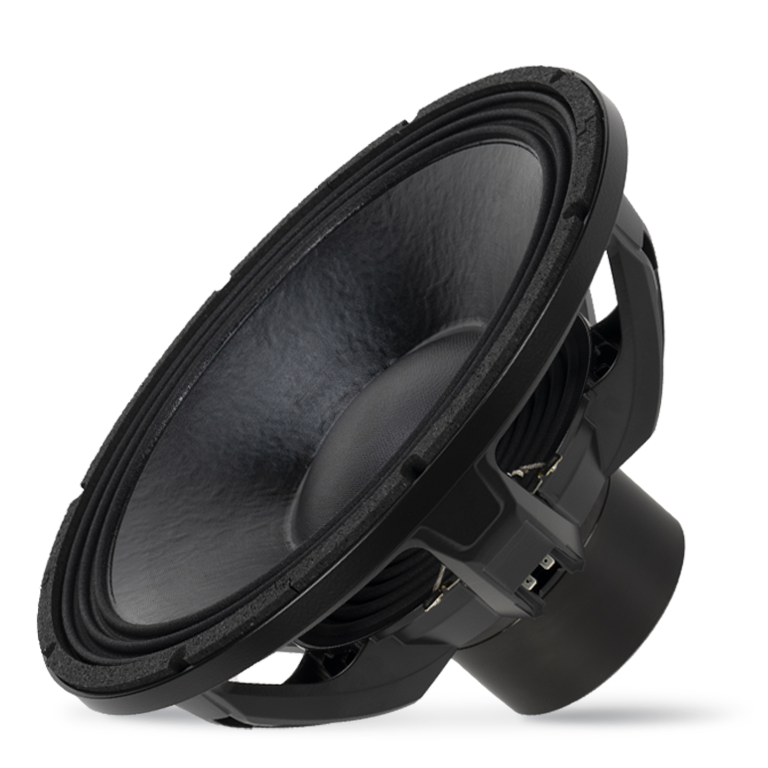

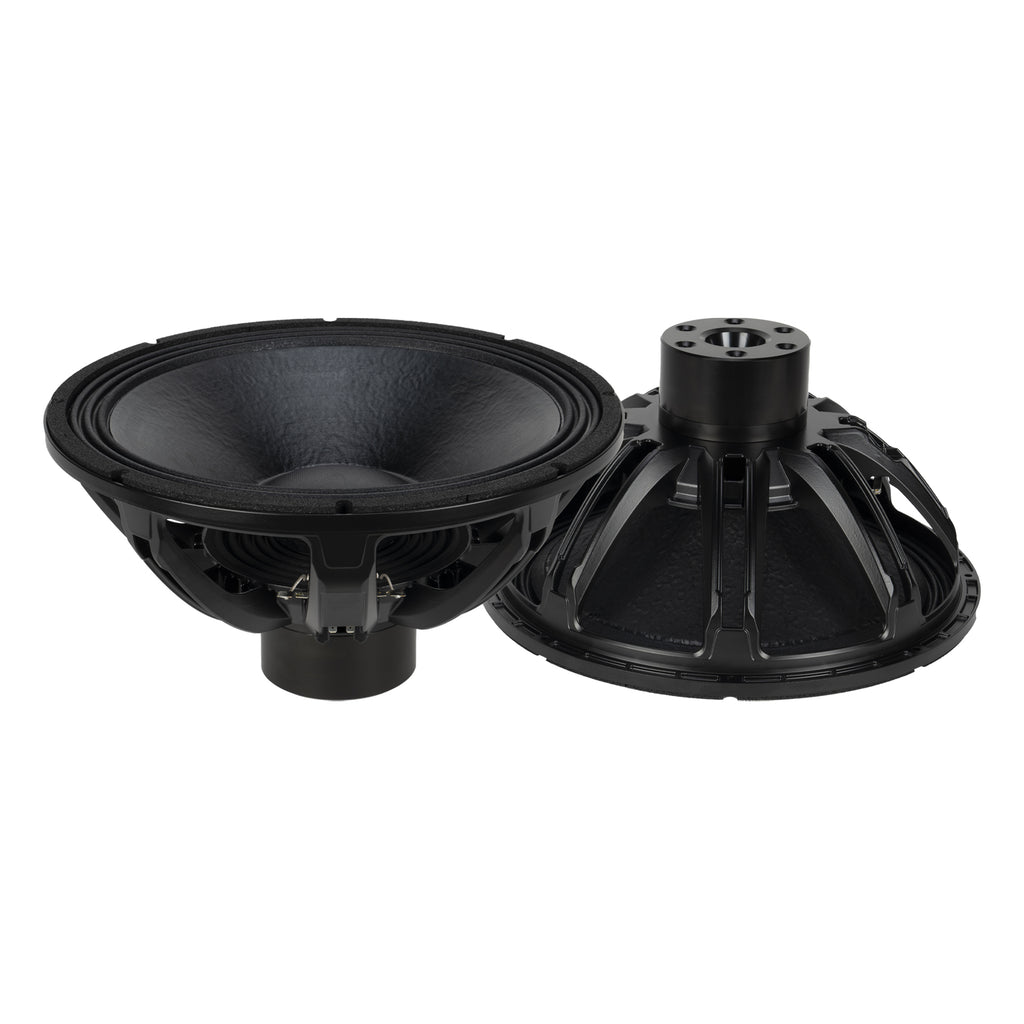

LN19S400 Woofer
The LN19S400 is a 19-inch extended low-frequency transducer designed with high excursion piston capabilities, perfect for vented enclosures where power and low-frequency extension are priorities. One of the key highlights of the transducer is its ultralight CCAW (copper-clad aluminum wire) voice coil, which is configured in a 4.0-inch, 4-layer inside-outside voice coil with fiberglass former material. The ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) with high power and fast acceleration capabilities. Employing a cone assembly loaded with fibers and featuring a generous triple-roll surround, the LN19S400 is engineered to decrease flux modulations and enhance transient response. The Hyper-Vented dual-forced air system enhances voice coil ventilation, effectively minimizing power compression.
Features
- 4.0-inch Inside/Outside CCAW (copper-clad aluminum wire) voice coil
- 3000 Watt continuous program power handling
- 98.5 dB Sensitivity
- 25 Hz - 1 kHz Frequency range
- Hypervented magnetic structure for minimum power compression
- Triple roll surround and exponential cone geometry
- Single aluminum demodulation ring
Specifications
General specifications
| Nominal Diameter |
19 inch / 483 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
3000 W |
| Power handling capacity |
1500 W |
| Sensitivity |
98.5 dB |
| Frequency range |
25 - 1000 Hz |
| Effective piston diameter |
410 mm / 16.14 inch |
| Max. Excursion Before Damage |
59 mm / 2.32 inch |
| Minimum Impedance (ohm) |
6.2 ohm |
| Voice Coil Diameter |
4.0 inch / 102 mm |
| Voice Coil Winding Material |
Aluminum |
| Voice Coil Length |
42 mm / 1.65 inch |
| Number of layers |
4 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
16 mm / 0.63 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
Triple roll |
| Magnets |
Neodymium |
| Hypervented magnetic structure |
Yes |
| Dual-force air ventilation |
Yes |
| Demodulation Rings material |
Aluminum |
| Number of Demodulation Rings |
1 |
| Spider |
Triple layer sandwich spider |
| Demodulation Ring |
Yes |
Thiele - small parameters
| Resonance frequency (Fs) |
32 Hz |
| DC resistance (Re) (ohm) |
4.70 ohm |
| Mechanical factor |
4.00 Qms |
| Electrical factor |
0.27 Qes |
| Total factor |
0.26 Qts |
| Bl factor (Bl) (T x m) |
32.00 T x m |
| Effective moving mass (Mms) |
296.0 g |
| Equivalent Cas air loaded (Vas) |
204.0 liters |
| Effective piston area (Sd) |
0.132 m2 |
| Max. linear excursion (Xmax) |
17 mm |
| Voice coil inductance @ 1kHz (Le1k) |
3.40 mH |
| Half-space efficency (Eff) |
2.37% |
Mounting information
| Overall diameter |
480 mm / 18.9 inches |
| Bolt circle diameter |
460-462 mm / 18.11-18.19 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
446 mm / 17.56 inch |
| Rear mount baffle cut-out |
446 mm / 17.56 inch |
| Volume occupied by the driver |
10 liters / 0.39 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
232 mm / 9.13 inches |
| Diameter |
480 mm / 18.9 inches |
| Cut out diameter |
446 mm / 17.56 inches |
| Weight |
10.2 kg / 22.49 lbs |
Shipping information
| Package Height |
290 mm / 11.42 inches |
| Package Width |
505 mm / 19.88 inches |
| Package Depth |
515 mm / 20.28 inches |
| Package Weight |
10.9 kg / 24.03 lbs |
