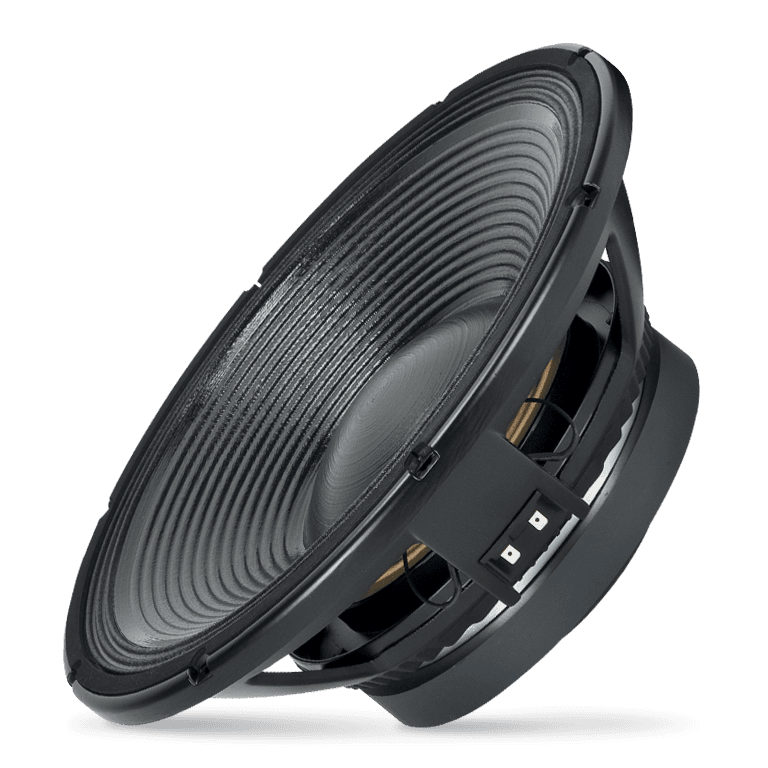

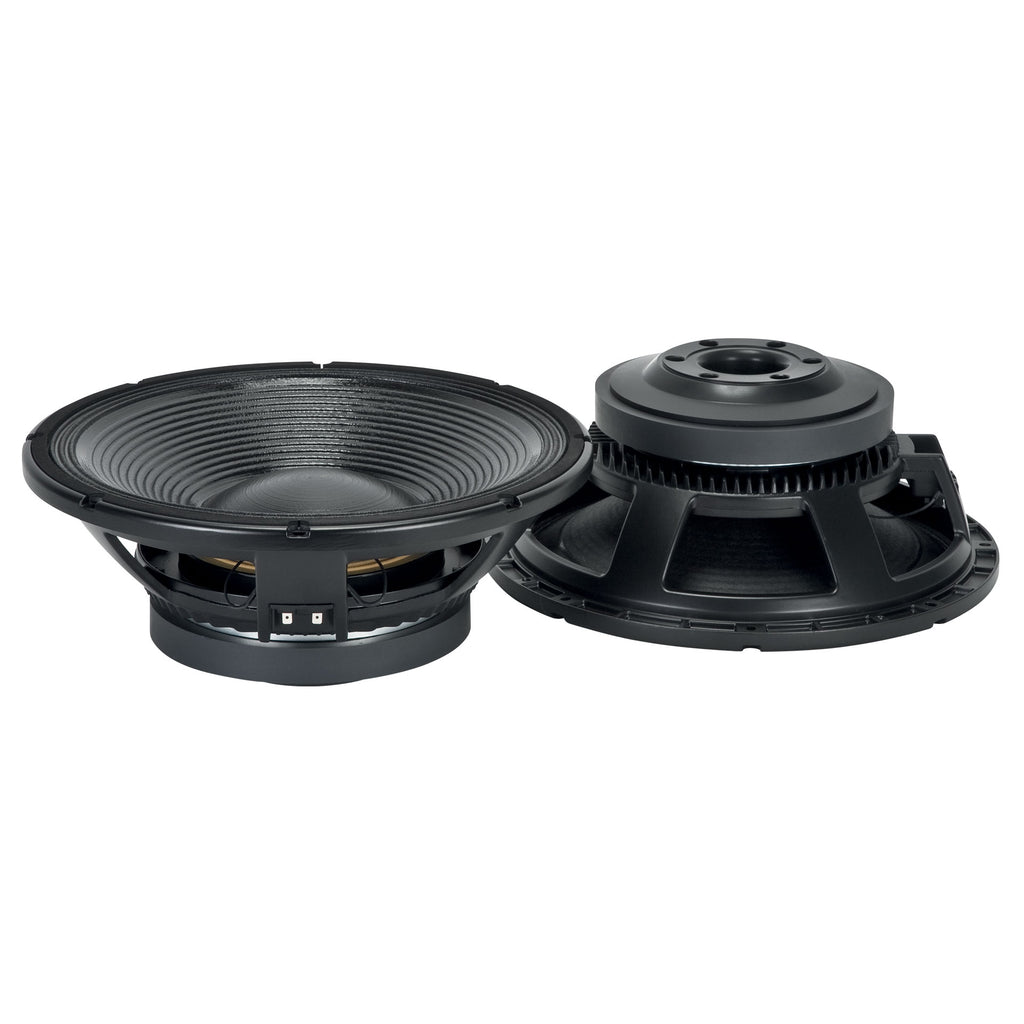

LF15X401 Woofer
Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The LF15X401 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 3000W continuous program power handling
- 96.5 dB Sensitivity
- 30 Hz - 1.5 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
Specifications
General specifications
| Nominal Diameter |
15 inch / 381 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
3000 W |
| Power handling capacity |
1500 W |
| Sensitivity |
96.5 dB |
| Frequency range |
30 - 1500 Hz |
| Effective piston diameter |
340 mm / 13.39 inch |
| Max. Excursion Before Damage |
50 mm / 1.97 inch |
| Minimum Impedance (ohm) |
6.5 ohm |
| Voice Coil Diameter |
4.0 inch / 102 mm |
| Voice Coil Length |
30 mm / 1.18 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
15 mm / 0.59 inch |
| Cone Design |
Straight |
| Surround Design |
Triple roll |
| Dual-force air ventilation |
Yes |
Thiele - small parameters
| Resonance frequency (Fs) |
34 Hz |
| DC resistance (Re) (ohm) |
5.50 ohm |
| Mechanical factor |
7.60 Qms |
| Electrical factor |
0.30 Qes |
| Total factor |
0.29 Qts |
| Bl factor (Bl) (T x m) |
26.50 T x m |
| Effective moving mass (Mms) |
170.0 g |
| Equivalent Cas air loaded (Vas) |
146.0 liters |
| Effective piston area (Sd) |
0.090 m2 |
| Max. linear excursion (Xmax) |
12 mm |
| Voice coil inductance @ 1kHz (Le1k) |
1.30 mH |
| Half-space efficency (Eff) |
1.90% |
Mounting information
| Overall diameter |
393 mm / 15.47 inches |
| Bolt circle diameter |
371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
354 mm / 13.94 inch |
| Rear mount baffle cut-out |
354 mm / 13.94 inch |
| Volume occupied by the driver |
4.3 liters / 0.17 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
161 mm / 6.34 inches |
| Diameter |
393 mm / 15.47 inches |
| Weight |
12 kg / 26.46 lbs |
Shipping information
| Package Height |
209 mm / 8.23 inches |
| Package Width |
439 mm / 17.28 inches |
| Package Depth |
434 mm / 17.09 inches |
| Package Weight |
13.5 kg / 29.76 lbs |
