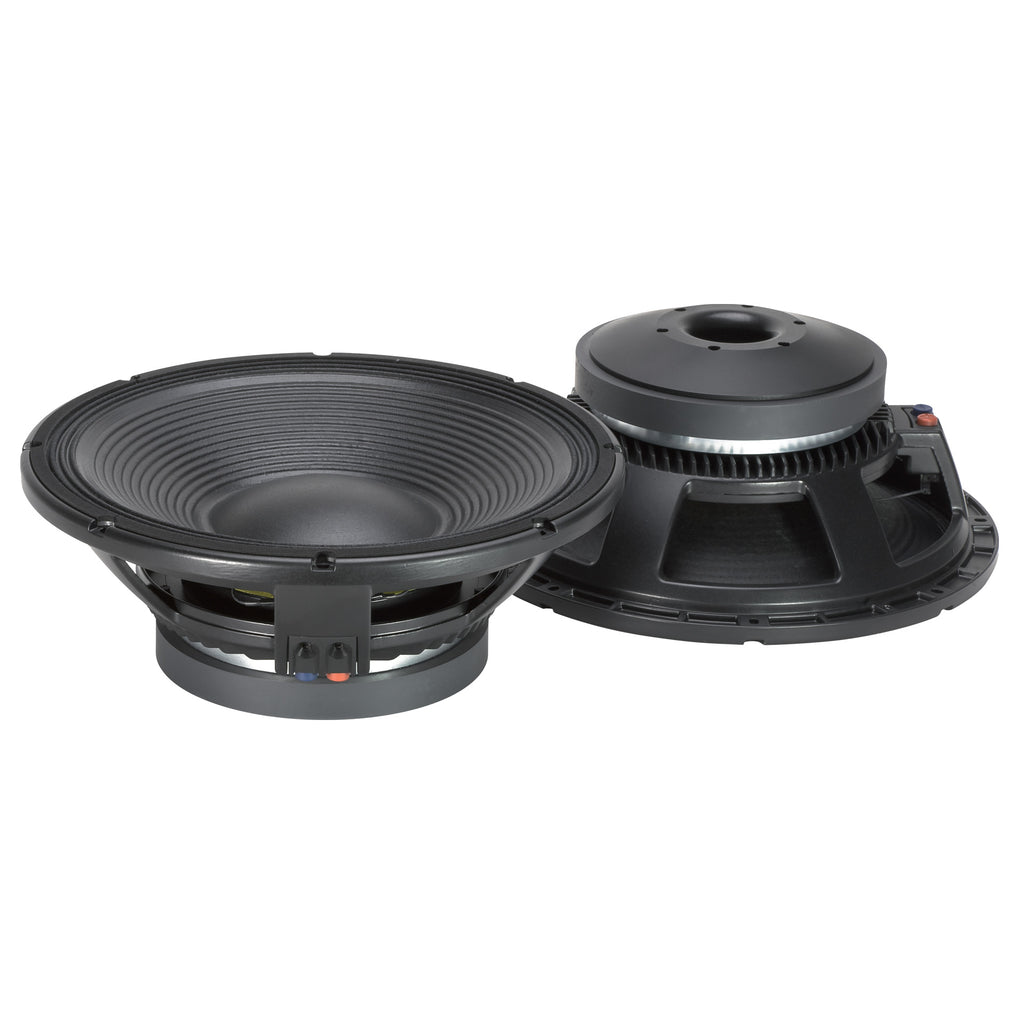

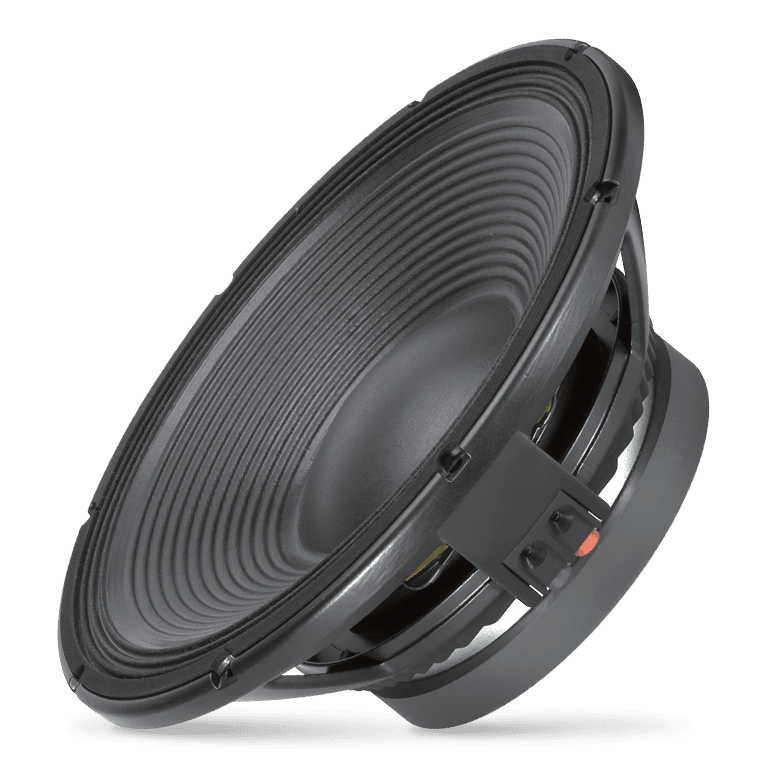

L15P400 Woofer
Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch trasducer wtihin its application range. The L15P400 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reachees its maximum excursion limits.Forced air venting system.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 1600W continuous program power handling
- 97 dB Sensitivity
- 30 Hz - 1.5 kHz Frequency range
- Aluminum demodulation ring
- Forced air ventilation and 14mm top plate for minimum power compression
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
Specifications
General specifications
| Nominal Diameter |
15 inch / 381 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
1600 W |
| Power handling capacity |
800 W |
| Sensitivity |
97.0 dB |
| Frequency range |
30 - 1500 Hz |
| Effective piston diameter |
340 mm / 13.39 inch |
| Max. Excursion Before Damage |
50 mm / 1.97 inch |
| Minimum Impedance (ohm) |
6.3 ohm |
| Voice Coil Diameter |
4.0 inch / 102 mm |
| Voice Coil Winding Material |
Copper |
| Voice Coil Length |
23 mm / 0.91 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
14 mm / 0.55 inch |
| Cone Design |
Straight |
| Surround Material |
Polycotton |
| Surround Design |
Triple roll |
| Magnets |
Ceramic |
| Dual-force air ventilation |
Yes |
| Spider |
03 |
Thiele - small parameters
| Resonance frequency (Fs) |
36 Hz |
| DC resistance (Re) (ohm) |
4.80 ohm |
| Mechanical factor |
7.50 Qms |
| Electrical factor |
0.27 Qes |
| Total factor |
0.25 Qts |
| Bl factor (Bl) (T x m) |
24.80 T x m |
| Effective moving mass (Mms) |
150.0 g |
| Equivalent Cas air loaded (Vas) |
160.0 liters |
| Effective piston area (Sd) |
0.090 m2 |
| Max. linear excursion (Xmax) |
8 mm |
| Voice coil inductance @ 1kHz (Le1k) |
1.20 mH |
| Half-space efficency (Eff) |
2.60% |
Mounting information
| Overall diameter |
393 mm / 15.47 inches |
| Bolt circle diameter |
371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
352 mm / 13.86 inch |
| Rear mount baffle cut-out |
360 mm / 14.17 inch |
| Volume occupied by the driver |
4.3 liters / 0.17 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
159 mm / 6.26 inches |
| Diameter |
393 mm / 15.47 inches |
| Weight |
13.5 kg / 29.76 lbs |
Shipping information
| Package Height |
195 mm / 7.68 inches |
| Package Width |
420 mm / 16.54 inches |
| Package Depth |
425 mm / 16.73 inches |
| Package Weight |
15.5 kg / 34.17 lbs |
