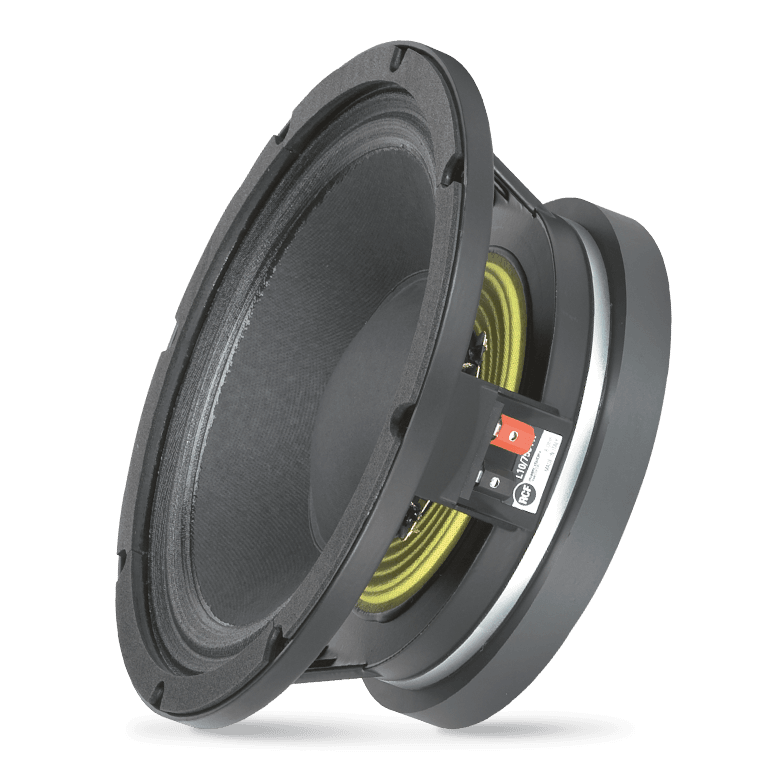

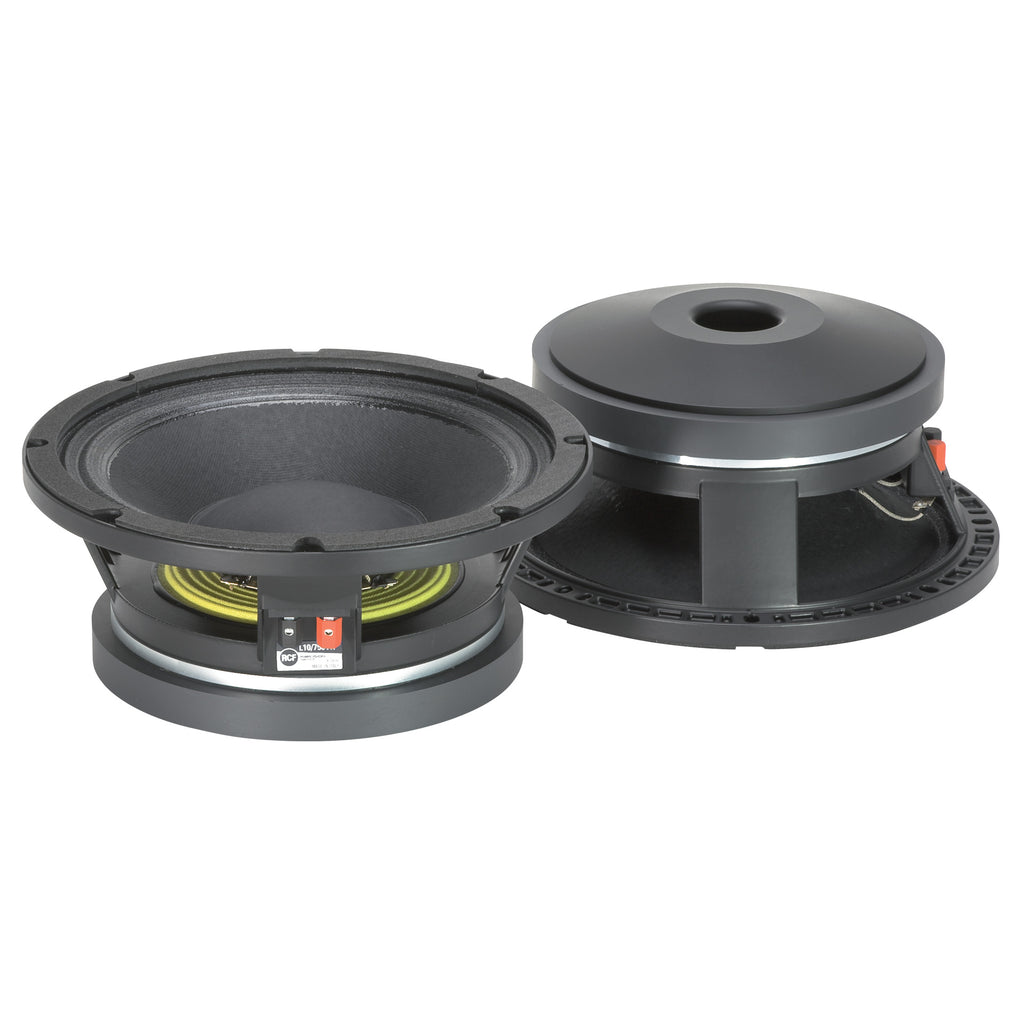

L10-750YK Mid-Bass
The L10-750YK is a professional mid-bass woofer featuring very high output and dynamics. The mobile equipment, used a 3" coil, fiberglass former and copper wire winding, has enable considerable improvement in transient peak response and has allowed good extension on mid-high frequencies. A specially designed M-roll surround guarantee a very low midrange distortion and perfect damping of the spurious resonances.
Features
- 3-inch, fiberglass inside/outside copper voice coil
- 700W continuous program power handling
- 100 dB Sensitivity
- 70 Hz - 3 kHz Frequency range
- Shaped M-roll damped surround
Specifications
General specifications
| Nominal Diameter |
10 inch / 254 mm |
| Rated Impedance |
8 ohm |
| Program Power (watt) |
700 W |
| Power handling capacity |
350 W |
| Sensitivity |
100.0 dB |
| Frequency range |
70 - 3000 Hz |
| Effective piston diameter |
210 mm / 8.27 inch |
| Max. Excursion Before Damage |
40 mm / 1.57 inch |
| Minimum Impedance (ohm) |
7.0 ohm |
| Voice Coil Diameter |
3.0 inch / 76 mm |
| Voice Coil Winding Material |
Copper |
| Voice Coil Length |
9 mm / 0.35 inch |
| Number of layers |
2 |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
9 mm / 0.35 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Ceramic |
| Spider |
01 |
Thiele - small parameters
| Resonance frequency (Fs) |
68 Hz |
| DC resistance (Re) (ohm) |
5.10 ohm |
| Mechanical factor |
4.20 Qms |
| Electrical factor |
0.25 Qes |
| Total factor |
0.24 Qts |
| Bl factor (Bl) (T x m) |
17.50 T x m |
| Effective moving mass (Mms) |
36.0 g |
| Equivalent Cas air loaded (Vas) |
26.0 liters |
| Effective piston area (Sd) |
0.040 m2 |
| Max. linear excursion (Xmax) |
3 mm |
| Voice coil inductance @ 1kHz (Le1k) |
0.50 mH |
| Half-space efficency (Eff) |
3.15% |
Mounting information
| Overall diameter |
260 mm / 10.24 inches |
| Bolt circle diameter |
242-247 mm / 9.53-9.72 inch |
| Bolt hole diameter |
6 mm / 0.24 inch |
| Front mount baffle cut-out |
230 mm / 9.06 inch |
| Rear mount baffle cut-out |
229 mm / 9.02 inch |
| Volume occupied by the driver |
1.2 liters / 0.05 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
Size / Weight
| Height |
117 mm / 4.61 inches |
| Diameter |
260 mm / 10.24 inches |
| Weight |
7 kg / 15.43 lbs |
Shipping information
| Package Height |
185 mm / 7.28 inches |
| Package Width |
290 mm / 11.42 inches |
| Package Depth |
285 mm / 11.22 inches |
| Package Weight |
7.9 kg / 17.42 lbs |
