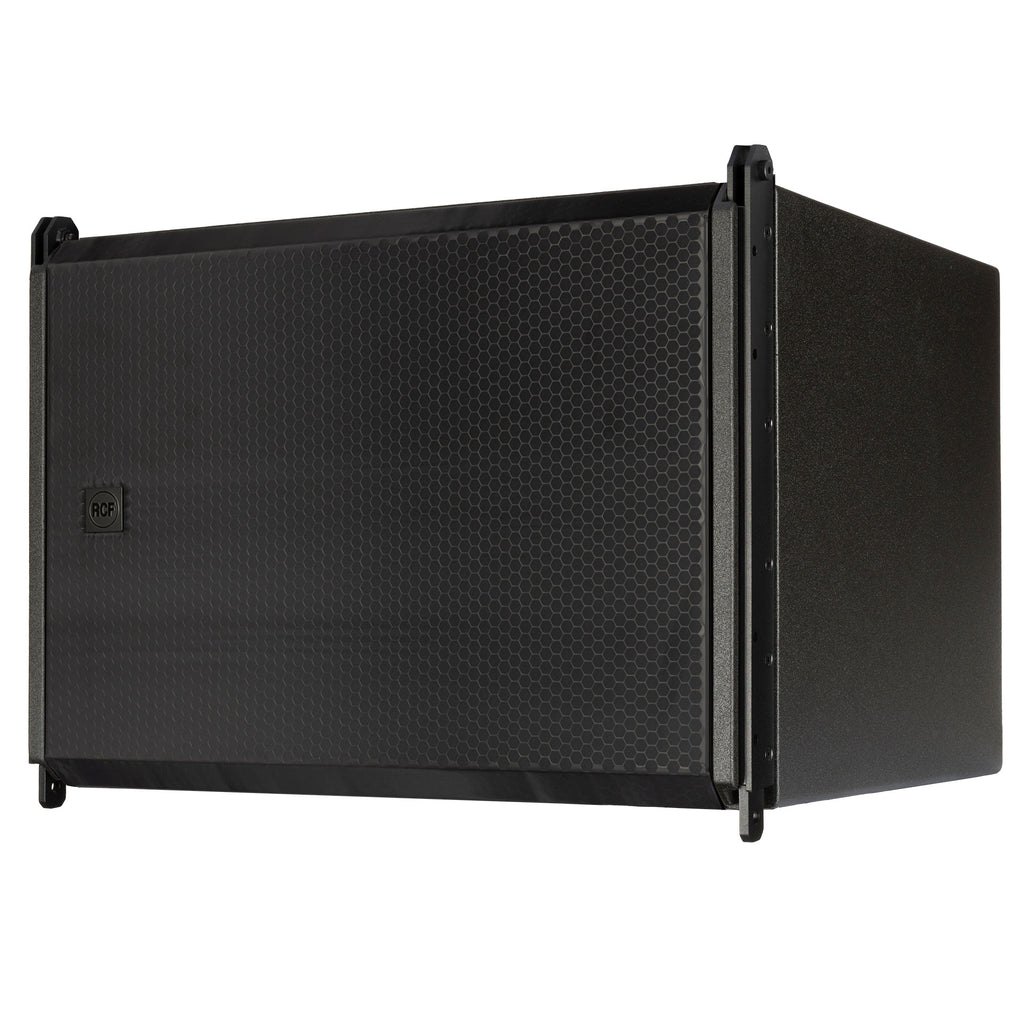

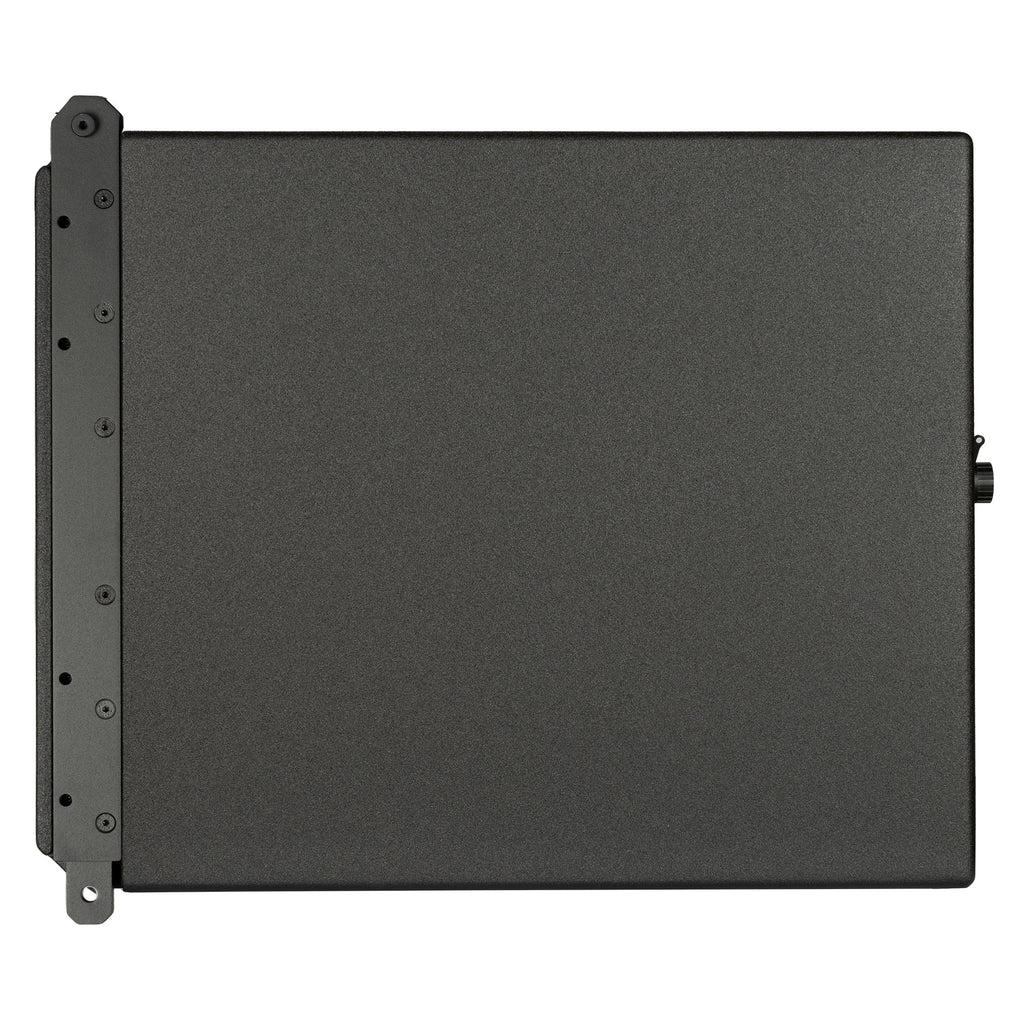

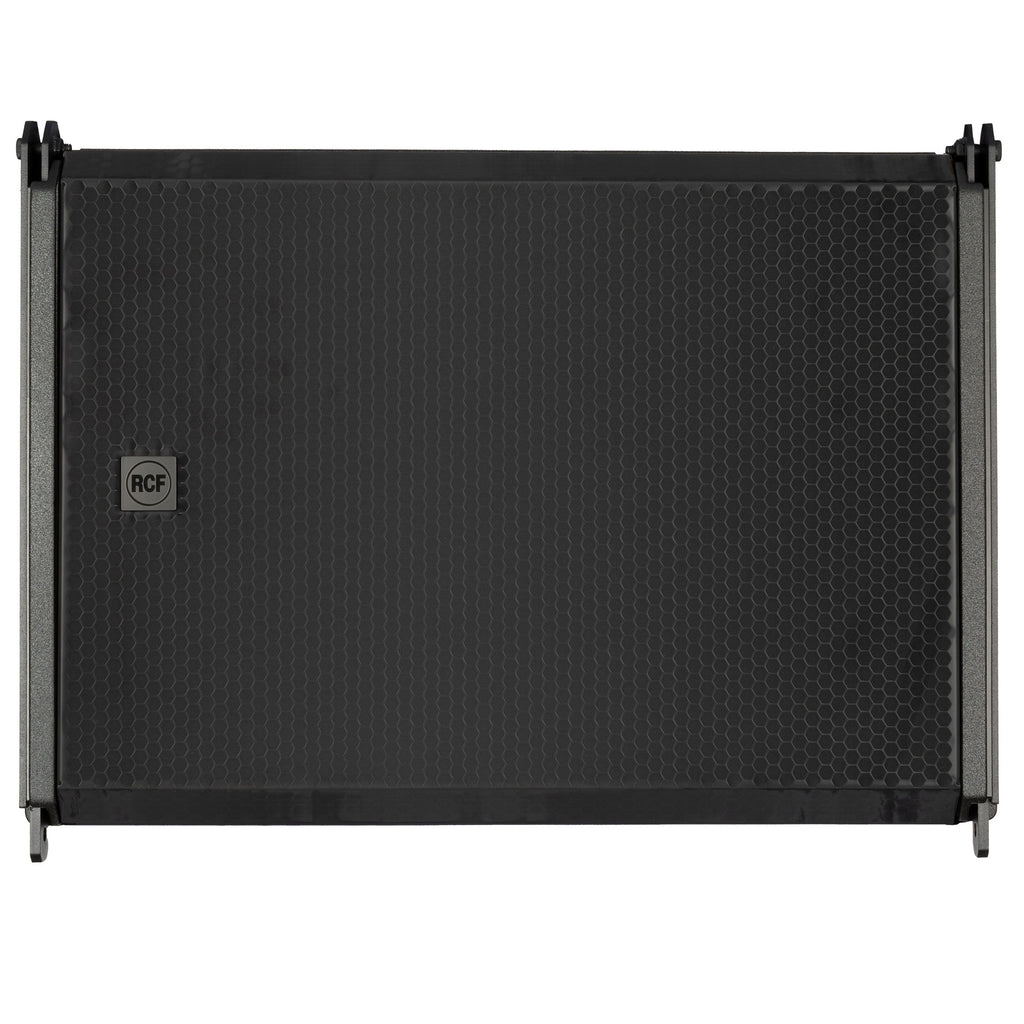

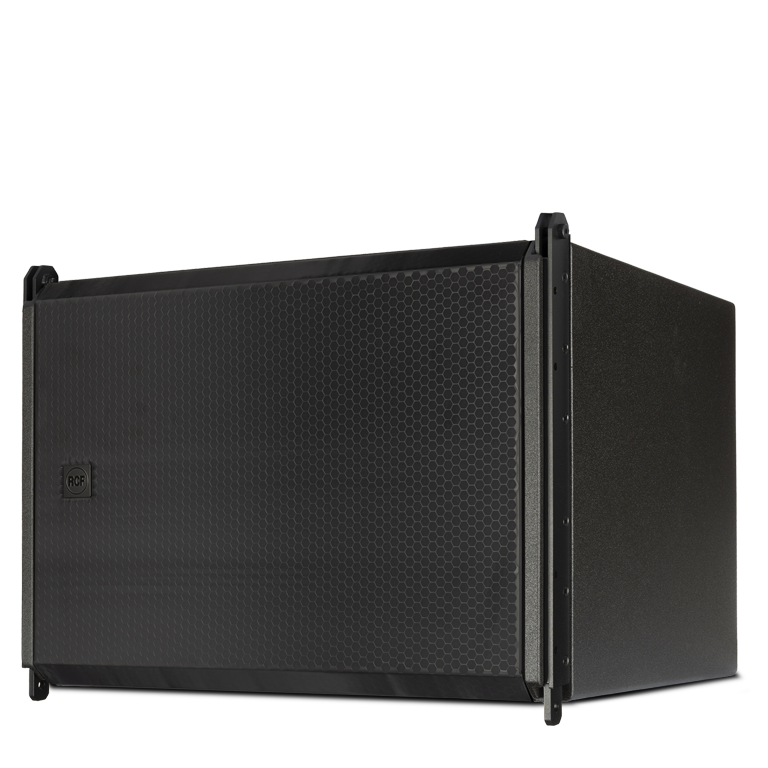

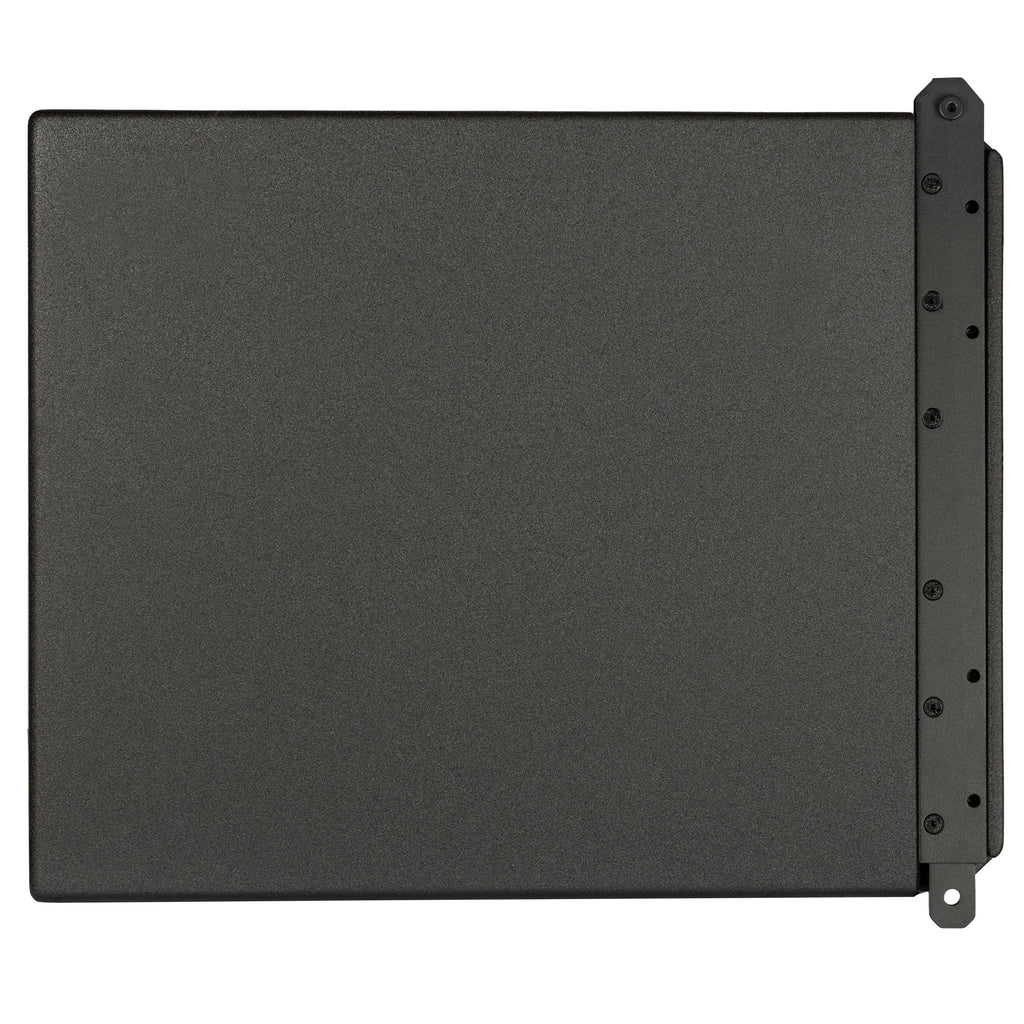

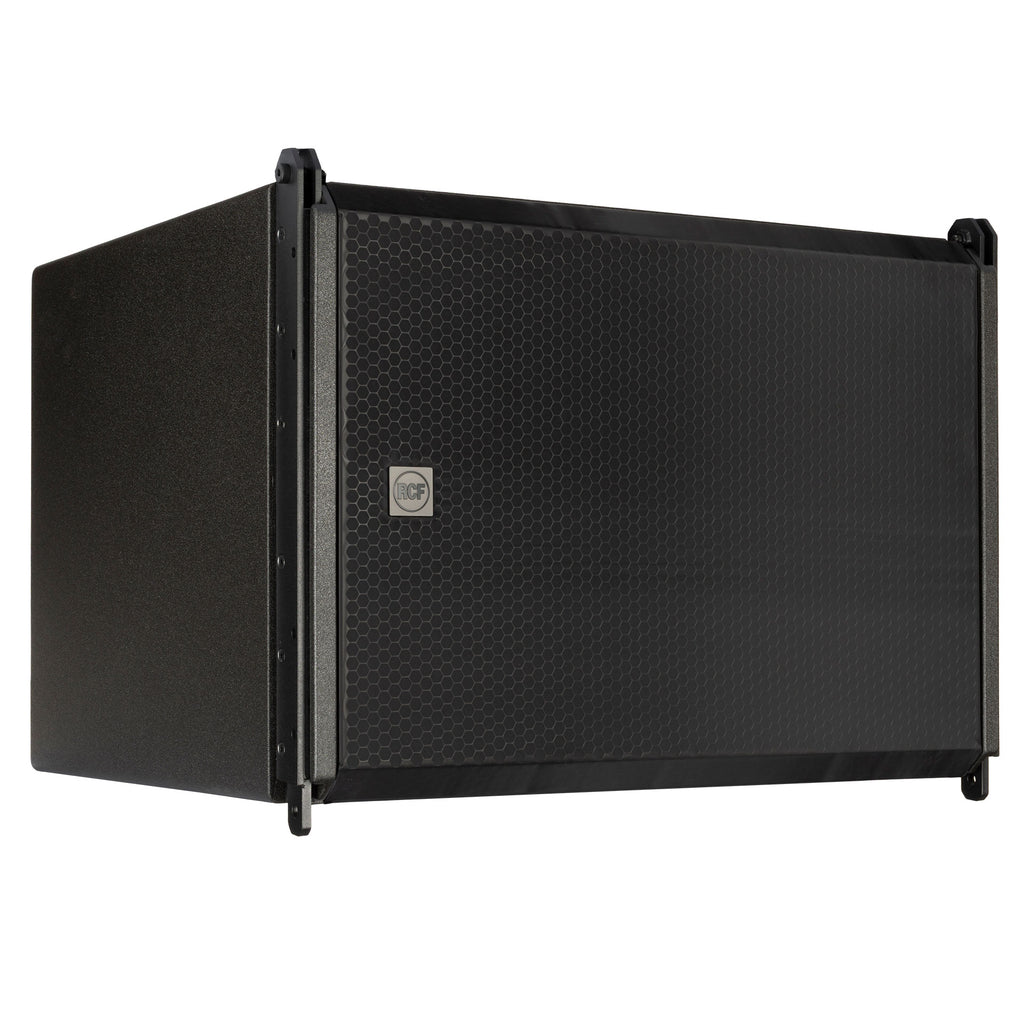

HL 38-S WP Professional Flyable Subwoofer
The HL 38-S is a professional subwoofer designed to deliver powerful and deep bass in outdoor environments. Thanks to its robust construction and resistant materials, it is ideal for outdoor events, concerts, fixed installations and any situation that requires high audio performance. It features a high-quality Baltic birch plywood cabinet, for impeccable sound reproduction and greater longevity, which houses a 18" neodymium transducer with a 4.0" voice coil capable of handling frequencies between 30 Hz and 140 Hz with maximum linearity and low distortion up to 136 dB. The hardware is designed for quick setup and optimal positioning in any context. The robust front grille is powder-coated and features a special acoustic-transparent coating that helps to further protect the transducers from dust and debris. The HL 38-S is the perfect solution for those looking for a reliable, durable subwoofer capable of ensuring exceptional performance in any condition.
Features
- 6000 W Peak Power Handling
- 136 dB max SPL
- 30 ÷ 140 Hz frequency range
- 1 x 18" high power woofer, 4.0'' v.c.
- High quality Baltic birch plywood cabinet
- Steel front grille with clothing
- IP 67 Amphenol connectors
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
30 Hz - 140 Hz |
| Max SPL @ 1m |
136 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
1500 W RMS |
| Peak Power Handling |
6000 W PEAK |
| Recommended Amplifiers |
XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K |
Transducers
| Woofer |
1 x 18'' neo, 4.0'' v.c |

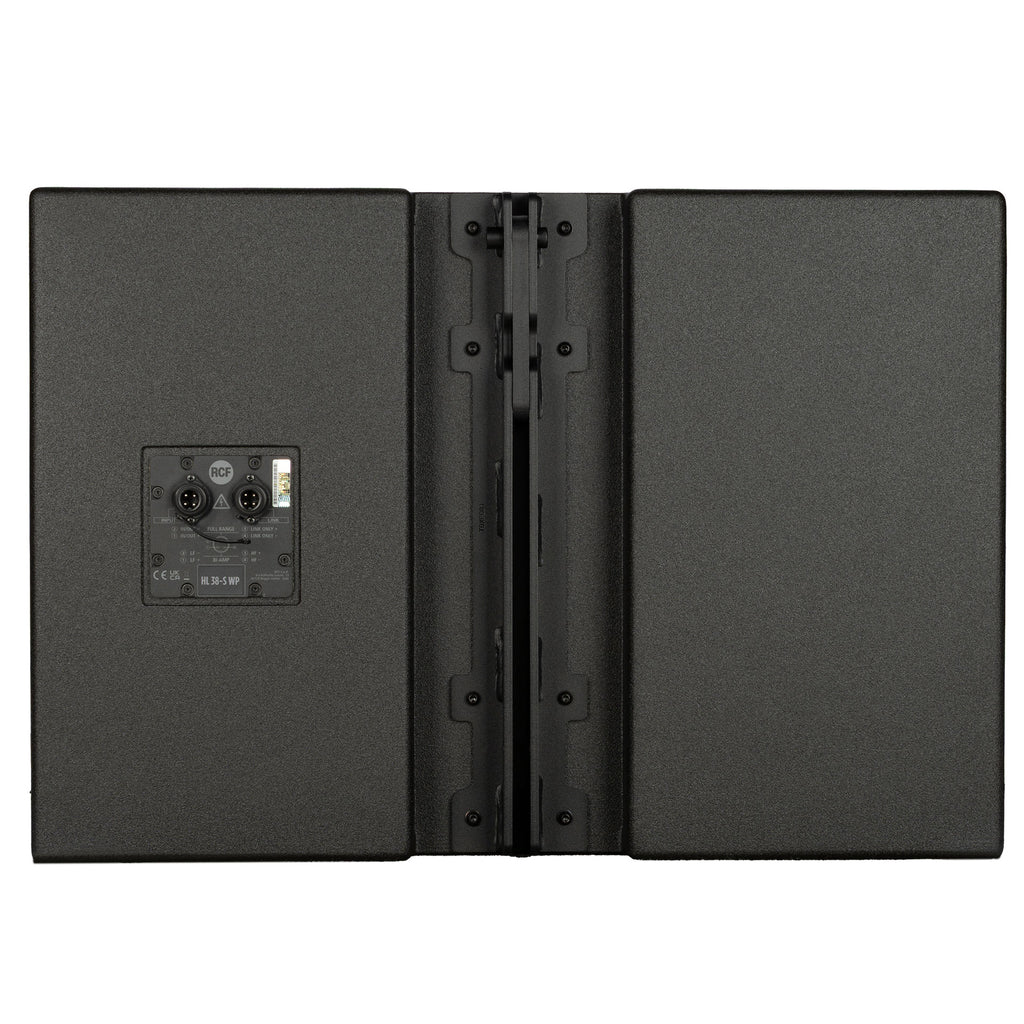

Input/Output section
| Input connectors |
Amphenol eco/mat IP 67 |
| Output connectors |
Amphenol eco/mat IP 67 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
Integrated array mechanics |
| Grille |
Steel grille with water-repellent protection |
| Color |
Black |
Size / Weight
| Height |
502 mm / 19.76 inches |
| Width |
728 mm / 28.66 inches |
| Depth |
563 mm / 22.17 inches |
| Weight |
48.7 kg / 107.36 lbs |
Shipping information
| Package Height |
550 mm / 21.65 inches |
| Package Width |
670 mm / 26.38 inches |
| Package Depth |
750 mm / 29.53 inches |
| Package Weight |
51 kg / 112.44 lbs |
