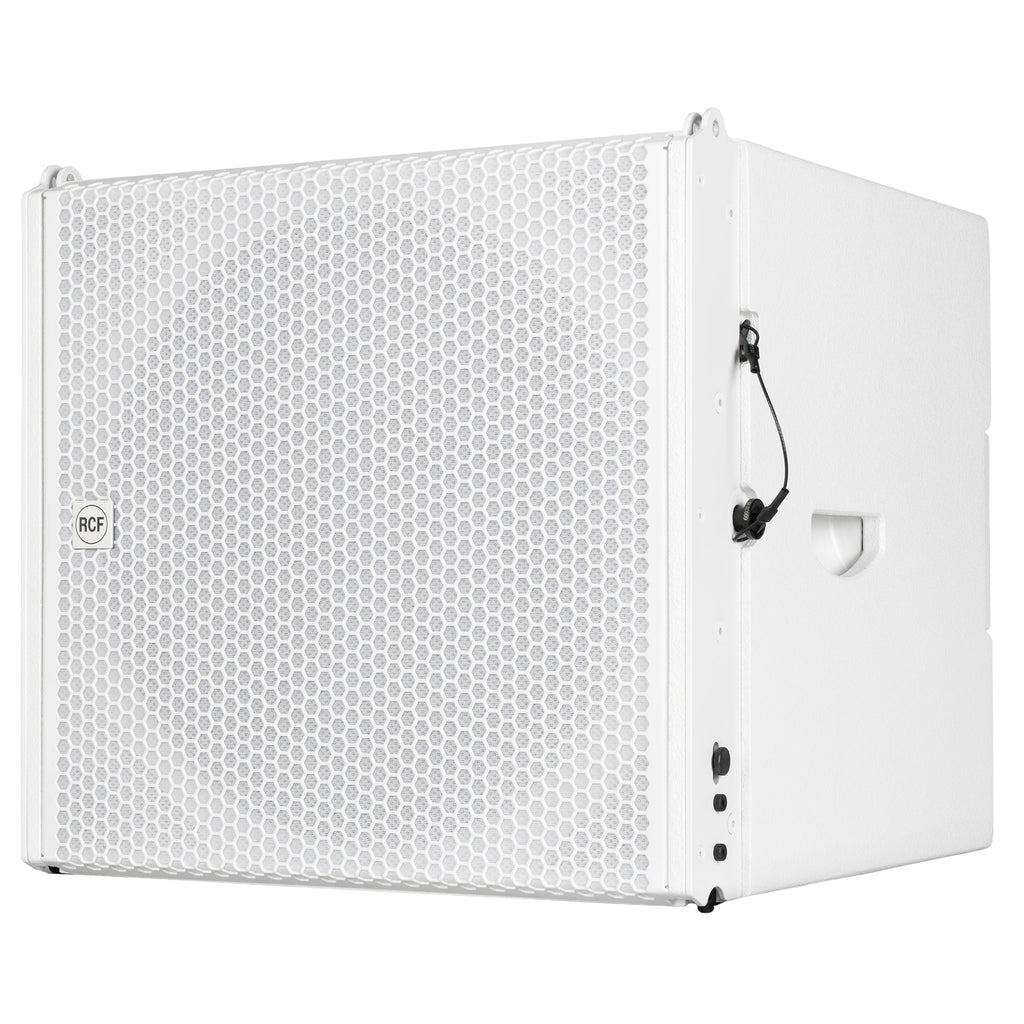

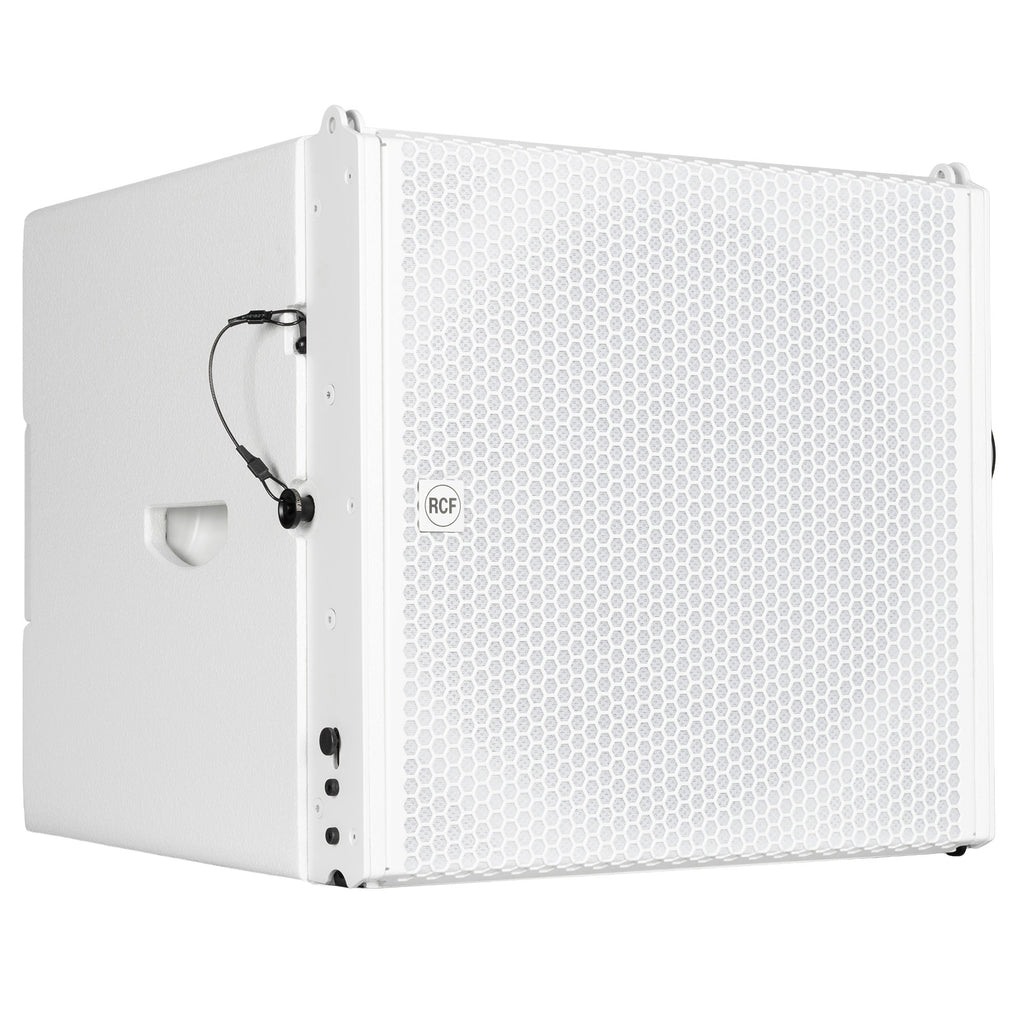

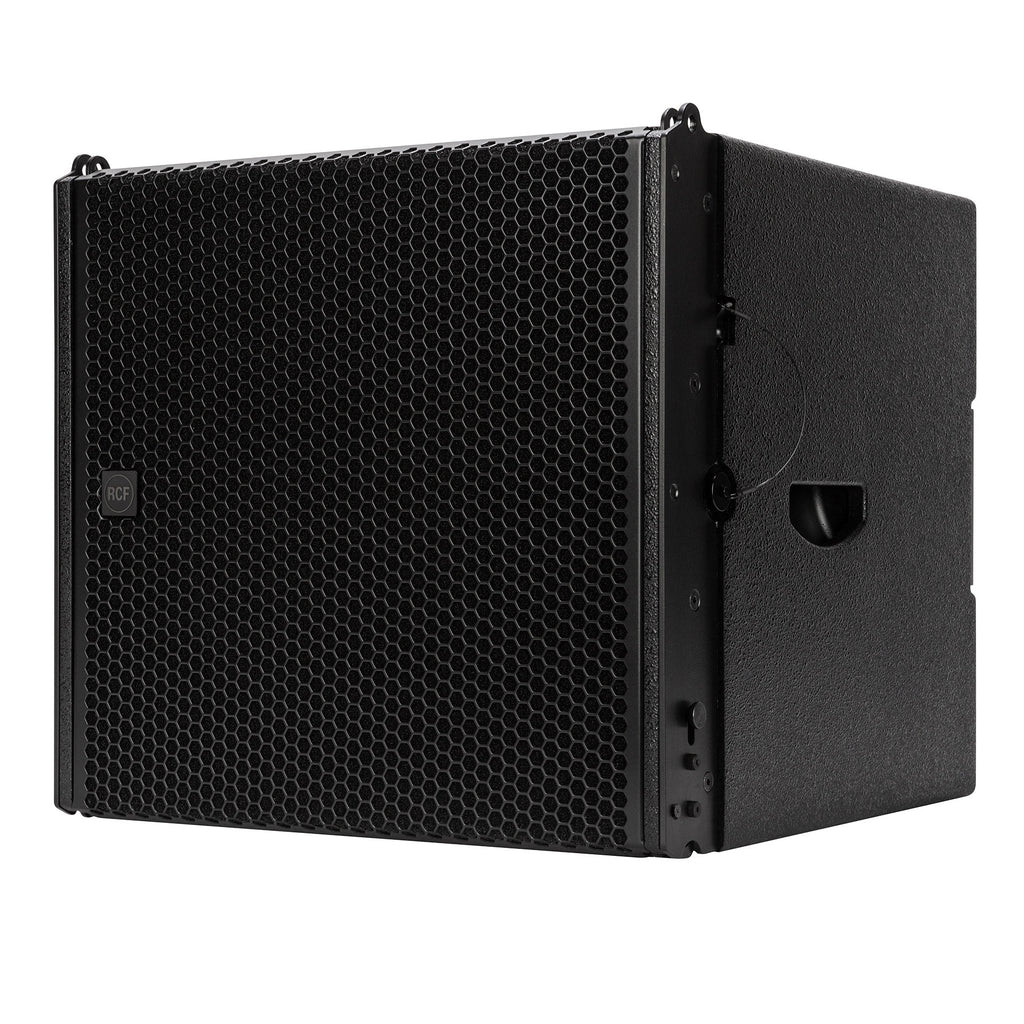

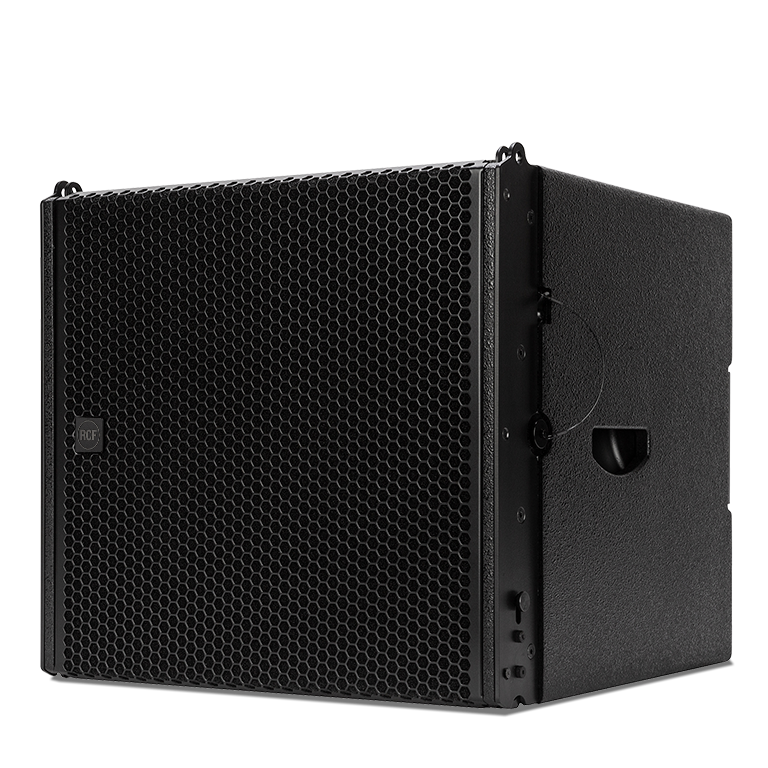

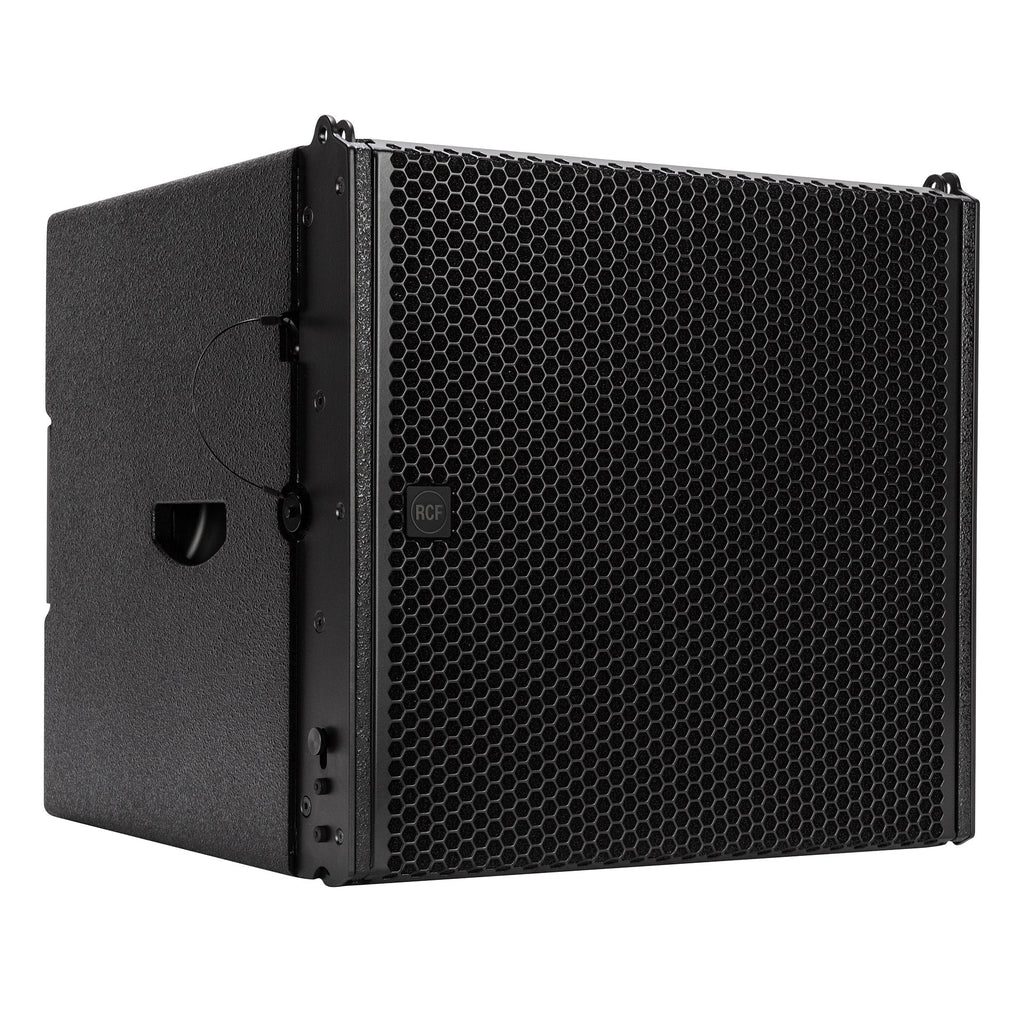

HL 35-S Flyable Passive Subwoofer
The HL 35-S is the ideal flyable bass complement for the HL 6 line array system. It features a Baltic birch plywood cabinet housing one 4.0” voice coil and a 15” neodymium woofer that handles frequencies from 40 Hz to 140 Hz, with maximum linearity and low distortion up to 134 dB. The hardware is designed for fast deployment and is completely compatible with HL 6 rigging. The heavy-duty front grille is powder-coated with a special transparent-to-sound foam backing inside that helps to further protect the transducers from dust and debris.
Features
- 3600W Peak Power Handling
- 134 dB Max SPL
- 40 ÷ 140 Hz Frequency Range
- 1 x 15" High-Power Woofer
- Baltic birch Plywood Cabinet
- Steel Front Grille with Cloth
- M20 Standard Pole Mount (top of cabinet)
- 2 x SpeakON Connectors
- XPS SERIES
- 40-bit Floating-point
- Processing at 96 kHz
- Ready-to-Use
- Configurations and presets for RCF speakers
- 2U Rack Space
- for both touring and installed sound systems
- Flexible 32-bit Routing
- with analog, digital
- and Dante I/O
- Advanced Fault Protections
- for each amplifier channel and power supply
Designed for installation
The passive architecture makes the HL 35-S one of the lightest 15" flyable bass modules on the market. Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array. Combining it with robust rigging and a wide range of accessories, it's the perfect solution for installation in both sports arenas, corporate environments, and music venues. The HL 35-AS provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
Precision transducers
Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.
Cabinet & mechanics

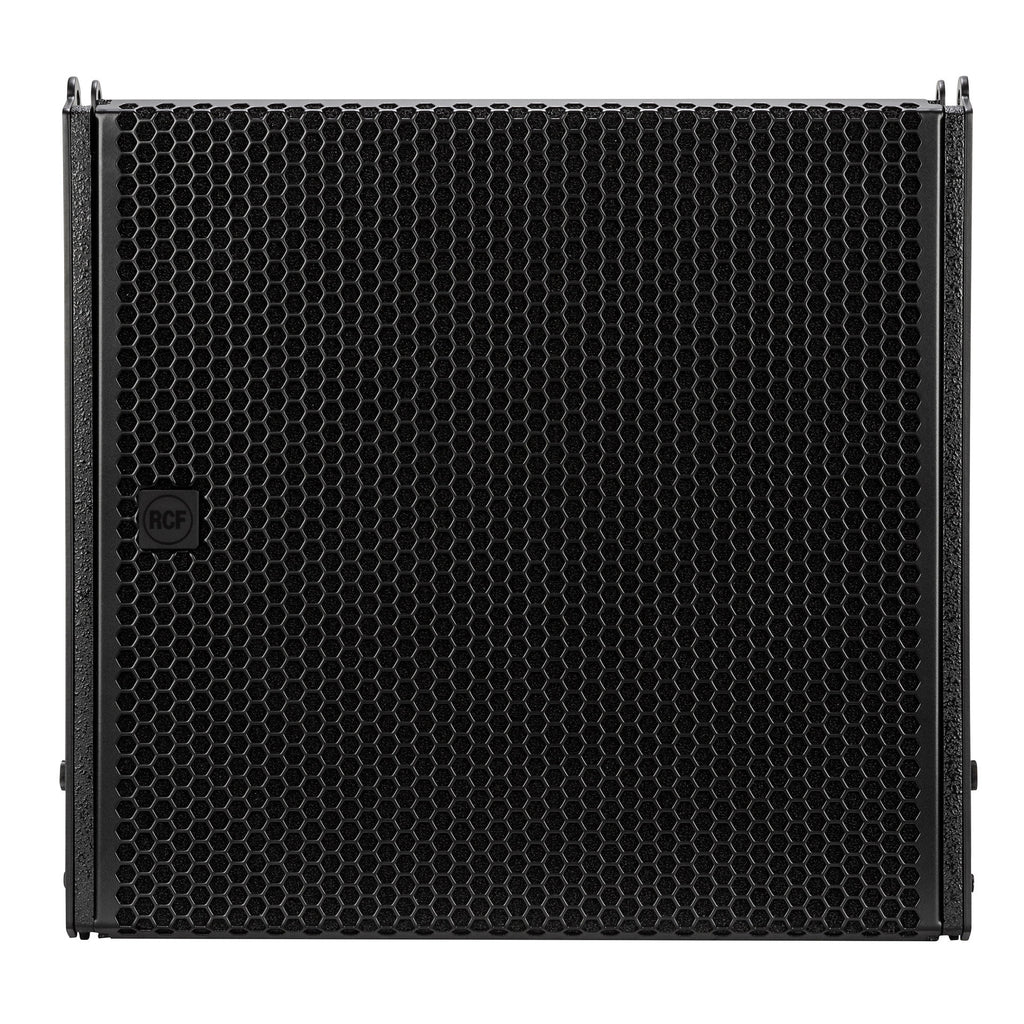

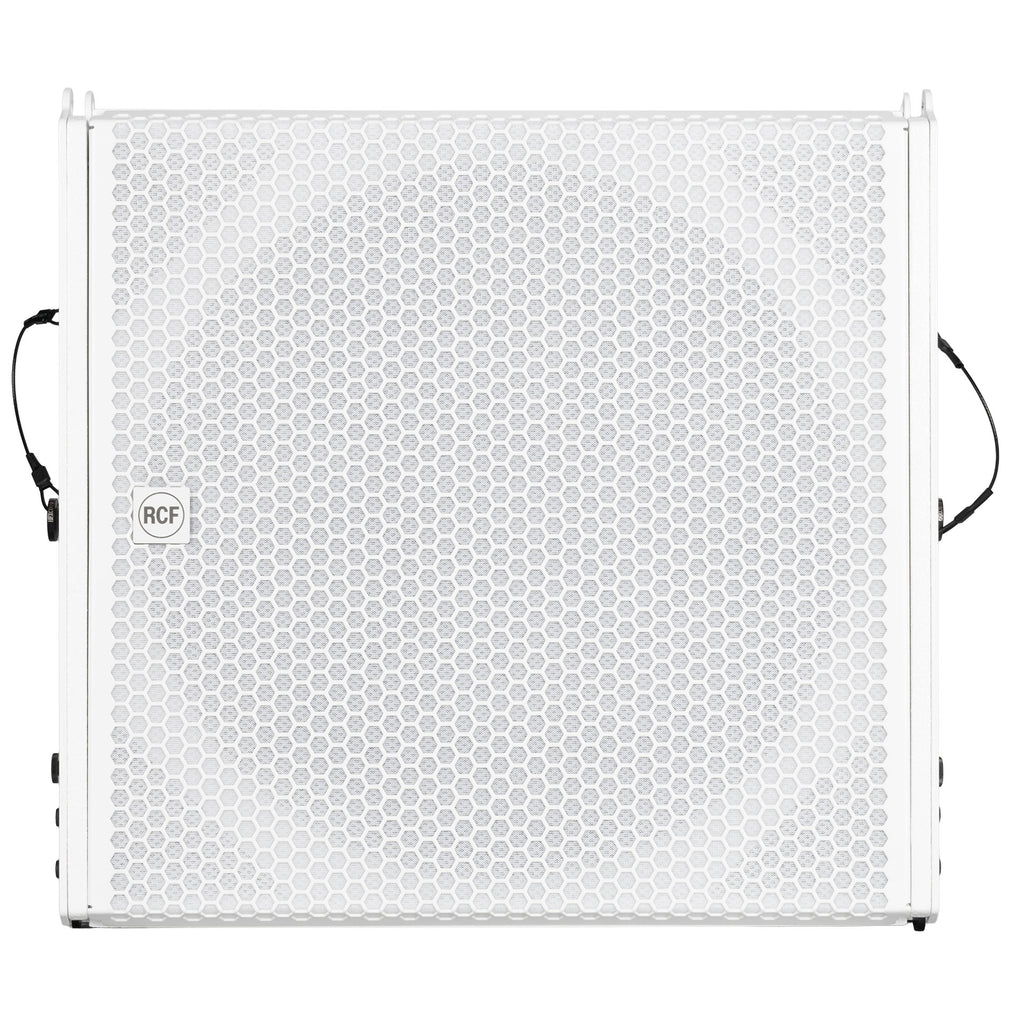

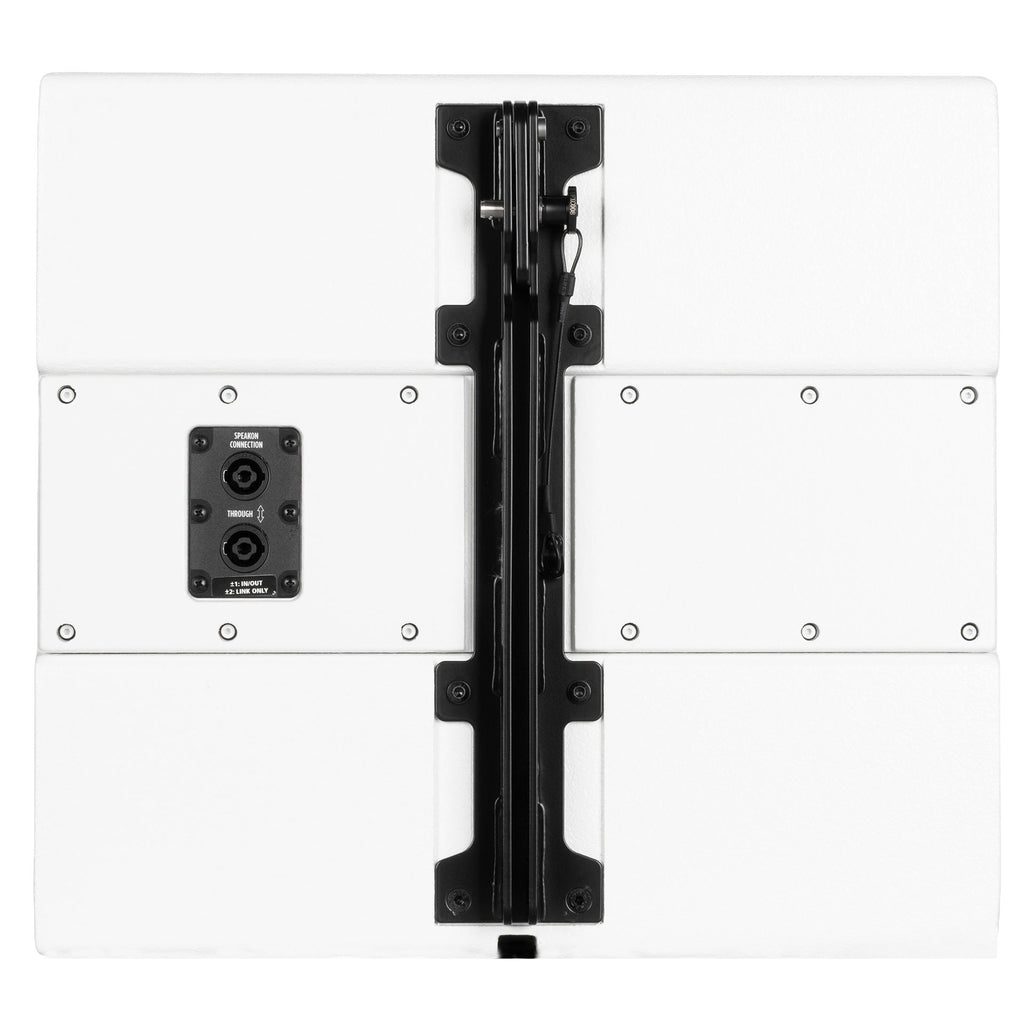

The hardware is designed for an easy and fast setup, completely compatibile with the HL 6 rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
The HL 6’s perfect low-frequency companion

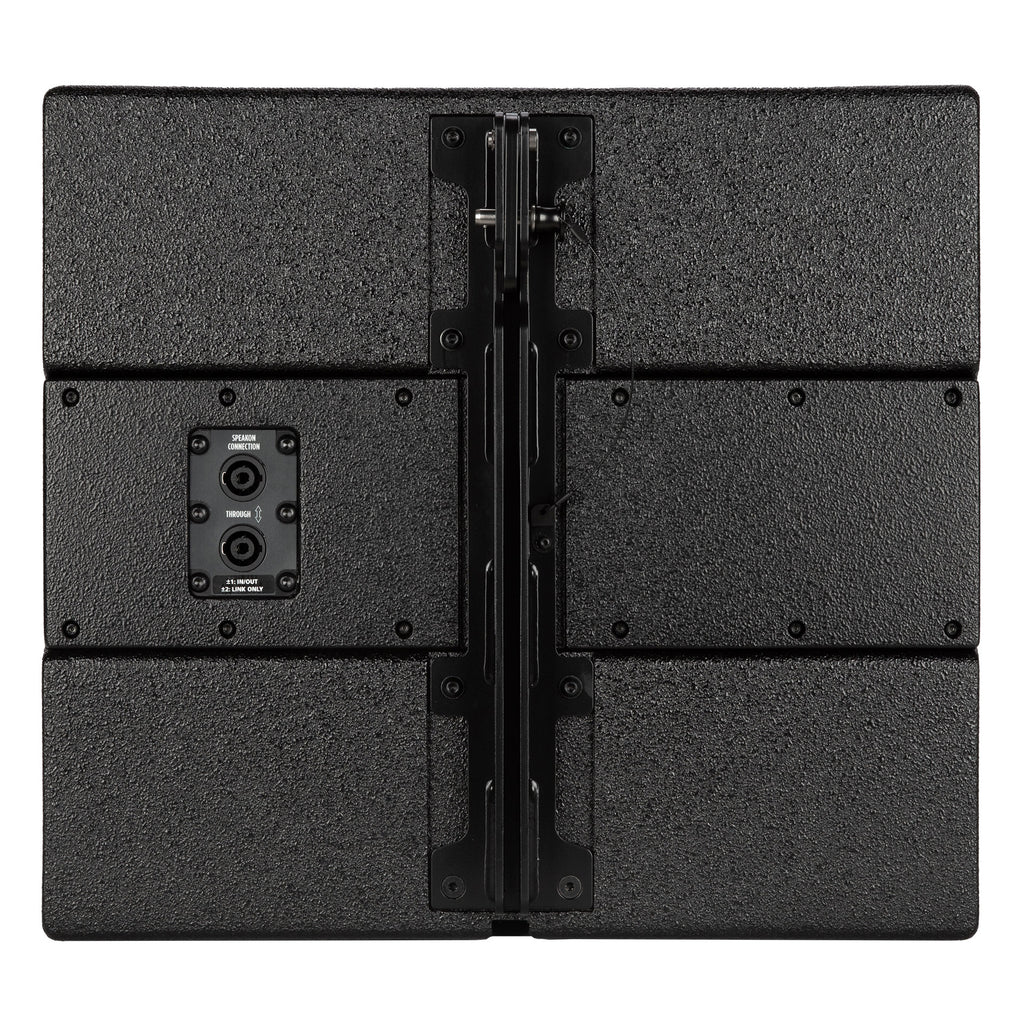

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6-A lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. The hardware is designed for easy and fast setup. The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
40 Hz - 140 Hz |
| Max SPL @ 1m |
134 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
900 W |
| Peak Power Handling |
3600 W PEAK |
Transducers
| Woofer |
1 x 15'' neo, 4.0'' v.c |
Input/Output section
| Input connectors |
Speakon |
| Output connectors |
Speakon |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
Integrated array mechanics |
| Handles |
On side panels |
| Pole mount/Cap |
M20 thread |
| Grille |
Steel |
| Color |
Black - RAL 9005, White - RAL 9003 |
Size / Weight
| Height |
444.5 mm / 17.5 inches |
| Width |
480 mm / 18.9 inches |
| Depth |
508 mm / 20 inches |
| Weight |
28 kg / 61.73 lbs |
Shipping information
| Package Height |
530 mm / 20.87 inches |
| Package Width |
560 mm / 22.05 inches |
| Package Depth |
525 mm / 20.67 inches |
| Package Weight |
33 kg / 72.75 lbs |
