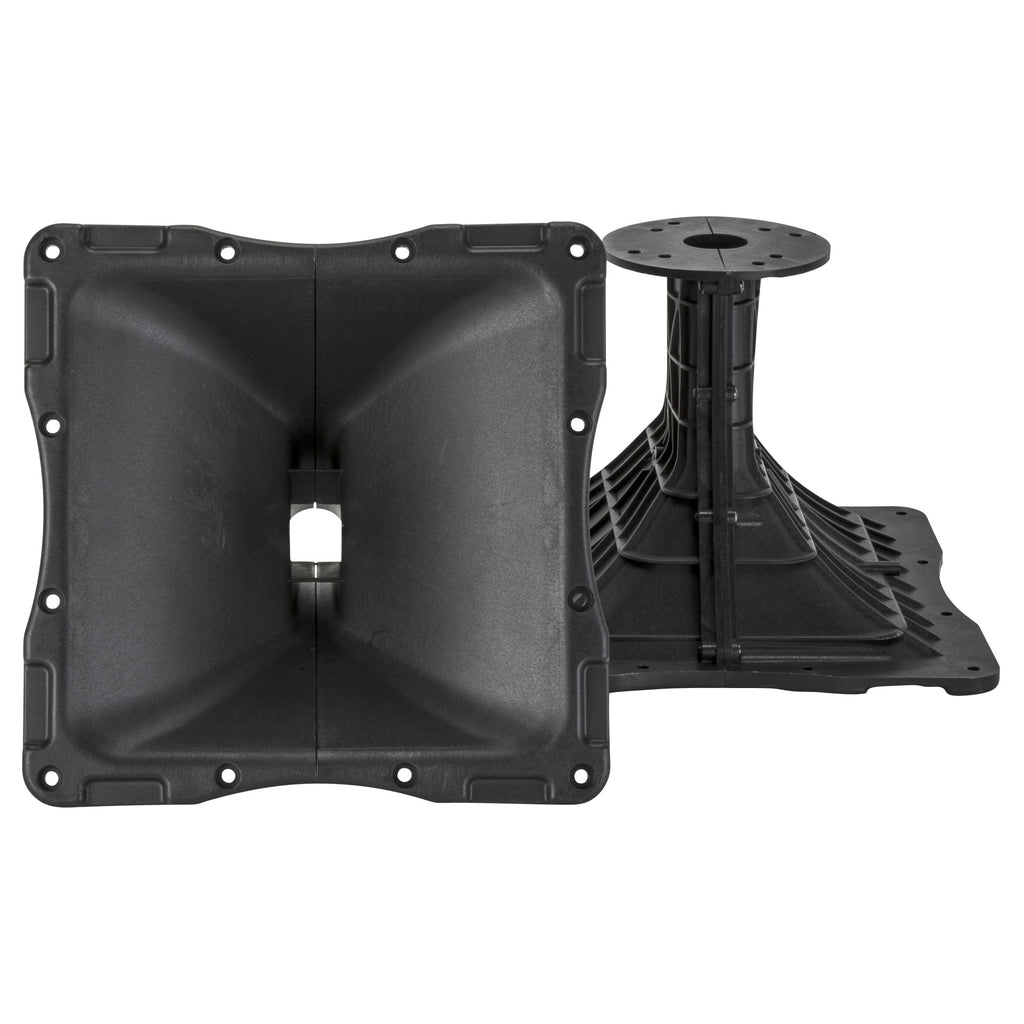

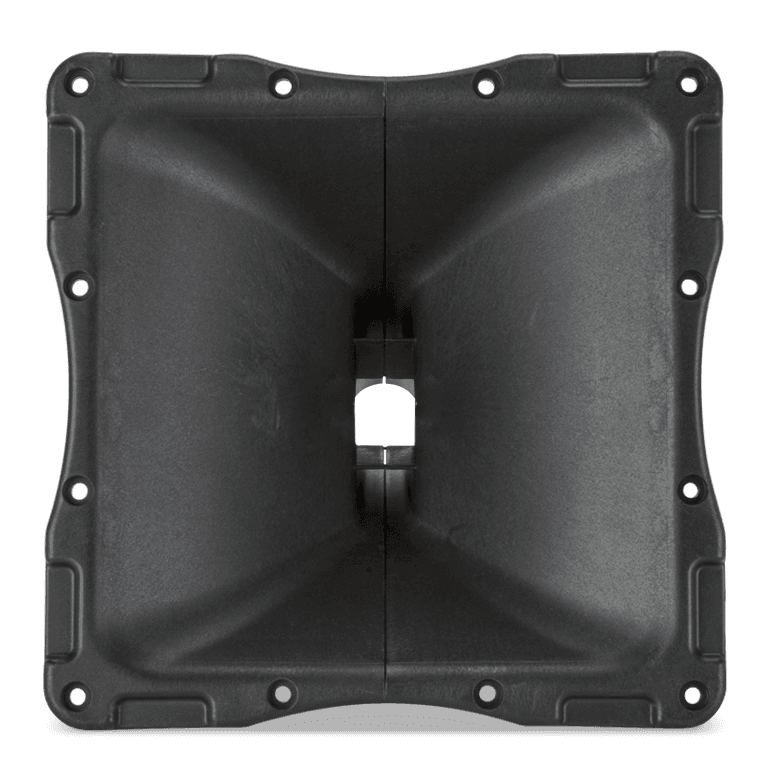

HF950 Pro HF Horn
1-inch/1.4 inch Throat Adaptor.90° x 50° Constant Directivity Coverage. Structural Polyurethane Perfectly Controlled Dispertion
Features
- 1.4 inch Throat Adaptor
- 90° x 50° Constant Directivity Coverage
- Loading down to 400 Hz
- Structural Polyurethane
- Perfectly Controlled Dispertion
Specifications
General specifications
| Throat Diameter |
36 mm / 1.4 inch |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
50° |
| Cut-off Frequency |
400 Hz |
| Material |
Structural Polyurethane |
Mounting information
| Overall height |
300 mm / 11.81 inches |
| Overall width |
300 mm / 11.81 inches |
| Overall depth |
208 mm / 8.19 inches |
| Baffle Cut-out height |
260 mm / 10.24 inches |
| Baffle Cut-out width |
260 mm / 10.24 inches |
| Mounting |
4 x 7 mm holes, interaxes 101 mm |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
221 mm / 8.7 inches |
| Diameter |
270 mm / 10.63 inches |
| Weight |
1.17 kg / 2.58 lbs |
Shipping information
| Package Height |
239 mm / 9.41 inches |
| Package Width |
332 mm / 13.07 inches |
| Package Depth |
332 mm / 13.07 inches |
| Package Weight |
2.1 kg / 4.63 lbs |
