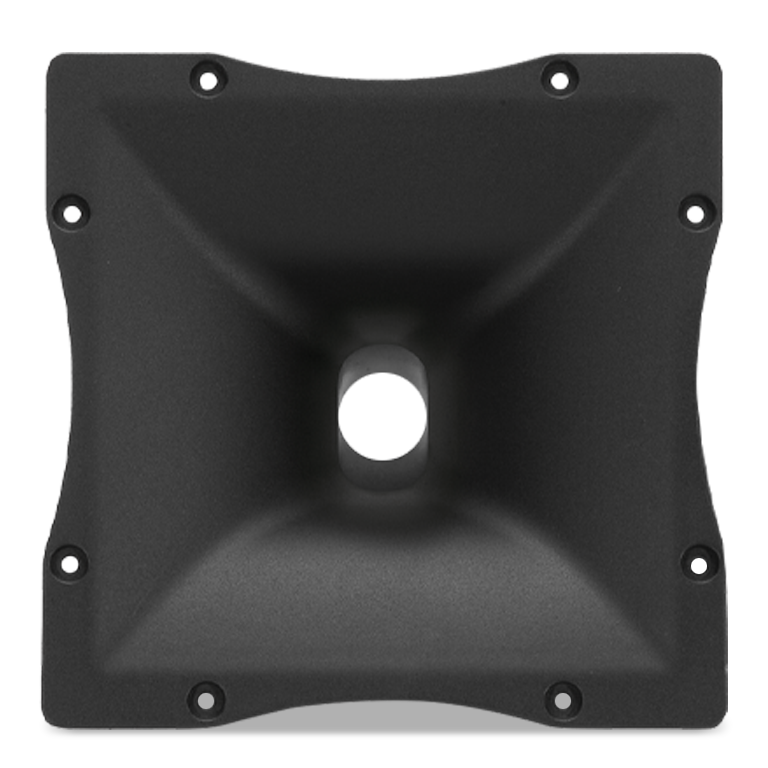

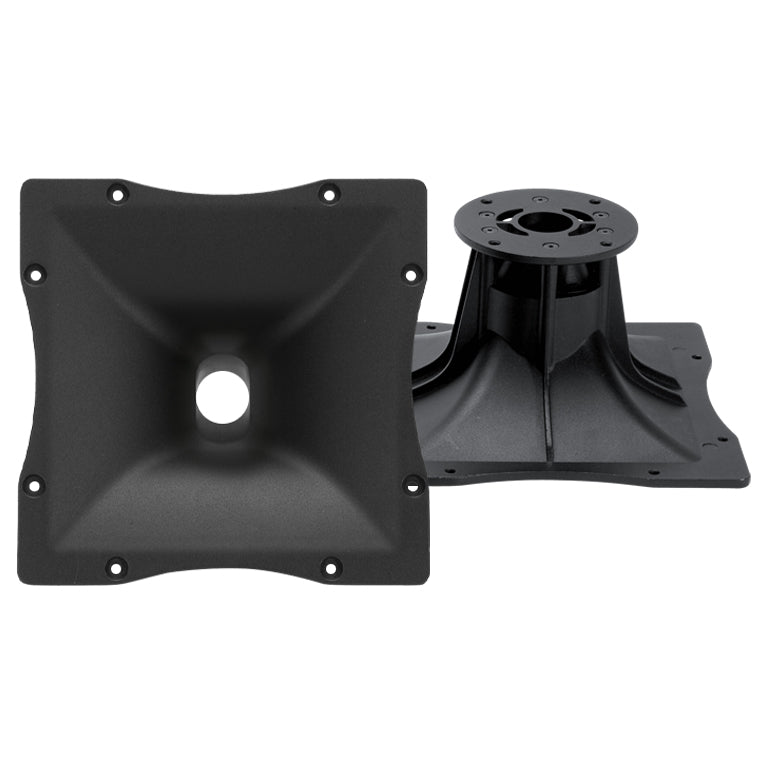

HF94 Pro HF Horn
Constant Directivity Horn, 1"/1.4" Throat, 90° x 40° Coverage, 250 x 250mm, 500 Hz Cut-off
Features
- 1-inch/1.4 inch Throat Adaptor
- 90° x 40° Constant Directivity Coverage
- Loading down to 500 Hz
- Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
- Perfectly Controlled Dispertion
Specifications
General specifications
| Throat Diameter |
25-36 mm / 1.0-1.4 inch |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
40° |
| Cut-off Frequency |
500 Hz |
| Material |
Aluminum |
Mounting information
| Overall height |
250 mm / 9.84 inches |
| Overall width |
250 mm / 9.84 inches |
| Overall depth |
135 mm / 5.31 inches |
| Baffle Cut-out height |
205 mm / 8.07 inches |
| Baffle Cut-out width |
205 mm / 8.07 inches |
| Mounting |
4 x 7 mm holes, interaxes 101 mm/76 mm |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
Size / Weight
| Height |
142 mm / 5.59 inches |
| Diameter |
250 mm / 9.84 inches |
| Weight |
1.12 kg / 2.47 lbs |
Shipping information
| Package Height |
155 mm / 6.1 inches |
| Package Width |
265 mm / 10.43 inches |
| Package Depth |
265 mm / 10.43 inches |
| Package Weight |
2 kg / 4.41 lbs |
