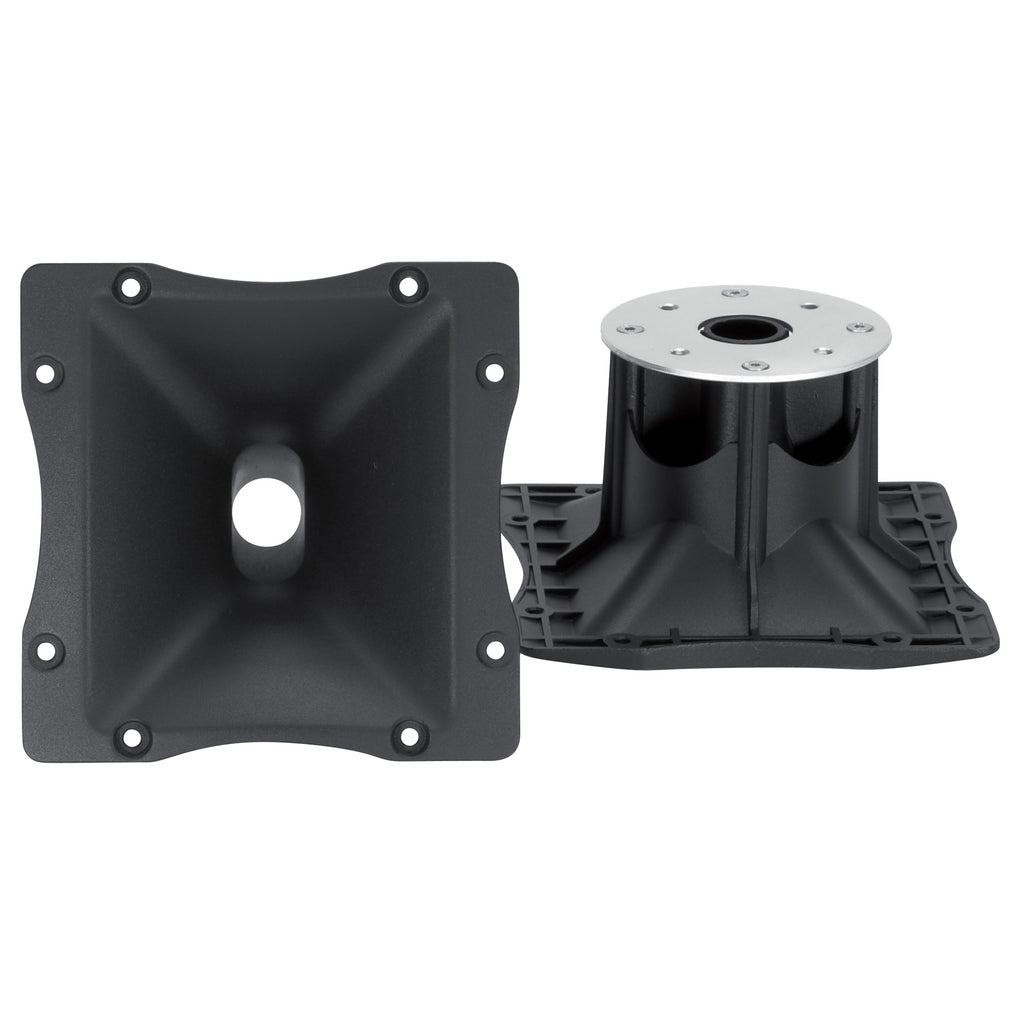

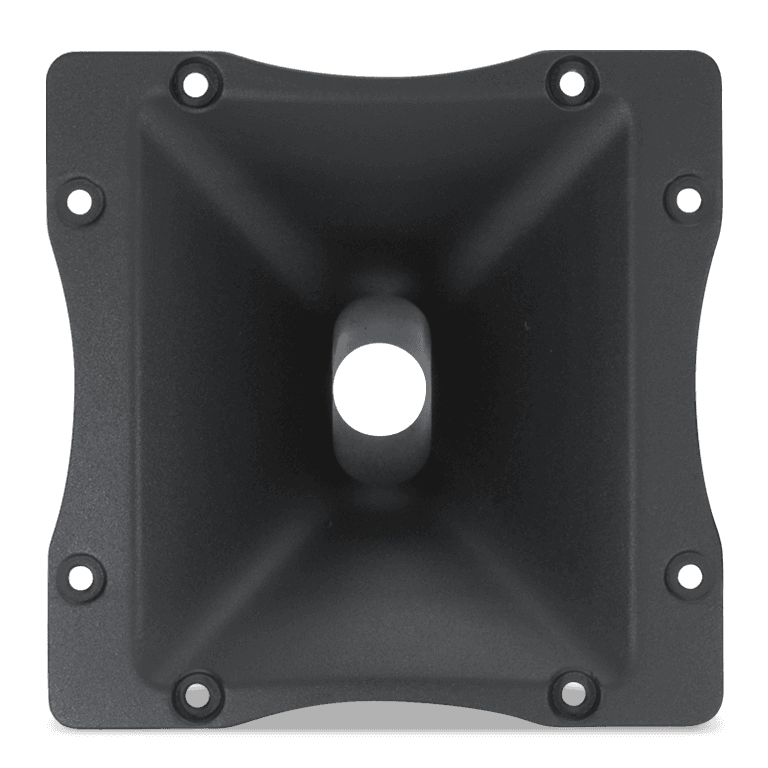

HF101 Pro HF Horn
1-inch Throat Adaptor.90° x 70° Constant Directivity Coverage. Loading down to 1000 Hz.Aluminum Body.Perfectly Controlled Dispertion.
Features
- 1-inch Throat Adaptor
- 90° x 70° Constant Directivity Coverage
- Loading down to 1000 Hz
- Aluminum Body
- Perfectly Controlled Dispertion
Specifications
General specifications
| Throat Diameter |
25-36 mm / 1.0 inch |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
70° |
| Cut-off Frequency |
1000 Hz |
| Material |
Aluminum |
Mounting information
| Overall height |
180 mm / 7.09 inches |
| Overall width |
180 mm / 7.09 inches |
| Overall depth |
106 mm / 4.17 inches |
| Baffle Cut-out height |
150 mm / 5.91 inches |
| Baffle Cut-out width |
150 mm / 5.91 inches |
| Mounting |
4 x 8 mm holes, interaxes 76 mm |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
117 mm / 4.61 inches |
| Diameter |
180 mm / 7.09 inches |
| Weight |
0.16 kg / 0.35 lbs |
Shipping information
| Package Height |
130 mm / 5.12 inches |
| Package Width |
205 mm / 8.07 inches |
| Package Depth |
200 mm / 7.87 inches |
| Package Weight |
0.83 kg / 1.83 lbs |
