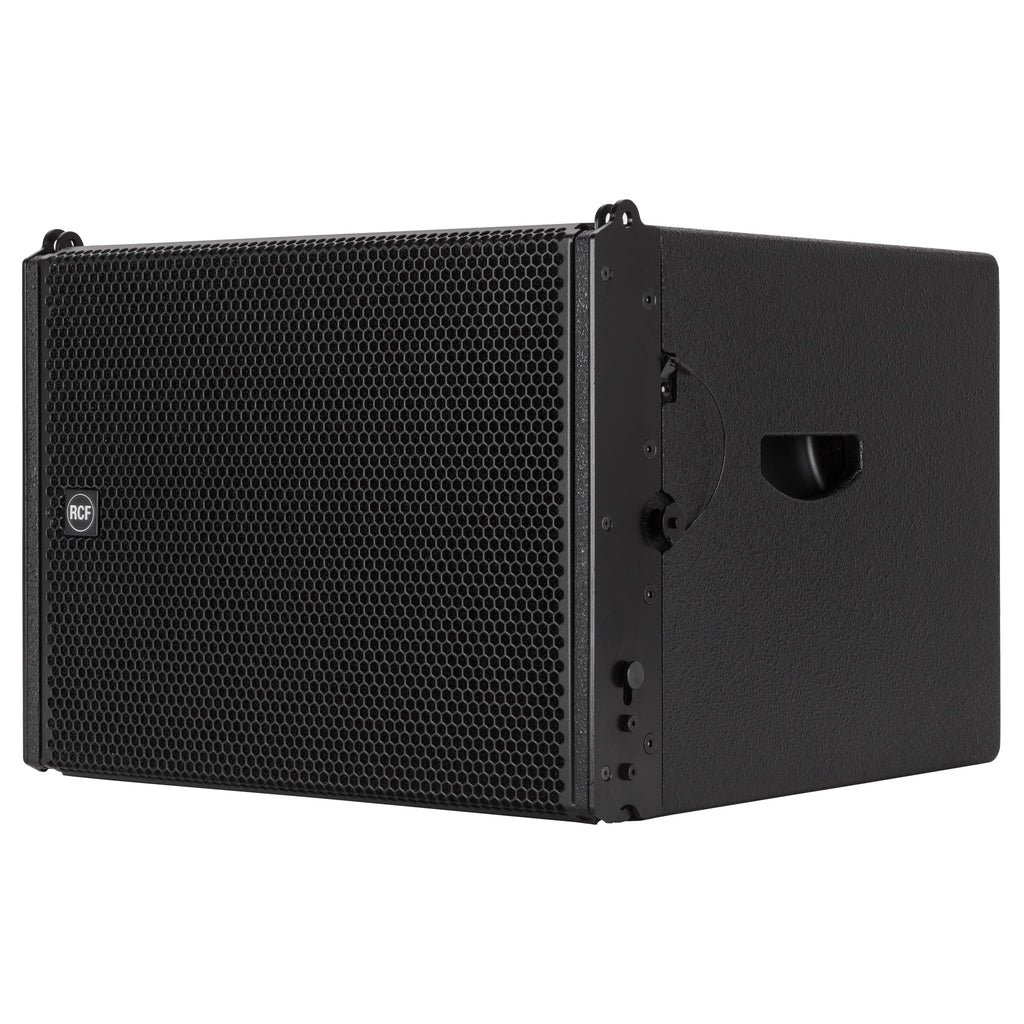

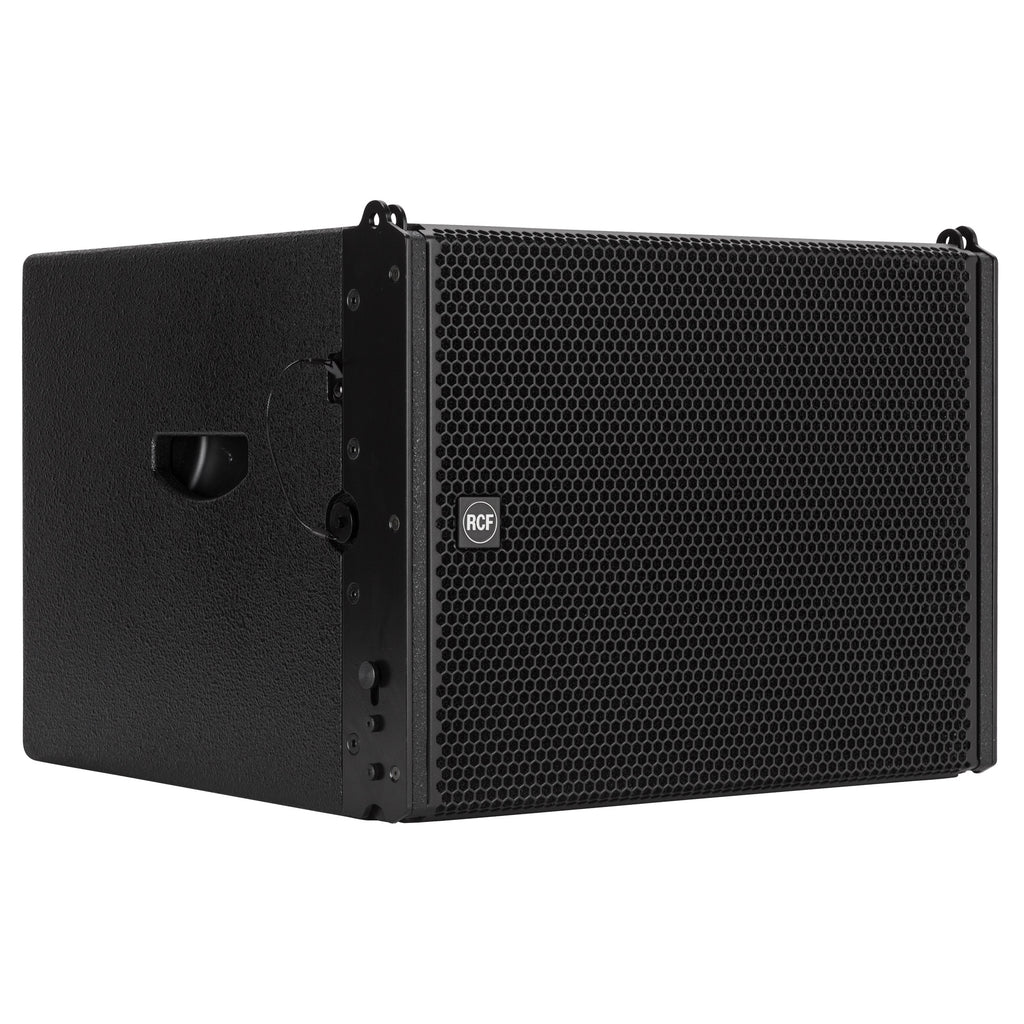

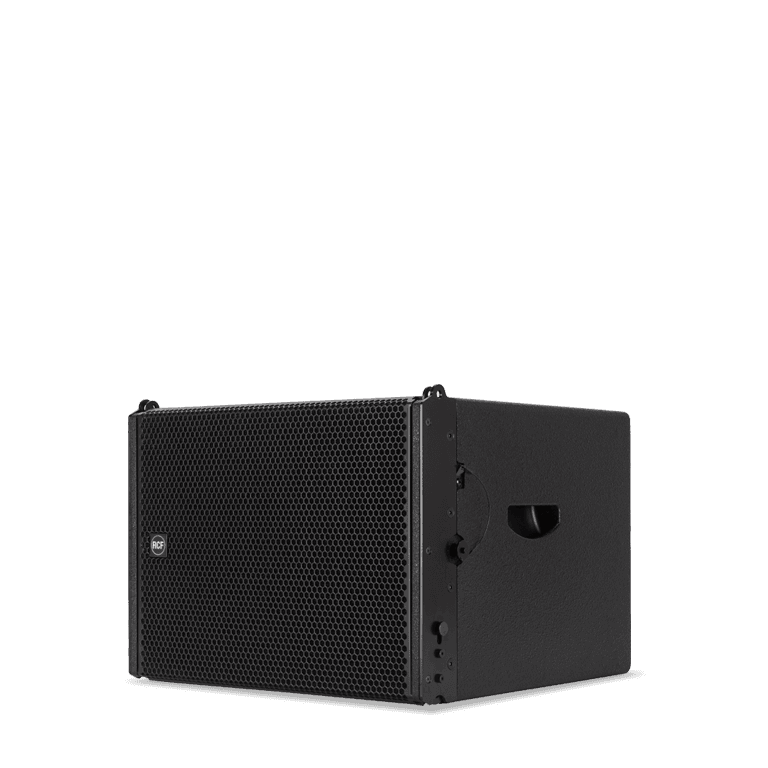

HDL 12-AS Active Flyable High Power Subwoofer

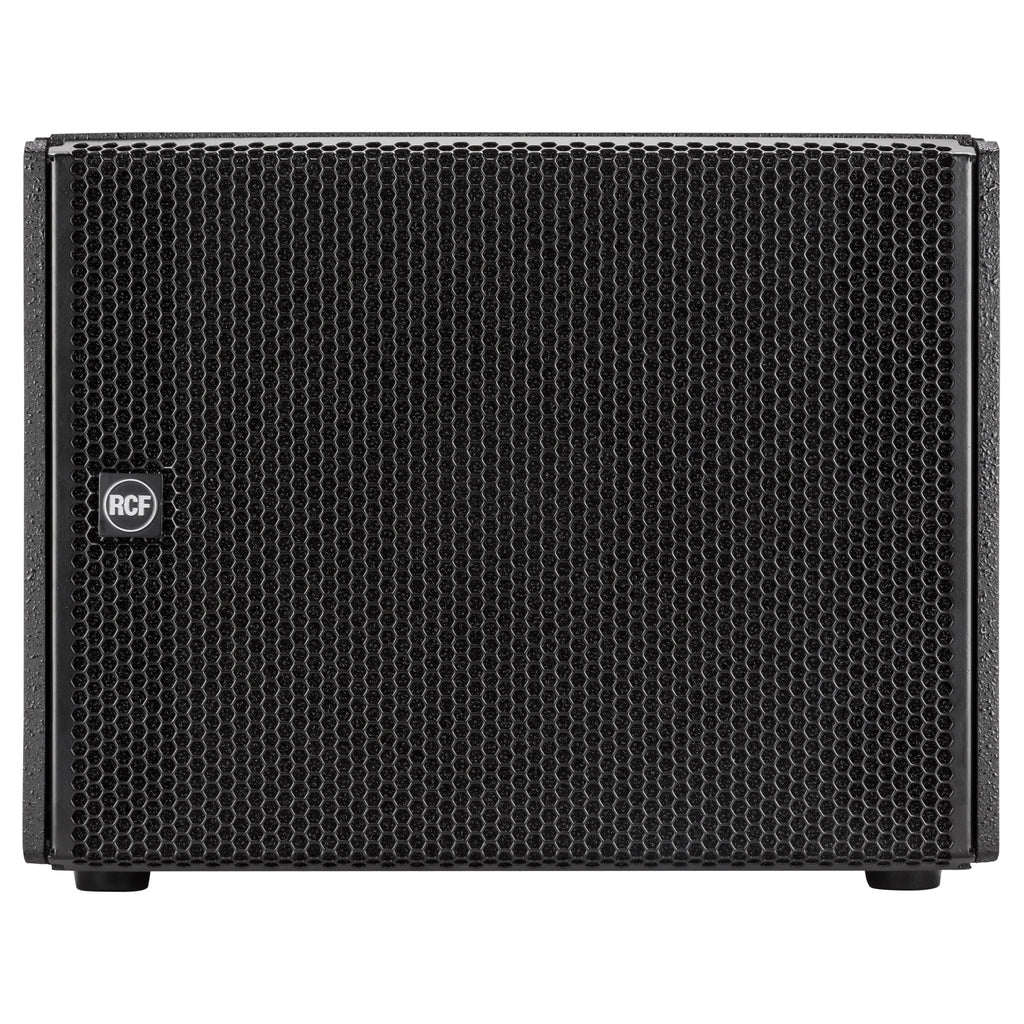

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Features
- 1400 Watt Peak power - 700 Watt RMS
- 131 dB max SPL
- 40 Hz - 120 Hz frequency response

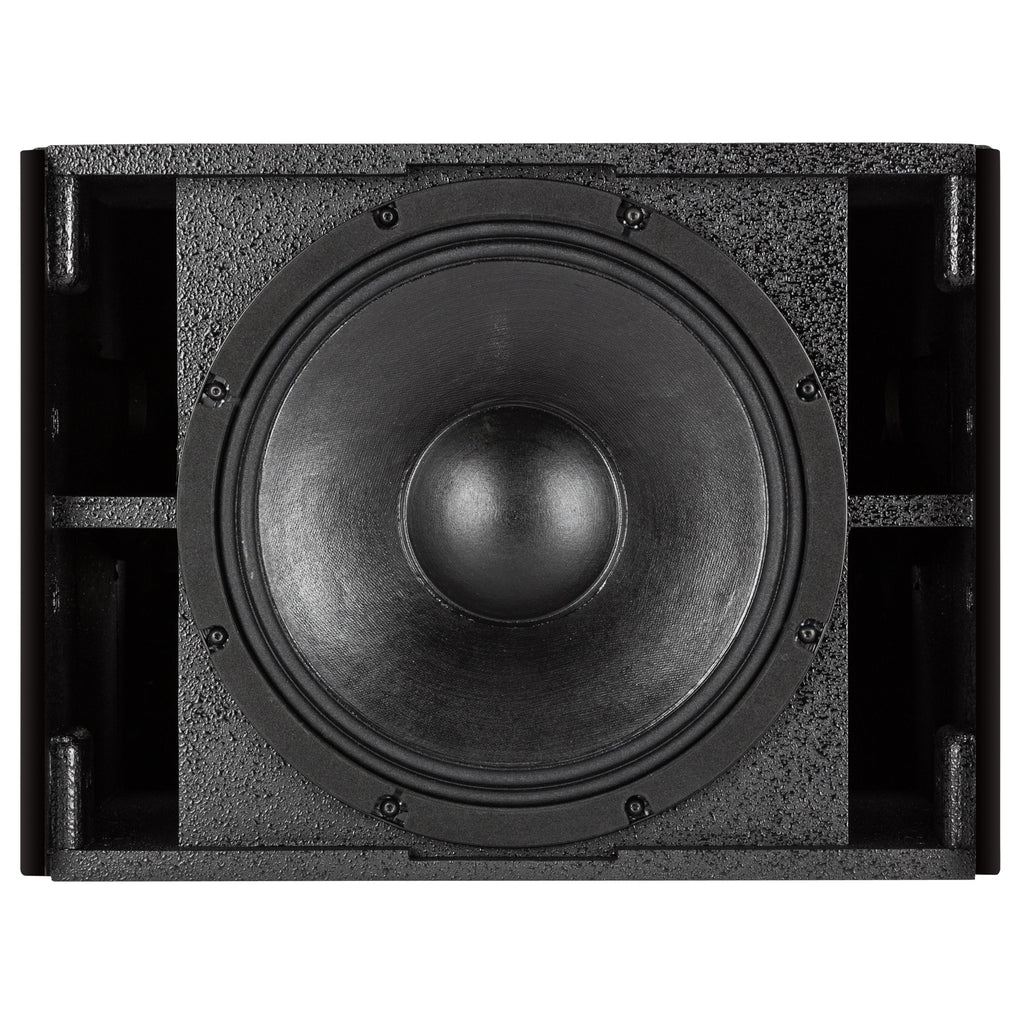

- 1 x 12" Woofer
- Stereo crossover
- Switchable crossover frequencies
- Designed to compliment the HDL 6-A speaker system
- Polarity reverse switch
Specifications
Acoustical specifications
| Frequency Response |
40 Hz - 120 Hz |
| Max SPL @ 1m |
131 dB |
Transducers
| Woofer |
1 x 12'', 3.0'' v.c |

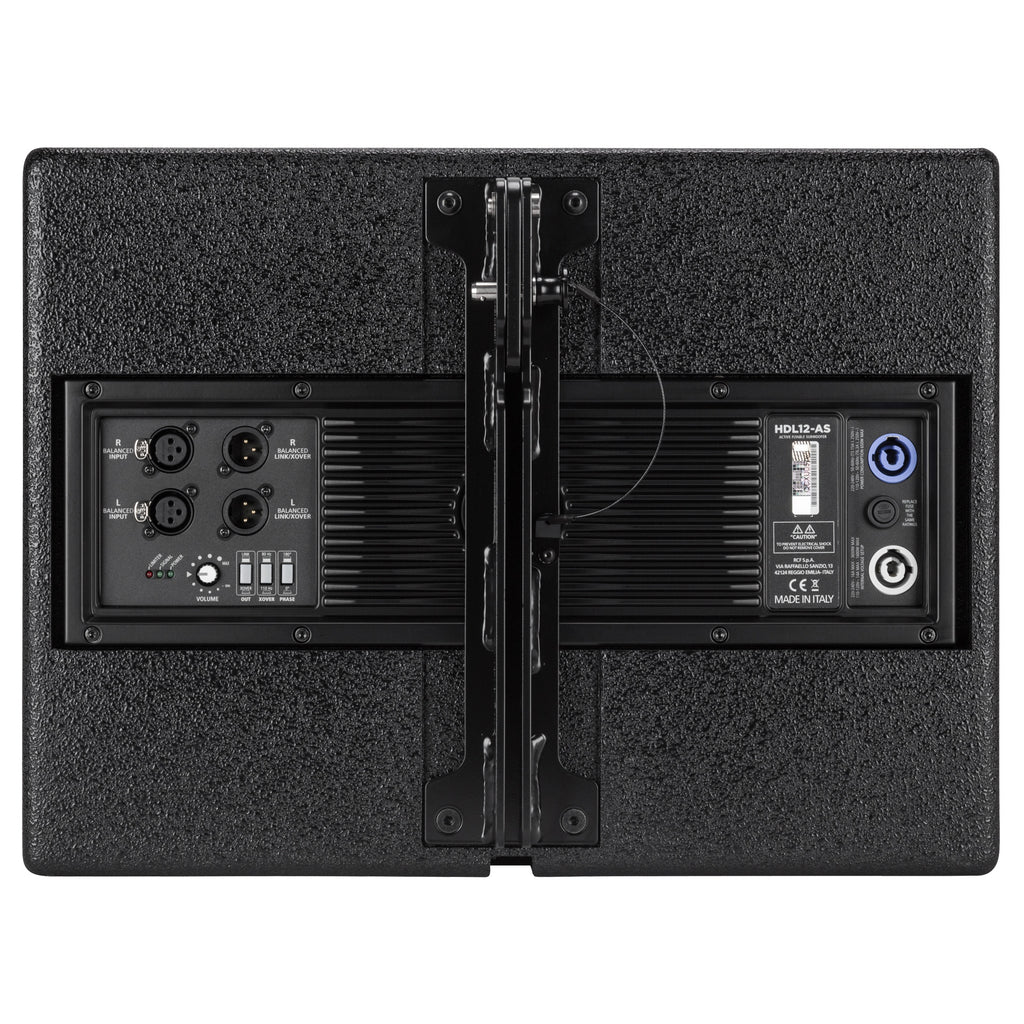

Input/Output section
| Input signal |
bal/unbal |
| Input connectors |
XLR |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
Processor section
| Hi-Pass Frequencies |
40Hz |
| Low-Pass Frequencies |
80Hz, 110Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

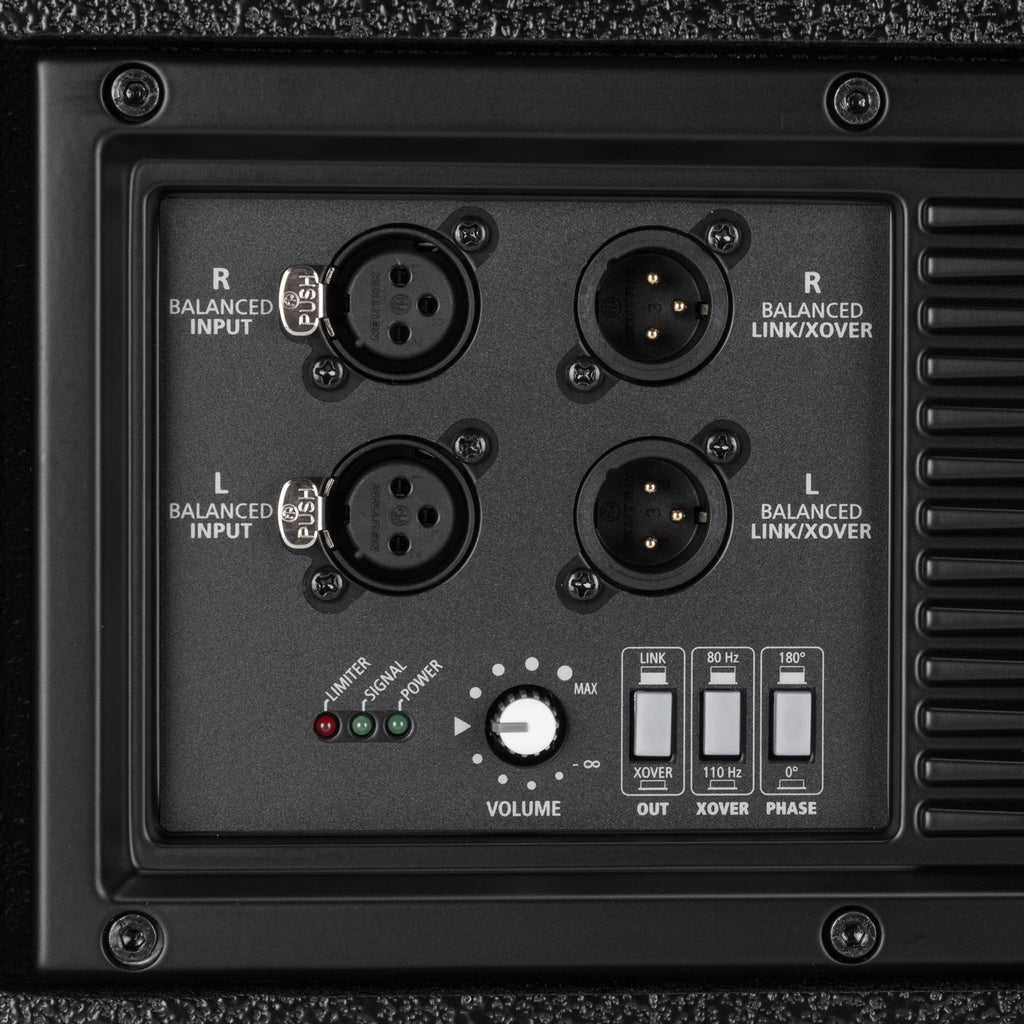

| Controls |
Volume, EQ, Phase, Xover |
Power section
| Total Power |
1400 W Peak, 700 W RMS |
| Low frequencies |
1400 W Peak, 700 W RMS |
| Cooling |
Convection |

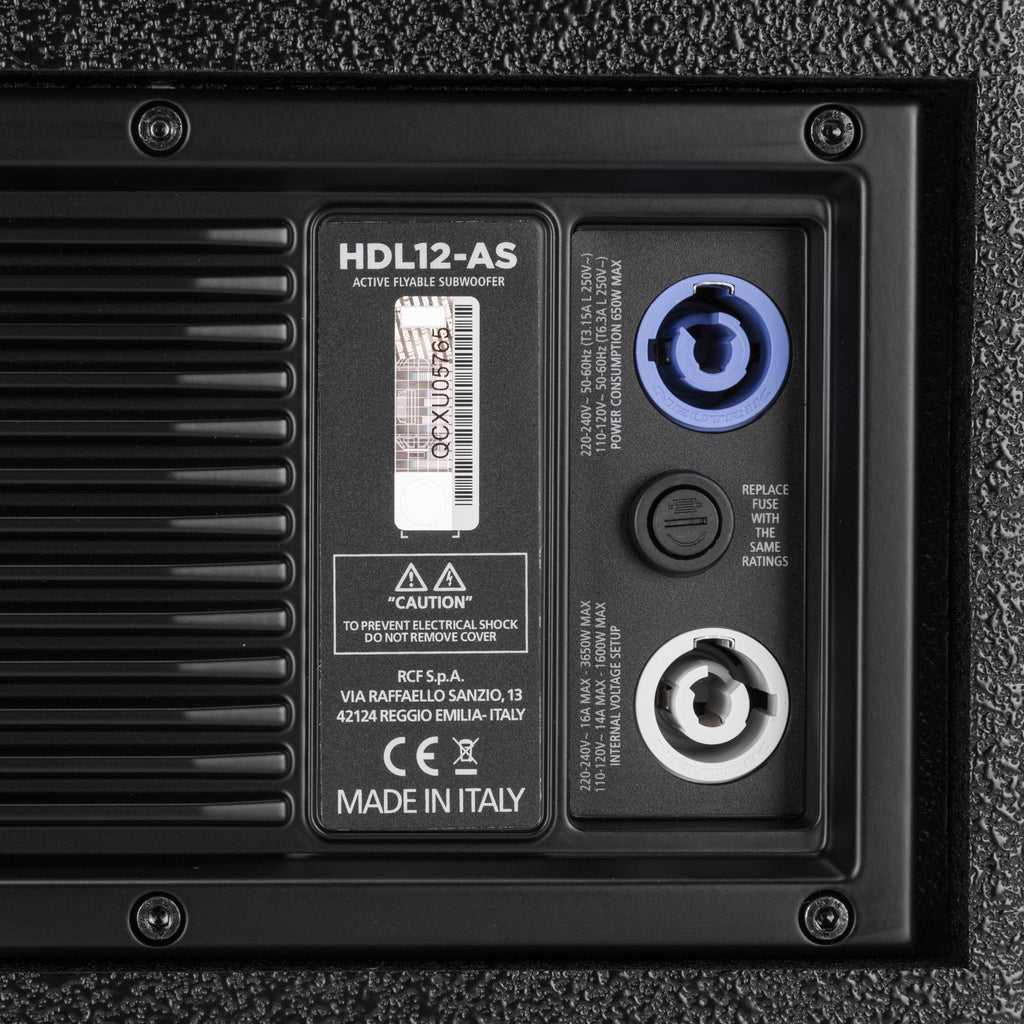

| Connections |
Powercon IN/OUT |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |

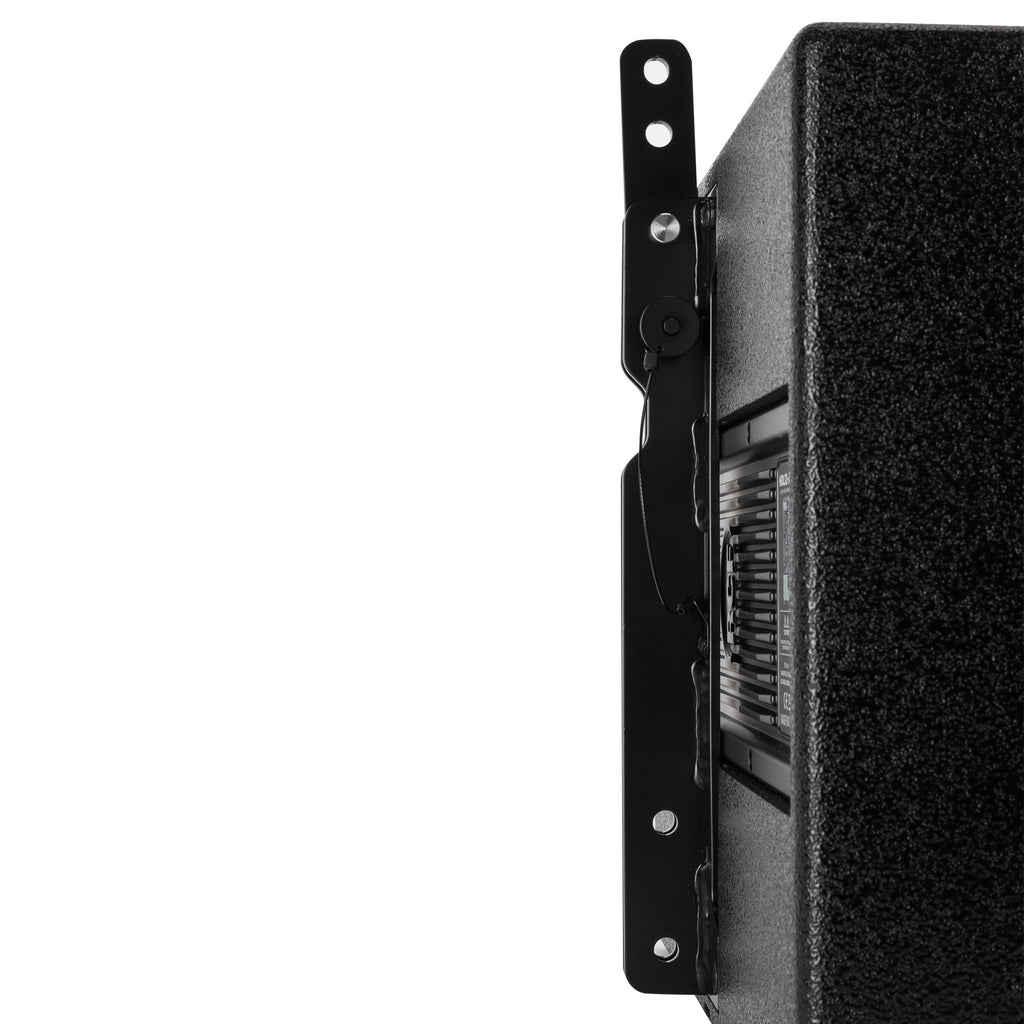

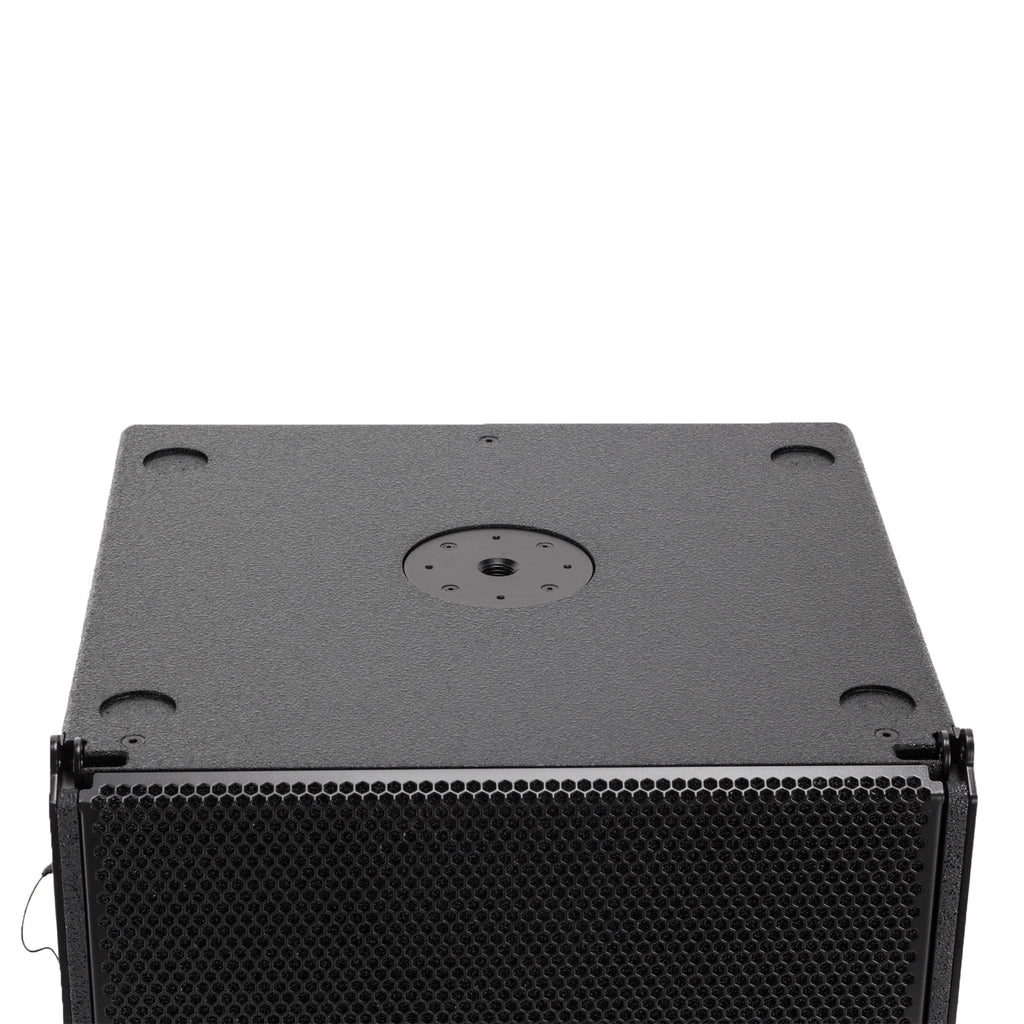

Array fittings, pole 1 X M20 |
| Handles |
2 side |
| Grille |
Steel |
| Color |
Black, White |
Size / Weight
| Height |
379 mm / 14.92 inches |
| Width |
470 mm / 18.5 inches |
| Depth |
508 mm / 20 inches |
| Weight |
25 kg / 55.12 lbs |
Shipping information
| Package Height |
435 mm / 17.13 inches |
| Package Width |
560 mm / 22.05 inches |
| Package Depth |
520 mm / 20.47 inches |
| Package Weight |
28 kg / 61.73 lbs |
