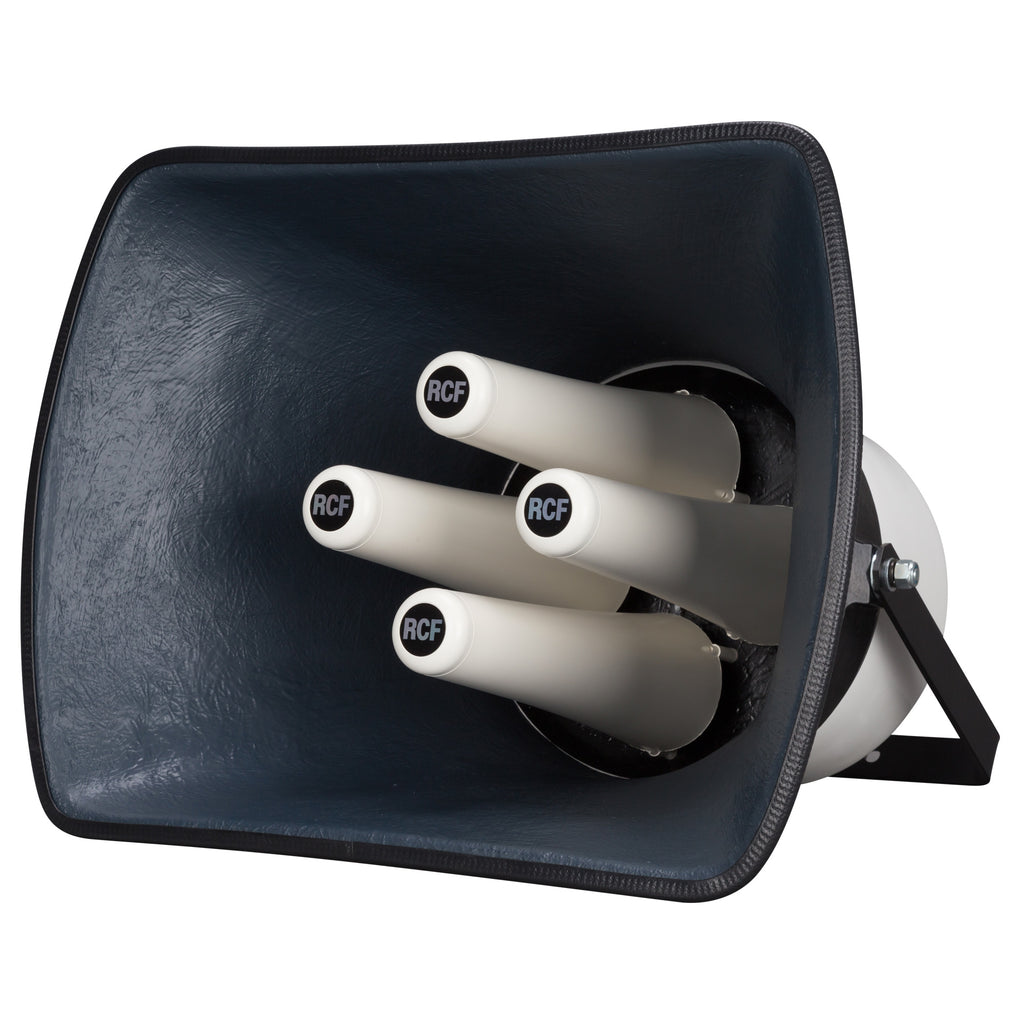

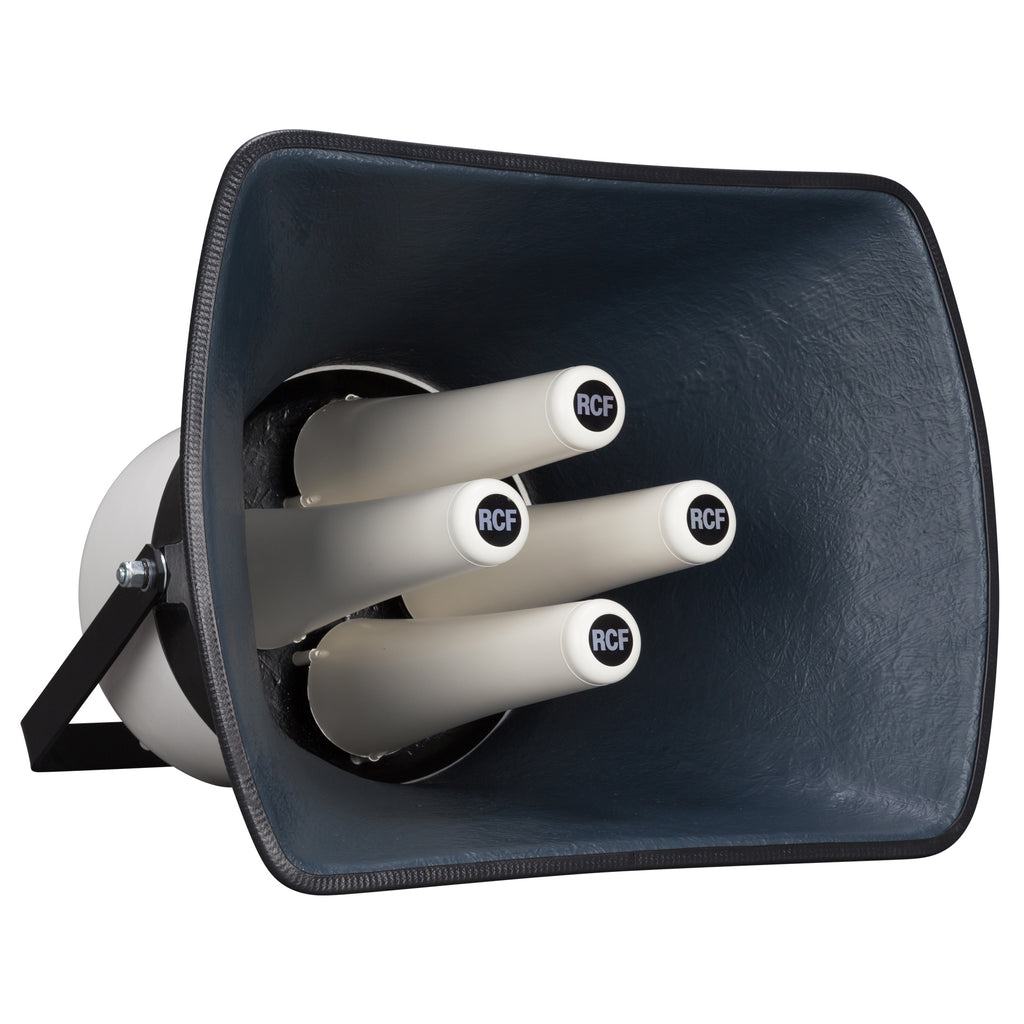

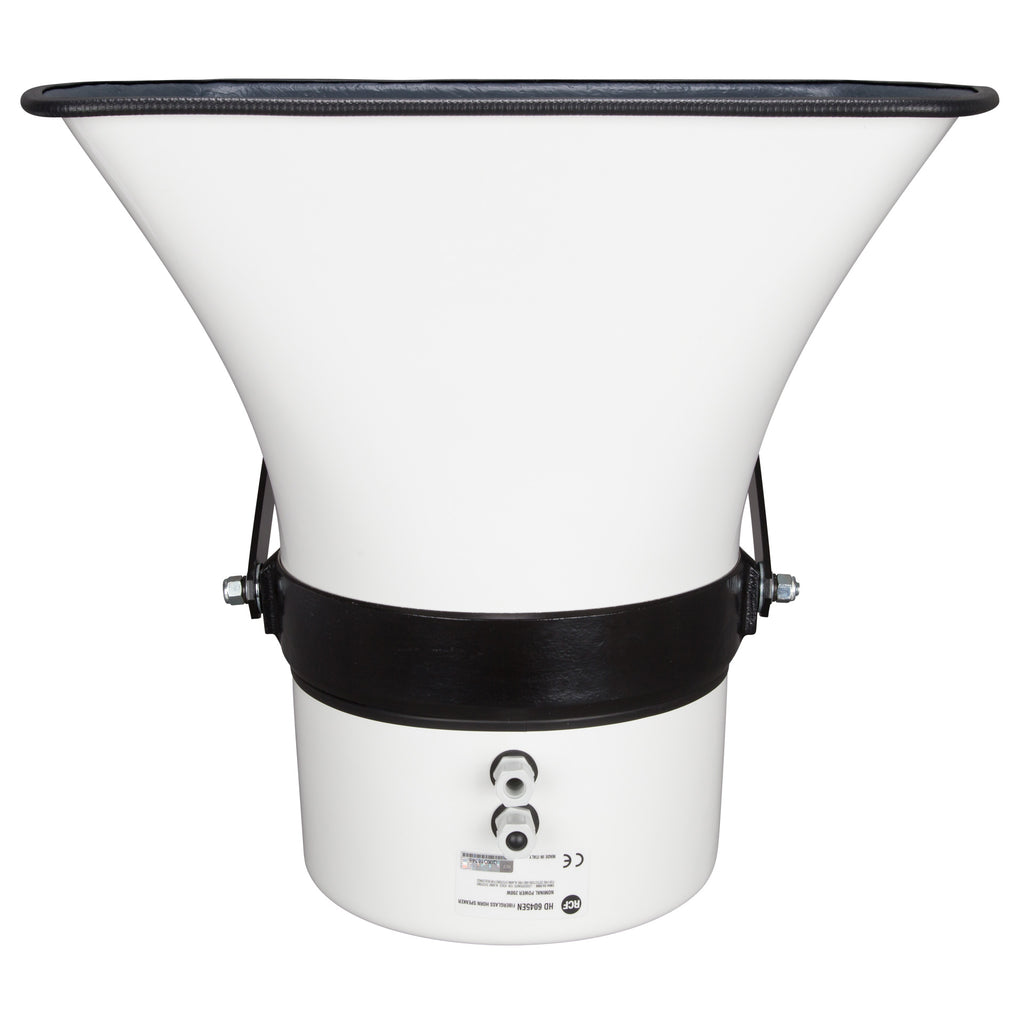

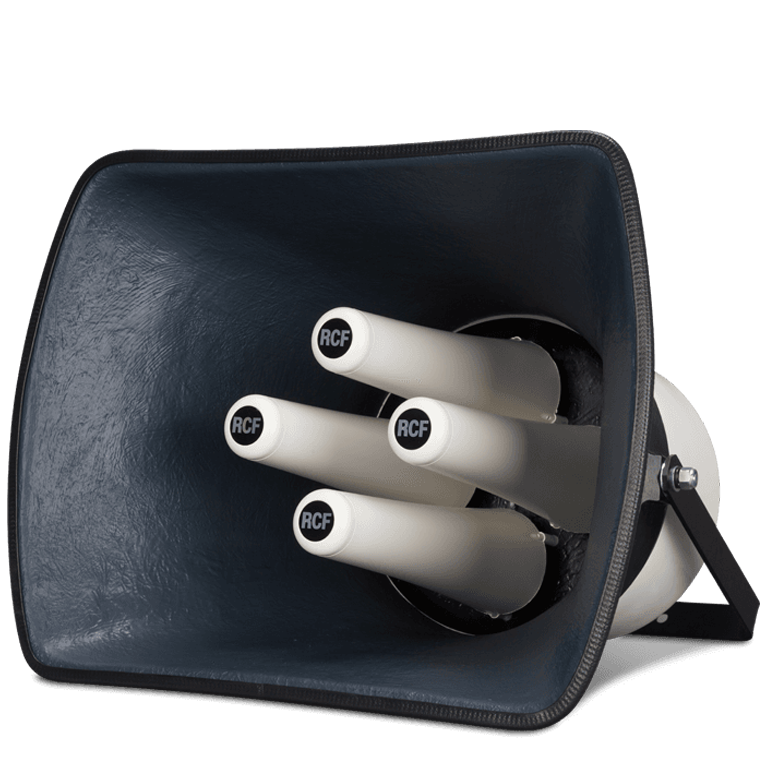

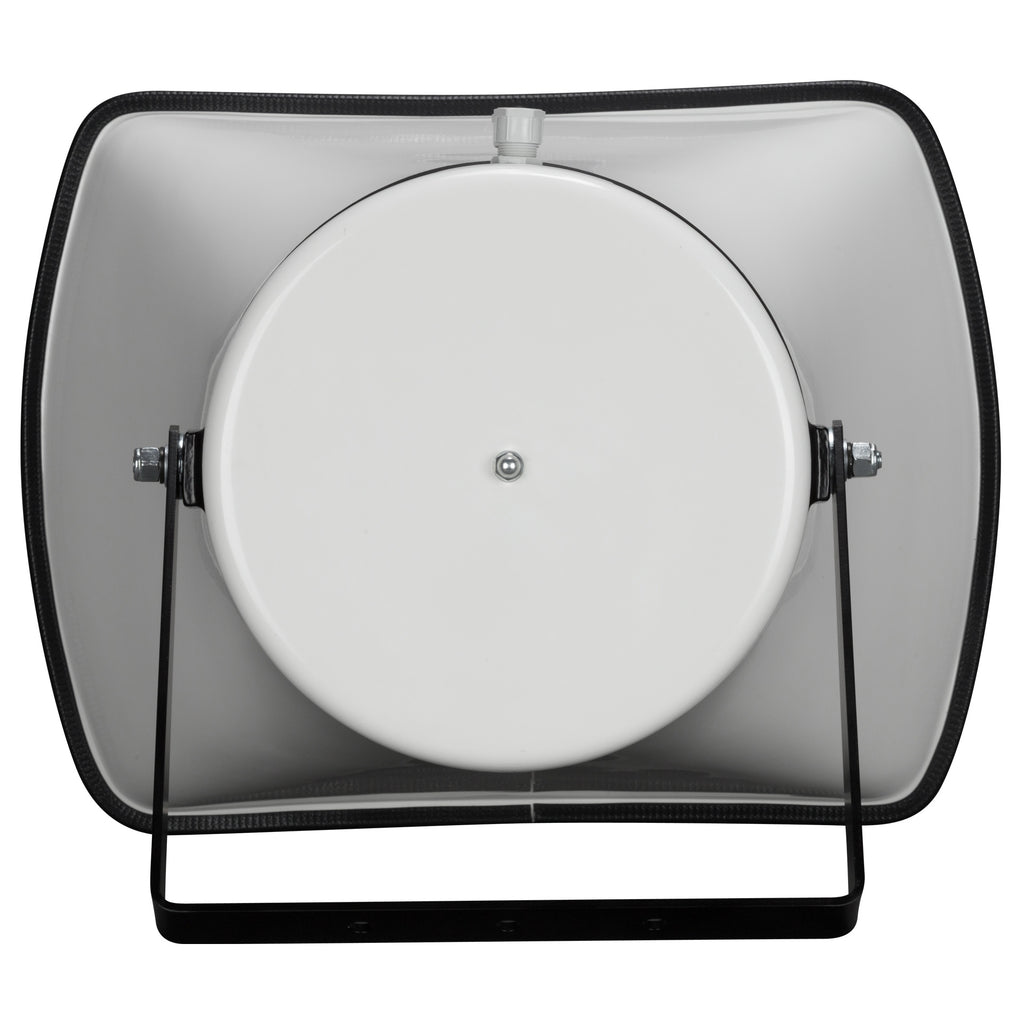

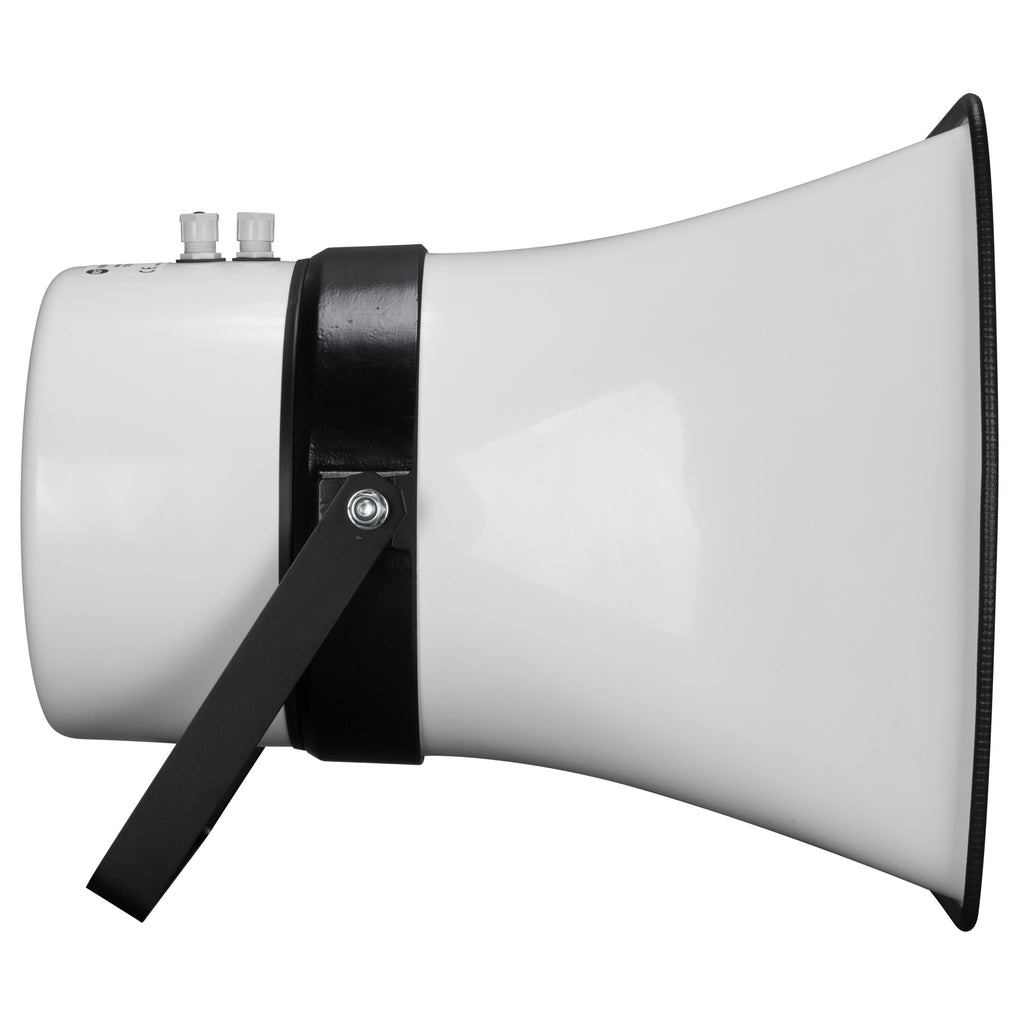

HD 6045EN Long-Throw Fiberglass Horn Speaker

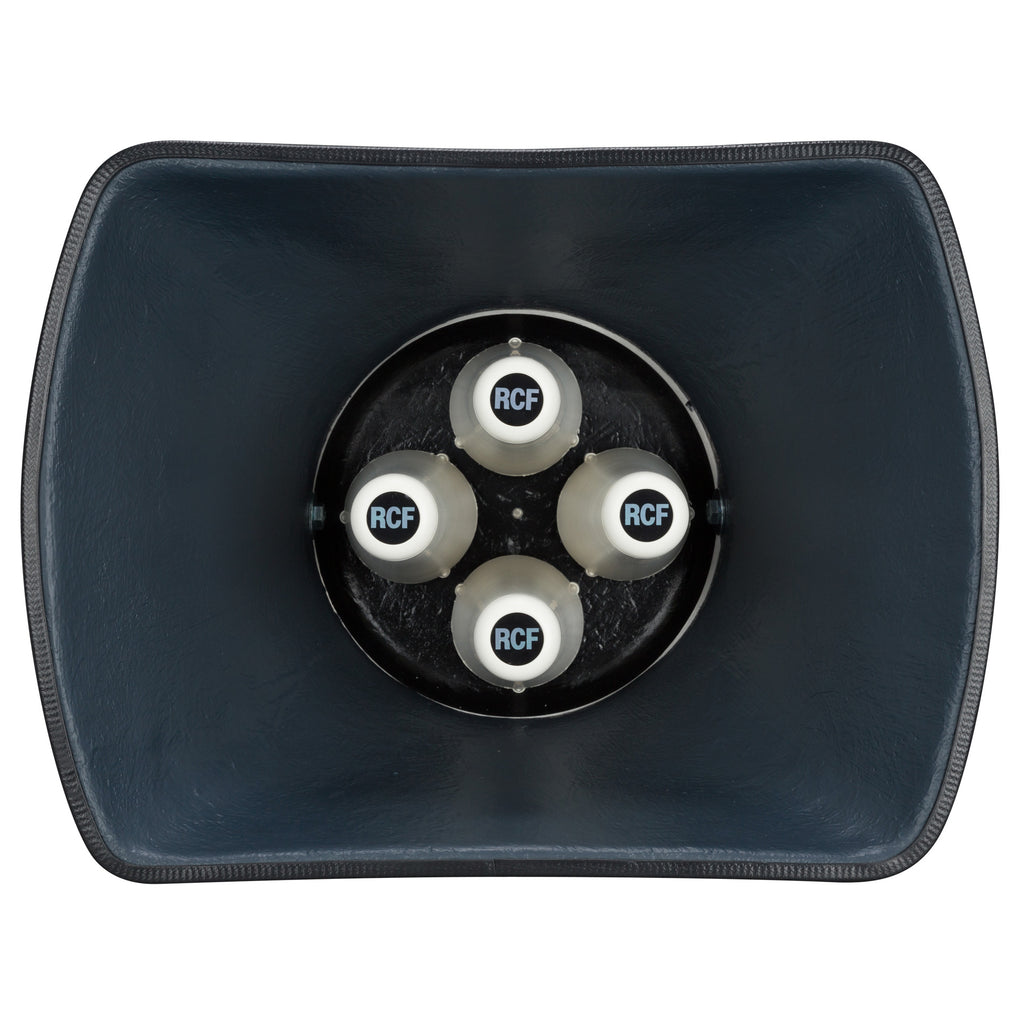

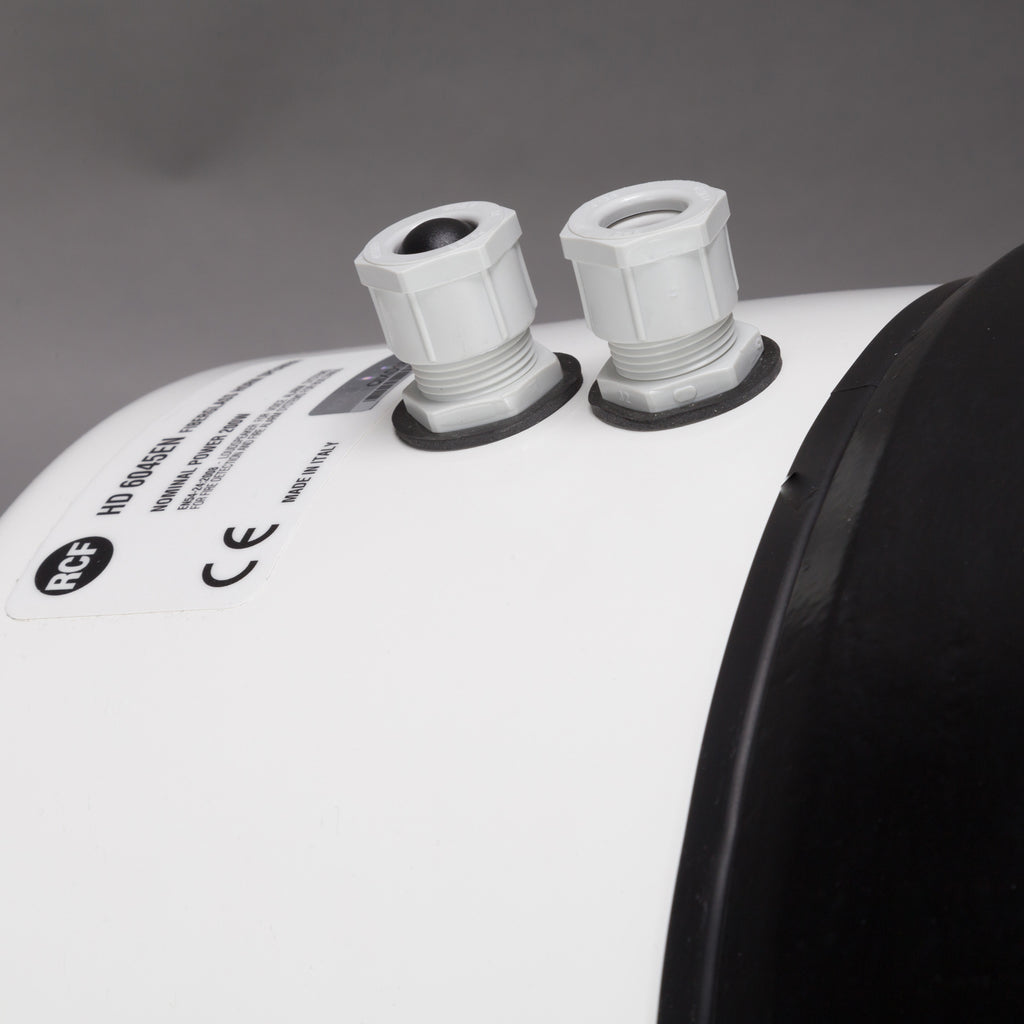

HD 6045EN is a fiberglass horn designed to withstand the most adverse weather conditions, offering high sound reproduction quality and sound pressure levels. A high level of efficiency and sound pressure can be obtained thanks to the use of 4 dynamic compression driver units. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.
Features

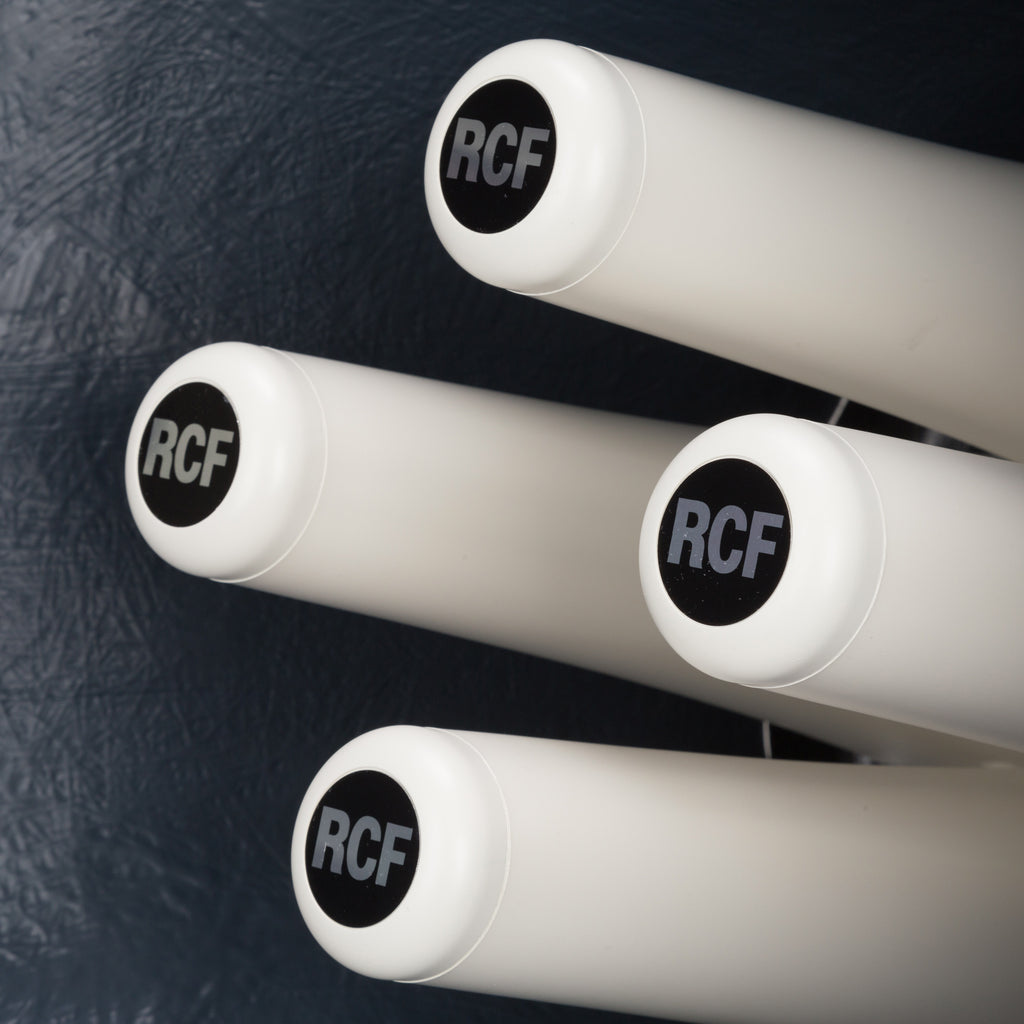

- 4 x 2" compression drivers.
- Rated power (100 V): 200 W.
- 110 dB sensitivity.
- Colour white RAL 9003.
- Fiberglass body.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP65.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
200 Hz - 10000 Hz |
| Max SPL @ 1m |
133 dB |
| Max SPL @ 4m |
114 dB |
| Horizontal coverage angle |
60° |
| Vertical coverage angle |
50° |
| System Sensitivity |
110 dB |
| System Sensitivity 1W @ 4m |
91 dB |
Power section
| Power Handling |
200 W |
| Peak Power Handling |
800 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
Transducers
| Compression Driver |
4 x 2.0'' |
Input/Output section
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Ceramic screw terminals |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
200 W - 50 ohm |
Standard compliance
| IP protection grade |
IP 65 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-030/2015 |
Physical specifications
| Cabinet/Case Material |
Fiberglass |
| Color |
White - RAL 9003 |
Size / Weight
| Height |
475 mm / 18.7 inches |
| Width |
620 mm / 24.41 inches |
| Depth |
564 mm / 22.2 inches |
| Weight |
21.4 kg / 47.18 lbs |
Shipping information
| Package Height |
615 mm / 24.21 inches |
| Package Width |
645 mm / 25.39 inches |
| Package Depth |
495 mm / 19.49 inches |
| Package Weight |
23.6 kg / 52.03 lbs |
