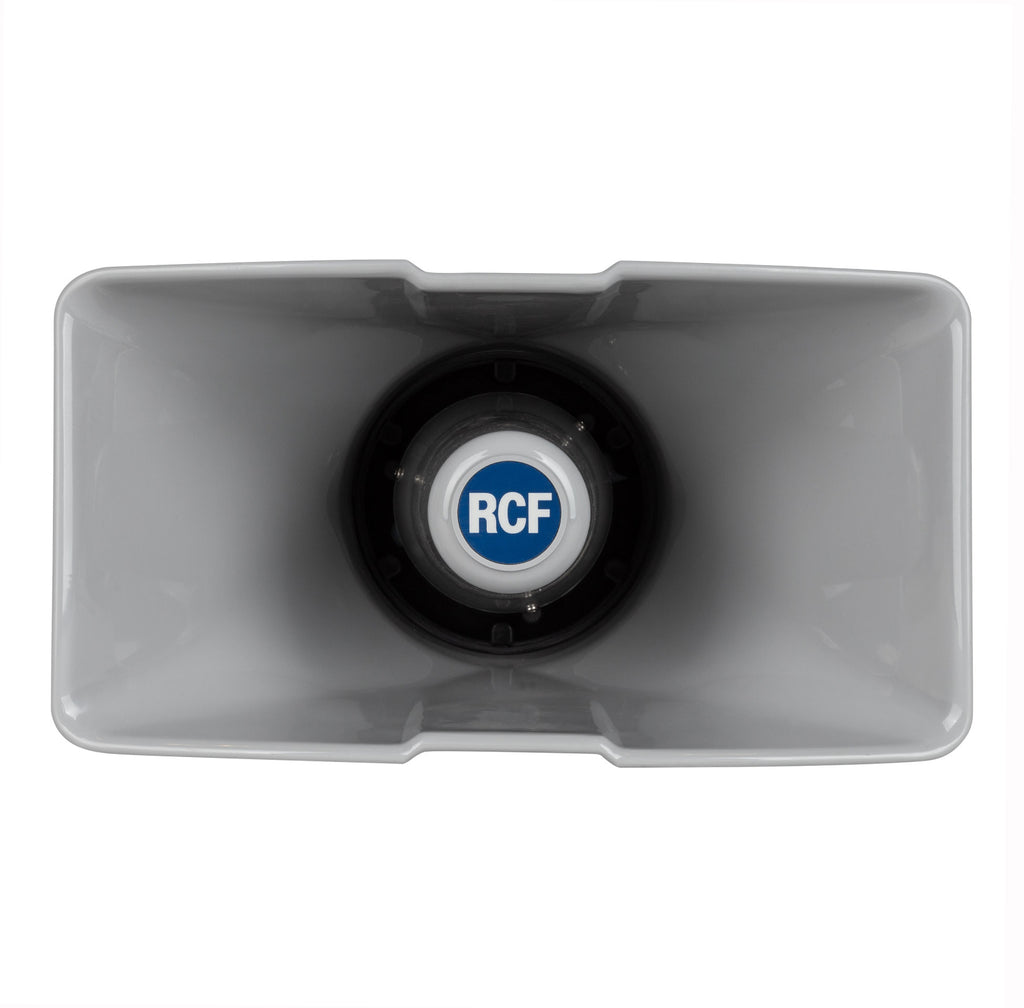

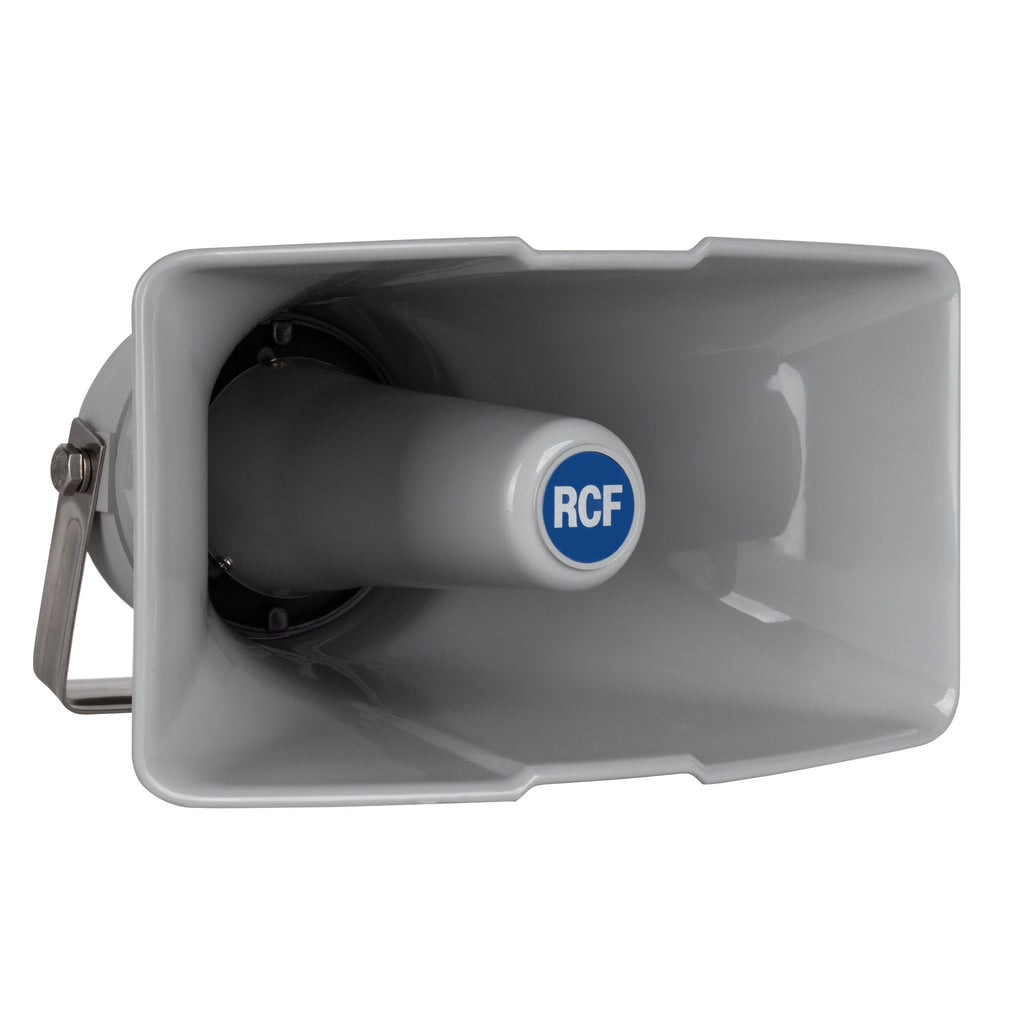

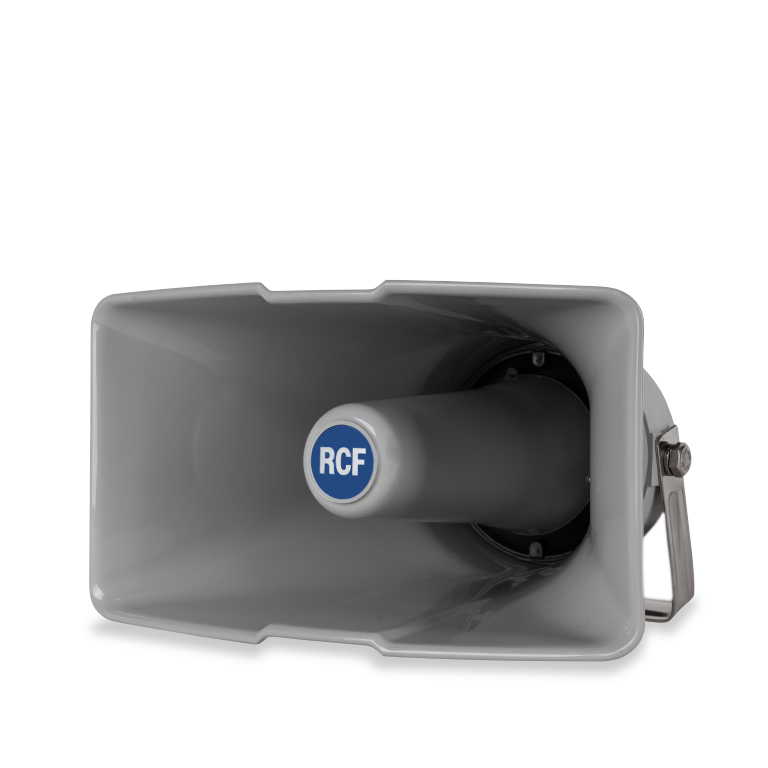

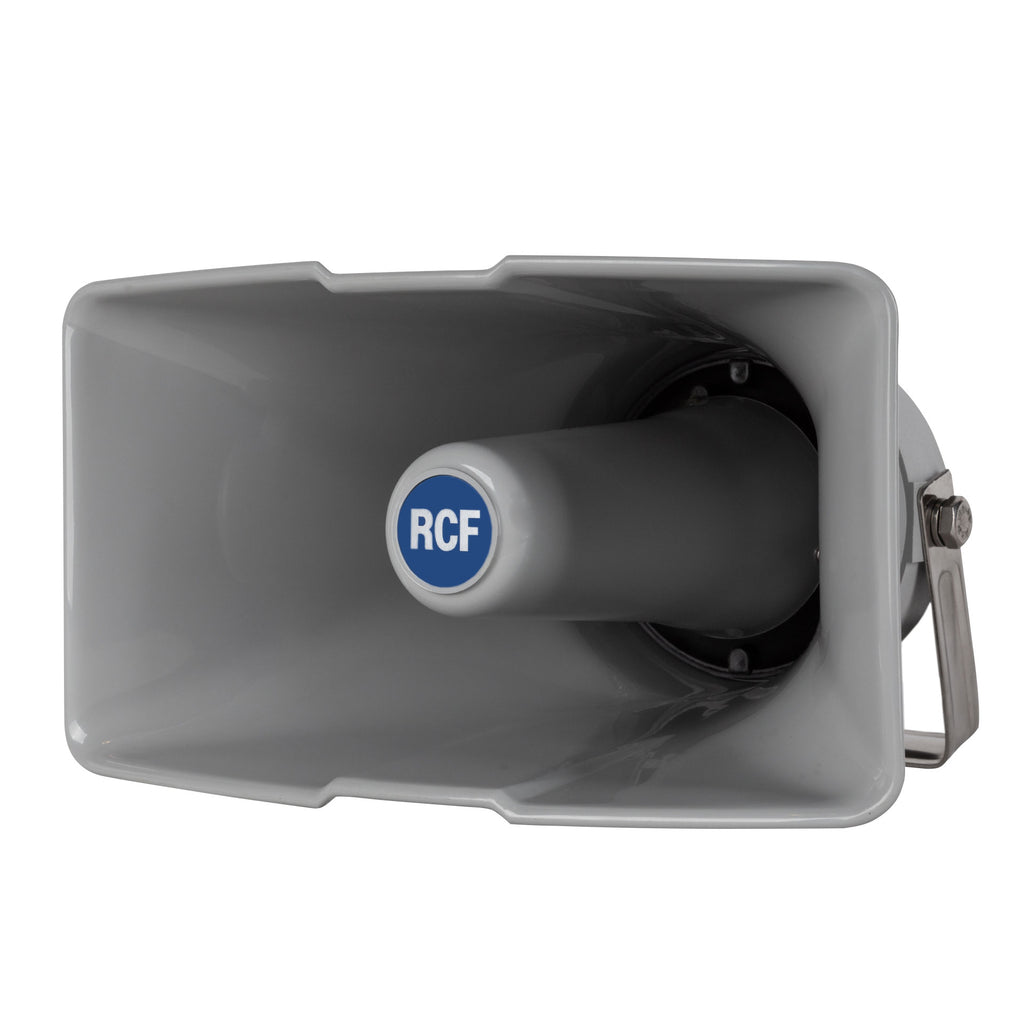

HD 3216T Plastic Horn Speaker with Driver and Transformer

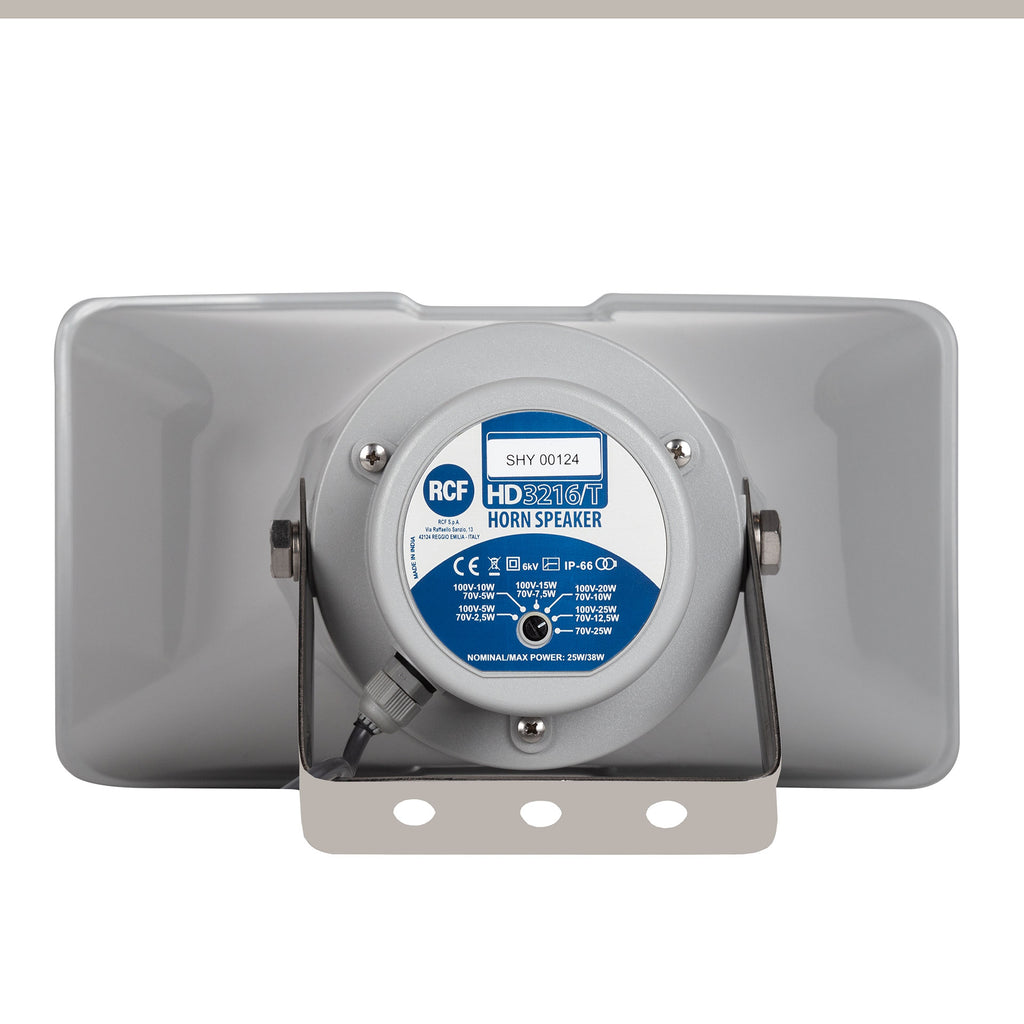

The HD 3216/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
Features
- Built-in line transformer with multitap power selector on rear cover
- Hi-pass filter for protecting driver against out-of-range low-freq
- IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
- UV-stabilized autoextinguishing UL-HB ABS plastic
- Colour RAL 7035

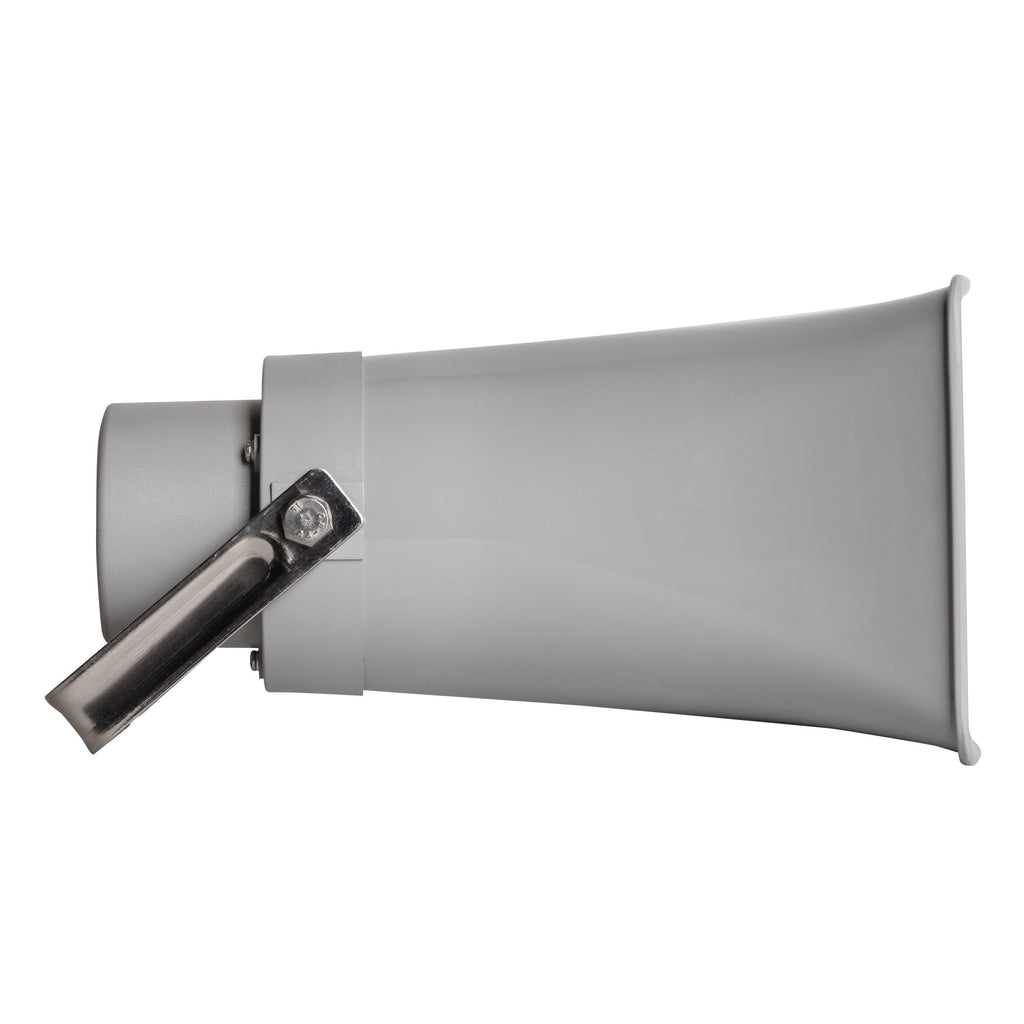

- Stainless-Steel mounting hardware
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
250 Hz - 10000 Hz |
| Max SPL @ 1m |
122 dB |
| Horizontal coverage angle |
130° |
| Vertical coverage angle |
60° |
| System Sensitivity |
108 dB |
Power section
| Nominal Impedance |
8 ohm |
| Power Handling |
25 W |
| Peak Power Handling |
100 W PEAK |
Transducers
| Compression Driver |
1 x 1.5'' |
Input/Output section
| Input connectors |
Cable |
| Output connectors |
Cable |
| Constant Voltage Transformer |
70/100 V |
| Power selection 1 |
25 W - 400 ohm |
| Power selection 2 |
20 W - 500 ohm |
| Power selection 3 |
15 W - 667 ohm |
| Power selection 4 |
10 W - 1000 ohm |
| Power selection 5 |
5 W - 2000 ohm |
Standard compliance
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
ABS |
| Hardware |
Stainless steel U bracket |
| Color |
Grey - RAL 7035 |
Size / Weight
| Height |
175 mm / 6.89 inches |
| Width |
310 mm / 12.2 inches |
| Depth |
322 mm / 12.68 inches |
| Weight |
2.5 kg / 5.51 lbs |
Shipping information
| Package Height |
390 mm / 15.35 inches |
| Package Width |
330 mm / 12.99 inches |
| Package Depth |
180 mm / 7.09 inches |
| Package Weight |
3.1 kg / 6.83 lbs |
