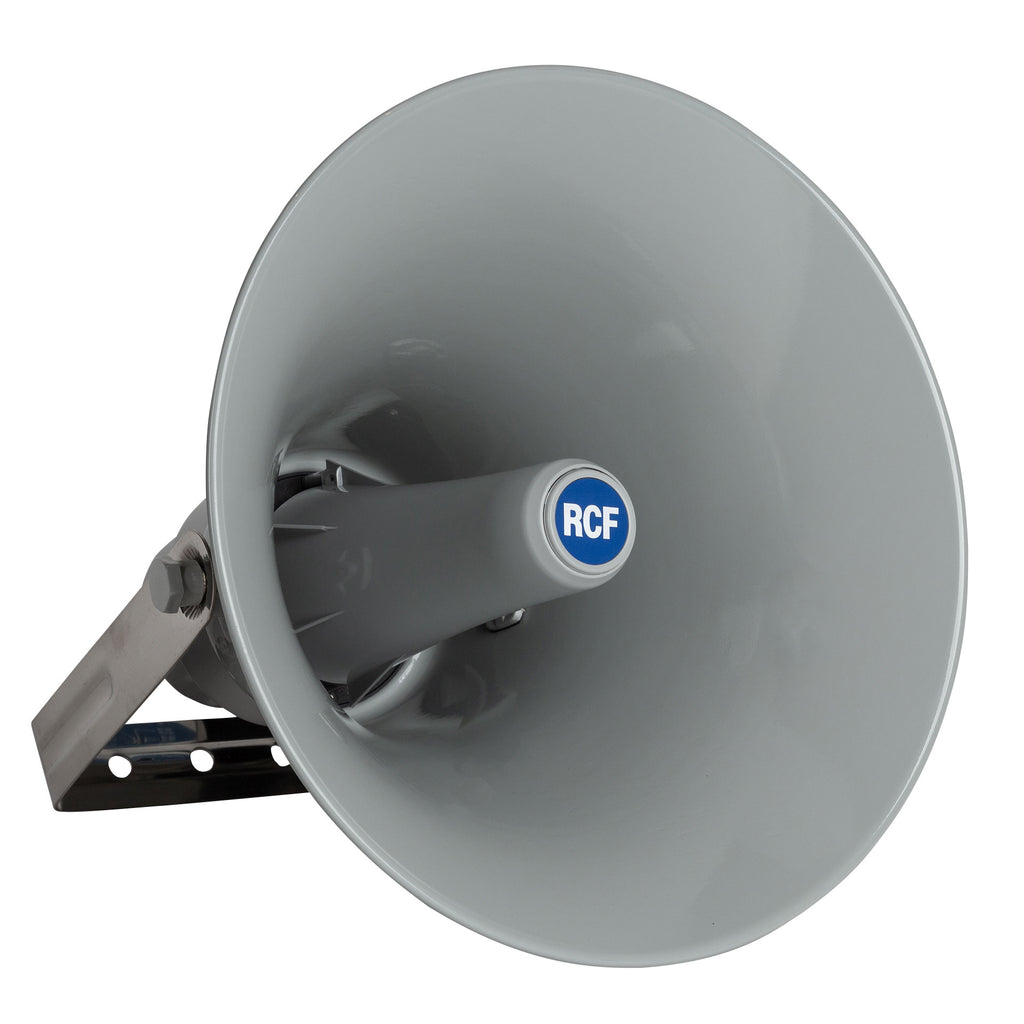

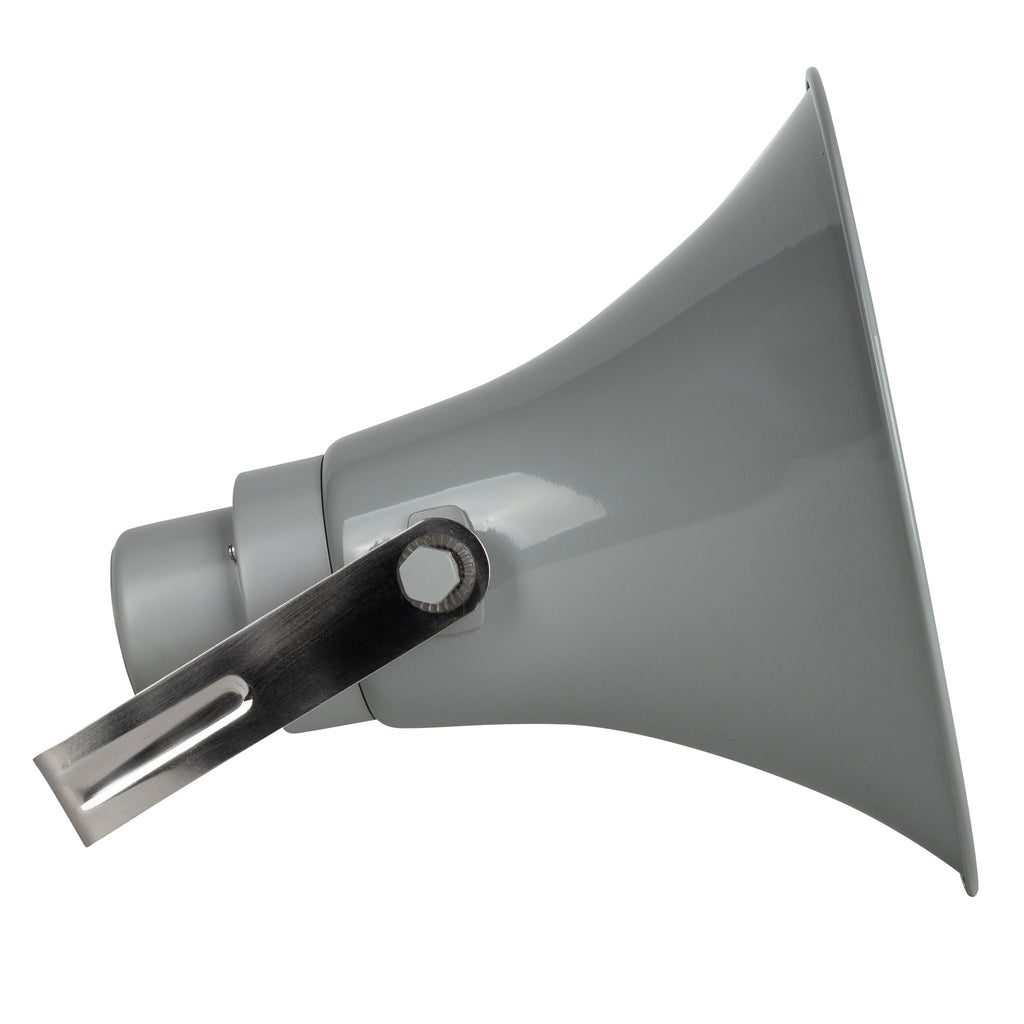

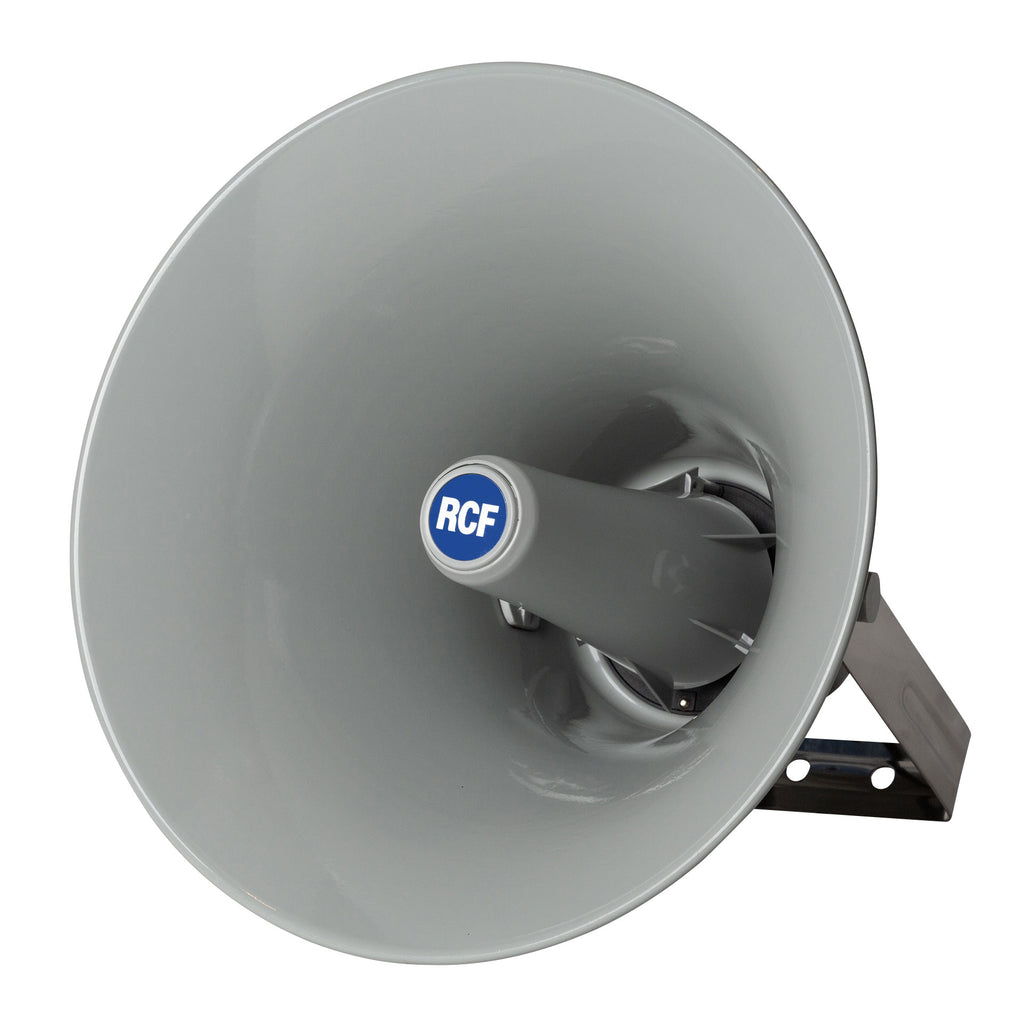

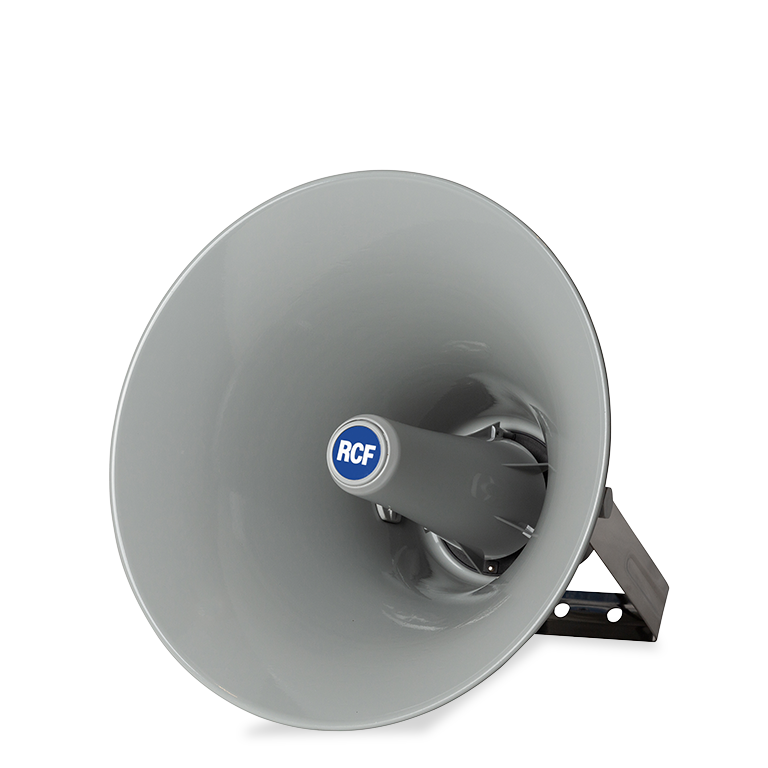

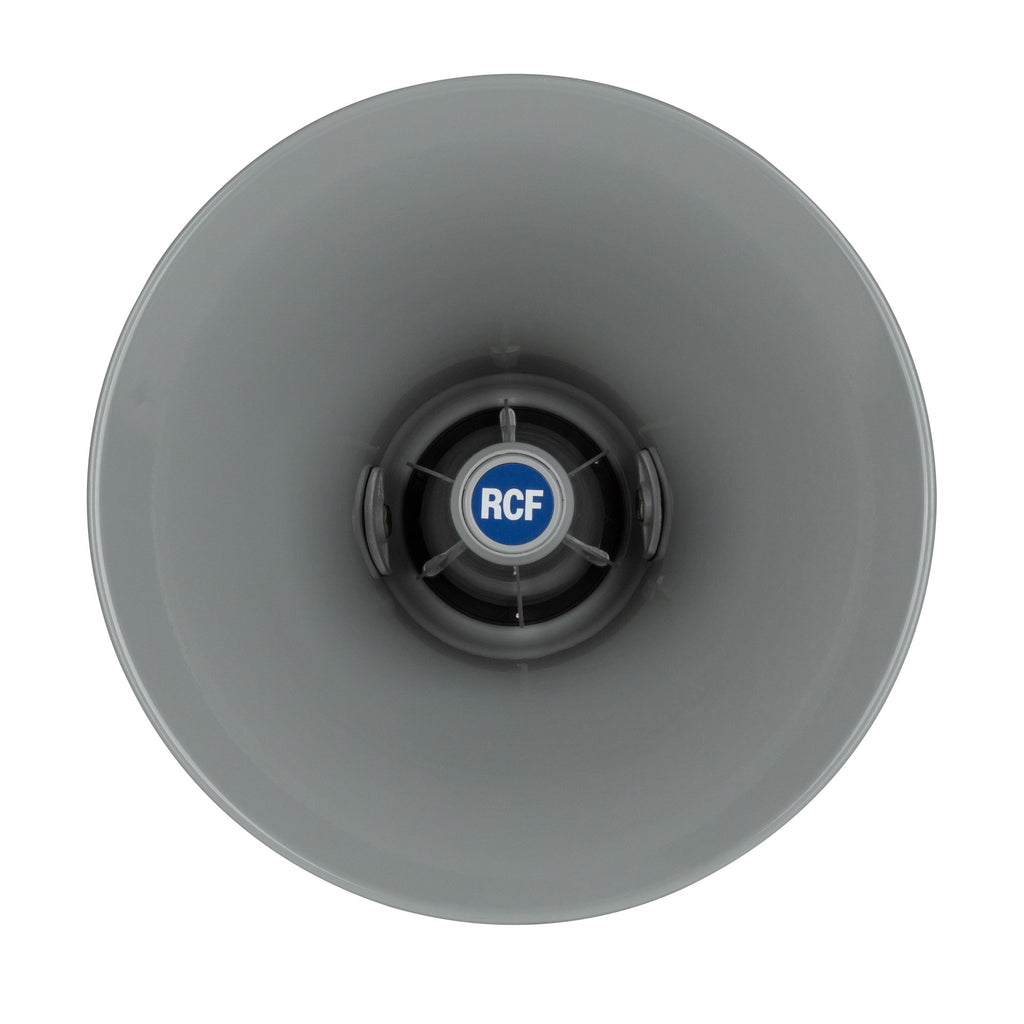

HD 410T Aluminium Horn Speaker with Driver and Transformer

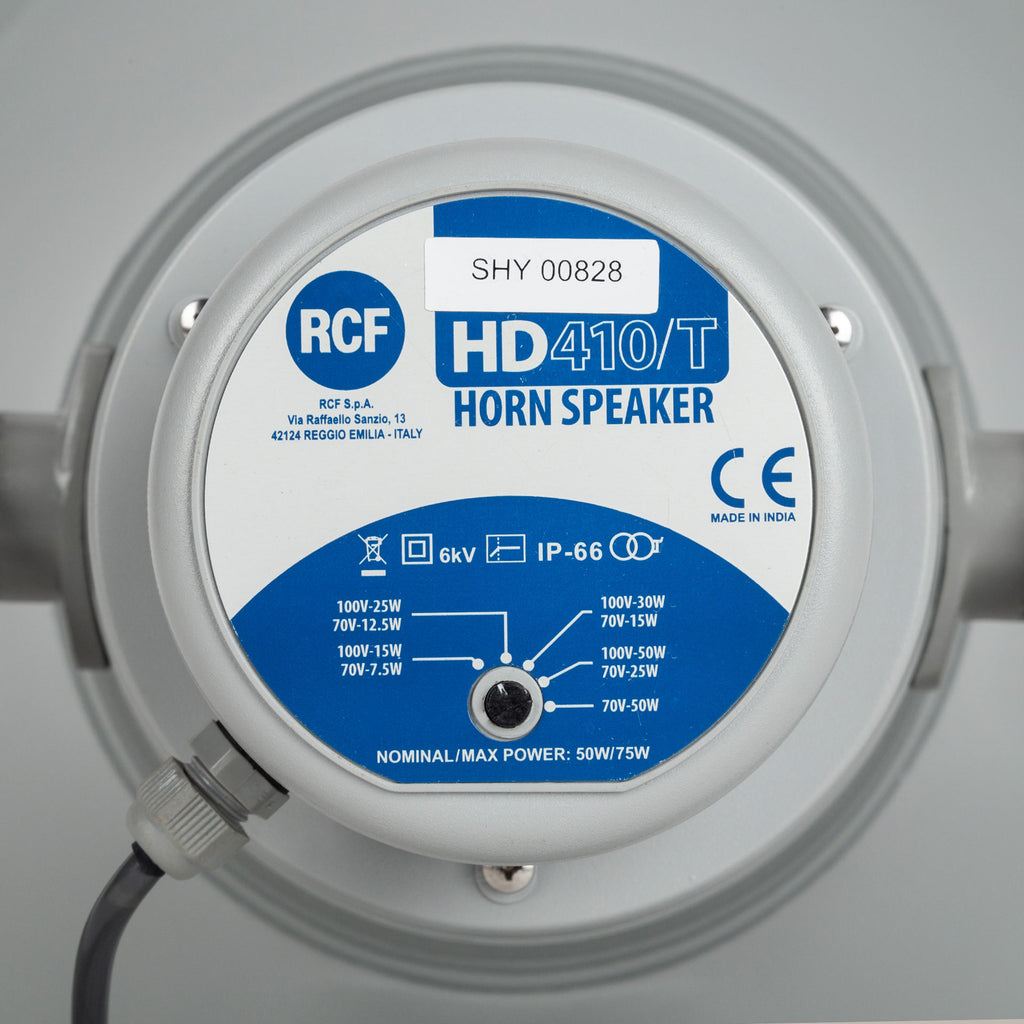

The HD 410/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion.The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
Features
- Built-in line transformer with multitap power selector on rear cover
- Hi-pass filter for protecting driver against out-of-range low-freq
- IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
- Aluminum flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
- Colour RAL 7035
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
180 Hz - 7000 Hz |
| Max SPL @ 1m |
130 dB |
| Coverage angle |
90° |
| System Sensitivity |
112 dB |
Power section
| Amplification |
Full Range |
| Power Handling |
50 W |
| Peak Power Handling |
200 W PEAK |
Transducers
| Compression Driver |
1 x 2.0'' |
Input/Output section
| Input connectors |
Cable |
| Output connectors |
Cable |
| Constant Voltage Transformer |
70/100 V |
| Power selection 1 |
50 W - 200 ohm |
| Power selection 2 |
30 W - 333 ohm |
| Power selection 3 |
25 W - 400 ohm |
| Power selection 4 |
15 W - 667 ohm |
| Power selection 5 |
7.5 W - 1333 ohm |
Standard compliance
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Aluminum |
| Hardware |
Stainless steel U bracket |
| Color |
Grey - RAL 7035 |
Size / Weight
| Depth |
393 mm / 15.47 inches |
| Diameter |
430 mm / 16.93 inches |
| Weight |
3.57 kg / 7.87 lbs |
Shipping information
| Package Height |
415 mm / 16.34 inches |
| Package Width |
420 mm / 16.54 inches |
| Package Depth |
430 mm / 16.93 inches |
| Package Weight |
6.06 kg / 13.36 lbs |
