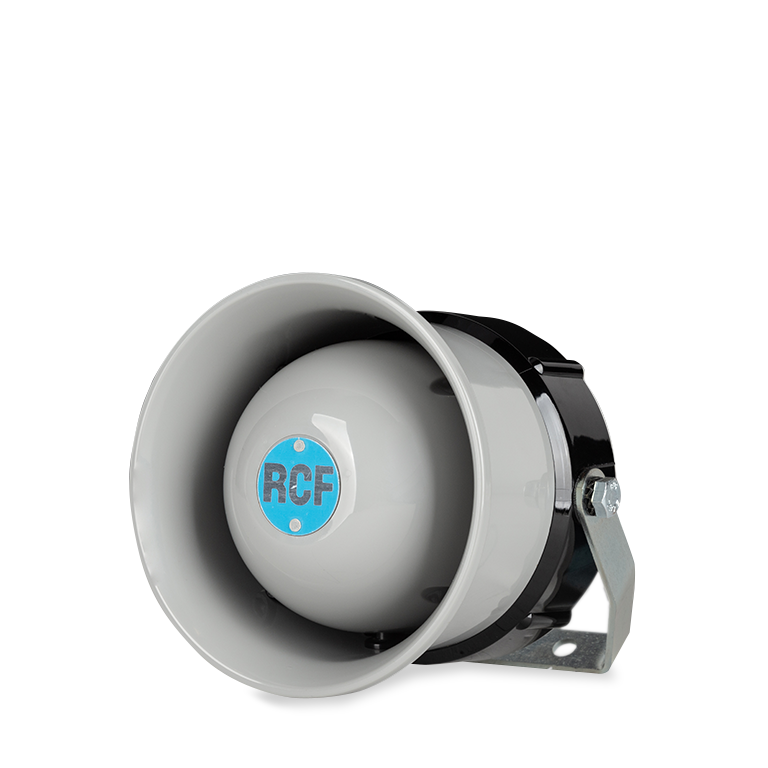

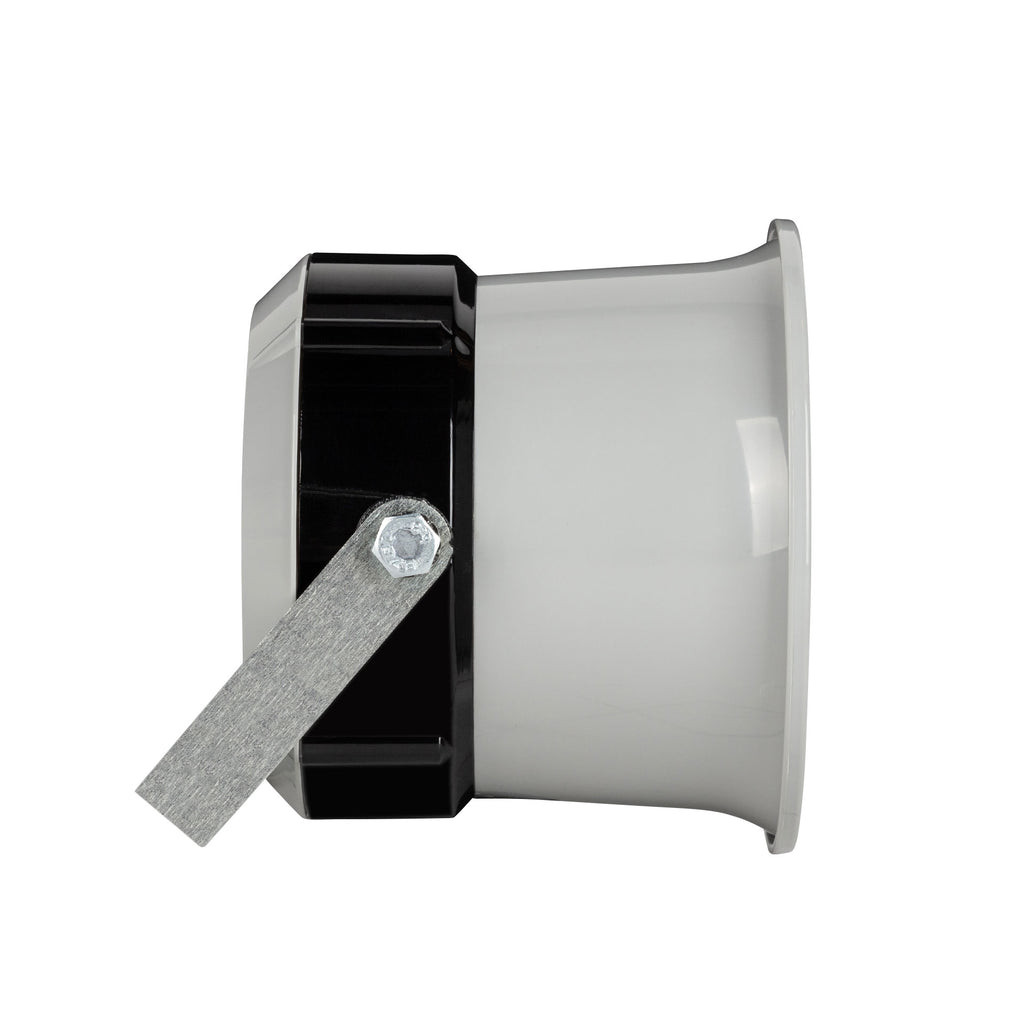

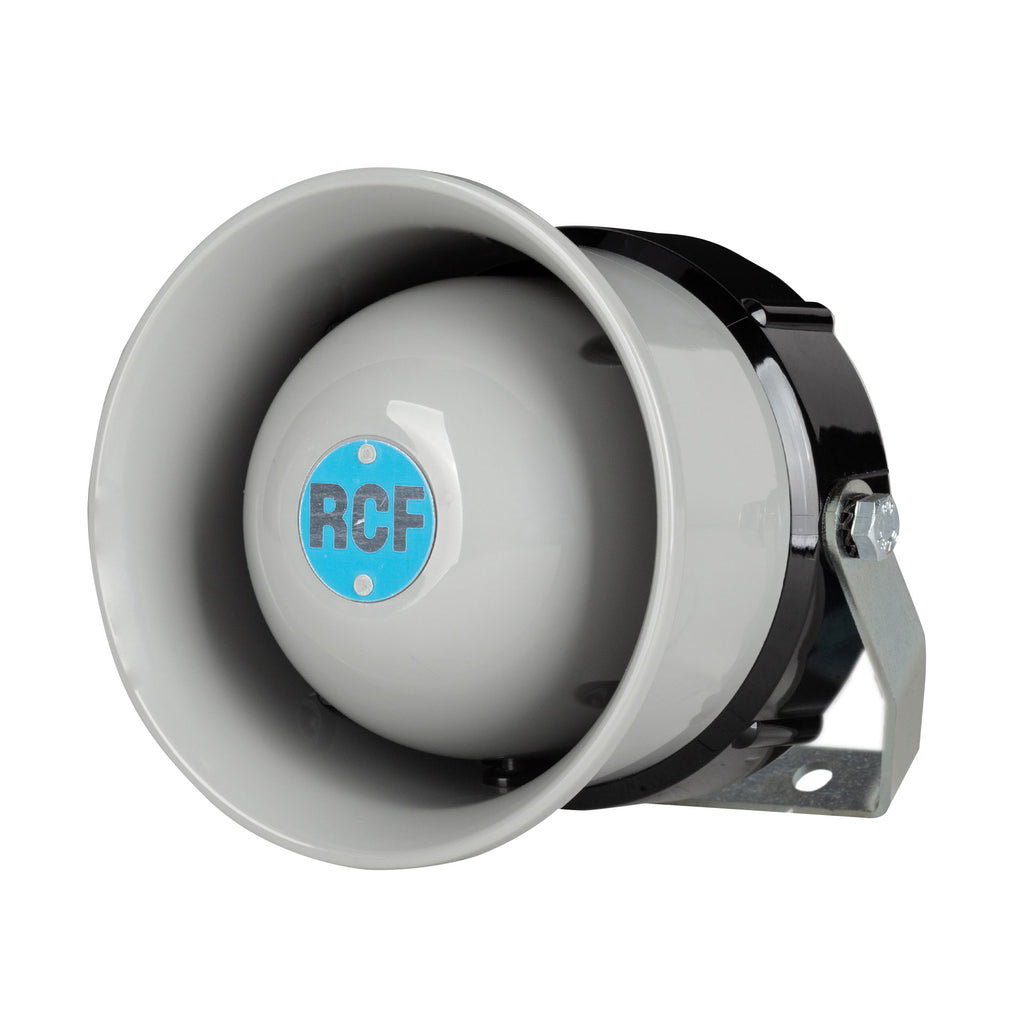

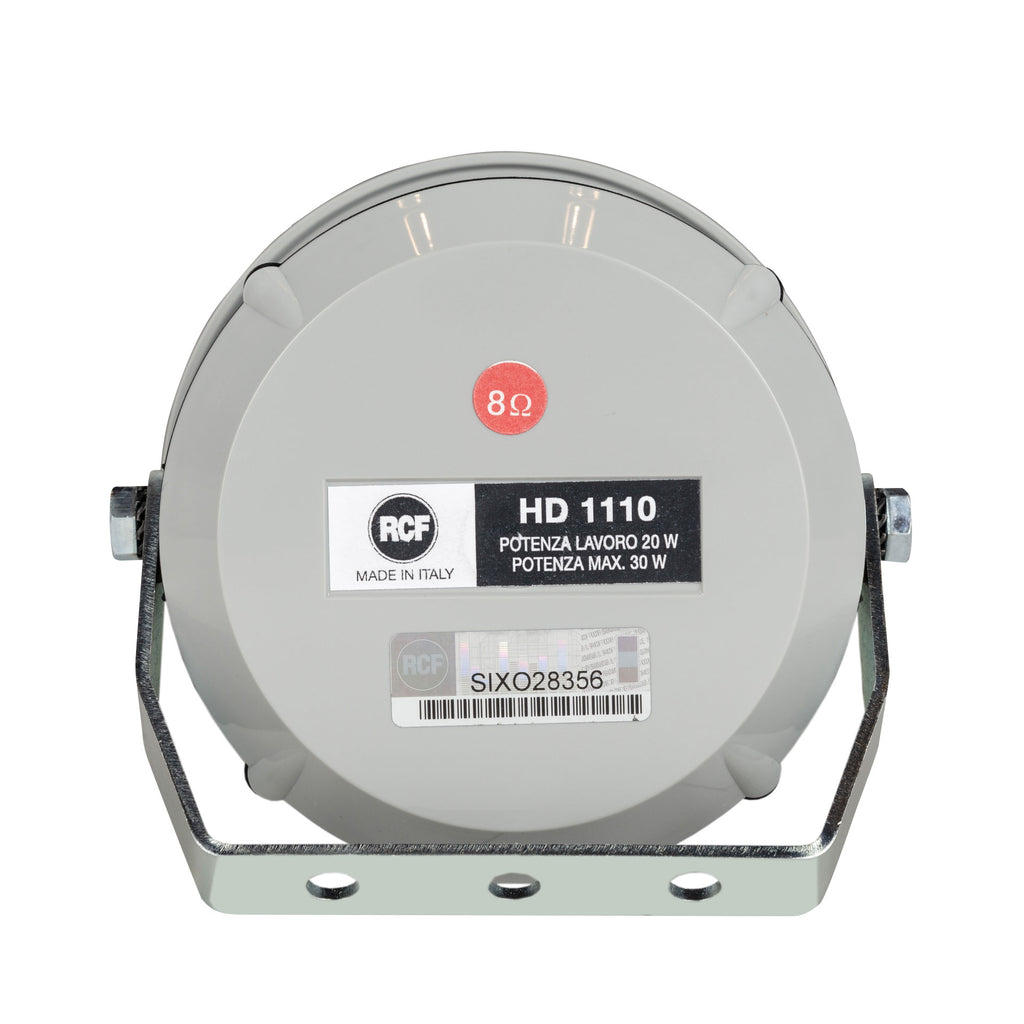

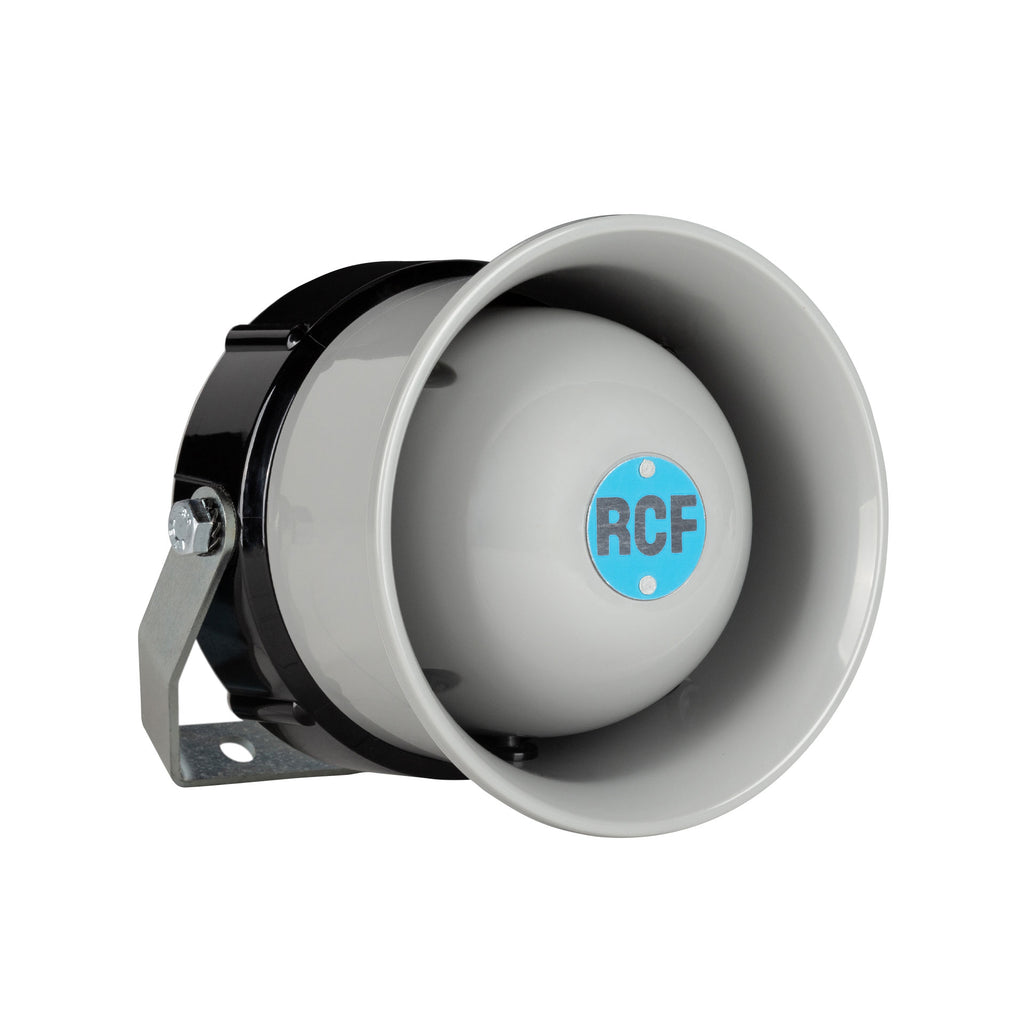

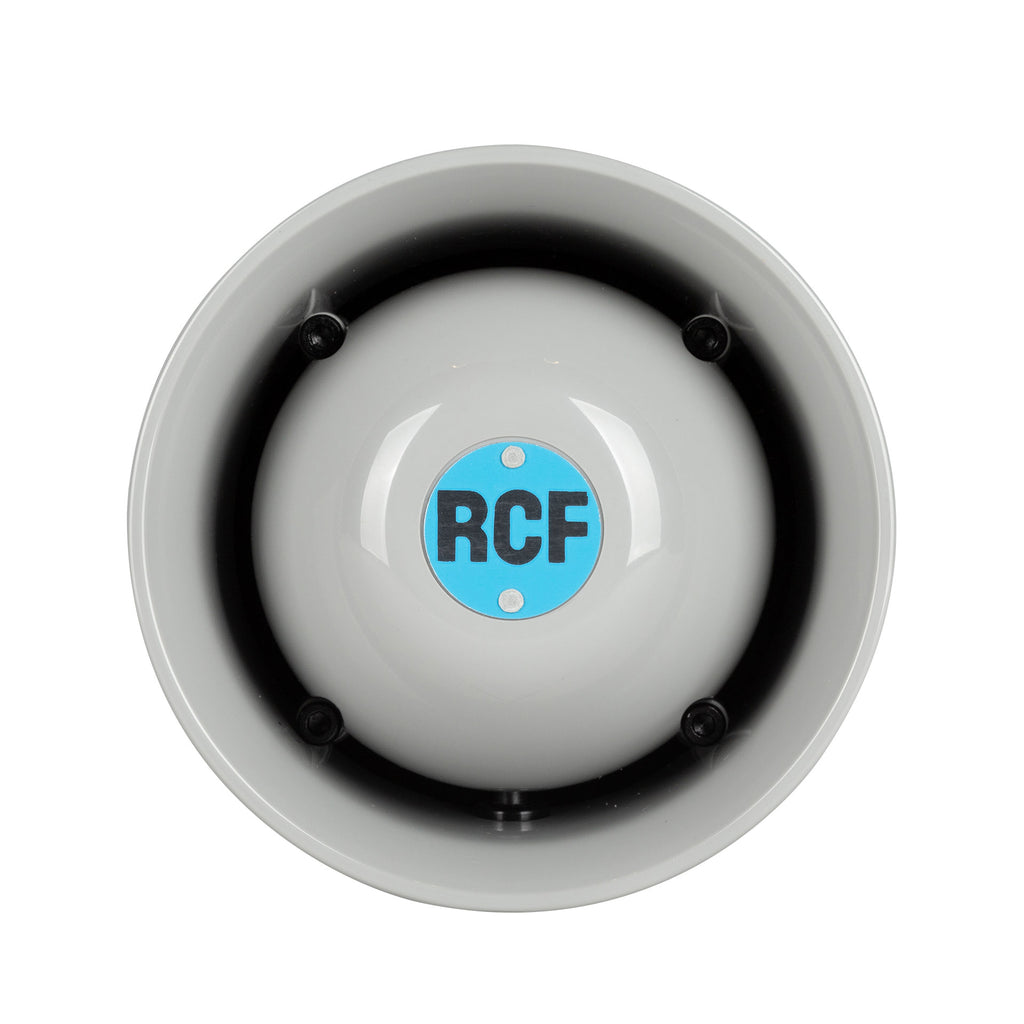

HD 1110 Plastic Horn Speaker with Driver
Extremely compact horn speaker with high acoustic output. The HD 1110 is particularly suitable for use in call or alarm systems in places with a high level of background noise. Fully protected against atmospheric agents, it can also be used outdoors.
Features
- Plastic body, GREY RAL 7035
- Solid and compact construction
- Mounting bracket included
- Driver impedance 8 Ohm
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
900 Hz - 13000 Hz |
| Max SPL @ 1m |
114 dB |
| Coverage angle |
175° |
| System Sensitivity |
101 dB |
Power section
| Nominal Impedance |
8 ohm |
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
Transducers
| Compression Driver |
1 x 1.5'' |
Input/Output section
| Input connectors |
Cable |
| Output connectors |
Cable |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
U bracket |
Size / Weight
| Depth |
93 mm / 3.66 inches |
| Diameter |
100 mm / 3.94 inches |
| Weight |
0.42 kg / 0.93 lbs |
Shipping information
| Package Height |
100 mm / 3.94 inches |
| Package Width |
120 mm / 4.72 inches |
| Package Depth |
120 mm / 4.72 inches |
| Package Weight |
1.2 kg / 2.65 lbs |
