GS 60 Garden Speaker

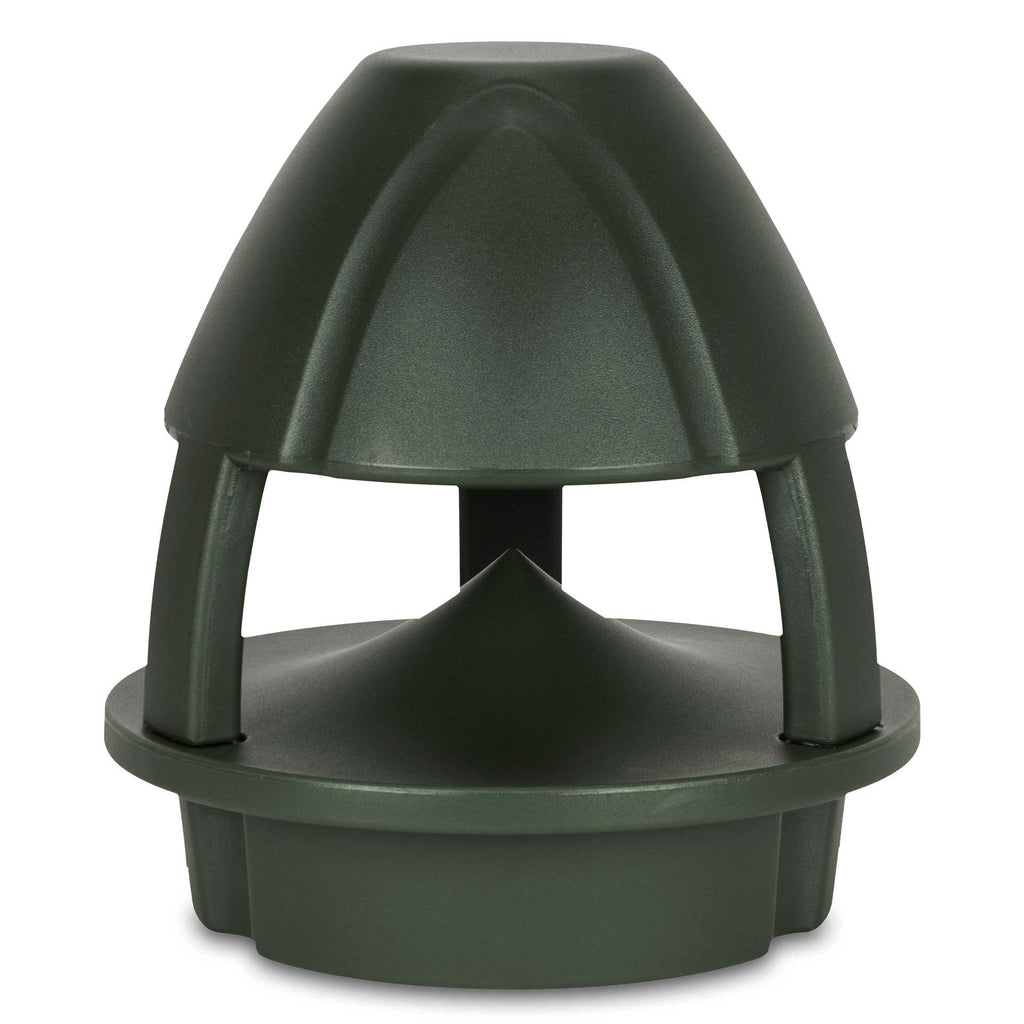

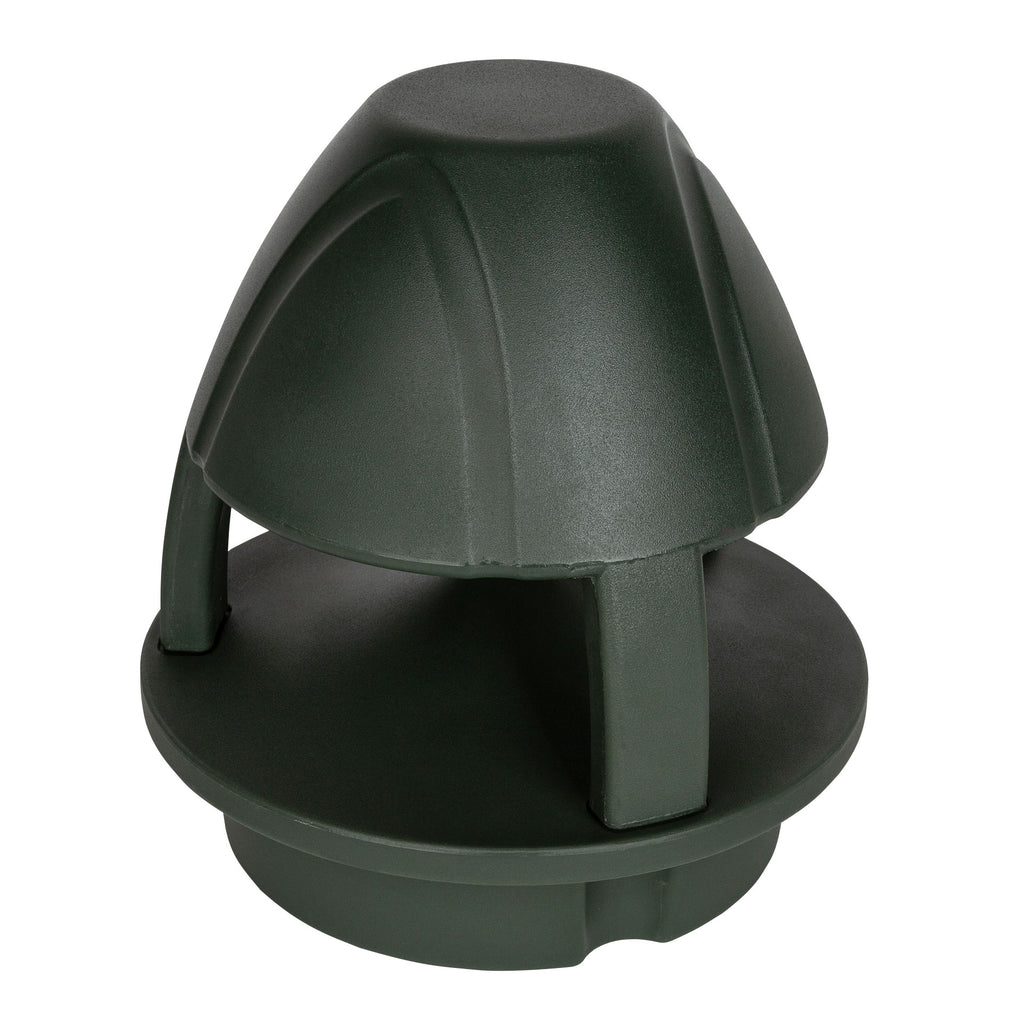

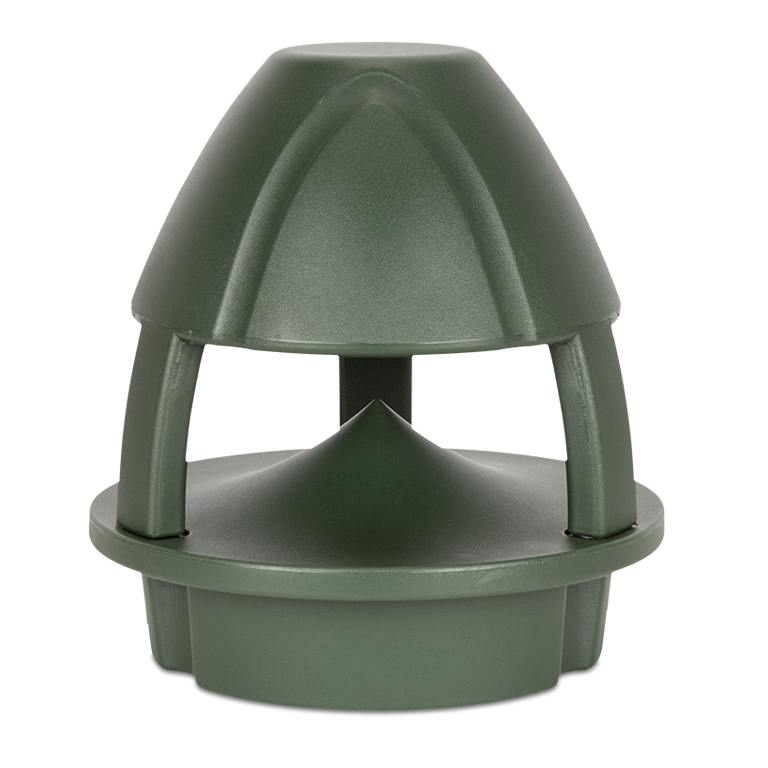

GS 60 is an outdoor speaker suitable for gardens that includes a 5” coaxial loudspeaker and an internal transformer for 100V / 70V constant voltage lines. GS 60 can be placed on several surfaces, such as wood, concrete or into the ground.
Features
- Body made of linear low-density polyethylene
- Coaxial transducer with 5,25" woofer and 1,20'' tweeter
- Suitable for installation on different surfaces
- Can be used in constant voltage lines 100V / 70V or in low impedance (8 ohm)
- Protection grade IP56
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
111 dB |
| System Sensitivity |
90 dB |
Power section
| Nominal Impedance |
8 ohm |
| Power Handling |
60 W |
| Peak Power Handling |
240 W PEAK |

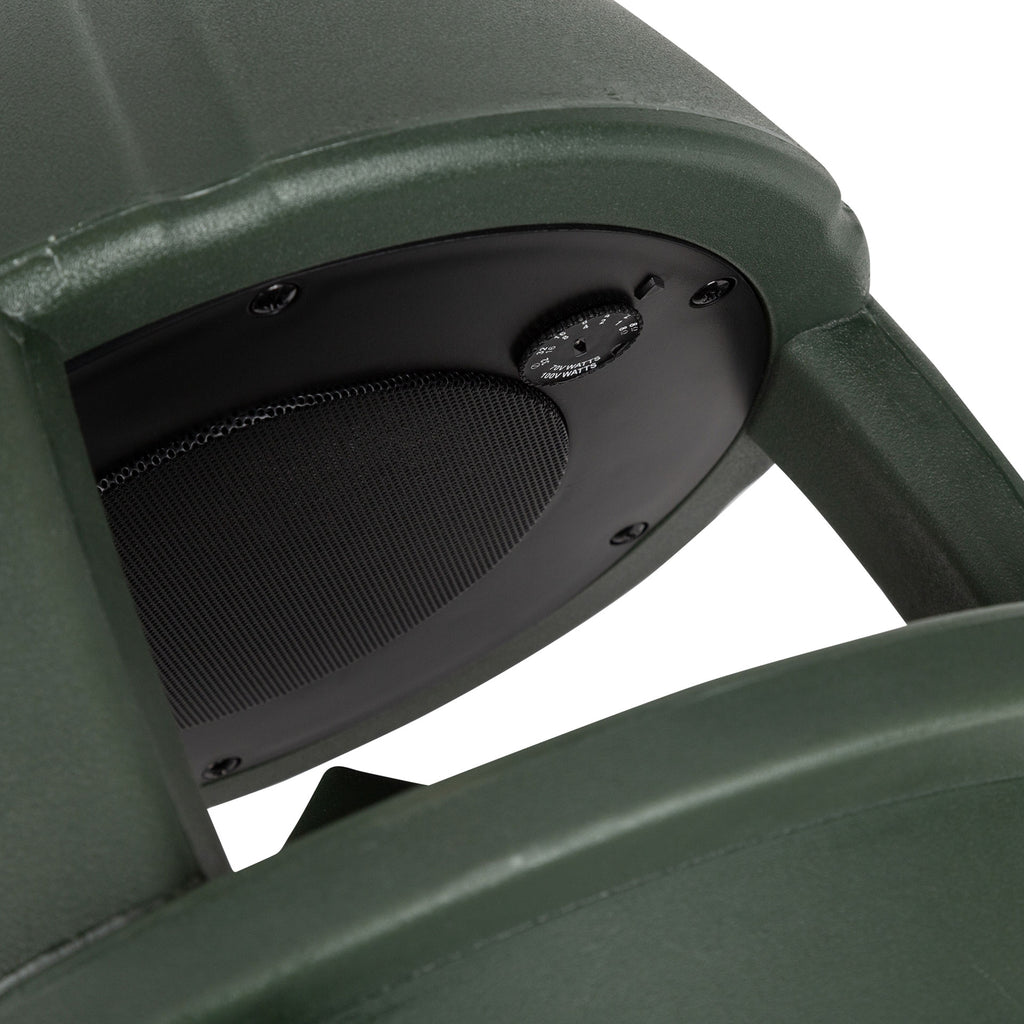

Transducers
| Dome Tweeter |
1 x 1.3'' |
| Woofer |
1 x 5.5'' |
Input/Output section

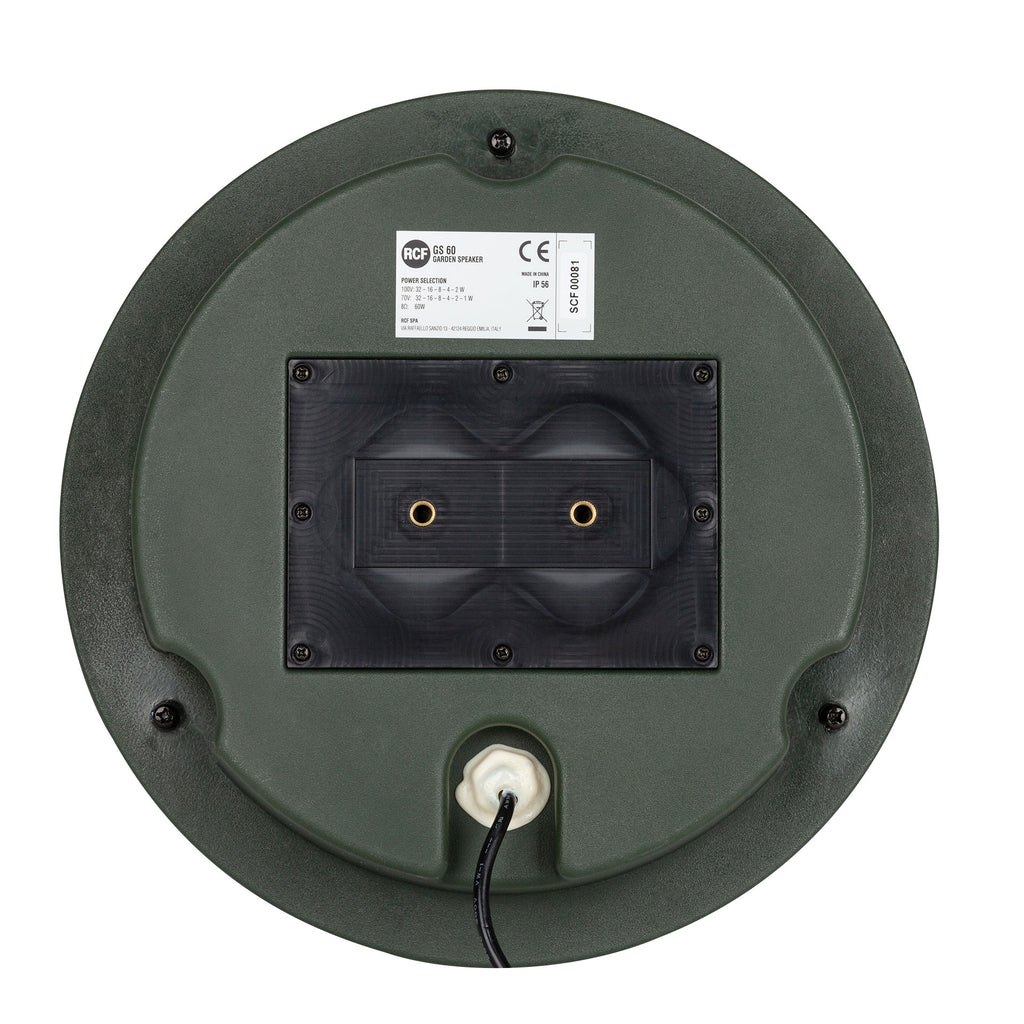

| Constant Voltage Transformer |
70/100 V |
| Power selection 1 |
32 W - 313 ohm |
| Power selection 2 |
16 W - 625 ohm |
| Power selection 3 |
8 W - 1250 ohm |
| Power selection 4 |
4 W - 2500 ohm |
| Power selection 5 |
2 W - 5000 ohm |
| Power selection 6 (100 V) |
1 W - 10000 ohm |
Standard compliance
| IP protection grade |
IP 56 |
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
PE Low Density |
| Color |
Green |
Size / Weight
| Height |
409 mm / 16.1 inches |
| Diameter |
365 mm / 14.37 inches |
Shipping information
| Package Height |
460 mm / 18.11 inches |
| Package Width |
440 mm / 17.32 inches |
| Package Depth |
440 mm / 17.32 inches |
| Package Weight |
5.74 kg / 12.65 lbs |
