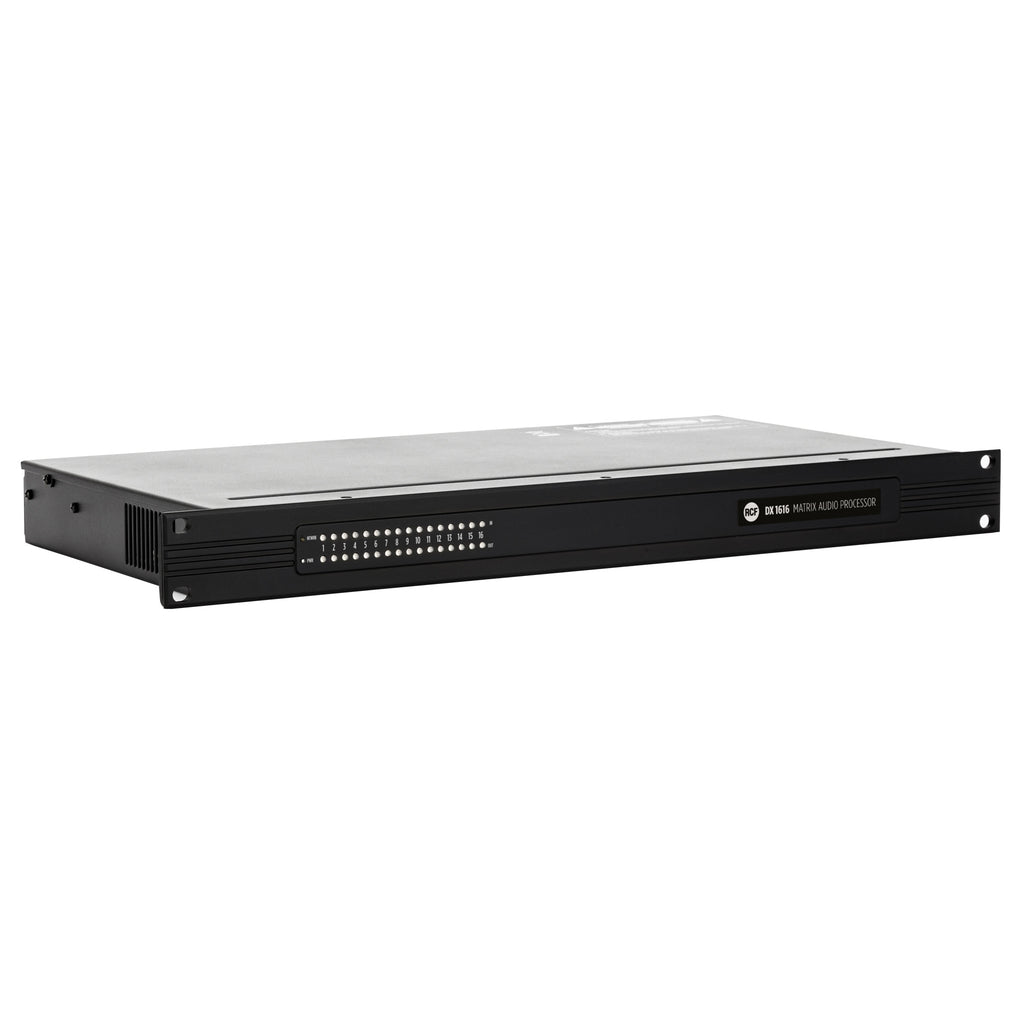

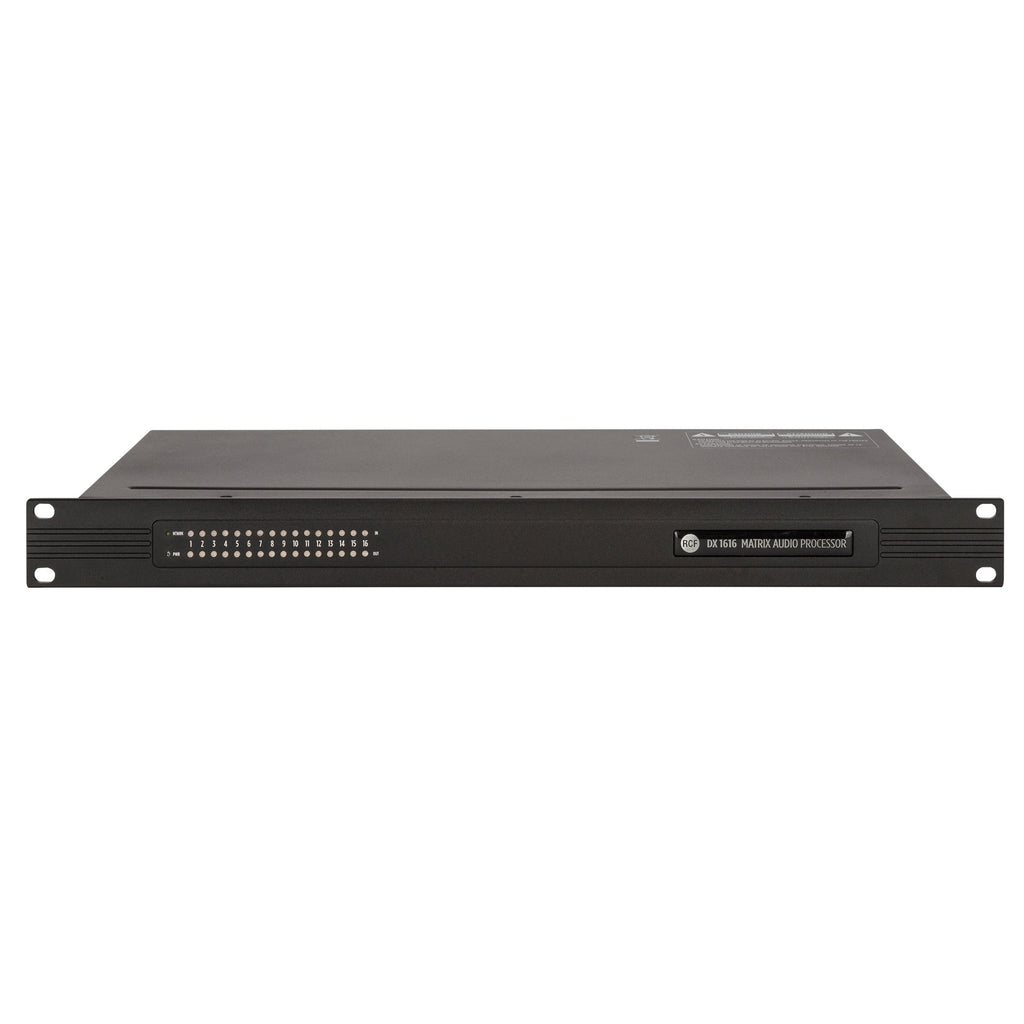

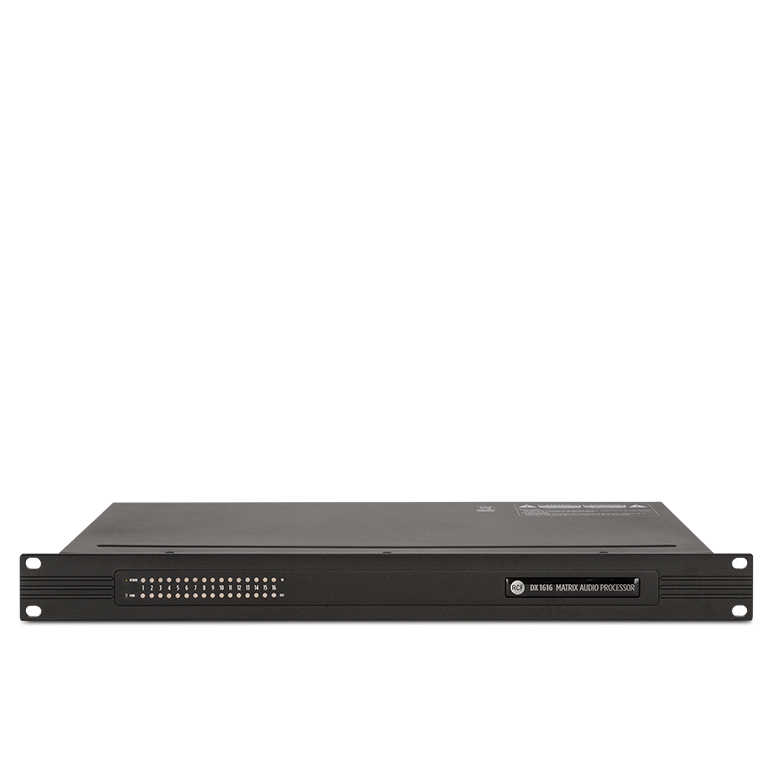

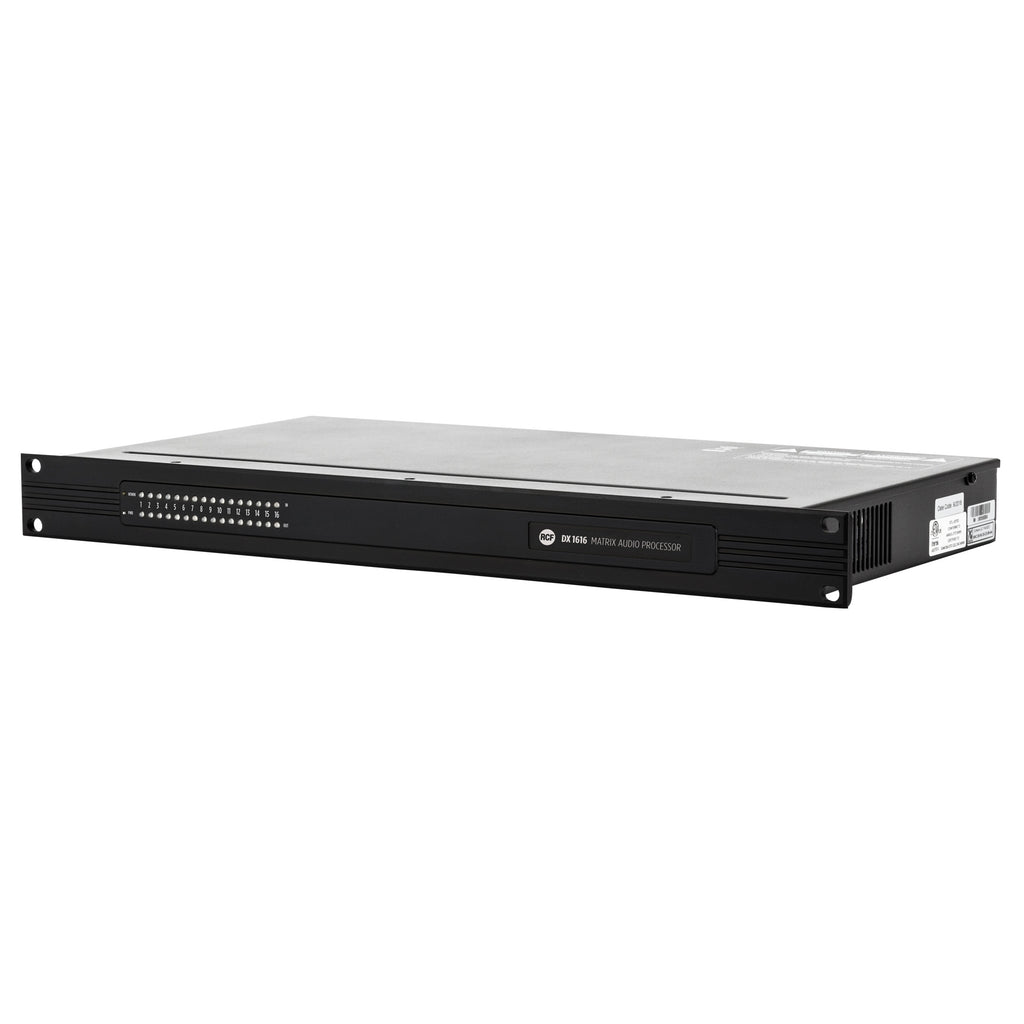

DX 1616 Matrix Audio Processing Unit

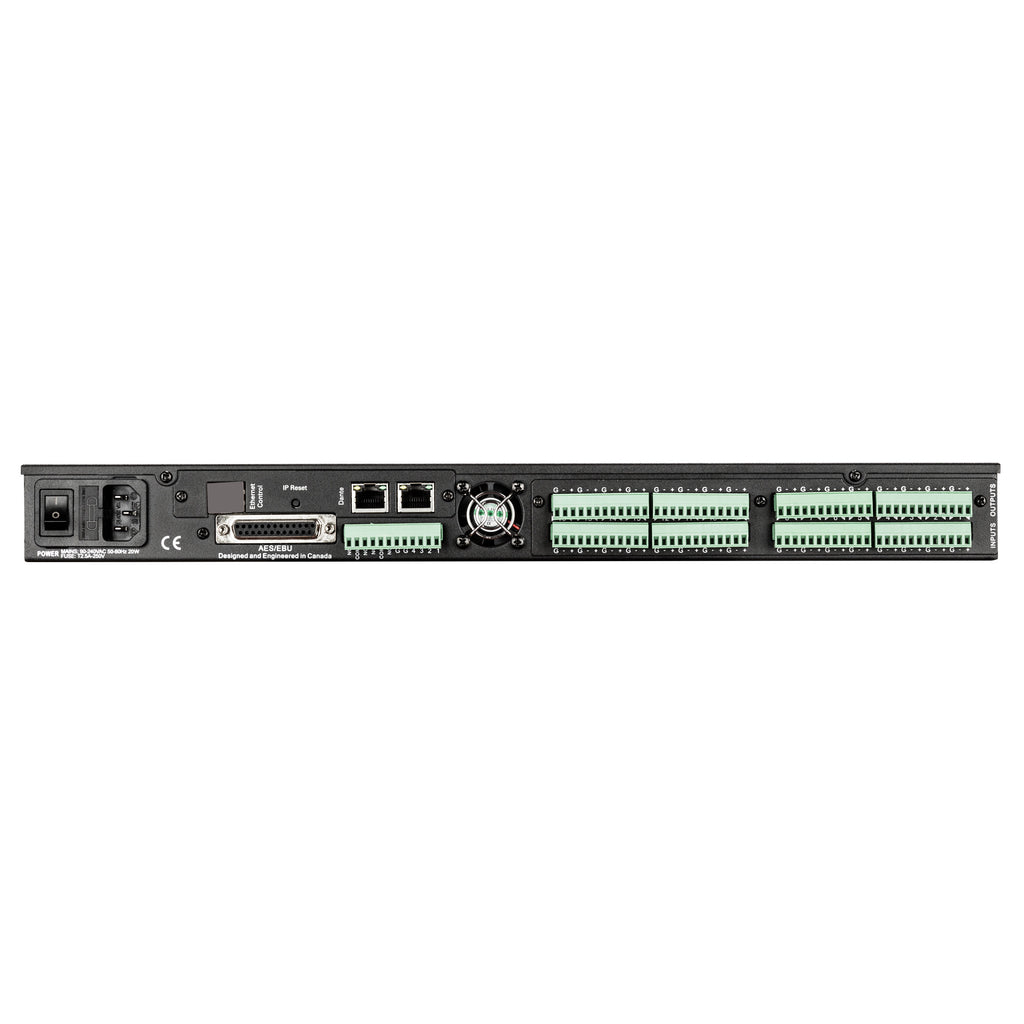

The RCF DX 1616 is a 16×16 matrix DSP audio processor designed for flexible routing and system processing in touring and installed sound. It runs a 48 kHz/40-bit floating-point engine with low latency (up to 3 ms) and combines Dante AoIP, 16 analog I/O, 8 AES I/O, and custom GPIO I/O in a single platform, with Ethernet connectivity, a dedicated Windows/macOS browser-based control panel, and XTouchApp for iOS and Android. On the processing side, it provides full input and output DSP blocks including HPF/LPF (6-48 dB/oct), 5-band parametric EQ, delay (up to 500 ms on inputs), compressor, plus output-stage tools such as shelving EQ, all-pass, additional delay, and limiting, enabling complete zone/array/feed management from one unit.
Features
- Hybrid architecture DSP
- 48 KHz sampling, 40 bit floating point engine
- 16 x 16 I/O matrix
- Dante enabled network audio transport
- 8 AES/EBU inputs - 8 AES/EBU outputs
- Ethernet connectivity and control
- Maximum latency 3 ms
- Easy to use software GUI
Specifications
Audio performance
| Frequency Response (-3dB) |
20 Hz - 22 kHz |
| Crosstalk |
<-100 dB |
| Distortion (THD+N) @ 1 kHz nominal power |
<0.001 % |
| Dynamic range |
>110 dB |
| Common Mode Rejection Ratio (50 Hz to 10 kHz) |
>100 dB |
Digital audio performance
| Resolution |
40 |
| Sampling rate |
48 |
| A/D - D/A converters |
24 |
| Propagation delay |
3 |
Input section
| Total number of inputs |
17 |
| Balanced |
17 |
| Mono |
16 |
| Mic+Line inputs |
16 |
| Mic+Line Phantom |
21 V DC - 44 V DC |
| Digital inputs |
1 |
Output section
Processing
| DSP |
Yes |
| EQ Filters |
Yes |
| Delay |
Yes |
| Tone controls |
Yes |
| High-pass filter |
20 Hz - 20000 Hz |
| Crossover |
20 - 20000 Hz |
Controls
| Number of programs/presets |
70 |
Protections
| Cooling |
Convection/Forced |
| Fuses |
Yes |
Power requirement
| Operating voltage |
90-240 V~ 50/60Hz |
| Power consumption (MAX) |
20 W |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Metal |
| Color |
Black |
| Rack mounting |
19", 1U |
Size / Weight
| Height |
44 mm / 1.73 inches |
| Width |
483 mm / 19.02 inches |
| Depth |
229 mm / 9.02 inches |
| Weight |
3.31 kg / 7.3 lbs |
Shipping information
| Package Height |
378 mm / 14.88 inches |
| Package Width |
88 mm / 3.46 inches |
| Package Depth |
597 mm / 23.5 inches |
| Package Weight |
4.73 kg / 10.43 lbs |
