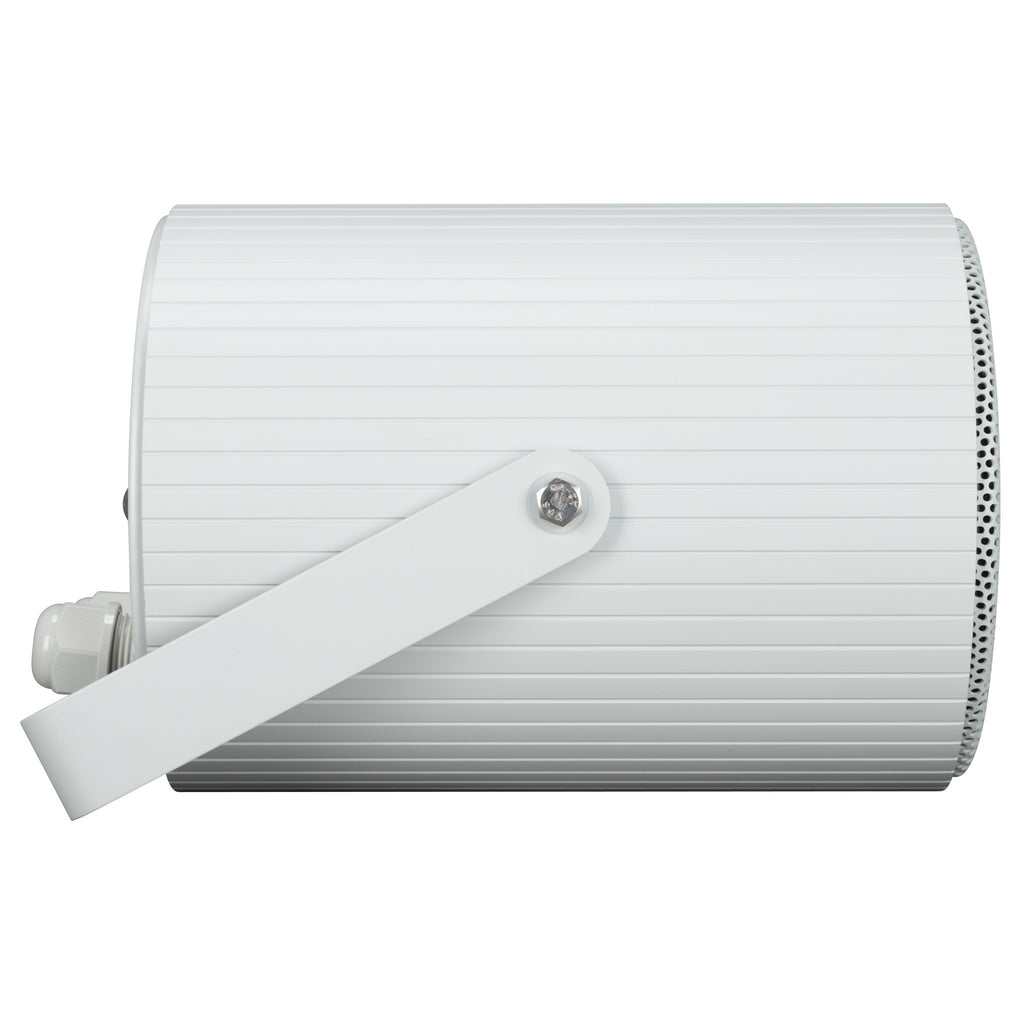

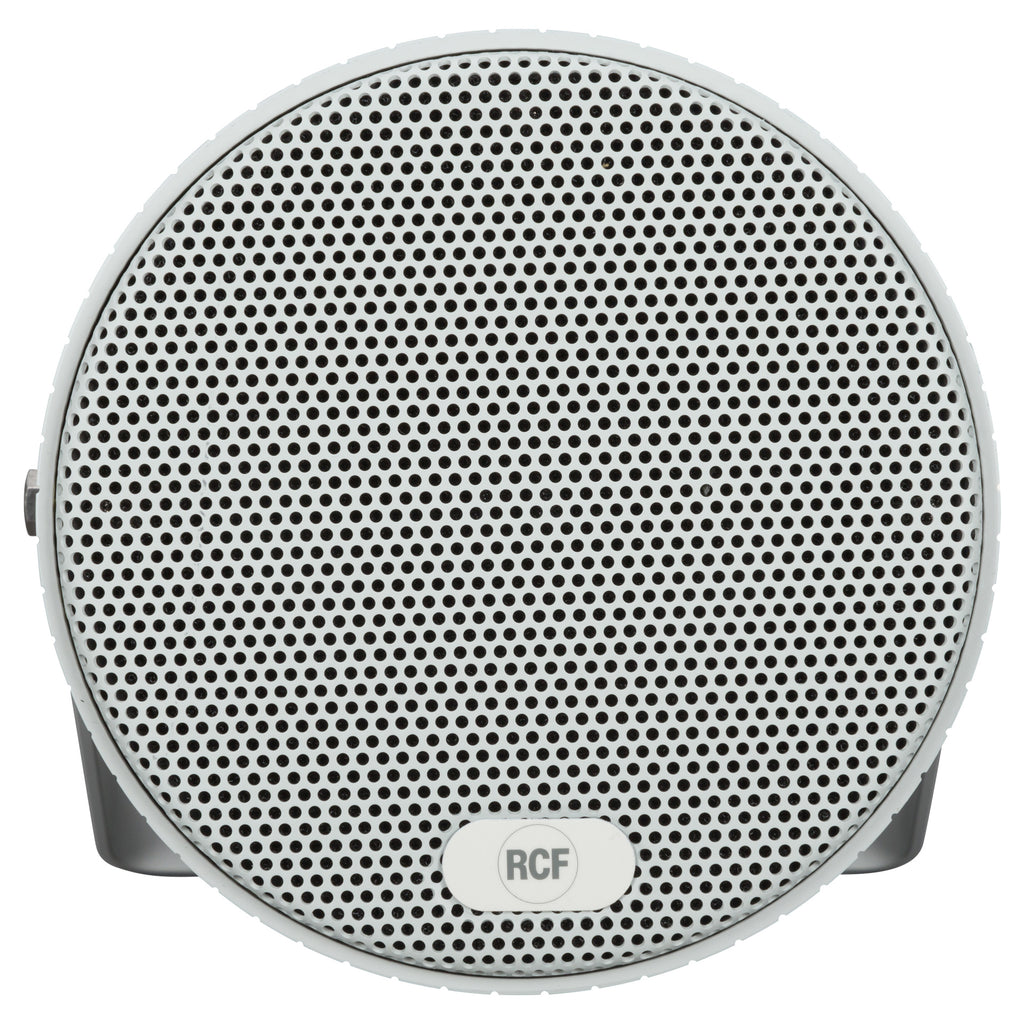

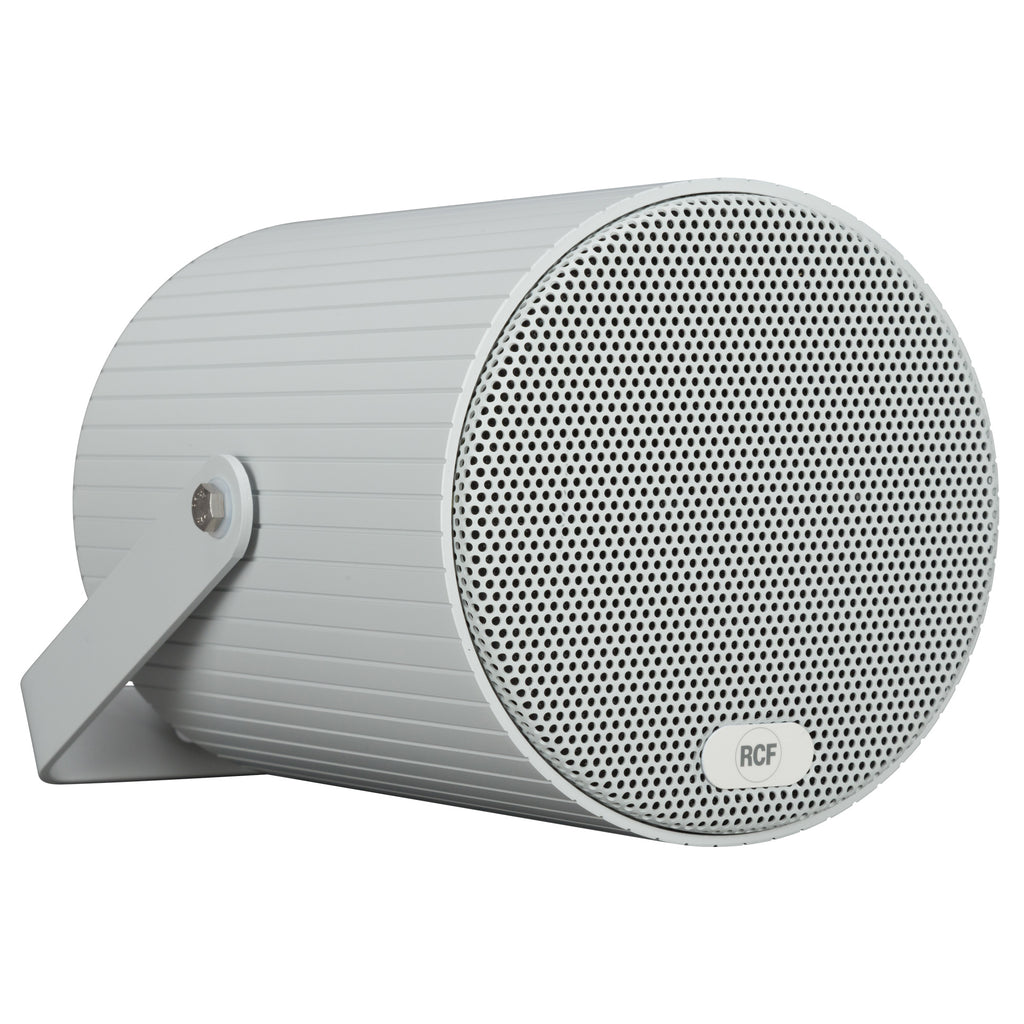

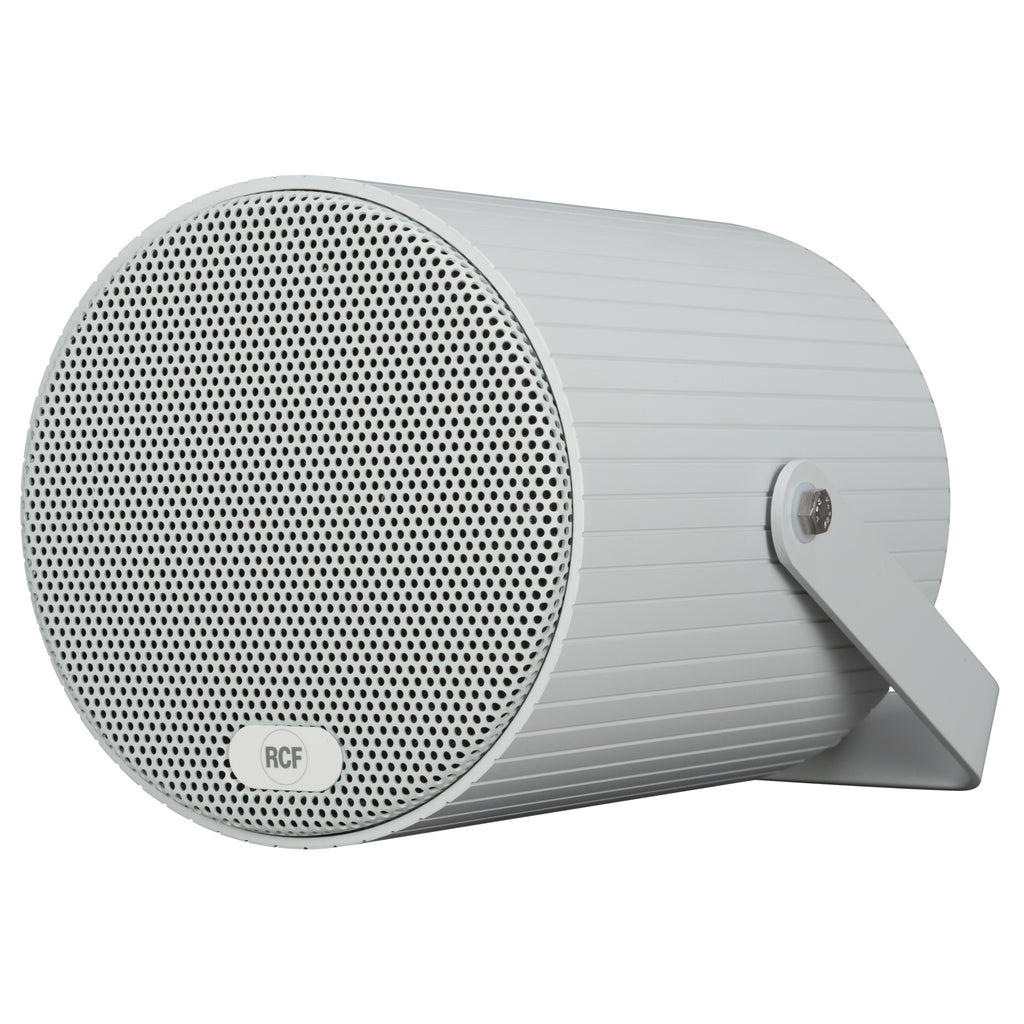

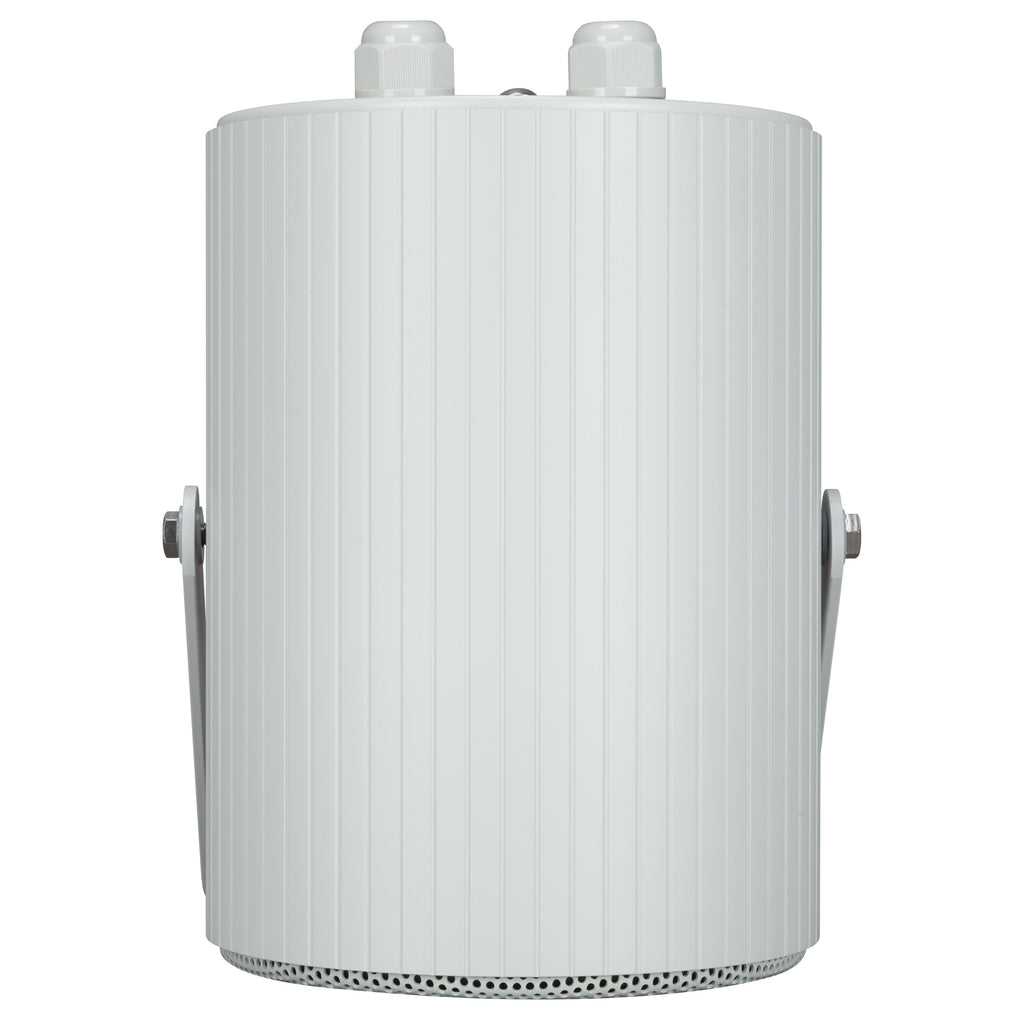

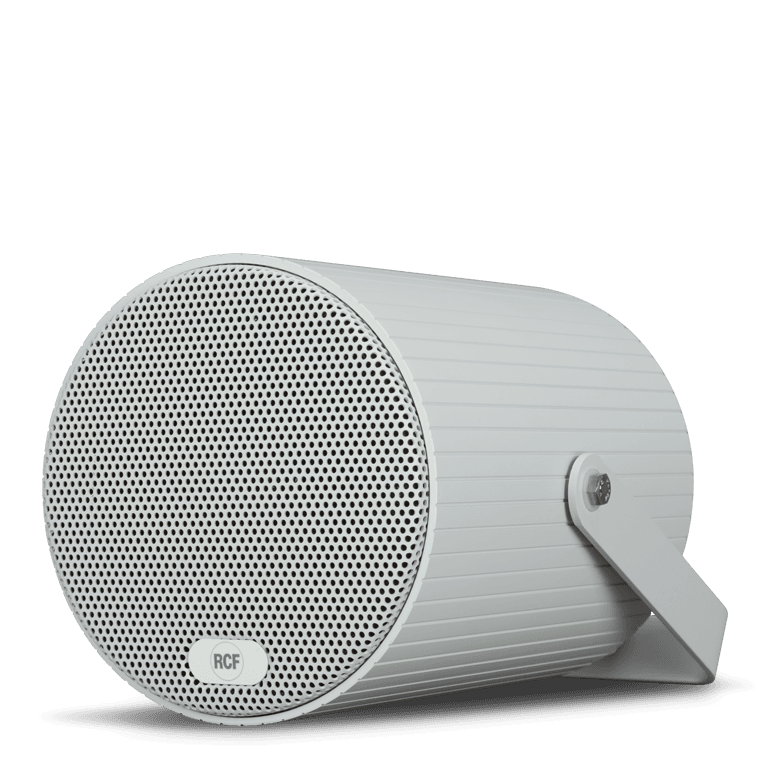

DP 1420EN Unidirectional Aluminium Sound Projector
DP 1420EN is a unidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 5" fullrange transducer.
- Power selectable (100 V): 20 W - 10 W - 5 W - 2.5 W - 1.25 W.
- 92 dB sensitivity.
- Colour grey RAL 7035.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
160 Hz - 20000 Hz |
| Max SPL @ 1m |
105 dB |
| Max SPL @ 4m |
93 dB |
| Coverage angle |
155° |
| System Sensitivity |
92 dB |
| System Sensitivity 1W @ 4m |
80 dB |
Power section
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
Transducers
Input/Output section
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Ceramic screw terminals |

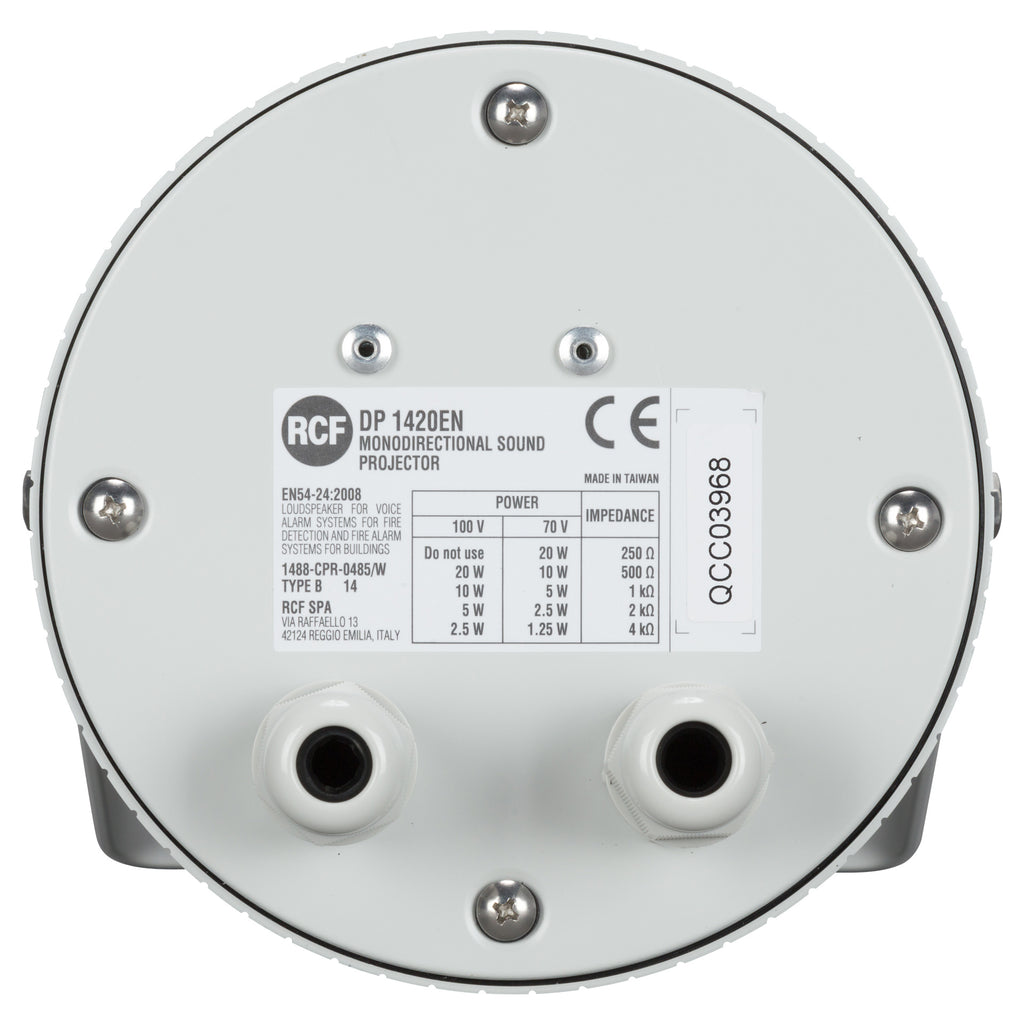

| Constant Voltage Transformer |
70/100 V |
| Power selection 1 |
20 W - 500 ohm |
| Power selection 2 |
10 W - 1000 ohm |
| Power selection 3 |
5 W - 2000 ohm |
| Power selection 4 |
2.5 W - 4000 ohm |
| Power selection 5 |
1.25 W - 8000 ohm |
Standard compliance
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0485/W |
Physical specifications
| Cabinet/Case Material |
Aluminum |
| Hardware |
Aluminium bracket |
| Grille |
Aluminium |
| Color |
Grey - RAL 7035 |
Size / Weight
| Depth |
200 mm / 7.87 inches |
| Diameter |
146 mm / 5.75 inches |
| Weight |
2.73 kg / 6.02 lbs |
Shipping information
| Package Height |
260 mm / 10.24 inches |
| Package Width |
160 mm / 6.3 inches |
| Package Depth |
160 mm / 6.3 inches |
| Package Weight |
2.73 kg / 6.02 lbs |
