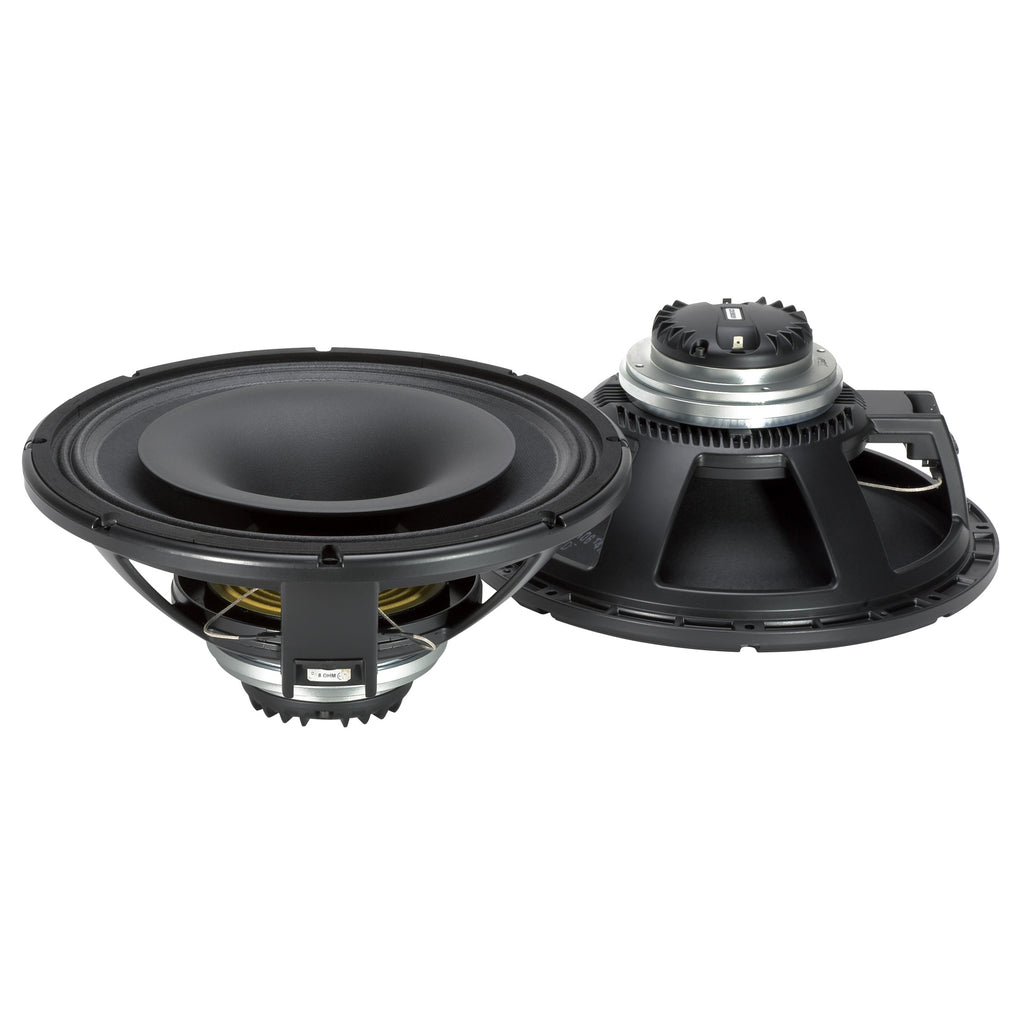

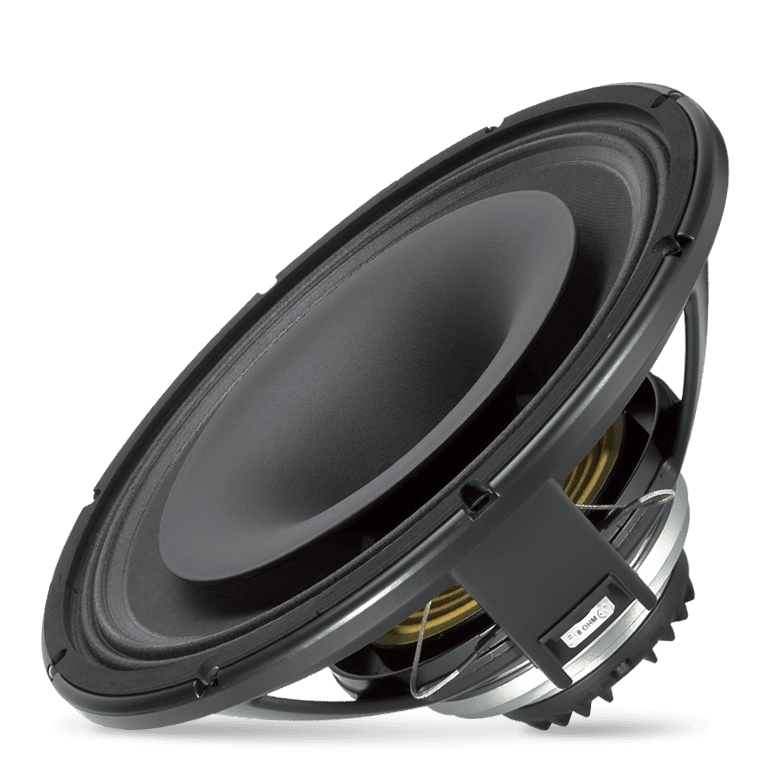

CX15N351 Coaxial
This CX15N351 is designed to provide an excellent frequency response linearity with very low distortion. This coaxial use a strongest unique neodymium magnetic structure that guarantee high dynamic and sensitivity for both components. The mid-bass section use a 3,5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil, demodulation ring get a fastest time response and lower distortion . The compression driver use a 2.5-inch diaphragm with a 1.4 inch throat featuring several state of the art technologies. The diaphragm and suspension are formed from 0.05mm thick pure titanium. The unique magnetic structure allow to get a single point source that providing coherent wave front.
Features
- 3.5 - inch Inside / Outside copper voice coli
- 900 Watt continuous program power LF
- 101 dB Sensitivity
- 40 Hz - 3 kHz Frequency range
- Dual - forced air ventilation for minimum power compression
- Dual spider design with silicon based damping control
- 2.5 - inc Diaphragm, 1.4 - inch Exit Throat / Pure Titanium Compression Driver
- 180 Wat Continuos program power HF
- Frequency range: 700 Hz - 20 kHz
- Direct Drive Voice Coil Assembly
Specifications
General specifications
| Nominal Diameter |
15 inch / 381 mm |
| Related Impedance |
8.00 ohm |
| Program Power (watt) |
900 W |
| Power handling capacity |
450 W |
| Sensitivity |
101.0 dB |
| Frequency range |
40 - 3000 Hz |
| Effective piston diameter |
330 mm / 12.99 inch |
| Max. Excursion Before Damage |
39 mm / 1.54 inch |
| Minimum Impedance (ohm) |
6.8 ohm |
| Voice Coil Diameter |
3.5 inch / 89 mm |
| Voice Coil Winding Material |
Copper |
| Voice Coil Length |
0.67 inch / 17 mm |
| Kind of layers |
inside/outside |
| Top Plate Thickness |
11 mm / 0.43 inch |
| Cone Design |
Curved |
| Surround Material |
Polycotton |
| Surround Design |
M-roll |
| Magnets |
Neodymium |
| Dual-force air ventilation |
Yes |
| Demodulation Rings material |
Aluminum |
| Spider |
Dual with silicon based damping control |
Thiele - small parameters
| Resonance frequency (Fs) |
55 Hz |
| DC resistance (Re) (ohm) |
5.60 ohm |
| Mechanical factor |
6.00 Qms |
| Electrical factor |
0.27 Qes |
| Total factor |
0.26 Qts |
| Bl factor (Bl) (T x m) |
23.50 T x m |
| Effective moving mass (Mms) |
80.0 g |
| Equivalent Cas air loaded (Vas) |
110.0 liters |
| Effective piston area (Sd) |
0.090 m2 |
| Max. linear excursion (Xmax) |
6 mm |
| Voice coil inductance @ 1kHz (Le1k) |
1.65 mH |
| Half-space efficency (Eff) |
6.53% |
General specifications driver
| Exit Throat Diameter |
1.4 inch / 36 mm |
| Related Impedance |
8.00 ohm |
| Program Power (watt) |
180 W |
| Power handling capacity (watt) |
90 W |
| Sensitivity |
110 dB |
| Frequency range driver |
700 - 20000 Hz |
| Diaphragm Material |
Pure Titanium |
| Suspension Material |
Pure Titanium |
| Suspension Design |
Progressive |
| Minimum Impedance (ohm) |
7.90 ohm |
| Voice Coil Diameter driver |
2.5 inch / 63 mm |
| Voice Coil Material |
Edgewound Aluminum |
| Number of layers |
1.00 |
| Kind of layers |
outside |
| Flux Density |
2.0 T |
| Phase Plug Design |
3 slot |
| Phase Plug Material |
Aluminum |
| Magnetics |
Neodymium |
| Voice Coil Demodulation Ring |
Copper |
General specifications horn
| Throat Diameter |
36 mm / 1.4 inch |
| Horizontal coverage angle |
60° |
| Vertical coverage angle |
60° |
| Cut-off Frequency |
800 Hz |
| Material |
Structural Polyurethane |
Mounting information
| Overall diameter |
393 mm / 15.47 inches |
| Bolt circle diameter |
371-376 mm / 14.61-14.8 inch |
| Bolt hole diameter |
7 mm / 0.28 inch |
| Front mount baffle cut-out |
354 mm / 13.94 inch |
| Rear mount baffle cut-out |
354 mm / 13.94 inch |
| Volume occupied by the driver |
3.8 liters / 0.15 ft3 |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Height |
254 mm / 10 inches |
| Diameter |
393 mm / 15.47 inches |
| Weight |
7 kg / 15.43 lbs |
Shipping information
| Package Height |
240 mm / 9.45 inches |
| Package Width |
440 mm / 17.32 inches |
| Package Depth |
440 mm / 17.32 inches |
| Package Weight |
8.5 kg / 18.74 lbs |
