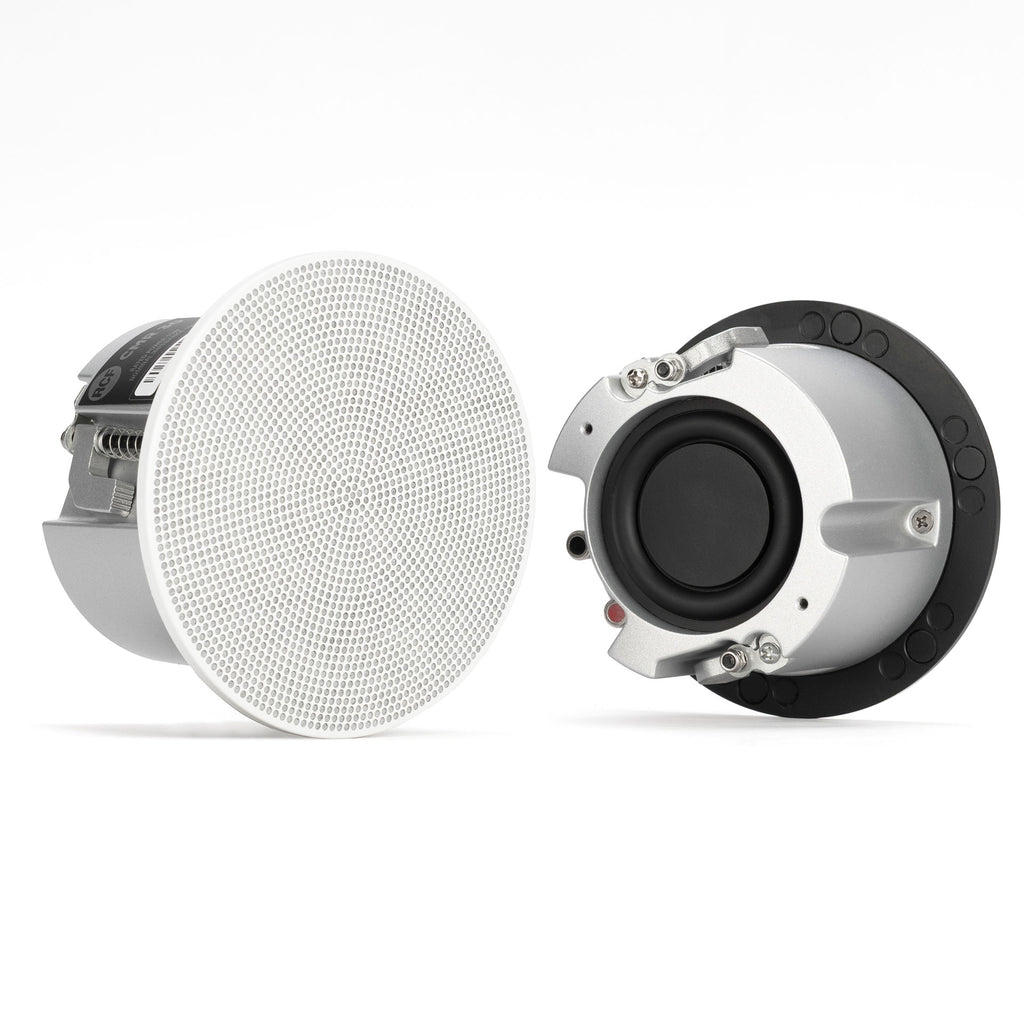

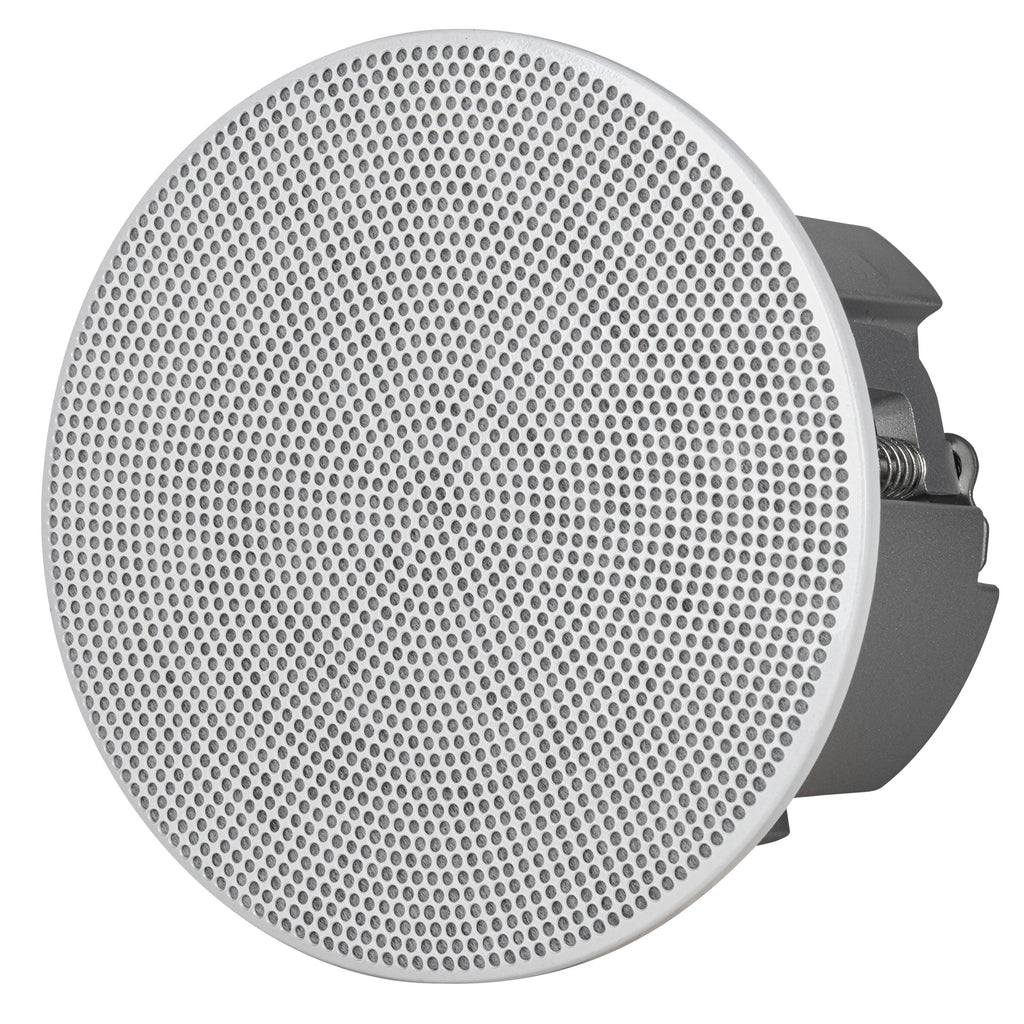

CMR 30 Pair of Full-Range Ceiling Monitor Speakers

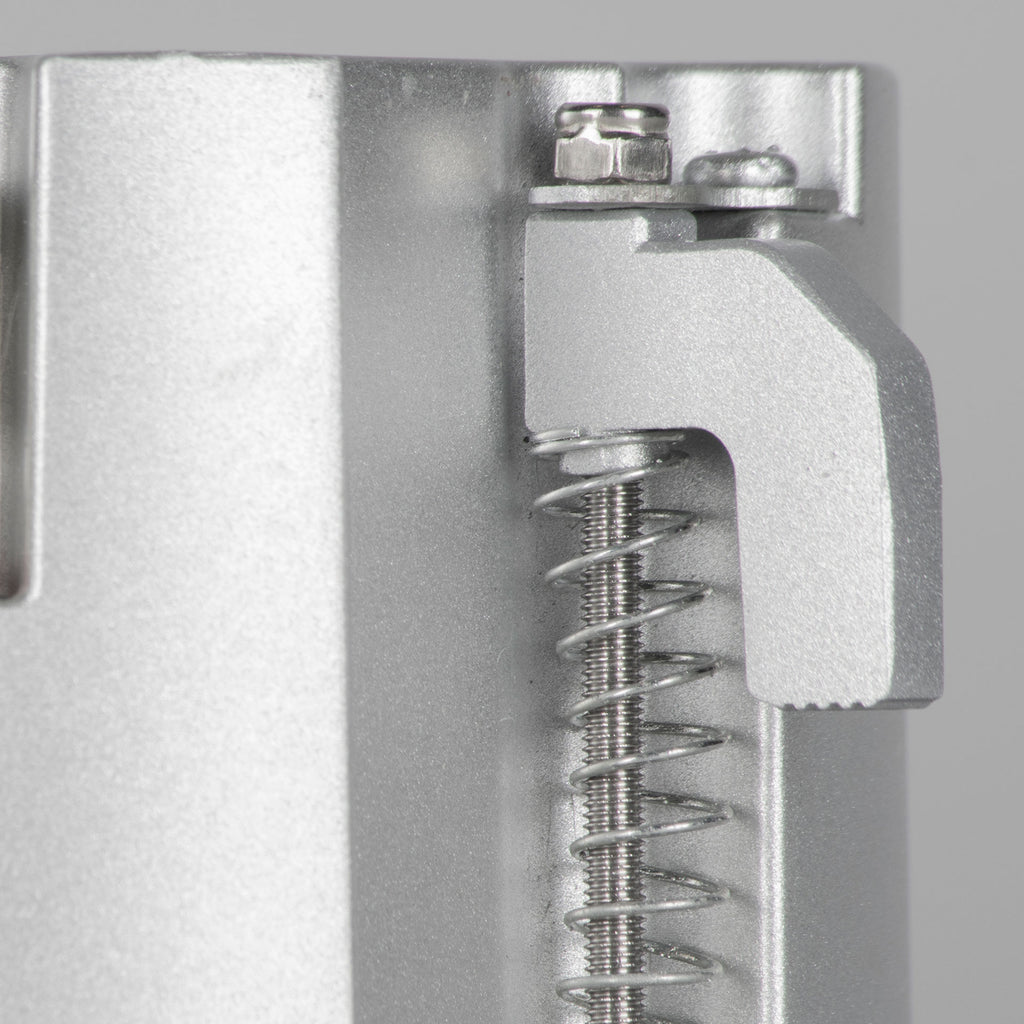

CMR 30 is a full-range, in-ceiling speaker designed to meet a wide variety of needs, from delivering clear background music in retail spaces to ensuring intelligible speech in meeting rooms. Thanks to its elegant, discreet design and accurate details, this multipurpose speaker effortlessly pairs with any building’s aesthetic. The high-quality transducer guarantees precise reproduction across the entire frequency band and provides impressive sound pressure levels for such a compact loudspeaker. Additionally, the bottom passive radiator enhances low frequencies, making it ideal for music playback. Installation is straightforward using two clamps, and the magnetic grille, supplied in both white and black, offers a seamless finish.
Features
- 15W RMS power handling
- 104 dB max SPL
- 70 ÷ 20000 Hz frequency range
- Omnidirectional directivity

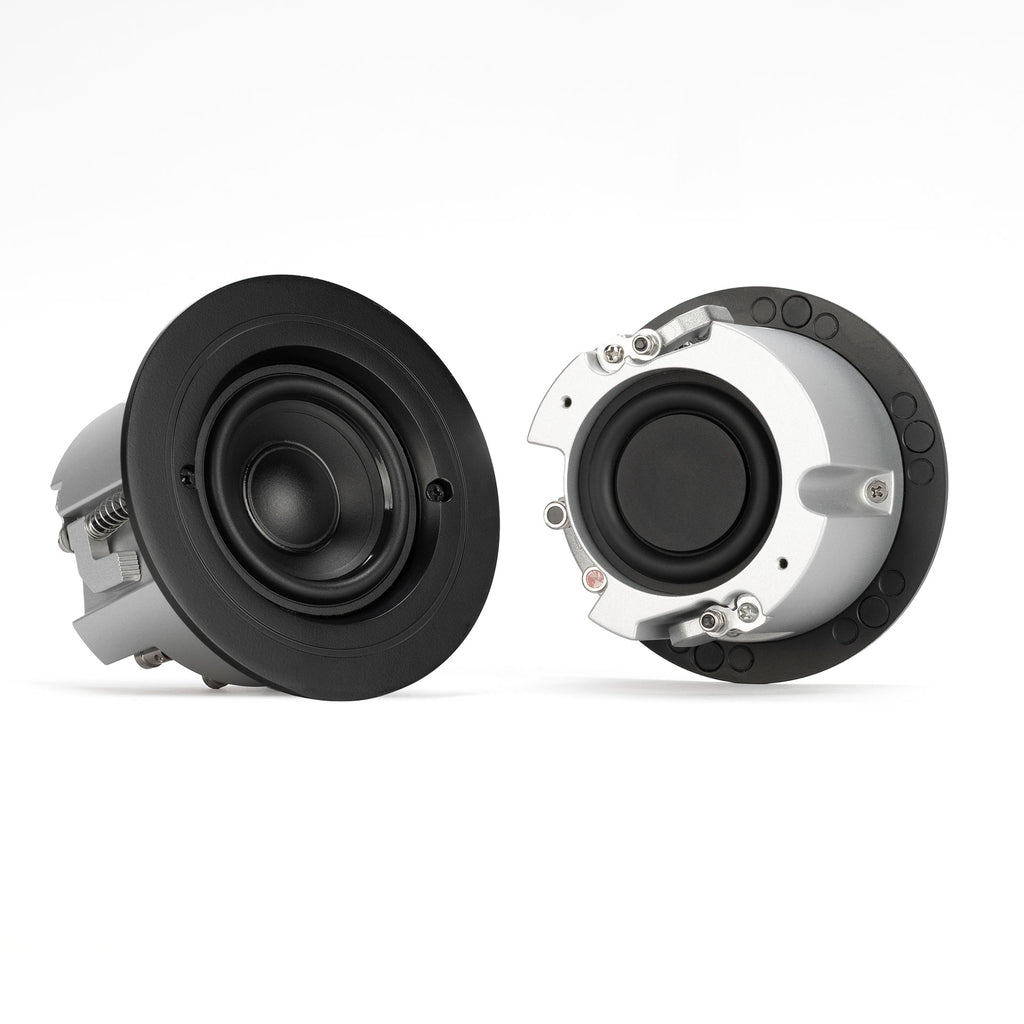

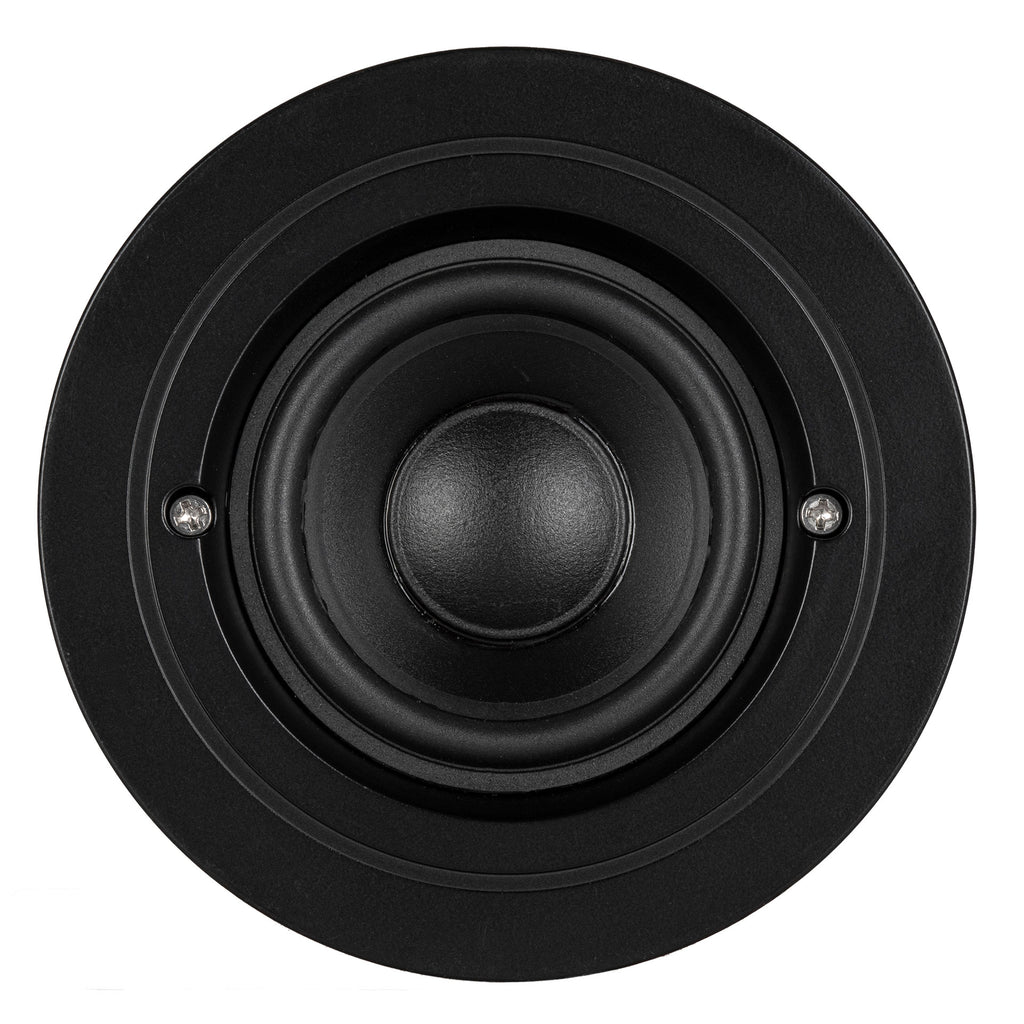

- 2.5" full range transducer

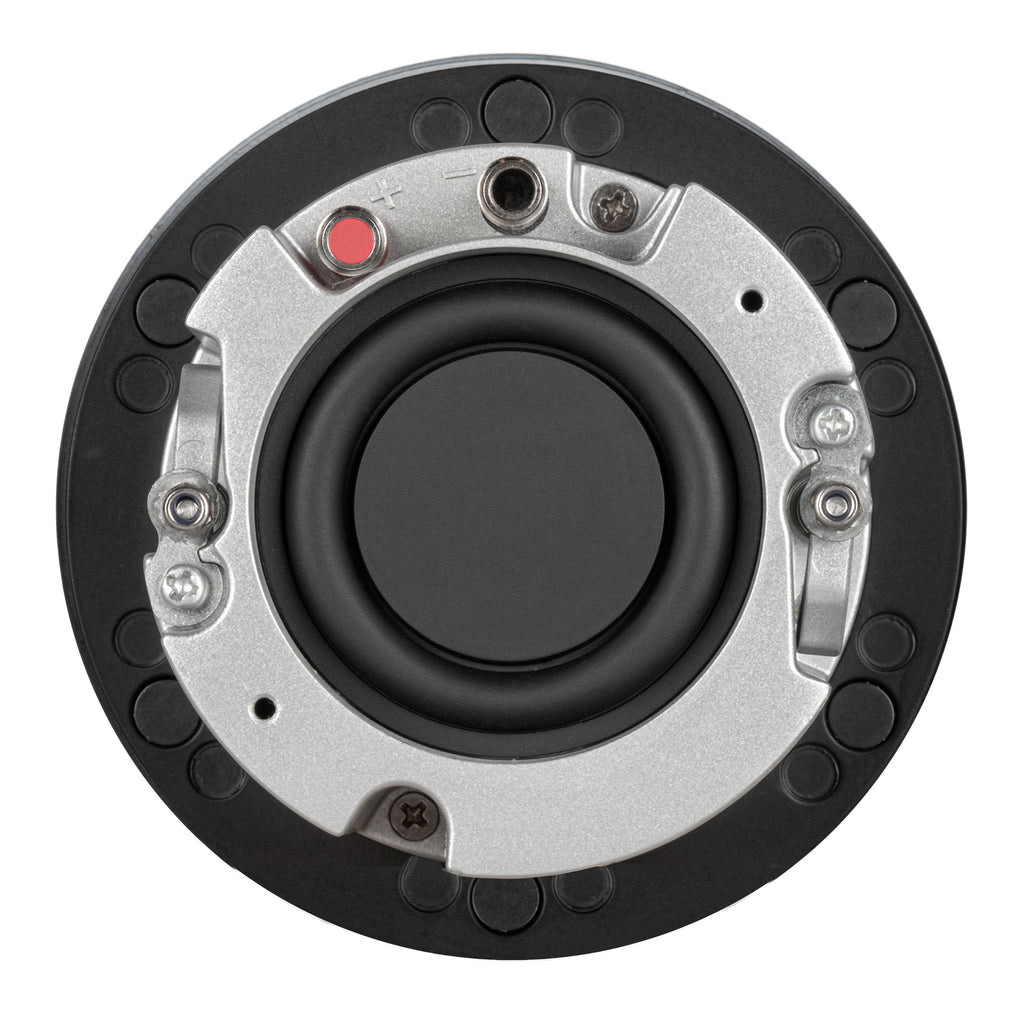

- Passive radiator for low frequencies emphasis
- Aluminum body

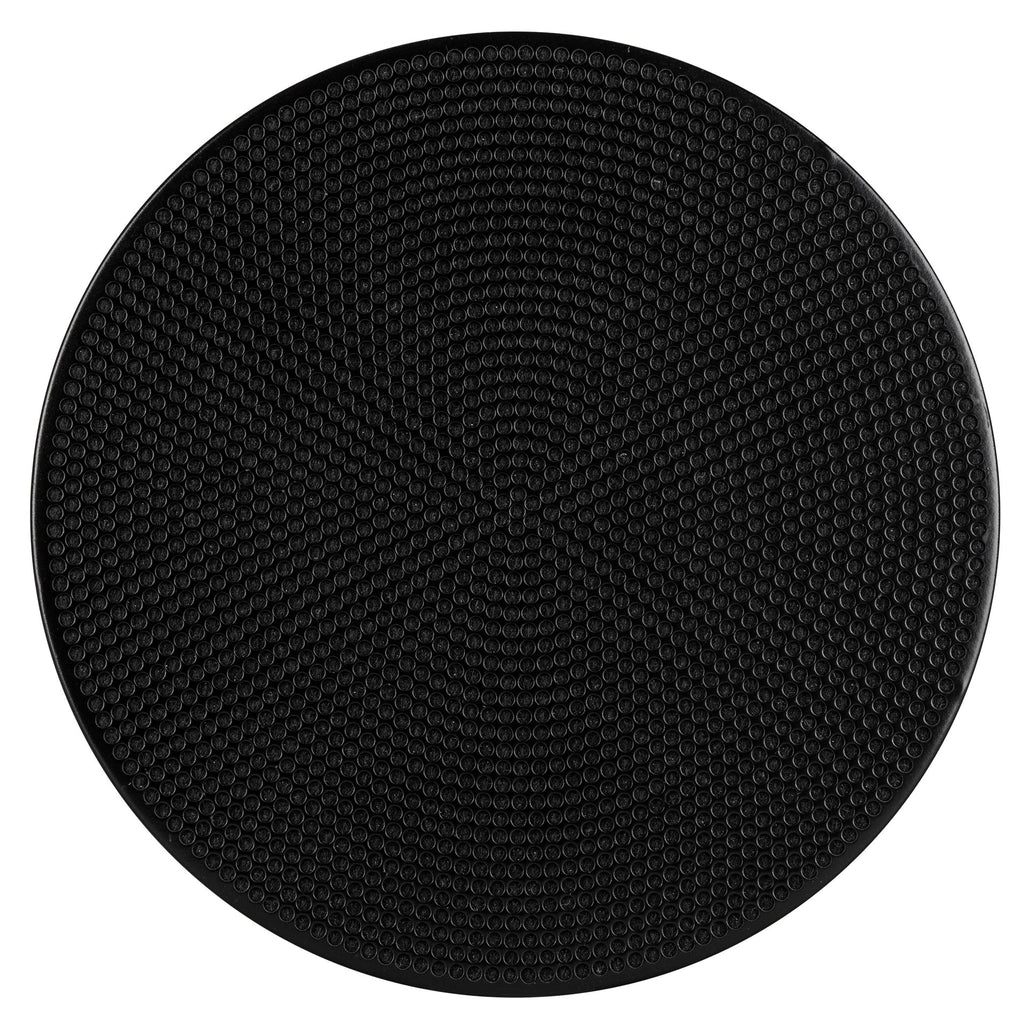

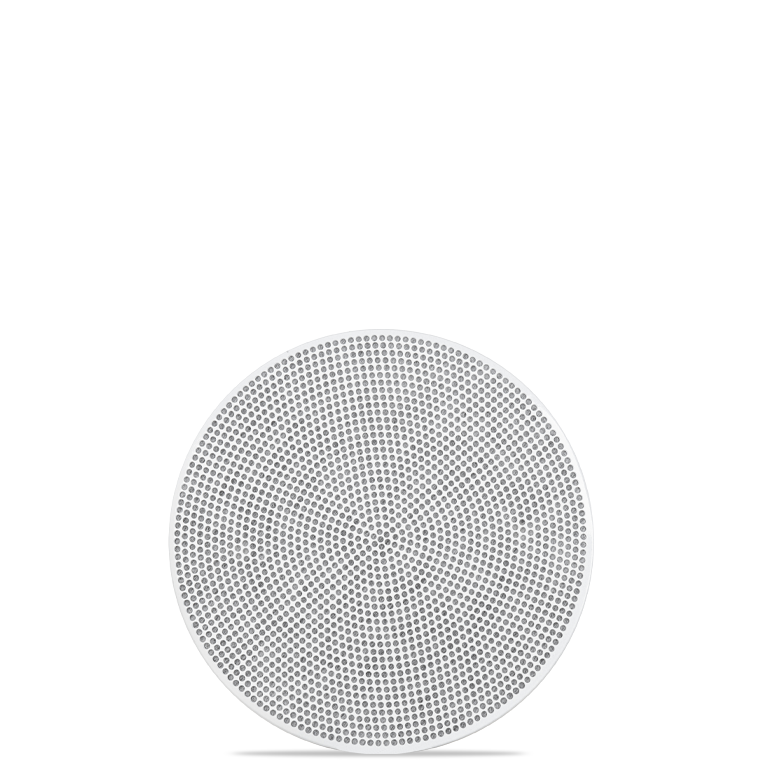

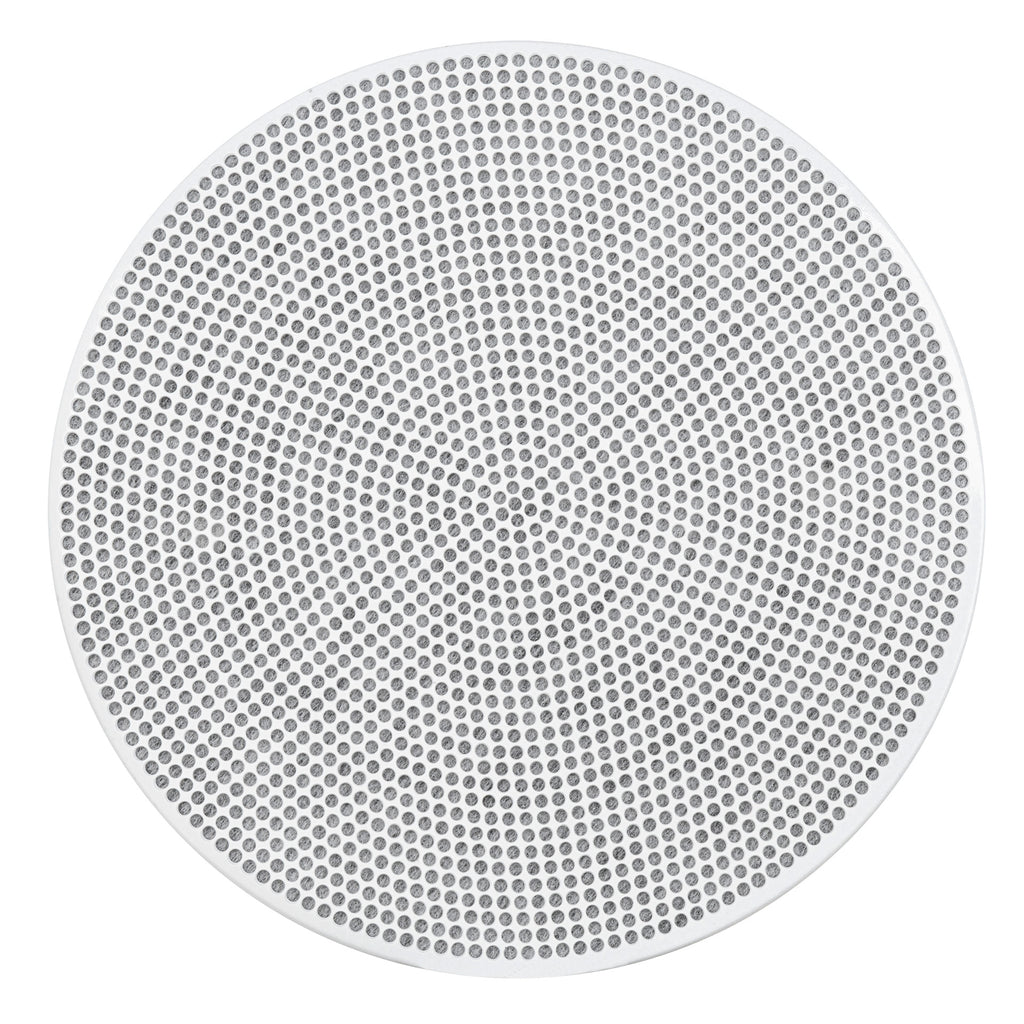

- 2 stainless steel magnetic grilles included
- White - RAL 9003 and Black - RAL 9005

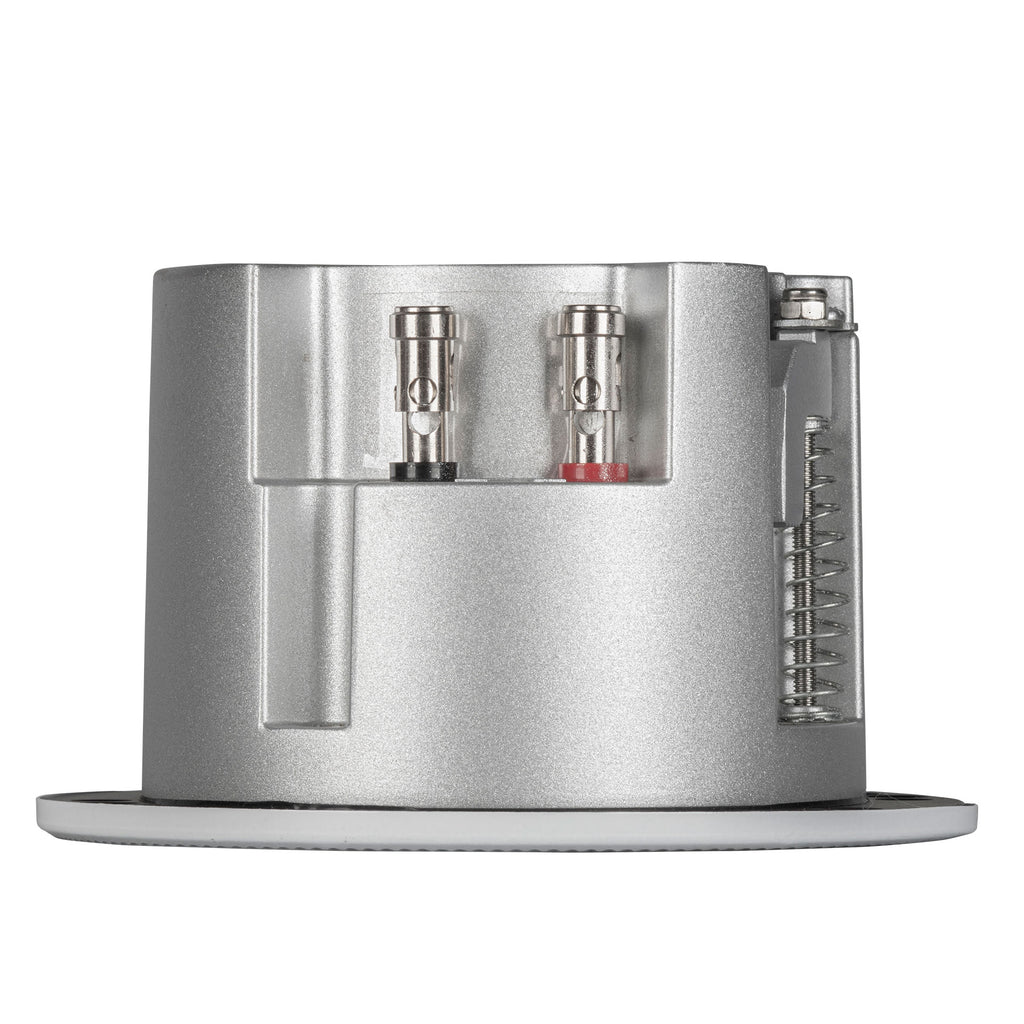

- Connection on push type terminals
Multipurpose Sound
Music fosters engagement and hospitality in any social or shopping environment. With a 130° wide coverage angle, CMR 30 features a 2.5” transducer in combination with a passive radiator design, making it suitable for both speech and music reproduction. All products designed for Business Music applications provide optimal background performance and consistent tonal quality across the entire series, maintaining the same high-standard output even during high-powered foreground music. The modern monochrome styling and discreet design blend seamlessly into any environment.
Smooth Installation
Housed in a compact, self-extinguishing cabinet with a metal backcan, all models feature Euroblock inputs and quick, easy installation. Each model provides accessory options to increase flexibility. The front magnetic grille can be removed quickly and allows immediate action of the power selector on the front baffle.
Uncompromised performance
Quality components and careful acoustic design make the CMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
104 dB |
| Coverage angle |
130° |
| System Sensitivity |
86 dB |
Power section
| Amplification |
Full Range |
| Nominal Impedance |
16 ohm |
| Power Handling |
15 W RMS |
| Peak Power Handling |
60 W PEAK |
| Recommended Amplifiers |
KPS SERIES, DMA SERIES |
Transducers
| Woofer |
1 x 2.5'' neo, 1.0'' v.c |
Input/Output section
| Input connectors |
Push Type Terminals |
| Output connectors |
Push Type Terminals |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Aluminum |
| Grille |
Stainless Steel |
Size / Weight
| Depth |
68 mm / 2.68 inches |
| Recessed Depth |
61 mm / 2.4 inches |
| Diameter |
109 mm / 4.29 inches |
| Cut out diameter |
86 mm / 3.39 inches |
| Weight |
0.37 kg / 0.82 lbs |
Shipping information
| Package Height |
115 mm / 4.53 inches |
| Package Width |
292 mm / 11.5 inches |
| Package Depth |
150 mm / 5.91 inches |
| Package Weight |
1 kg / 2.2 lbs |
