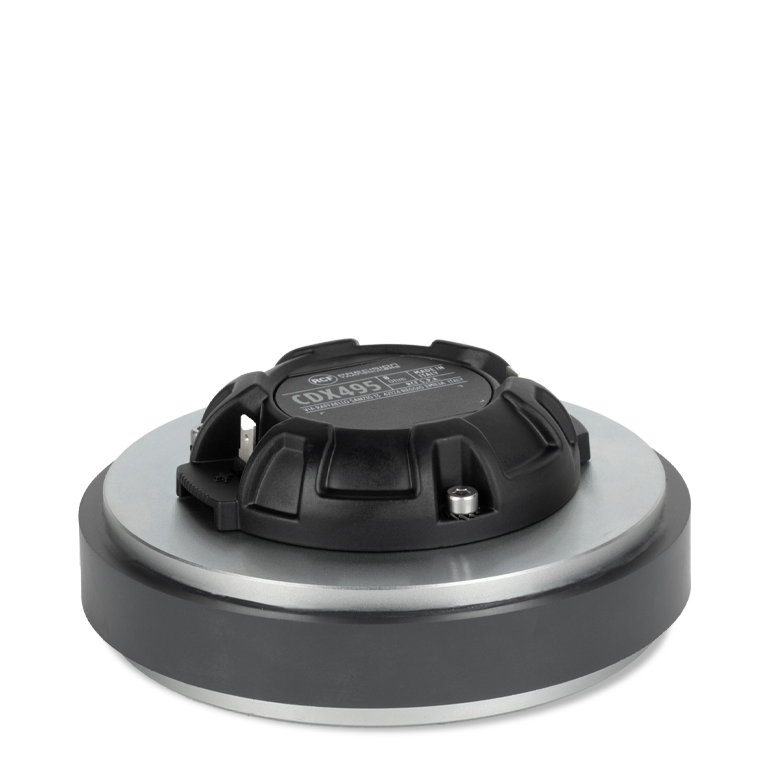

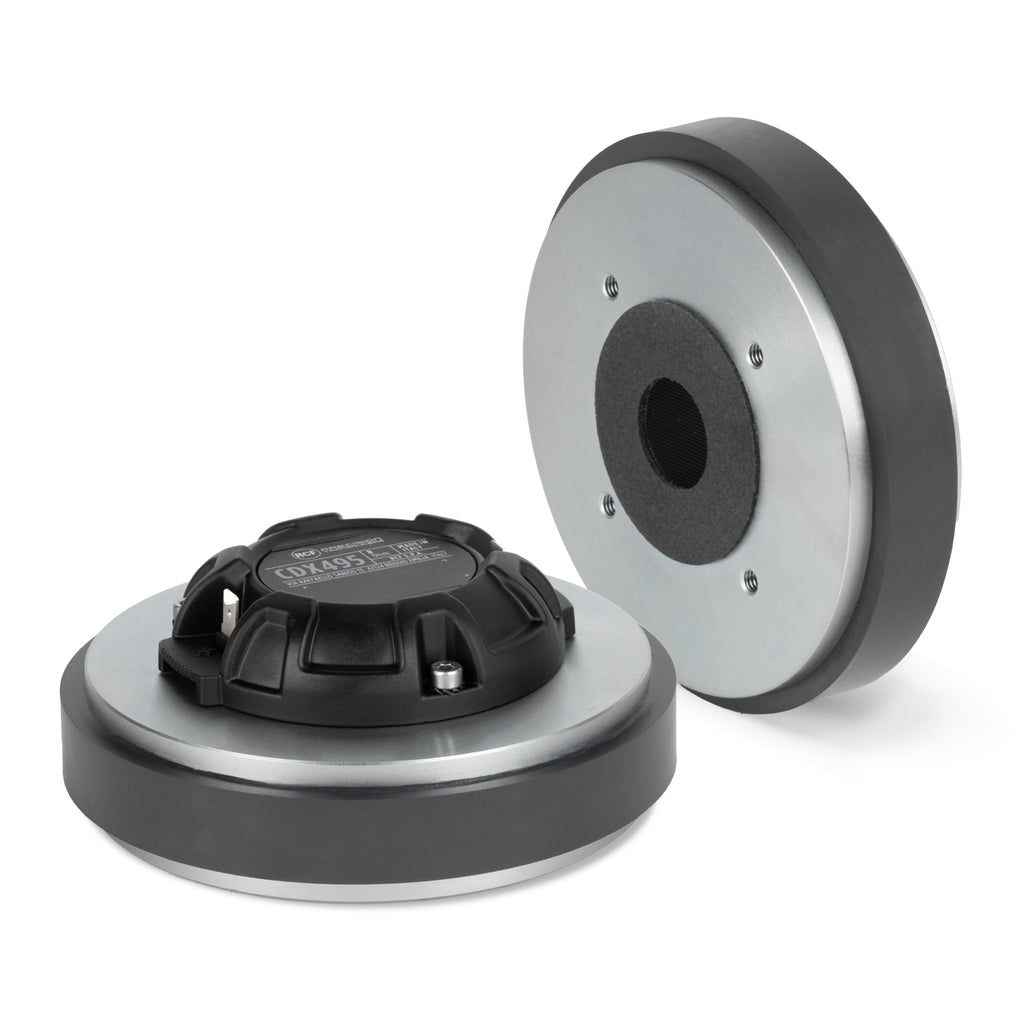

CDX495 Driver
The CDX495 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size, 1.75" PKX dome, and the low recommended crossover point make this transducer ideal for point source two-way cabinet designs. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ceramic magnets, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.
Features
- 1.75-inch PKX dome
- Kapton former
- 140W continuous program power handling @ 8O
- Frequency range: 1200Hz - 20kHz
- 3-slot optimized geometry phase plug
- Copper inductance ring for extended response
- Ceramic magnet
- Recommended for 2-way speaker design
Specifications
General specifications
| Exit Throat Diameter |
1.0 inch / 25 mm |
| Related Impedance |
8 ohm |
| Program Power (watt) |
140 W |
| Power handling capacity |
70 W |
| Sensitivity |
109 dB |
| Frequency range |
1200 - 20000 Hz |
| Diaphragm Material |
PKX Polymer |
| Suspension Material |
PKX Polymer |
| Suspension Design |
Flat |
| Minimum Impedance (ohm) |
6.50 ohm |
| Voice Coil Diameter |
1.75 inch / 44 mm |
| Voice Coil Winding Material |
Edgewound Aluminum |
| Voice Coil Former Design |
Straight - Kapton |
| Number of layers |
1 |
| Kind of layers |
outside |
| Flux Density |
1.8 T |
| Phase Plug Design |
3 slot |
| Phase Plug Material |
PP Composite |
| Magnetics |
Ceramic |
Thiele - small parameters
| Bl factor (Bl) (T x m) |
7.50 T x m |
Mounting information
| Overall diameter |
134 mm / 5.28 inches |
| Overall height |
56 mm / 2.2 inches |
| Mounting |
4 x 6 mm threaded holes at 90° |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Weight |
2.46 kg / 5.42 lbs |
Shipping information
| Package Height |
68 mm / 2.68 inches |
| Package Width |
153 mm / 6.02 inches |
| Package Depth |
155 mm / 6.1 inches |
| Package Weight |
2.63 kg / 5.8 lbs |
