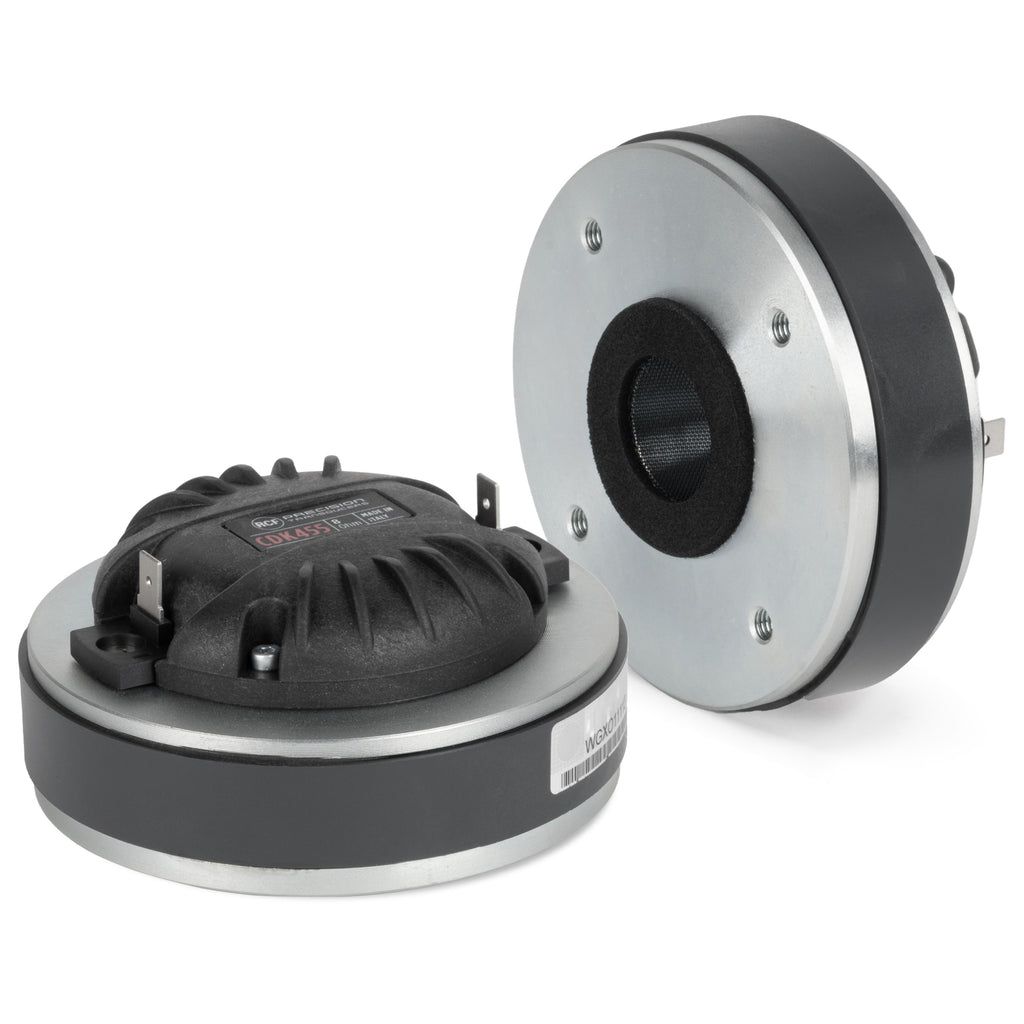

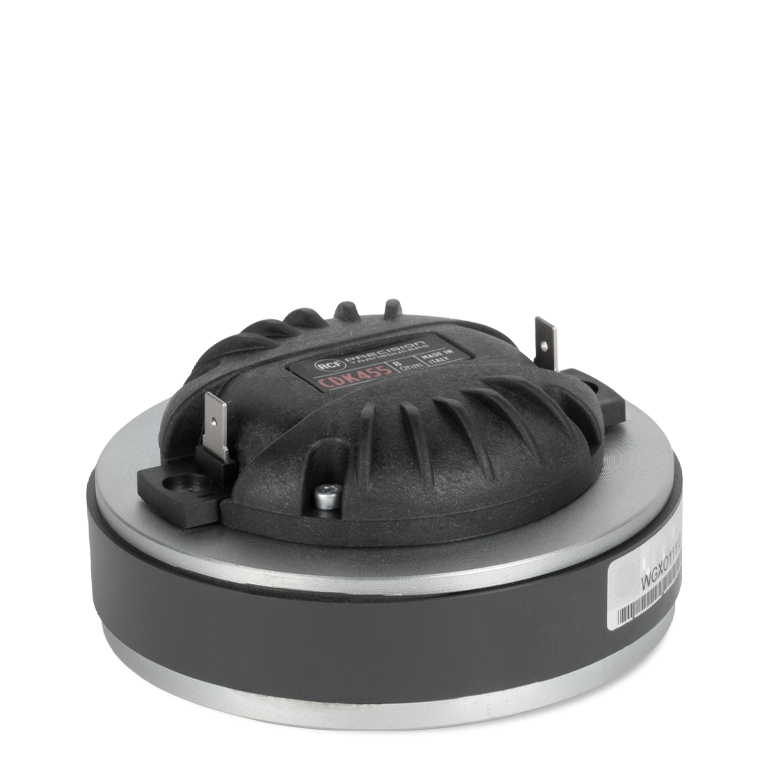

CDK455 Driver
The CDK455 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size, 1.75" Kapton® dome, and the low recommended crossover point make this transducer ideal for point source two-way cabinet designs. The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs make it robust and durable. The transducer utilizes ceramic magnets and a 2-slot phase plug to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.
Features
- 1.75-inch Kapton/polyimide dome
- Kapton former, edge wound aluminum voice coil
- 140W continuous program power handling @ 8O
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Ceramic magnet
- Recommended for 2-way speaker design
Specifications
General specifications
| Exit Throat Diameter |
1.0 inch / 25 mm |
| Related Impedance |
8 ohm |
| Program Power (watt) |
140 W |
| Power handling capacity |
70 W |
| Sensitivity |
109 dB |
| Frequency range |
1200 - 20000 Hz |
| Diaphragm Material |
Polyimide |
| Suspension Material |
Polyimide |
| Suspension Design |
Flat |
| Minimum Impedance (ohm) |
6.50 ohm |
| Voice Coil Diameter |
1.75 inch / 44 mm |
| Voice Coil Winding Material |
Edgewound Aluminum |
| Voice Coil Former Design |
Straight - Kapton |
| Number of layers |
1 |
| Kind of layers |
outside |
| Flux Density |
1.5 T |
| Phase Plug Design |
2 slot |
| Phase Plug Material |
PP Composite |
| Magnetics |
Ceramic |
Thiele - small parameters
| Bl factor (Bl) (T x m) |
5.85 T x m |
Mounting information
| Overall diameter |
102 mm / 4.02 inches |
| Overall height |
47 mm / 1.85 inches |
| Mounting |
4 x 6 mm threaded holes at 90° |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Weight |
1.23 kg / 2.71 lbs |
Shipping information
| Package Height |
74 mm / 2.91 inches |
| Package Width |
122 mm / 4.8 inches |
| Package Depth |
123 mm / 4.84 inches |
| Package Weight |
1.35 kg / 2.98 lbs |
