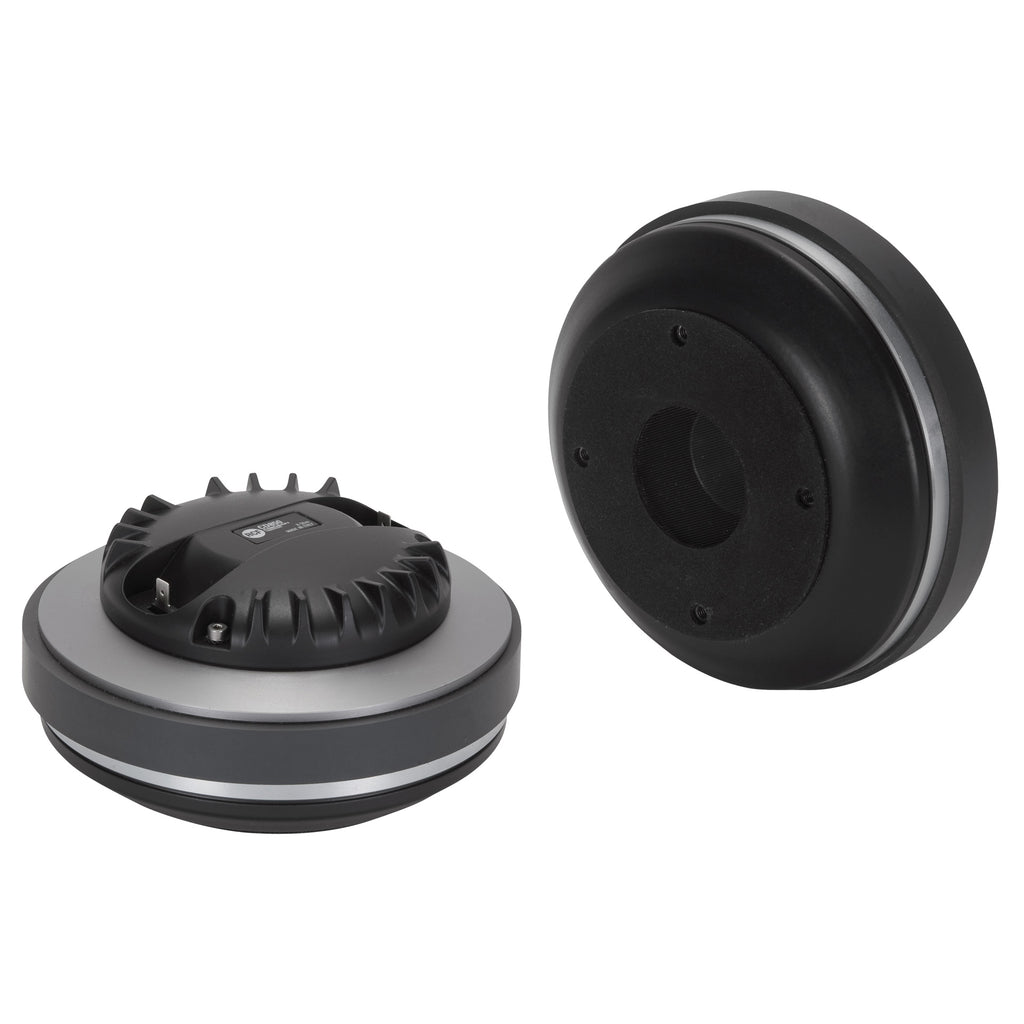

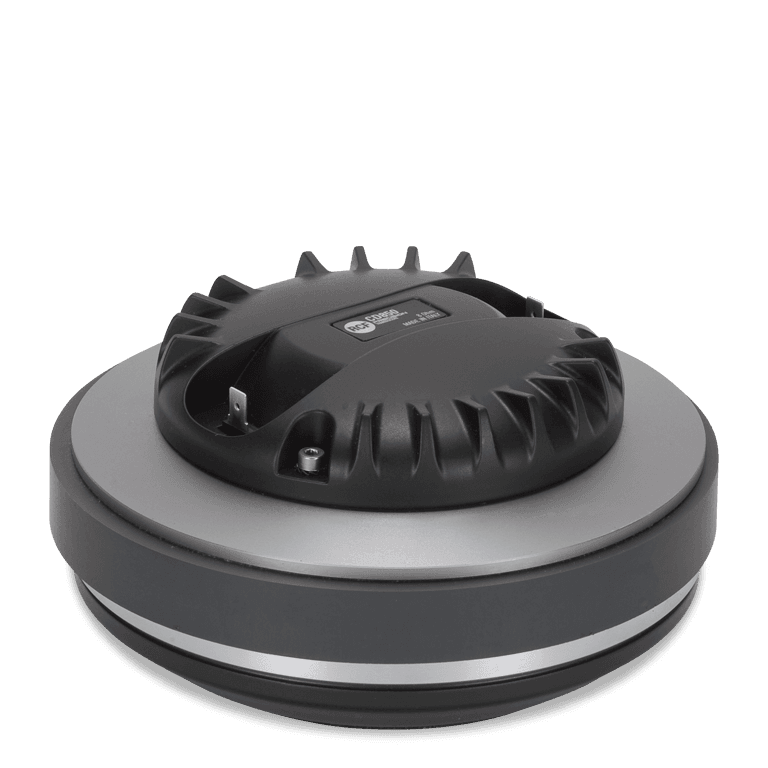

CD850 2.0 Driver
The CD850 2.0 is a high performance 3.0-inch diaphragm compression driver with a 2 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distorsion. Voice coil assembly is designed using high temperature kapton former.
Features
- 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
- 220W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Ceramic Magnet Assembly
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
Specifications
General specifications
| Exit Throat Diameter |
2.0 inch / 51 mm |
| Related Impedance |
8 ohm |
| Program Power (watt) |
220 W |
| Power handling capacity |
110 W |
| Sensitivity |
109 dB |
| Frequency range |
500 - 20000 Hz |
| Diaphragm Material |
Pure Titanium |
| Suspension Material |
Polyester |
| Suspension Design |
Flat |
| Minimum Impedance (ohm) |
8.50 ohm |
| Voice Coil Diameter |
3.0 inch / 76 mm |
| Voice Coil Winding Material |
Edgewound Aluminum |
| Voice Coil Former Design |
Straight - Kapton |
| Number of layers |
1 |
| Kind of layers |
outside |
| Flux Density |
1.9 T |
| Phase Plug Design |
3 slot |
| Phase Plug Material |
PP Composite |
| Magnetics |
Ceramic |
| Voice Coil Demodulation Ring |
Copper |
Thiele - small parameters
| Bl factor (Bl) (T x m) |
12.30 T x m |
Mounting information
| Overall diameter |
180 mm / 7.09 inches |
| Overall height |
88 mm / 3.46 inches |
| Mounting |
4 x 6 mm threaded holes at 90° |
Standard compliance
| Safety agency |
CE compliant |
Size / Weight
| Weight |
5.72 kg / 12.61 lbs |
Shipping information
| Package Height |
114 mm / 4.49 inches |
| Package Width |
203 mm / 7.99 inches |
| Package Depth |
205 mm / 8.07 inches |
| Package Weight |
5.97 kg / 13.16 lbs |
