RCF C 32 WP, Passive 2400W 12" 2-Way Compact Speaker with 3" HF Driver (Weatherproof)

COMPACT C 32 WP Two-Way Professional Speaker

COMPACT C 32 WP is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 3" neodymium compression driver, a 12" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation. Suitable for outdoor applications. EN 54-24:2008 technical data available in the user manual.

Features

• 600 W power handling (RMS)
• 137 dB max SPL
• 54 ÷ 20000 Hz frequency range
• 100° x 50° constant directivity coverage angle
• 1x12" neo LF and 1x3.0" v.c. neo HF
• Rotatable horn
• High quality birch plywood cabinet
• Steel grille with water-repellent protection
• Installation points available on top, bottom, rear and side panels
• 2 x eco|mate IP 67 connectors

Big Sound, Compact Size

Elegant design aesthetics, RCF reliability and signature sound, delivering a pleasing audio experience in any application, from sports halls to nightclubs, corporate spaces, and performance venues. Available in two sizes, with 12-inch and 15-inch woofers, Compact C Series provides excellent acoustic performance for both background and foreground music. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric discreetly embedded within the grille assembly and IP67 Amphenol Ecomate power connectors.

• XPS SERIES
• 4 x 4000 W
• Class D continuous power
• at 2.7 Ohms
• 40-bit Floating-point
• Processing at 96 kHz
• Ready-to-Use
• Configurations and presets
• for RCF speakers
• 2U Rack Space
• for both touring and installed sound systems
• Flexible 32-bit Routing
• with analog, digital
• and Dante I/O
• Advanced Fault Protections
• for each amplifier channel and power supply
• Configuration Example
• Full Range Two-Way Speakers
• 12 x 12" Speakers (COMPACT C 32)
• Small to Medium Size Venues

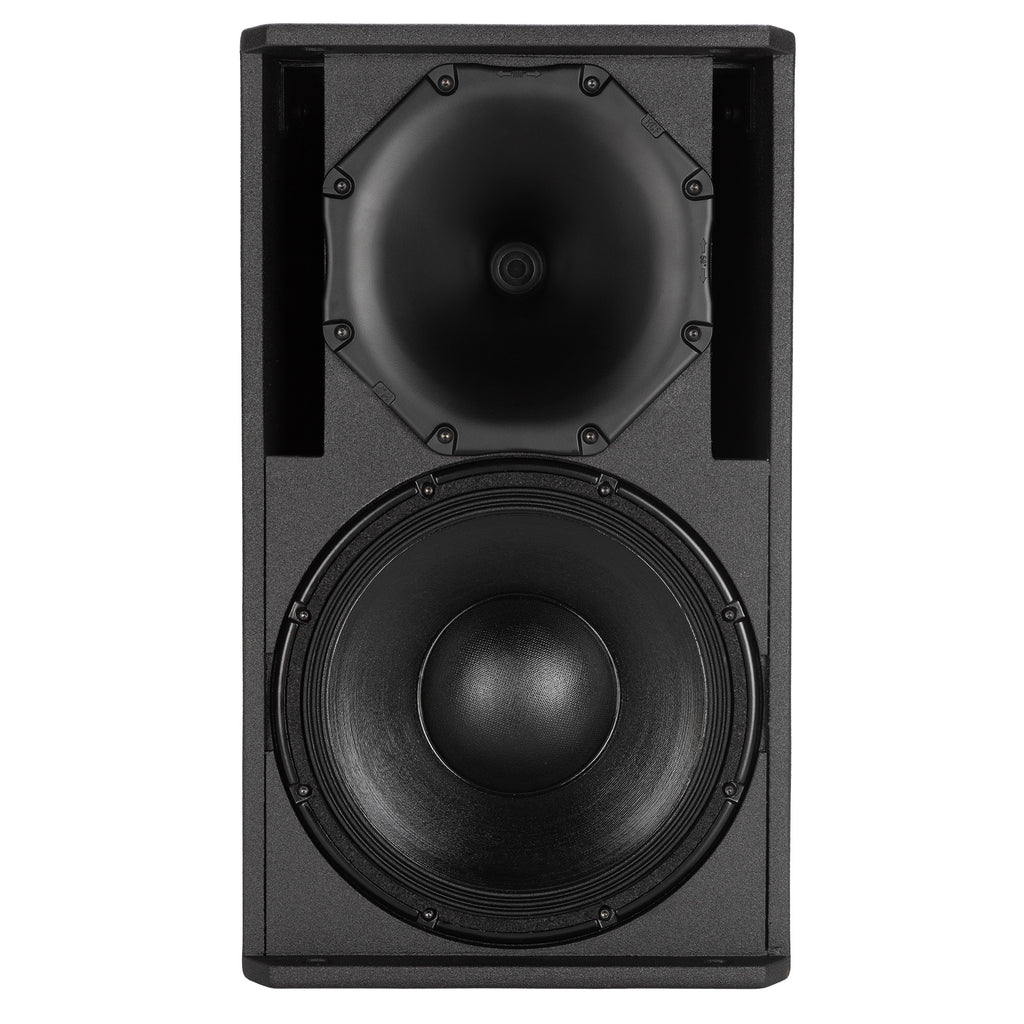

High Frequencies

The compression driver voice-coil design with titanium dome provides very natural sound with high power handling and the best durability over time. This allows lowering the usual crossover point for a perfect vocal performance at mid frequencies, also improving coupling with the low-frequency transducer.

Low Frequencies

Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.

Weatherproof. Impact-Resistant. Built to Last.

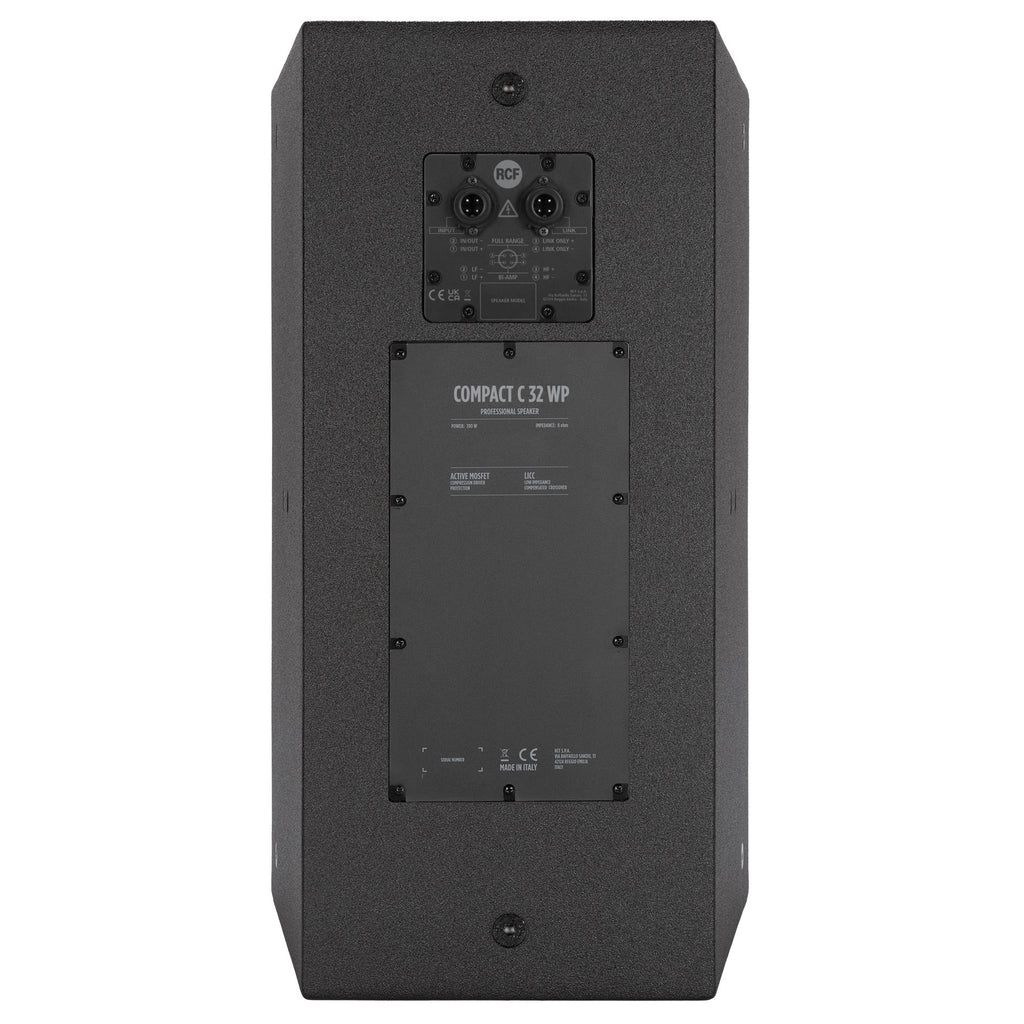

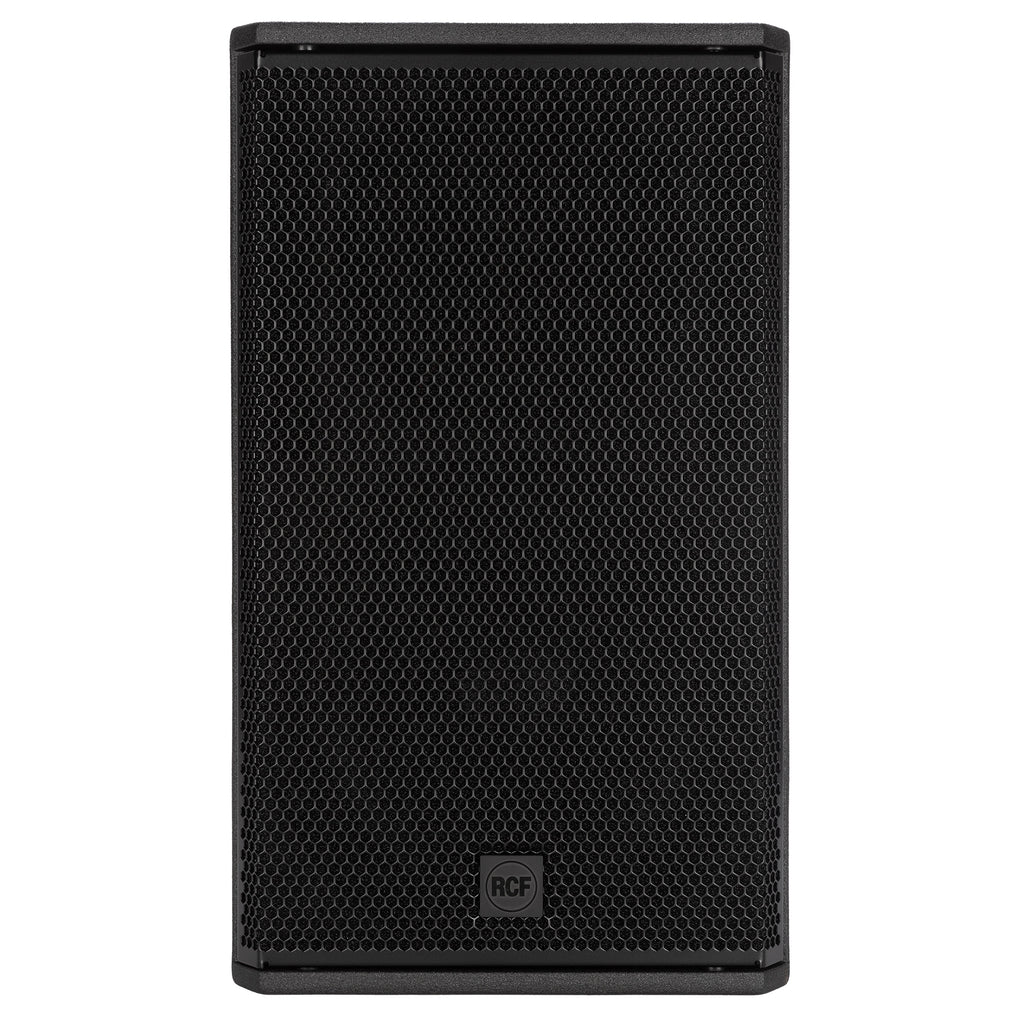

The weatherproof birch plywood cabinet is designed for robustness and reliability and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two eco|mate IP 67 connectors. Its textured polyurea coating provides exceptional scratch resistance and greater longevity compared to traditional finishes. The front steel grille is powder-coated and fitted with an acoustically transparent, water-repellent fabric.

Constant Directivity Waveguide

The special waveguide design allows the deployment of COMPACT C speakers with accurate control of the directional characteristics. In difficult acoustic environments, intelligibility is significantly increased. The speaker also features a 100° x 50° rotatable constant directivity waveguide. Using the optional HN-KIT COMPACT C 32 C 45 accessory, it is possible to replace the speaker horn with two different horns and change directivity to 100° x 25° or 60° x 25°.

The Solution for Impressively Powerful Sound

COMPACT C flexibility makes it a smart choice for a wide range of applications. Combining high-quality birch plywood cabinets with a 100° x 50° rotatable constant directivity waveguide, the speaker can be installed either horizontally or vertically. The sleek cabinet features a robust polyurea coating and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two ‘Neutrik Speakon NL4’ (4-pole) plugs or IP67 Amphenol Ecomate power connectors for the WP version.

CERTIFIED SYSTEM UNDER EN 54-24:2008

Leveraging decades of experience in large-scale installations in critical venues such as stadiums, arenas, amusement parks, and motor racing circuits, RCF provides high-performance audio solutions serving concurrently as sound reinforcement and voice alarm systems. Our EN 54-certified point-source and line-array loudspeakers, derived directly from live concert technologies, deliver exceptional sound quality and excellent performance during emergency situations.

Compact C Series

Compact C Series is composed of two-way point source speakers for near and mid-distance high power applications. Each model combines a compact size with very high output for accurate speech and music reproduction. All cabinets are made with high-quality birch plywood, house a neodymium woofer with a titanium/neodymium compression driver, and a 100° x 50° rotatable constant directivity horn. Speakers can be installed either horizontally or vertically, with optional mounting accessories for walls or ceilings.

Specifications

Acoustical specifications

Power section

Transducers

Input/Output section

Standard compliance

Physical specifications

Size / Weight

Shipping information
