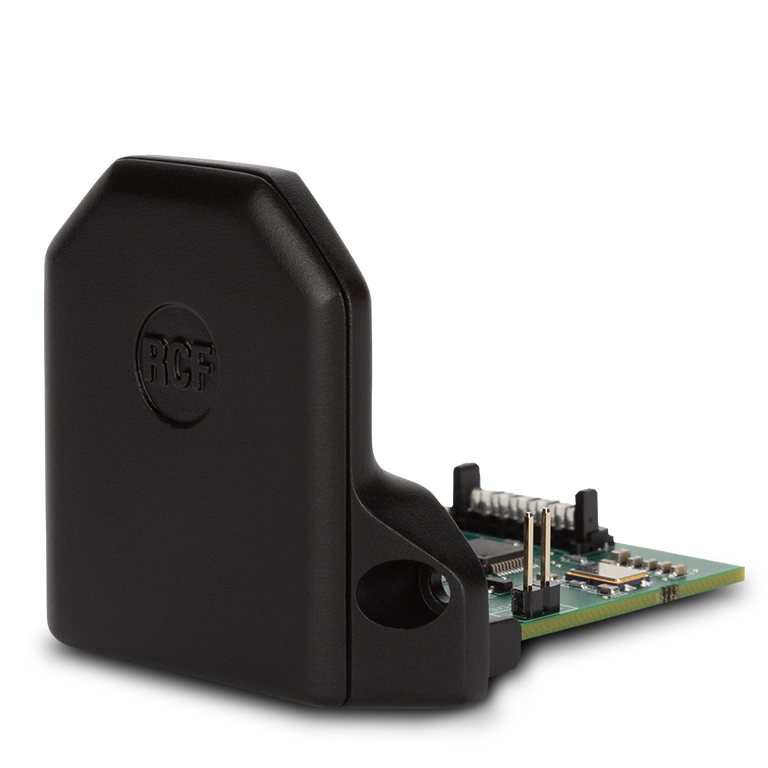

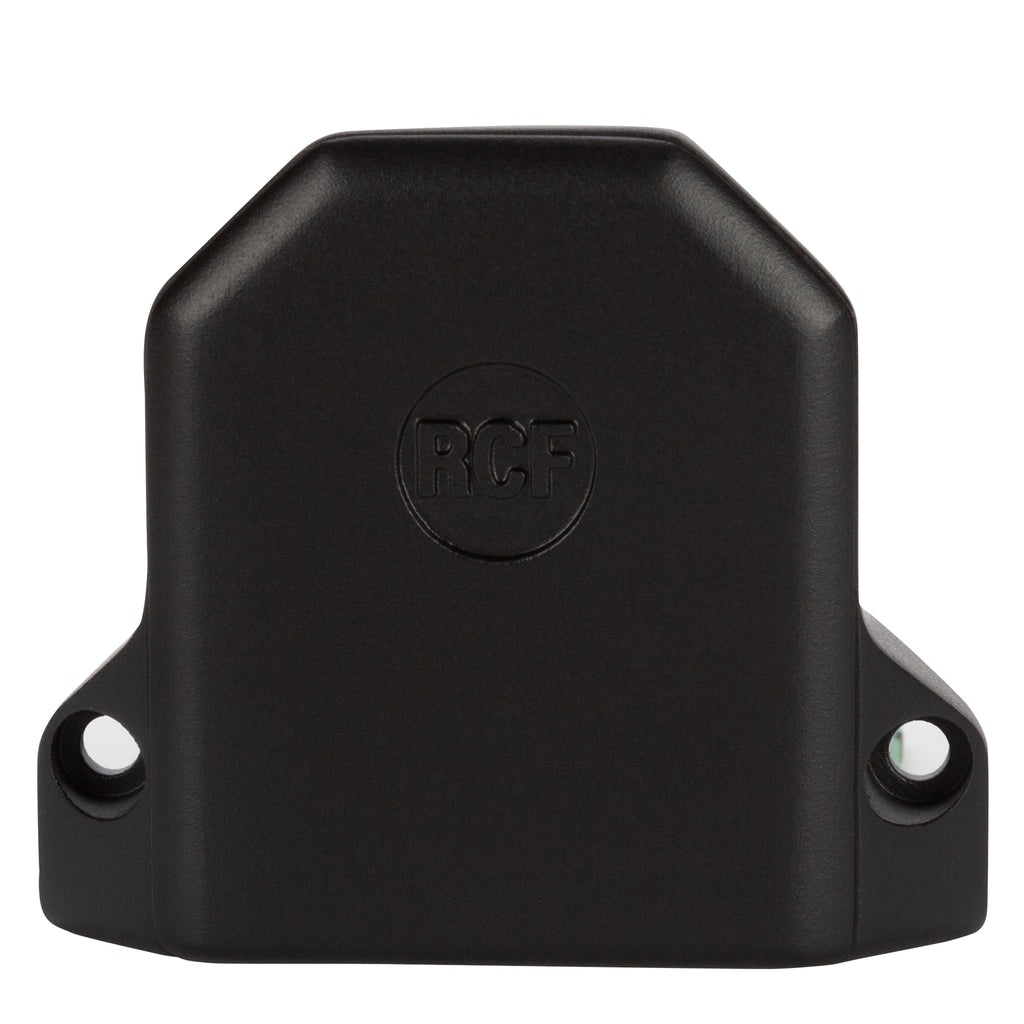

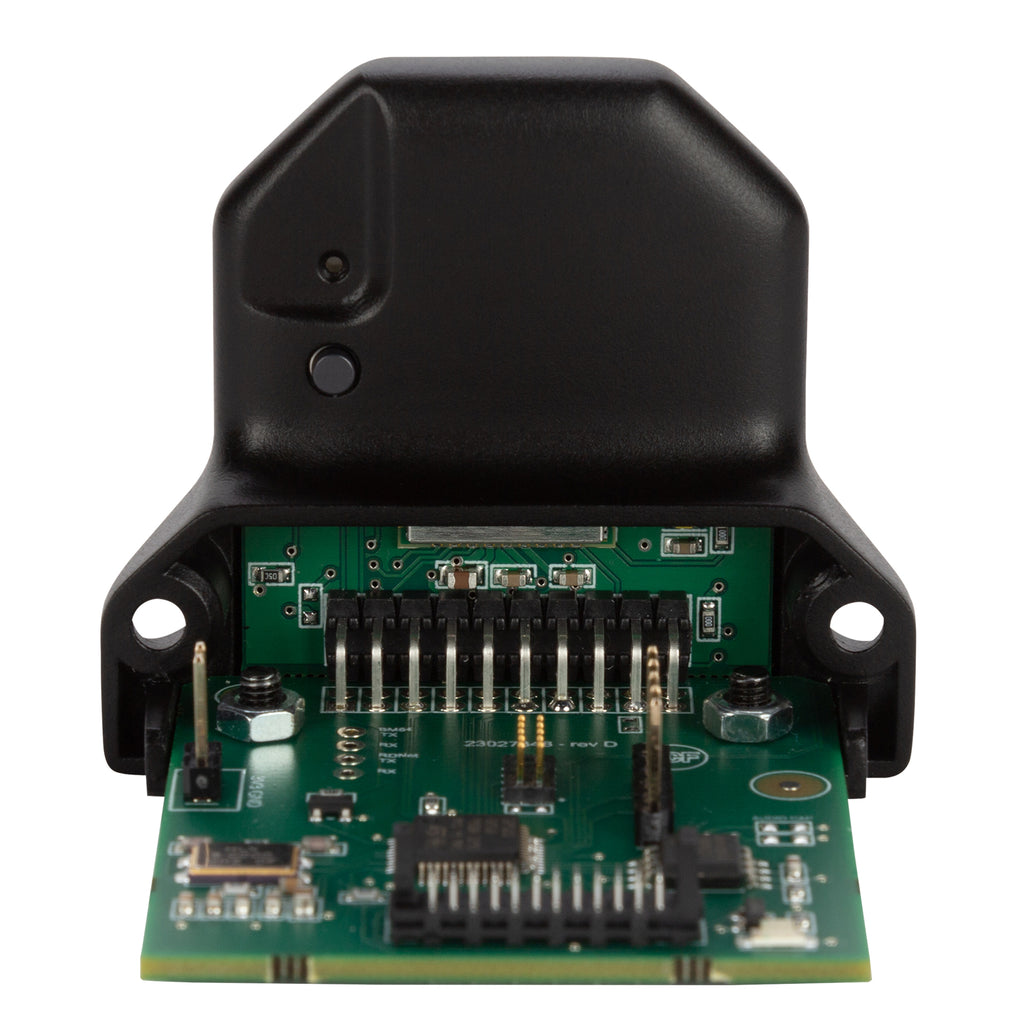

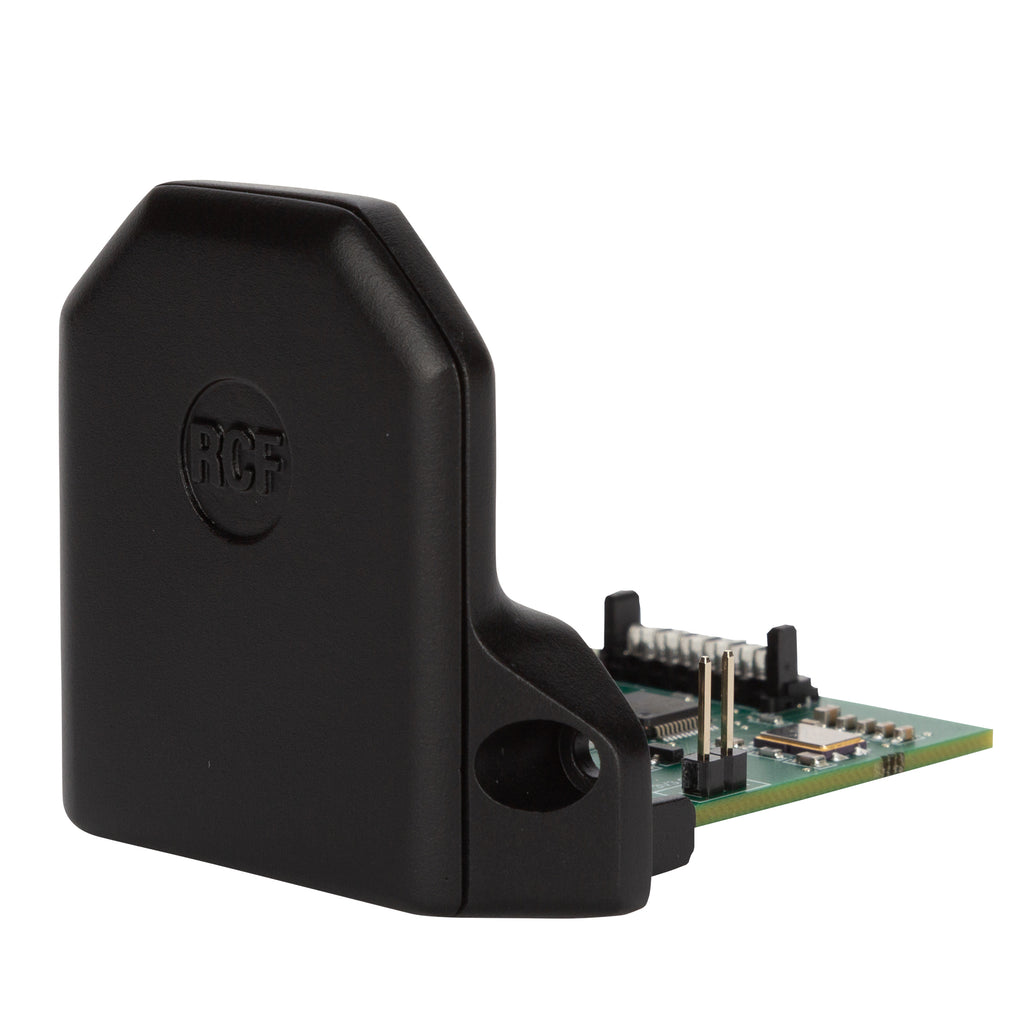

BT BOARD DMA Optional Bluetooth Board
The BT BOARD is an additional board that allows to connect a DMA amplifier to a mobile device using Bluetooth technology. This makes possible to send audio from the mobile device to the amplifier and at the same time control it, in terms of levels and equalization of inputs and outputs. To control the amplifiers, an Android and iOS app is avalable for download.
Features

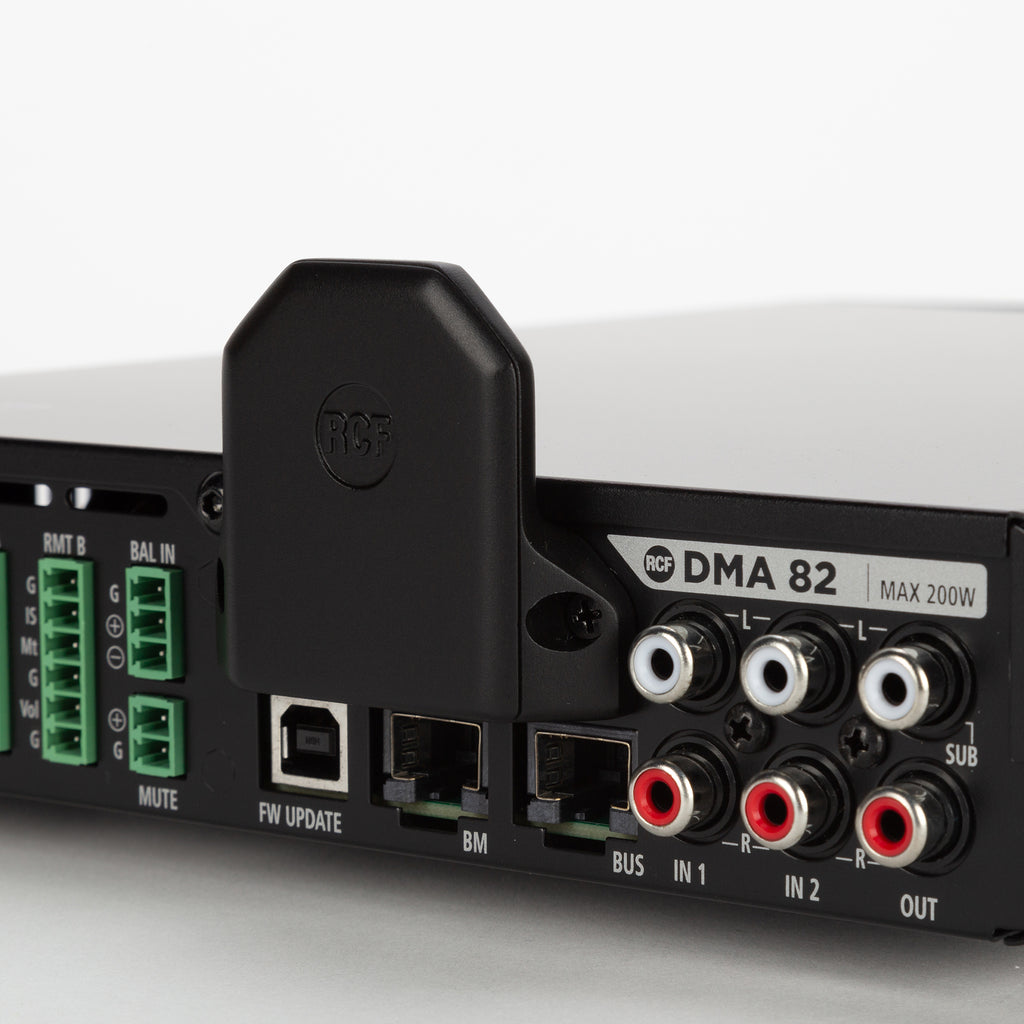

- Installation inside DMA units
- No additional power supply required
- Up to 4 pairable devices
- Audio streaming and control via mobile app
- Bluetooth 5.0. technology
- Control app available for both Android and iOS devices.
Specifications
General specifications
| Compatible models: |
DMA 82 DMA 162 DMA 162P |
| Power supply: |
from DMA unit |
| Number of pairable devices: |
4 |
| Audio streaming: |
Yes |
| Amplifier control: |
Yes |
| Technology: |
Bluetooth 5.0. |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
Size / Weight
| Height |
49 mm / 1.93 inches |
| Width |
56 mm / 2.2 inches |
| Depth |
56 mm / 2.2 inches |
| Weight |
0.03 kg / 0.07 lbs |
Shipping information
| Package Height |
88 mm / 3.46 inches |
| Package Width |
219 mm / 8.62 inches |
| Package Depth |
156 mm / 6.14 inches |
| Package Weight |
0.05 kg / 0.11 lbs |
