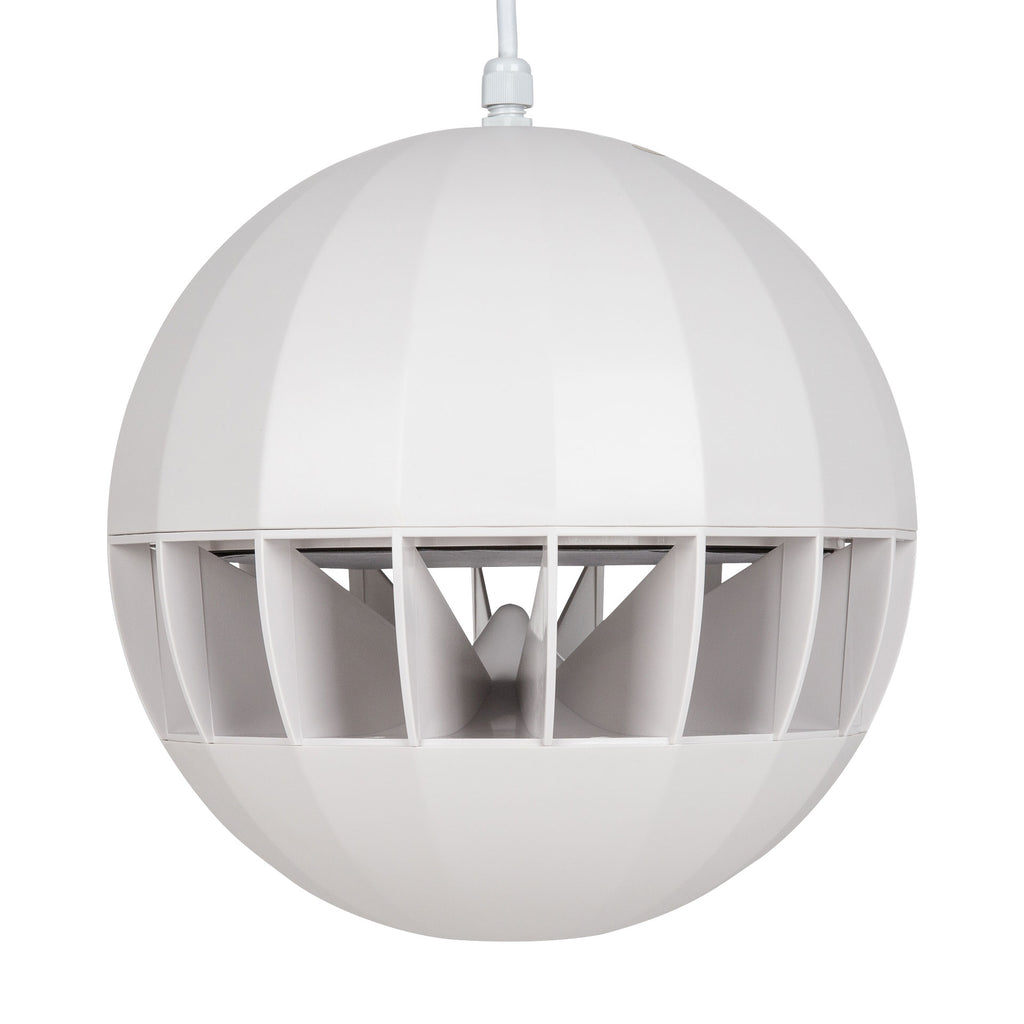

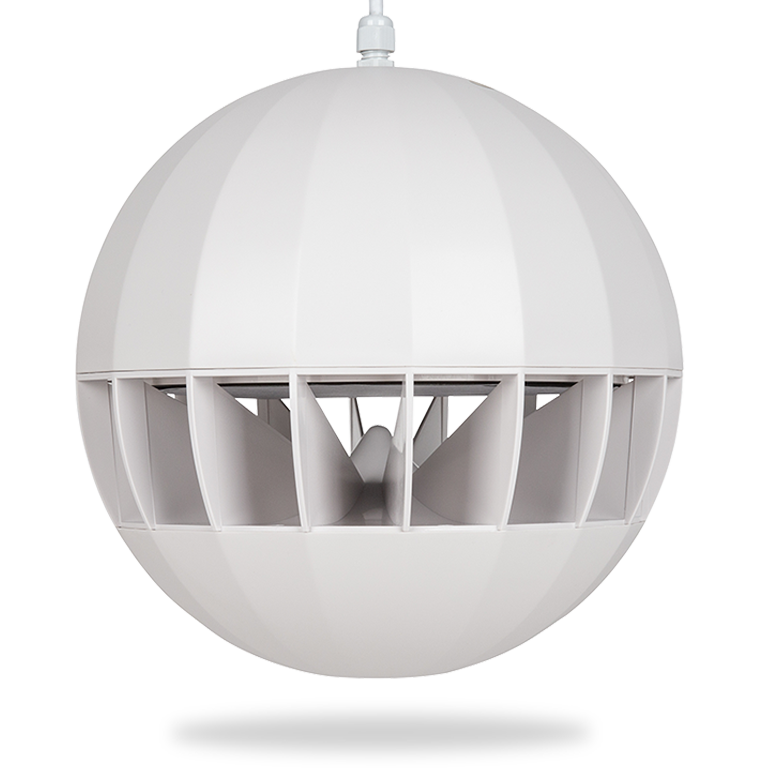

BS 8 Pendant Speaker
The BS 8 is a spherical speaker designed for suspended installation. Ideal for covering large areas, it incorporates a 200 mm (8”) loudspeaker which provides high quality sound reproduction with excellent voice intelligibility.
Features
- 8" dual cone wide band woofer
- Power selectable (100 V): 20 W - 10 W - 5 W
- 93 dB sensitivity
- Colour white RAL 9010

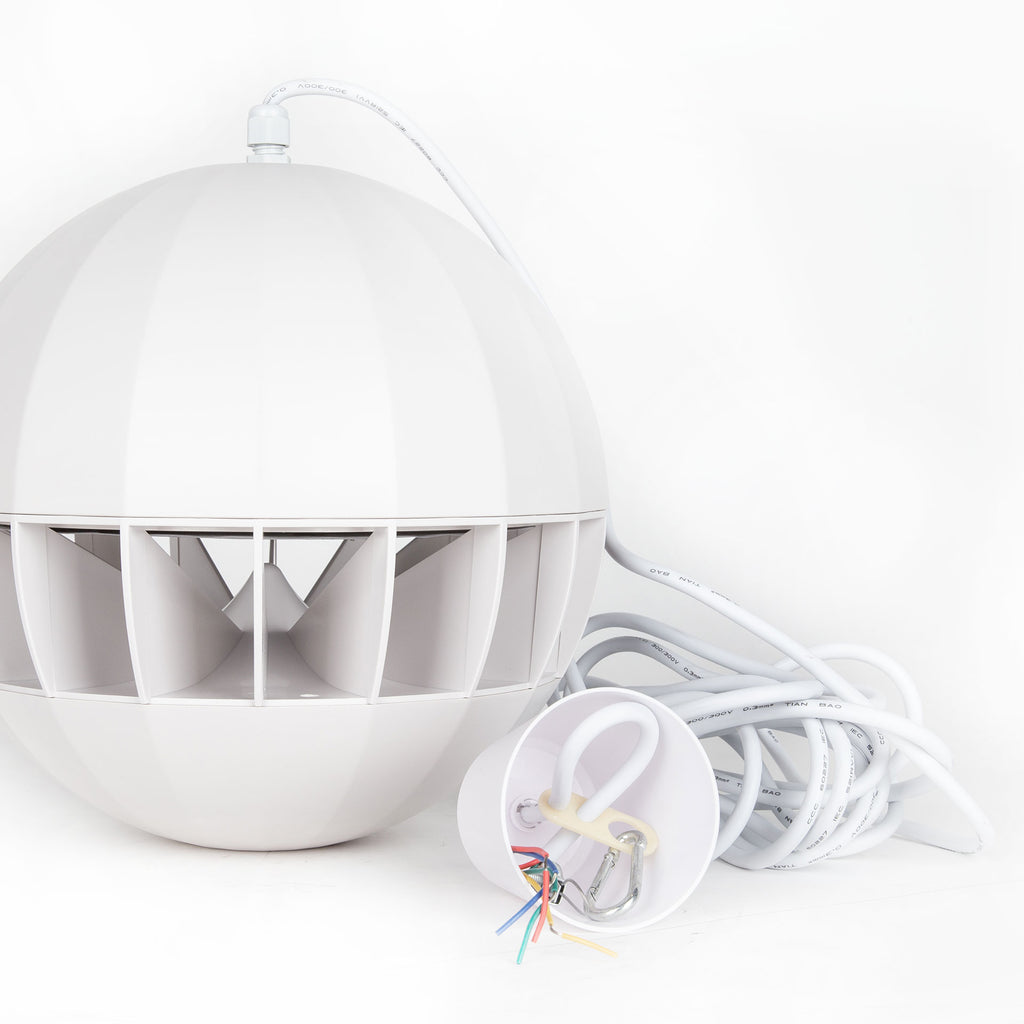

- 5 m suspension and connection cable included
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
160 Hz - 12500 Hz |
| Max SPL @ 1m |
106 dB |
| Horizontal coverage angle |
360° |
| System Sensitivity |
93 dB |
Power section
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
Transducers
Input/Output section
| Input connectors |
Cable |
| Output connectors |
Cable |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
20 W - 500 ohm |
| Power selection 2 |
10 W - 1000 ohm |
| Power selection 3 |
5 W - 2000 ohm |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Carabiner and safety steel wire |
| Grille |
Plastic |
| Color |
White - RAL 9010 |
Size / Weight
| Height |
240 mm / 9.45 inches |
| Diameter |
250 mm / 9.84 inches |
| Weight |
2.3 kg / 5.07 lbs |
Shipping information
| Package Height |
300 mm / 11.81 inches |
| Package Width |
315 mm / 12.4 inches |
| Package Depth |
315 mm / 12.4 inches |
| Package Weight |
3.55 kg / 7.83 lbs |
