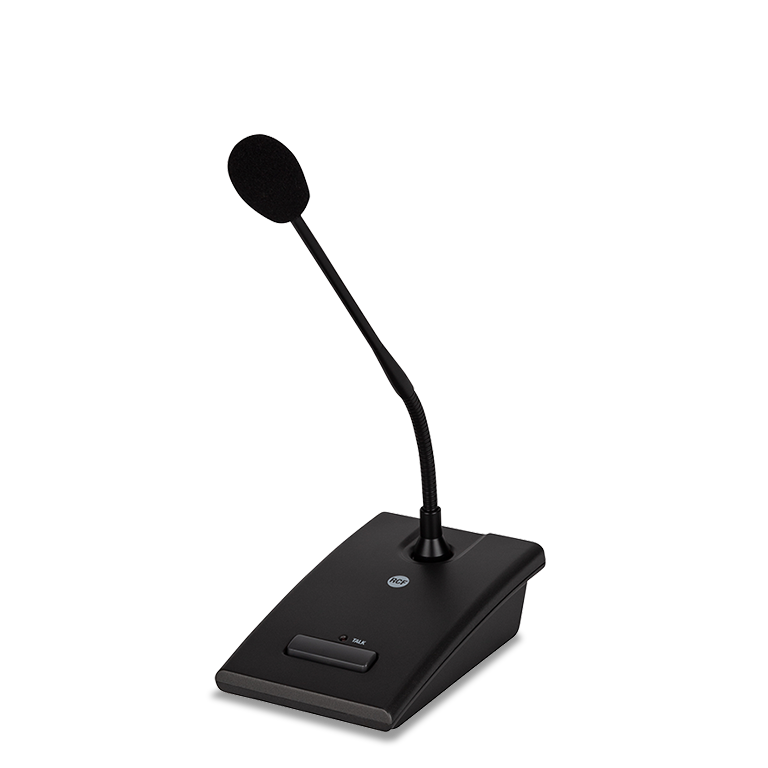

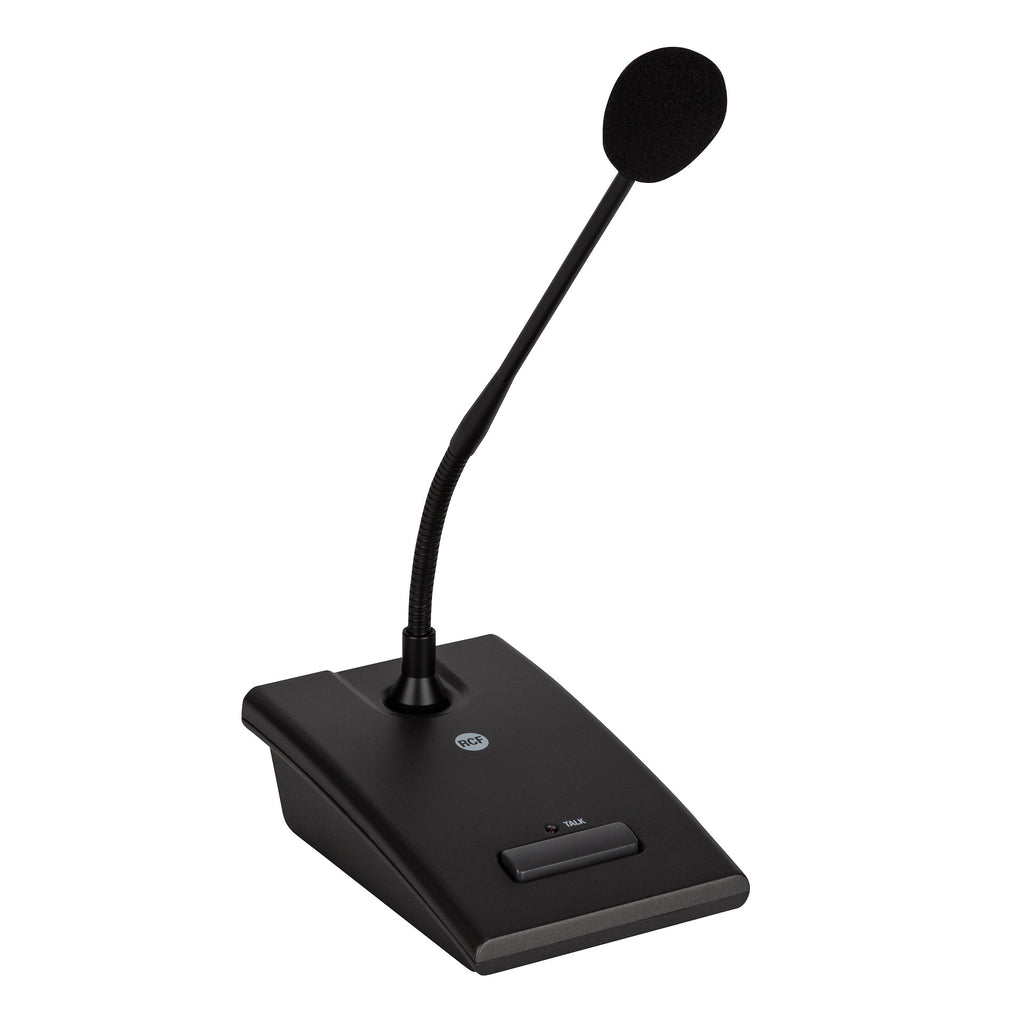

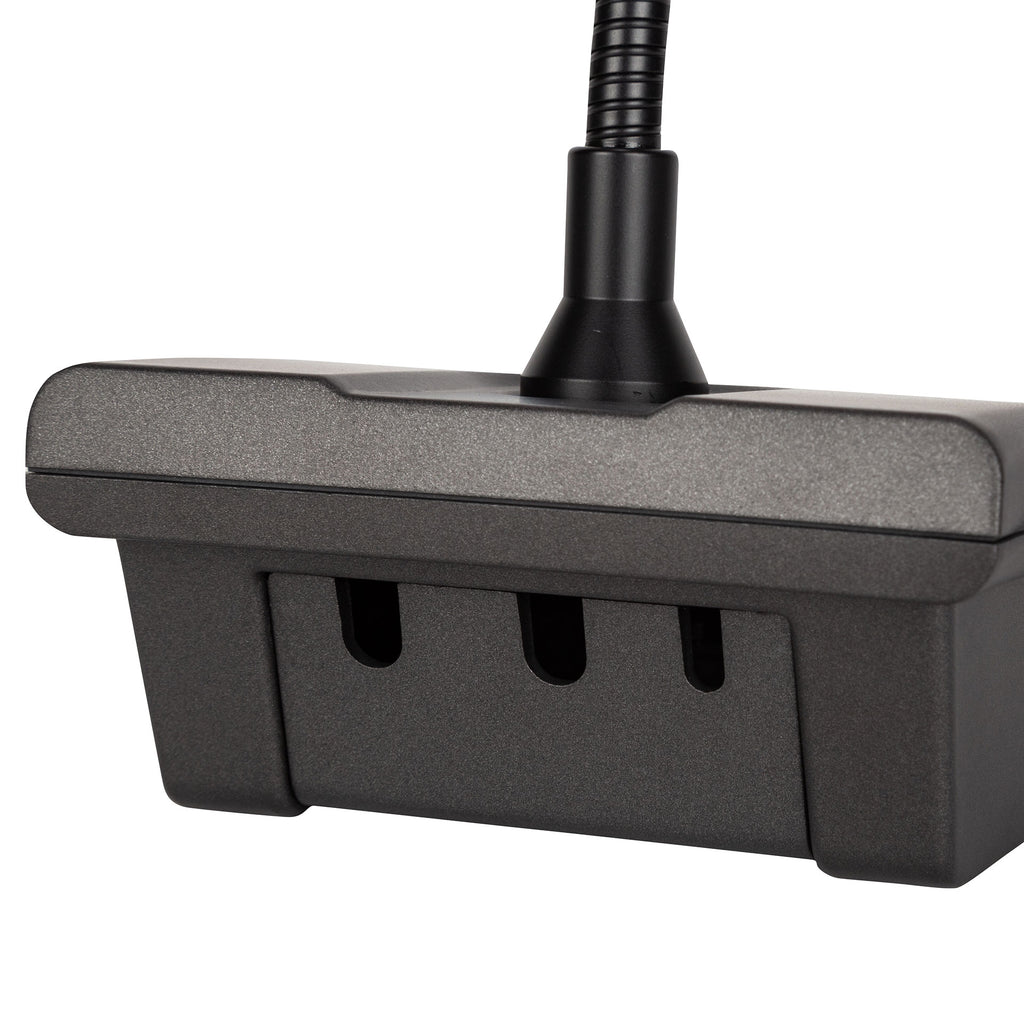

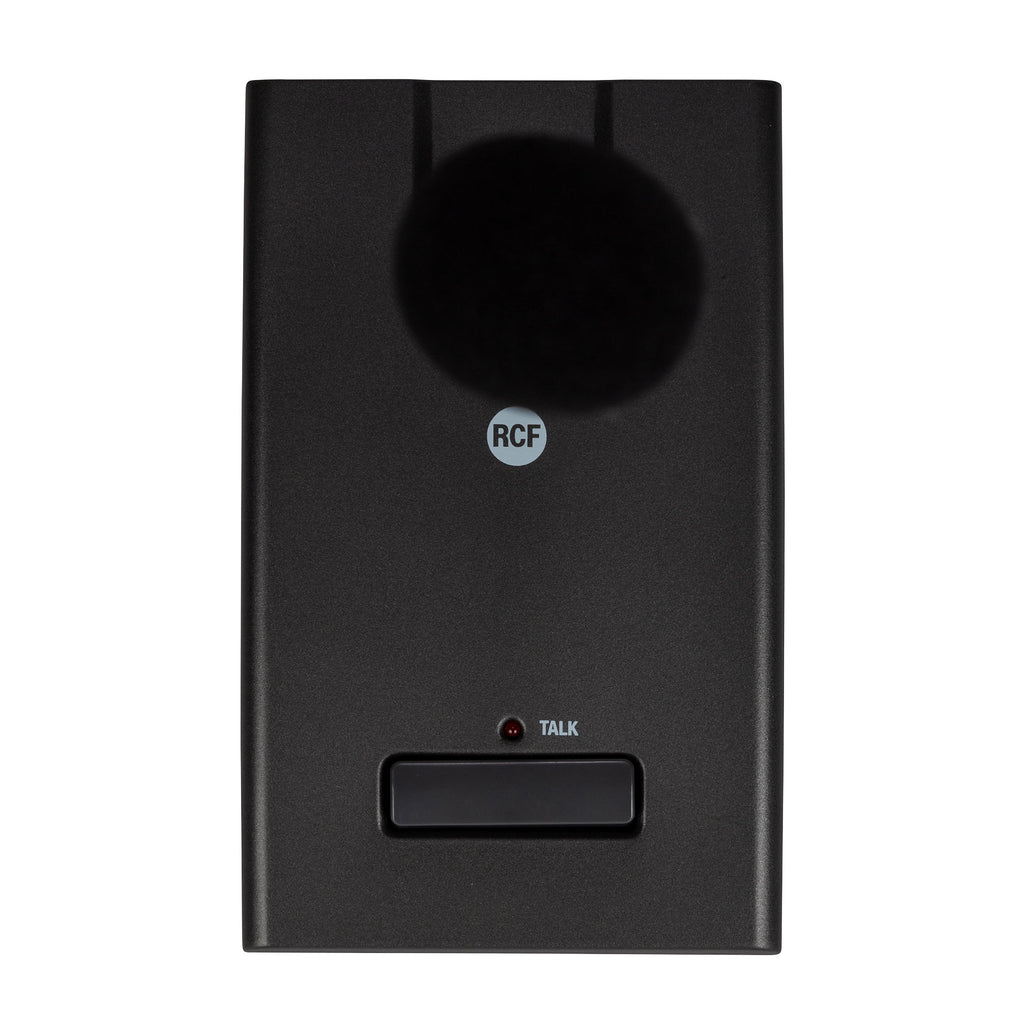

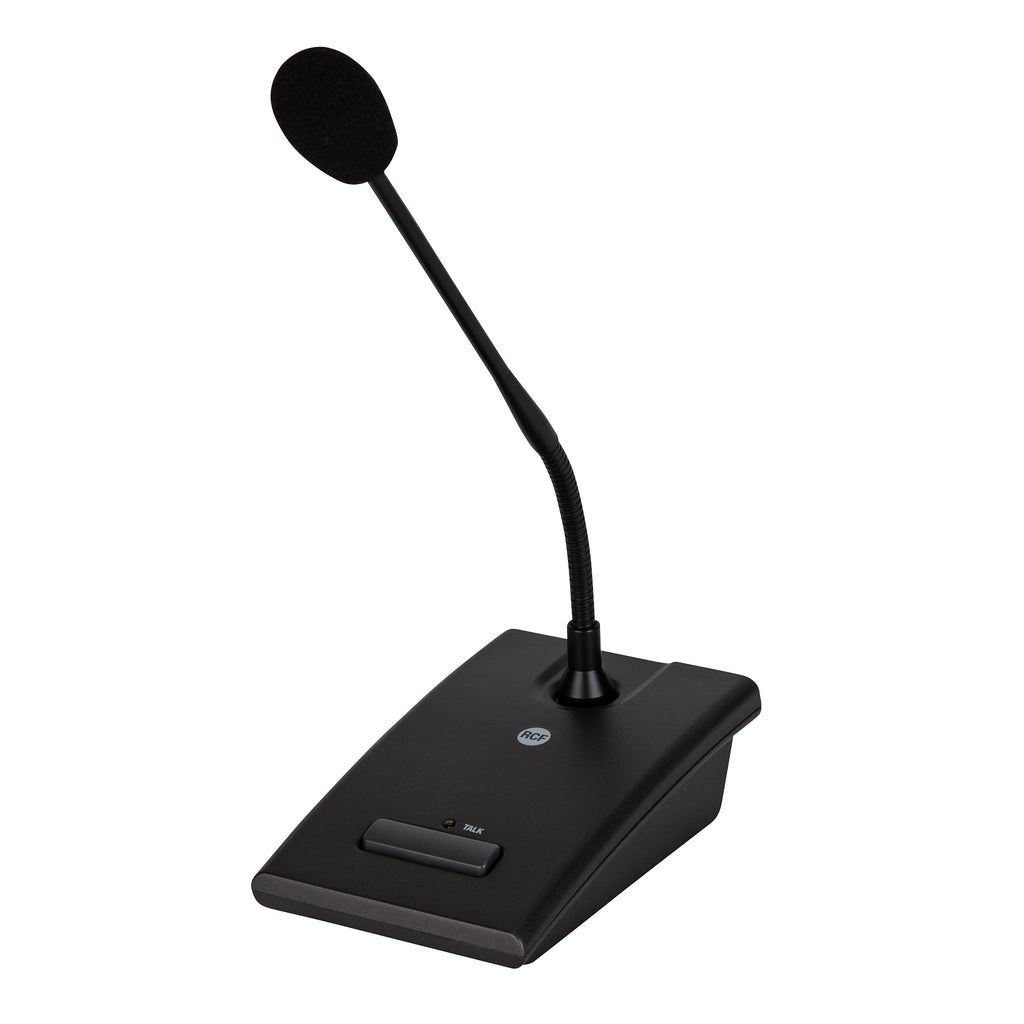

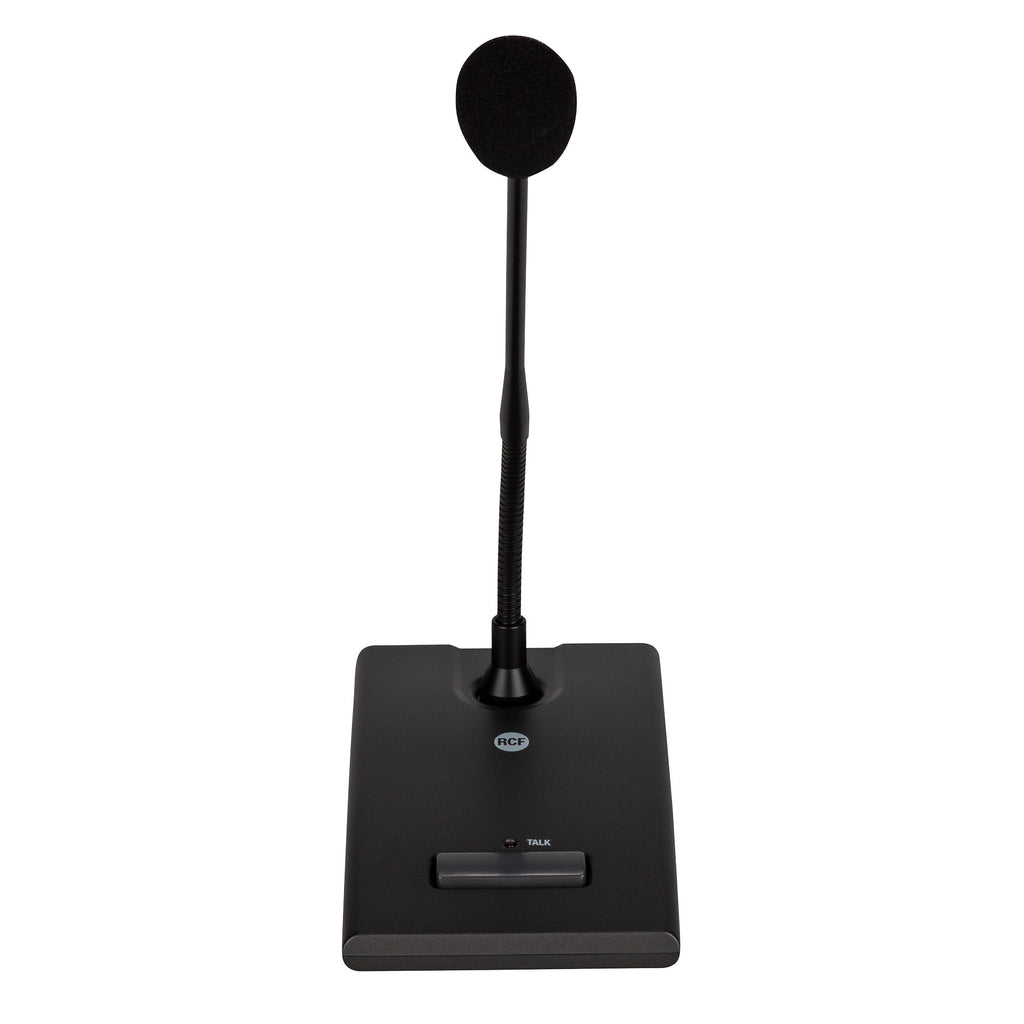

BM 3001 Paging Microphone
The BM 3001 Desktop Paging microphone allows to send announces toward a single zone and it is the ideal complement for the ES 3160 and ES 3323 receiver amplifier. It can also be used with other mixer-preamplifiers equipped Phantom Power (18 V - 48 V).
Features
- Plastic body with 300 mm gooseneck

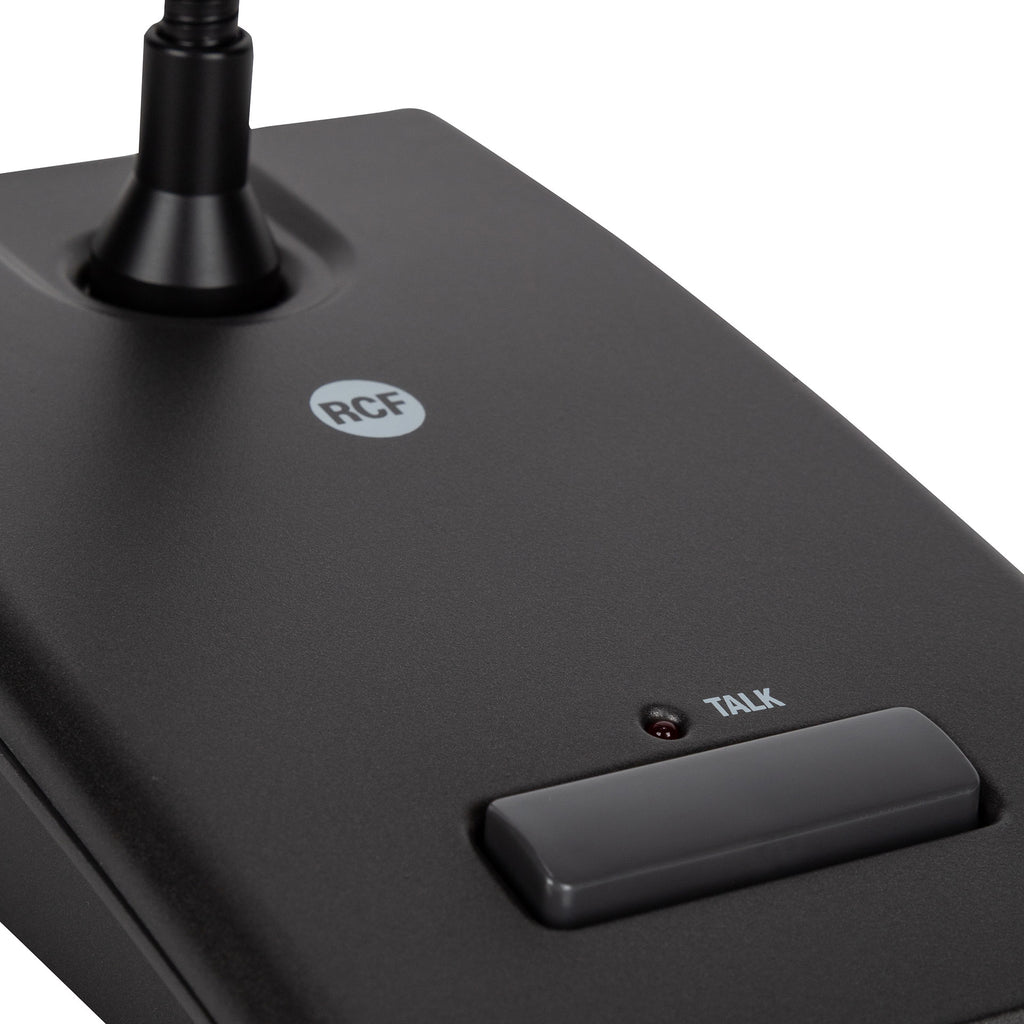

- PTT button with LED
- Power supplied by 'Phantom' (18 ÷ 48 V dc)
- Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
- Chime activation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
- Polyurethane foam wind screen
- 5 m connecting cable (with RJ 45 plugs) included
Specifications
Microphone specifications
| Type |
Desktop paging microphone with electret capsule |
| Directivity |
Cardioid |
| Sensitivity |
-65 dB |
| Frequency Response (-3dB) |
50 Hz - 18 kHz |
| Minimum load impedance (ohm) |
470.00 ohm |
| Nominal output voltage @3.3 kohm (mV RMS) |
100.00 mV RMS |
| Phantom power |
Yes |
| Phantom Power |
18 V DC - 48 V DC |
Console specifications
| Console Type |
Paging |
| General call |
Yes |
| Number of zones |
1 |
| LED indicators |
Yes |
Power requirement
| Power consumption |
2.80 mA |
Connections
Functionalities
Accessories
| Cable included |
Yes |
| Cable length (m) |
5 |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Plastic |
| Color |
Grey |
Size / Weight
| Height |
48 mm / 1.89 inches |
| Width |
100 mm / 3.94 inches |
| Depth |
159 mm / 6.26 inches |
| Weight |
0.73 kg / 1.61 lbs |
Shipping information
| Package Height |
144 mm / 5.67 inches |
| Package Width |
329 mm / 12.95 inches |
| Package Depth |
129 mm / 5.08 inches |
| Package Weight |
1.18 kg / 2.6 lbs |
