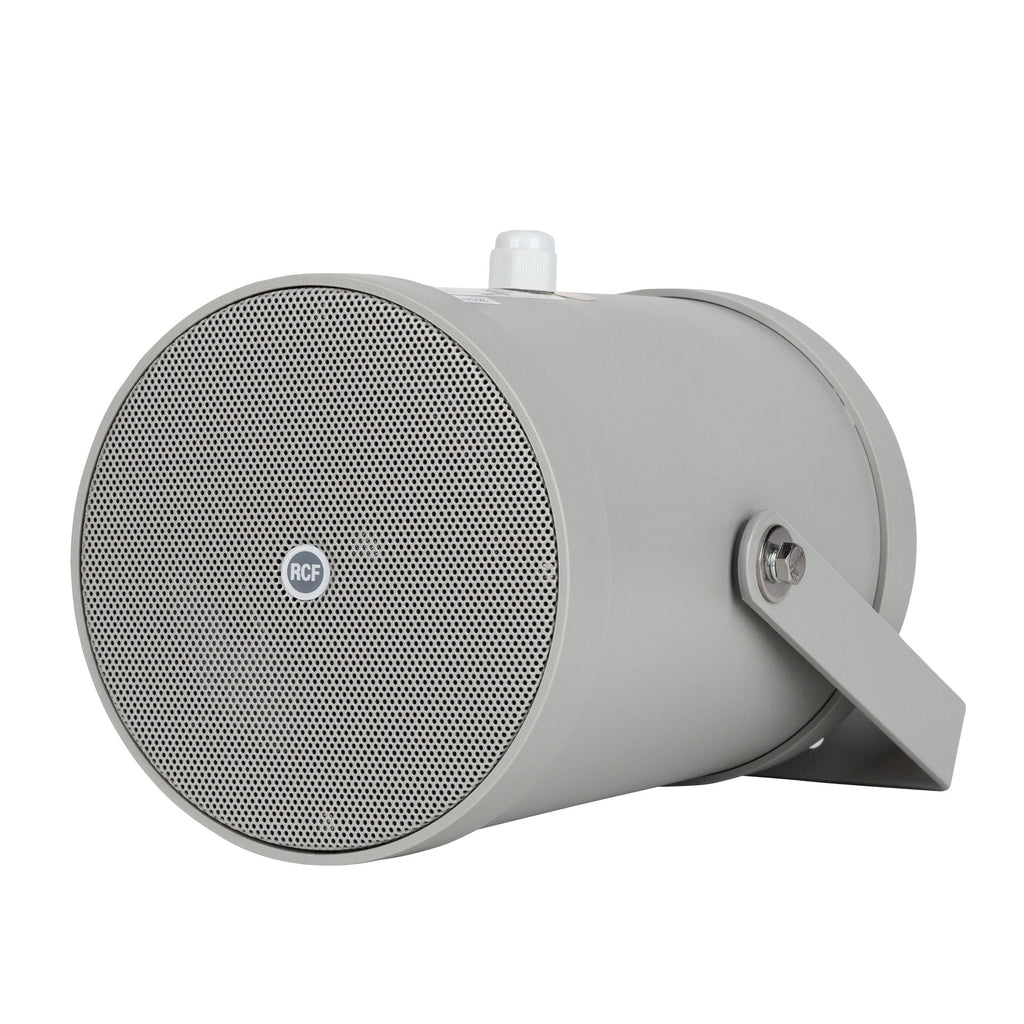

BD 42EN Bidirectional Sound Projector
BD 42EN is a bidirectional sound projector featuring an elegant aesthetic and easy orientation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a cylindrical plastic body with aluminium grilles and U-bracket support. Thanks to its IP55 protection grade, it can be installed both indoor and outdoor.
Features
- 2x5" fullrange transducers.
- Power selectable (100 V): 12 W - 6 W - 3 W - 1,5 W.
- 91 dB sensitivity.
- Colour grey RAL 7035.
- Flameproof ABS body, aluminium grilles and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP55.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
130 Hz - 15000 Hz |
| Max SPL @ 1m |
102 dB |
| Max SPL @ 4m |
90 dB |
| System Sensitivity |
90 dB |
| System Sensitivity 1W @ 4m |
78 dB |
Power section
| Amplification |
Full Range |
| Power Handling |
12 W |
| Peak Power Handling |
48 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
Transducers
Input/Output section
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Ceramic screw terminals |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
12 W - 833 ohm |
| Power selection 2 |
6 W - 1667 ohm |
| Power selection 3 |
3 W - 3333 ohm |
| Power selection 4 |
1.5 W - 6667 ohm |
Standard compliance
| IP protection grade |
IP 55 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-234/2025 |
Physical specifications
| Cabinet/Case Material |
ABS |
| Hardware |
Aluminum U bracket |
| Grille |
Aluminium |
| Color |
Grey - RAL 7035 |
Size / Weight
| Width |
200 mm / 7.87 inches |
| Diameter |
138 mm / 5.43 inches |
| Weight |
1.66 kg / 3.66 lbs |
Shipping information
| Package Height |
290 mm / 11.42 inches |
| Package Width |
160 mm / 6.3 inches |
| Package Depth |
190 mm / 7.48 inches |
| Package Weight |
1.95 kg / 4.3 lbs |
