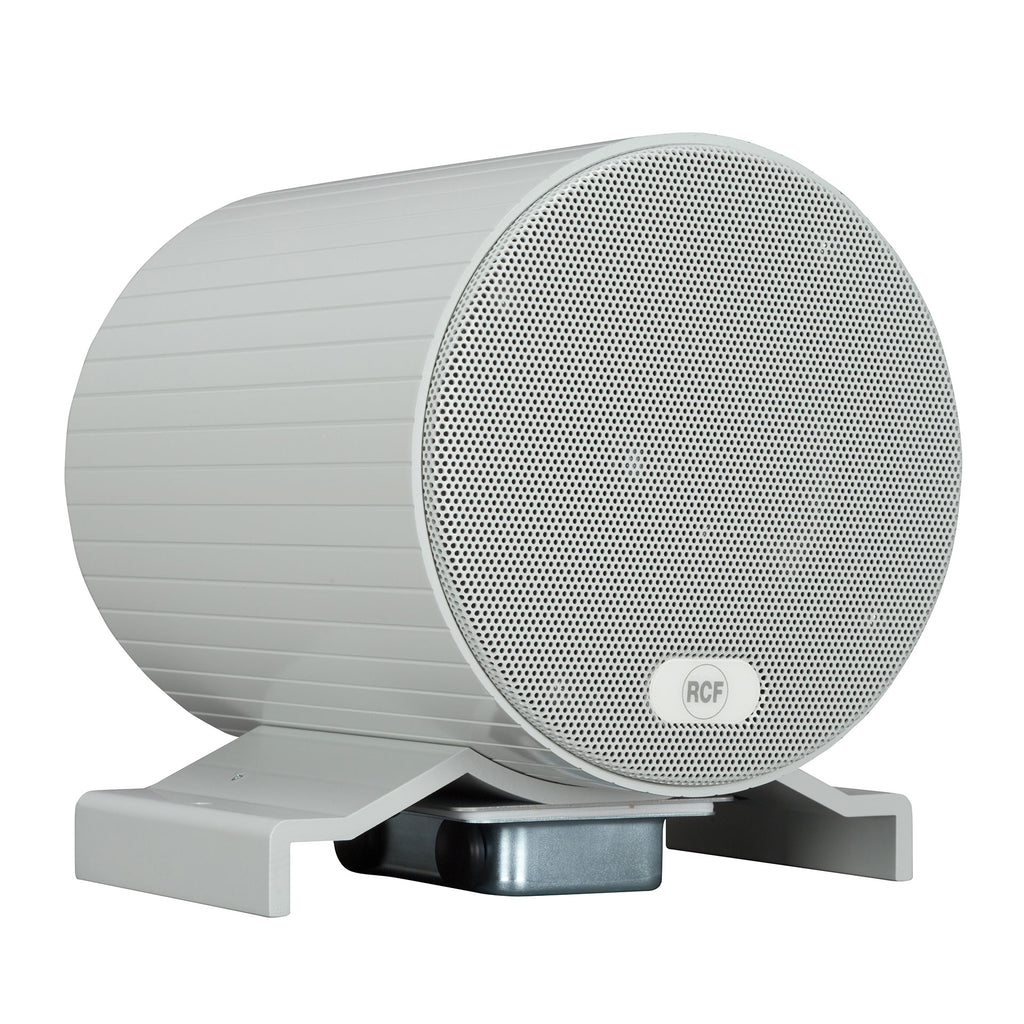

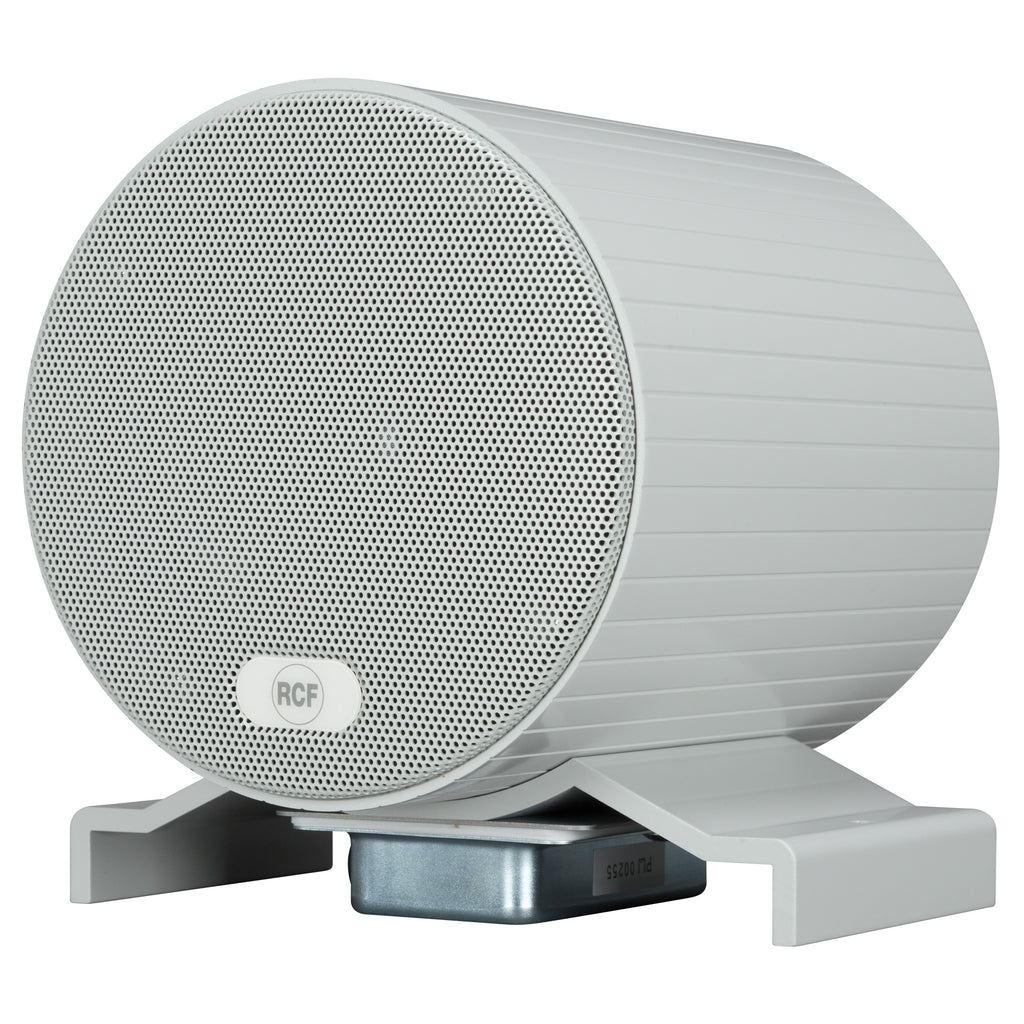

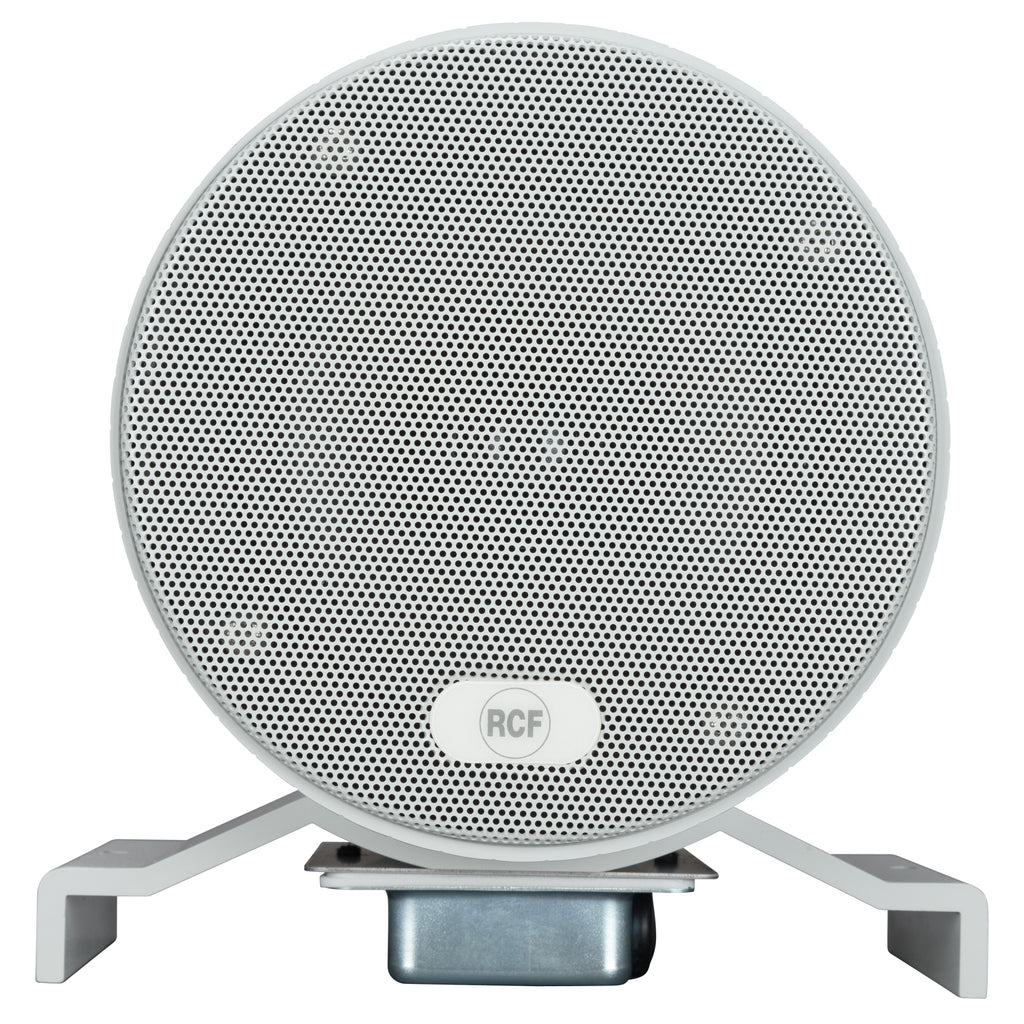

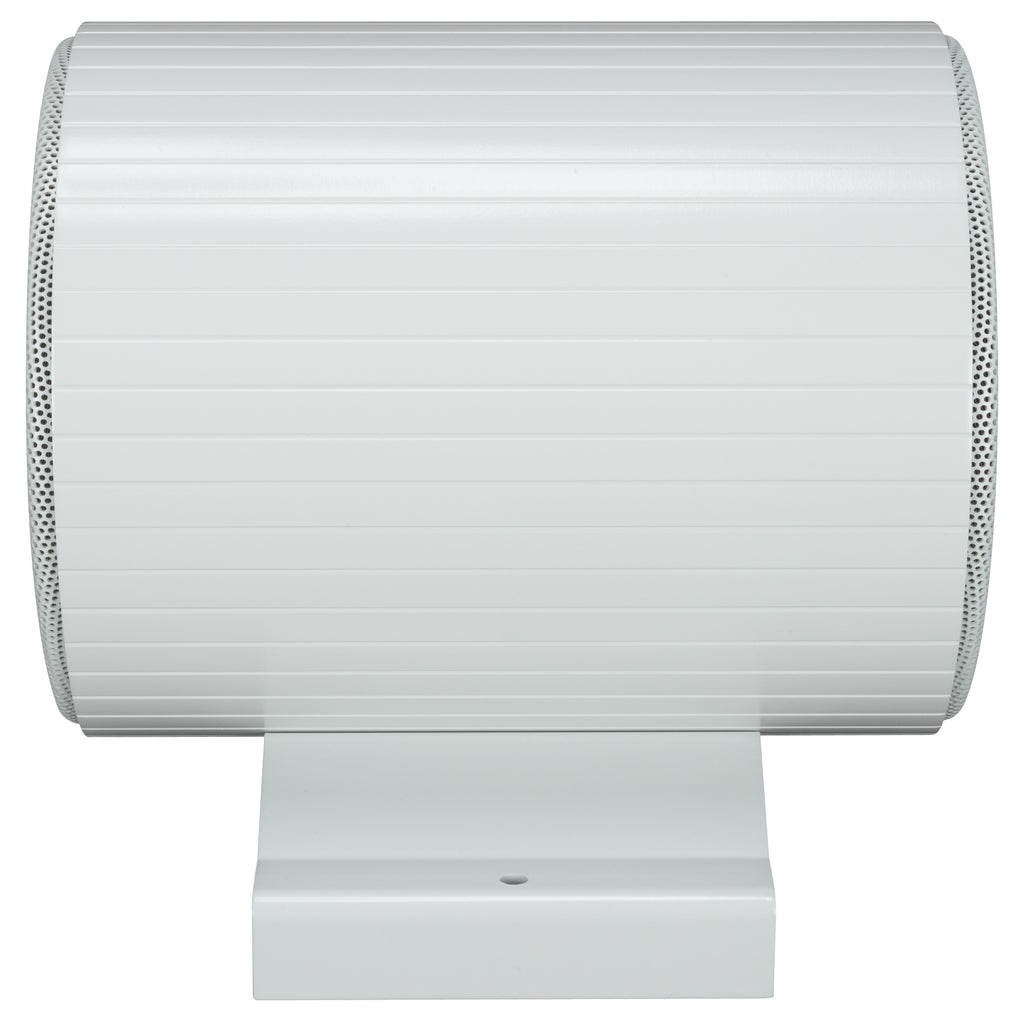

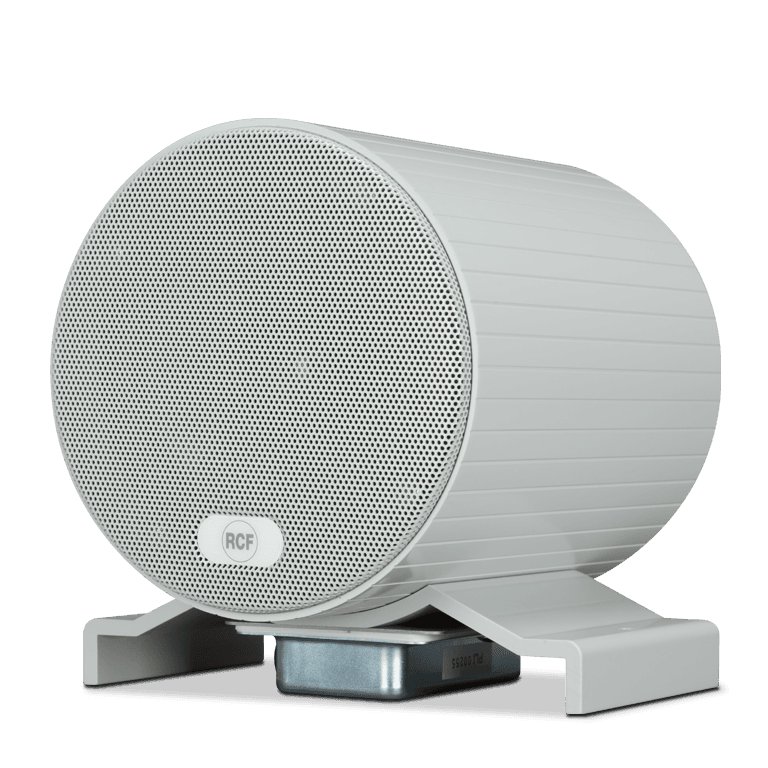

BD 2412EN Bidirectional Aluminium Sound Projector
BD 2412EN is a bidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 2 x 5" fullrange transducers.
- Power selectable (100 V): 20 W - 10 W - 5 W.
- 88 dB sensitivity.
- Colour grey RAL 7035.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Specifications
Acoustical specifications
| Frequency Response (-10dB) |
130 Hz - 20000 Hz |
| Max SPL @ 1m |
101 dB |
| Max SPL @ 4m |
89 dB |
| Coverage angle |
130° |
| System Sensitivity |
88 dB |
| System Sensitivity 1W @ 4m |
76 dB |
Power section
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
Transducers
Input/Output section

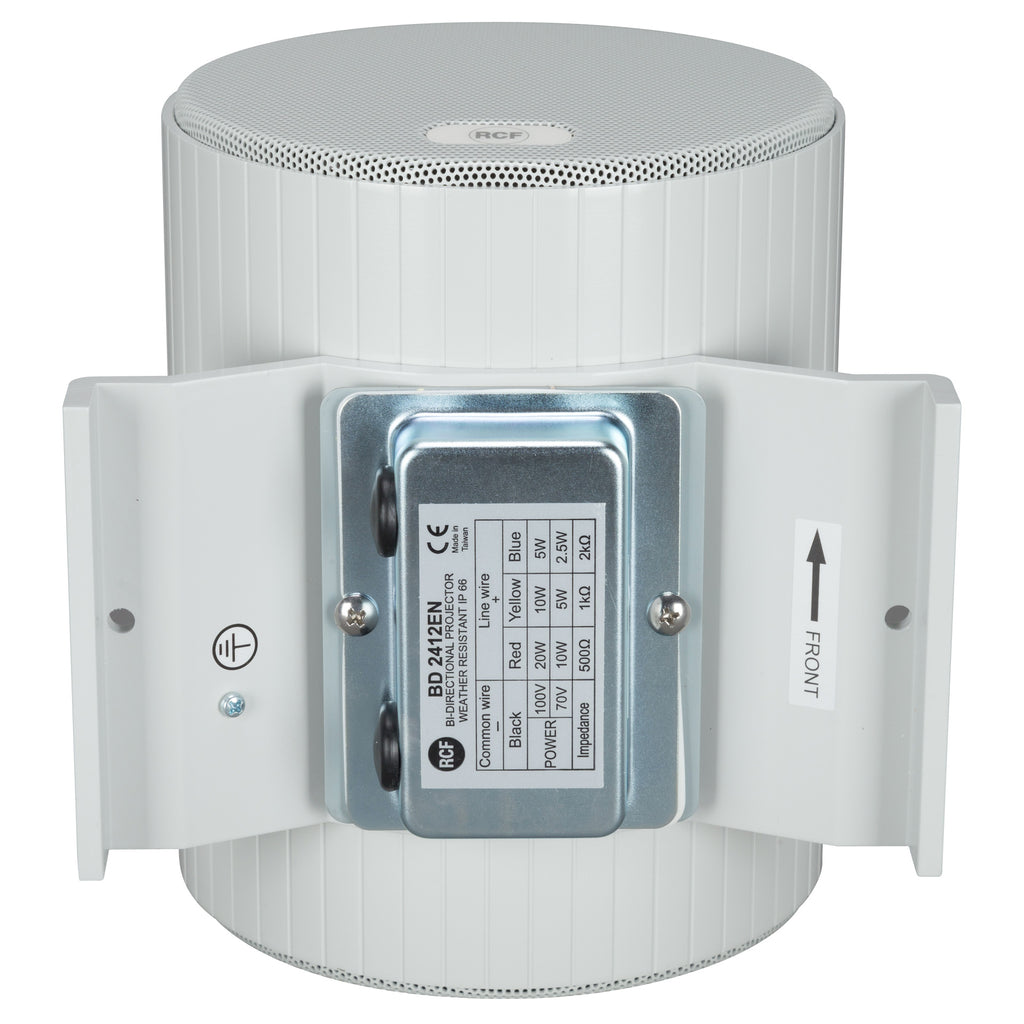

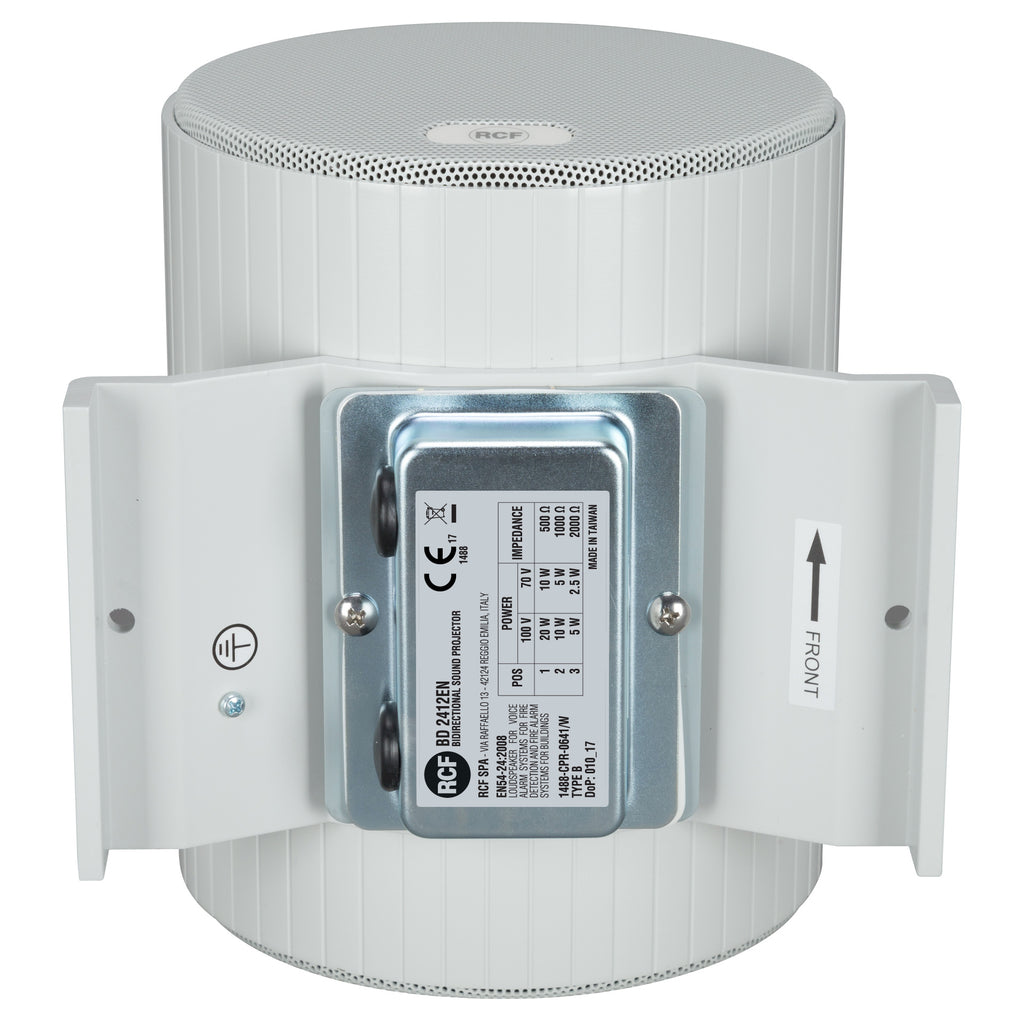

| Input connectors |
Ceramic screw terminals |
| Output connectors |
Ceramic screw terminals |
| Constant Voltage Transformer |
100 V |
| Power selection 1 |
20 W - 500 ohm |
| Power selection 2 |
10 W - 1000 ohm |
| Power selection 3 |
5 W - 2000 ohm |
Standard compliance
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0641/W |
Physical specifications
| Cabinet/Case Material |
Aluminum |
| Hardware |
Aluminium bracket |
| Grille |
Aluminium |
| Color |
Grey - RAL 7035 |
Size / Weight
| Depth |
184 mm / 7.24 inches |
| Diameter |
146 mm / 5.75 inches |
| Weight |
3.25 kg / 7.17 lbs |
Shipping information
| Package Height |
185 mm / 7.28 inches |
| Package Width |
240 mm / 9.45 inches |
| Package Depth |
185 mm / 7.28 inches |
| Package Weight |
3.25 kg / 7.17 lbs |
