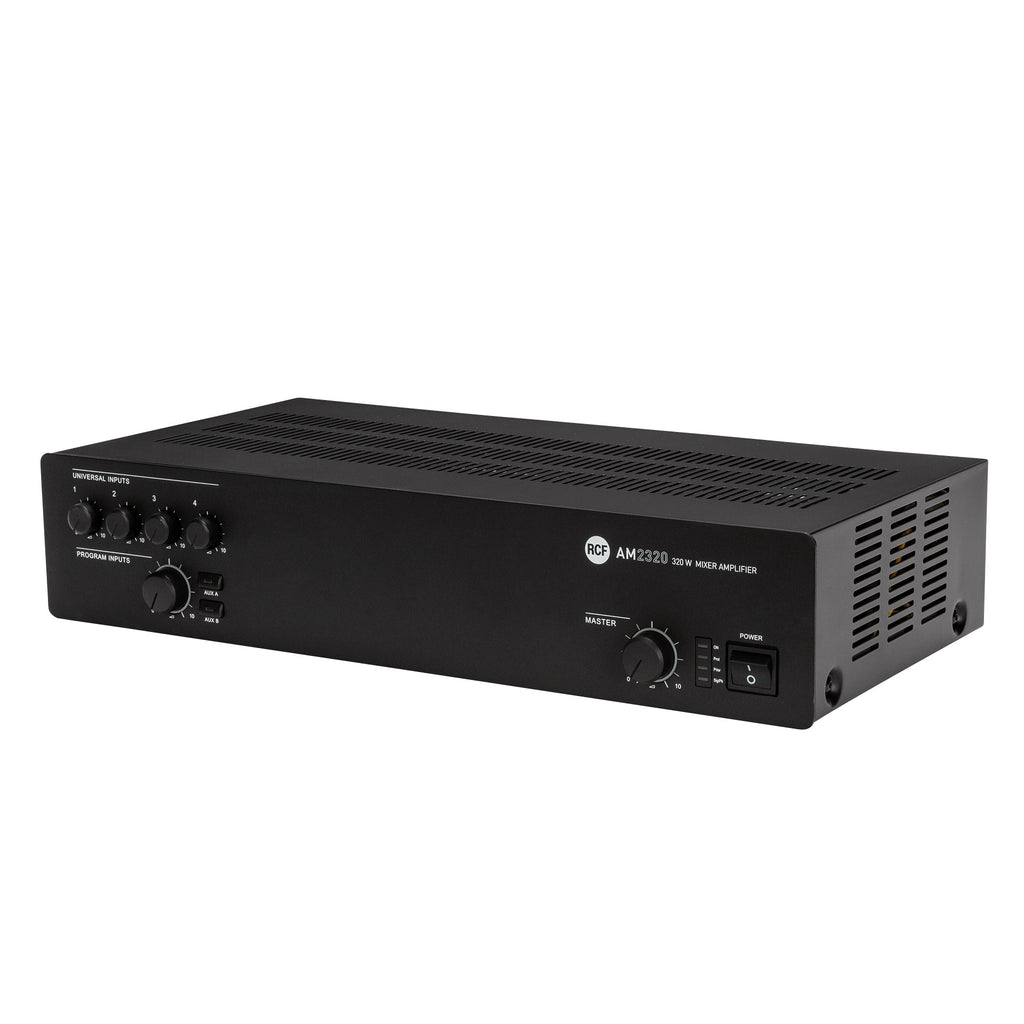

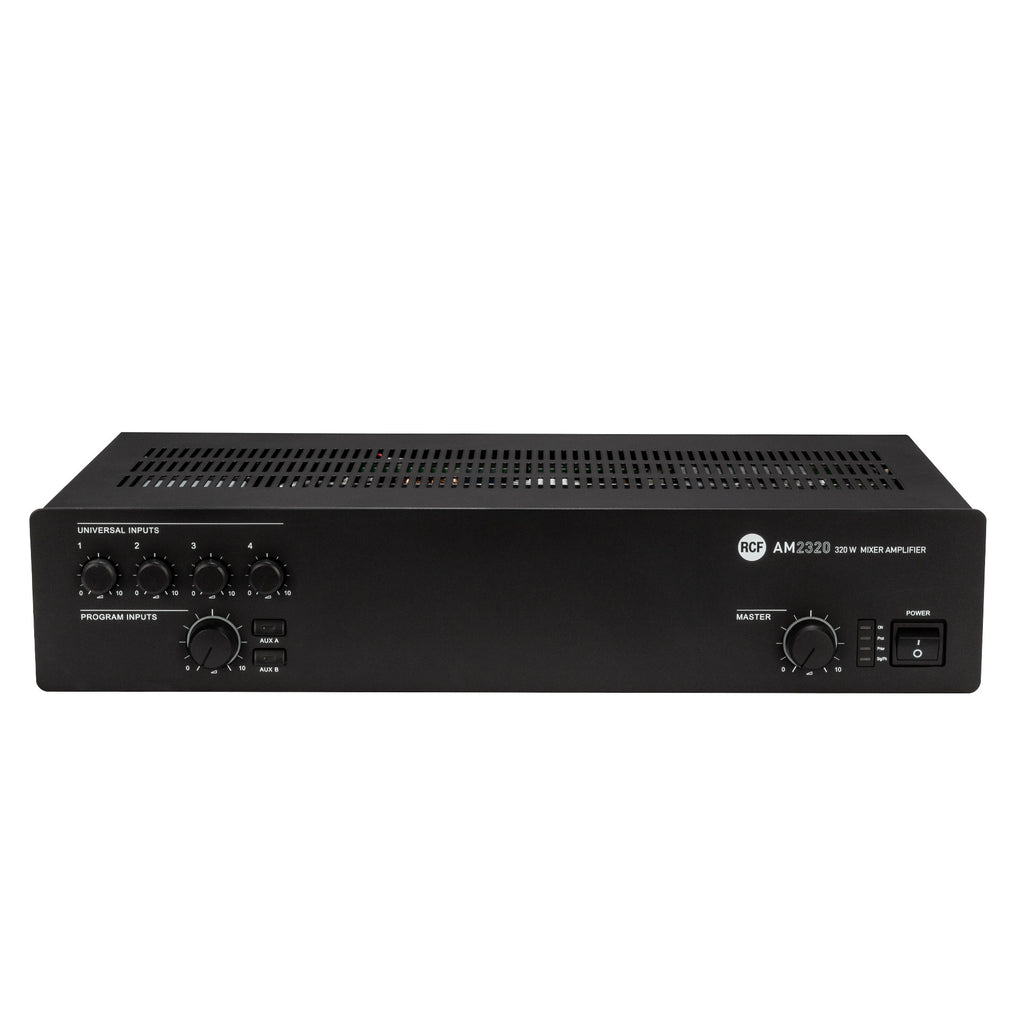

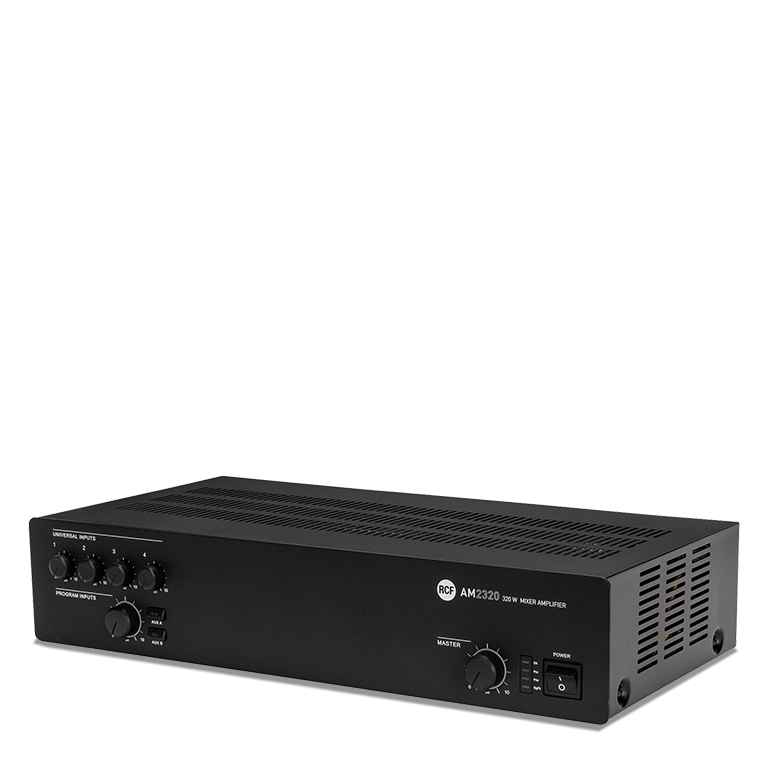

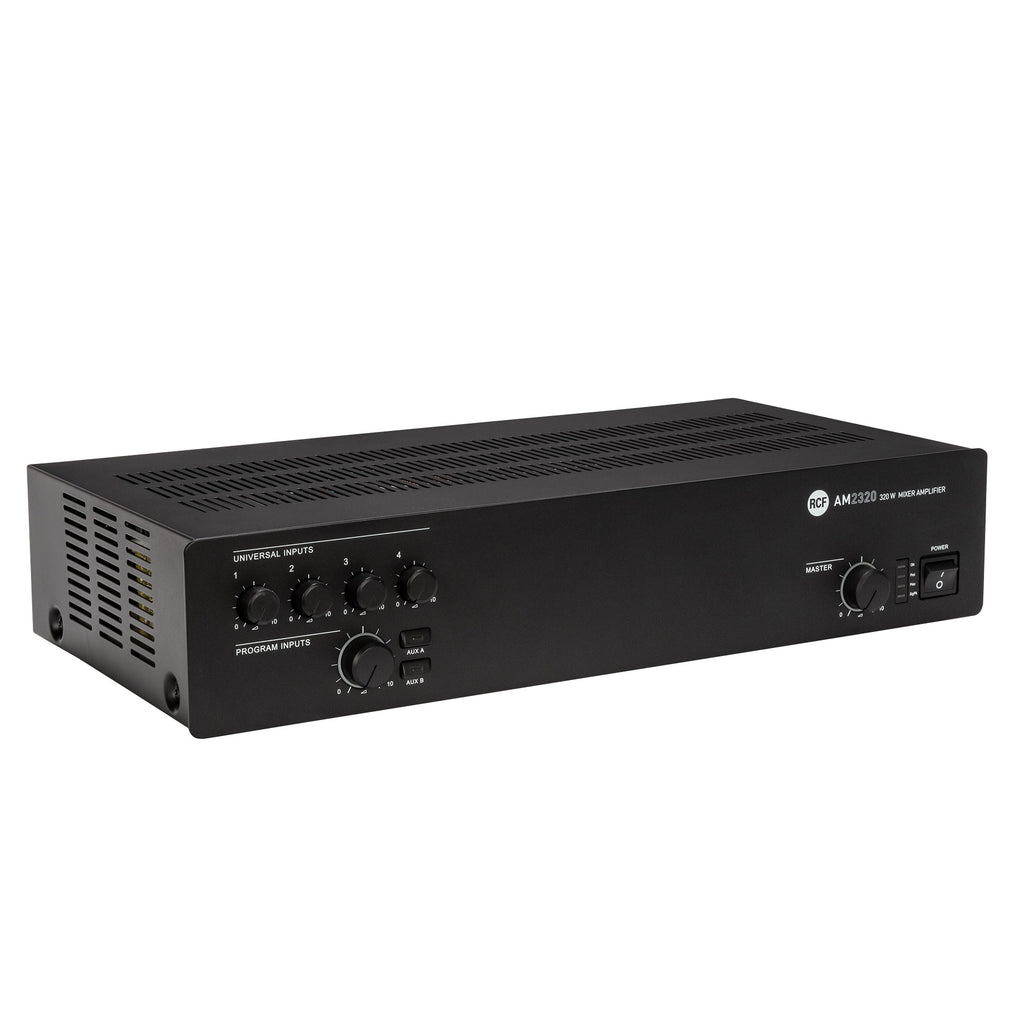

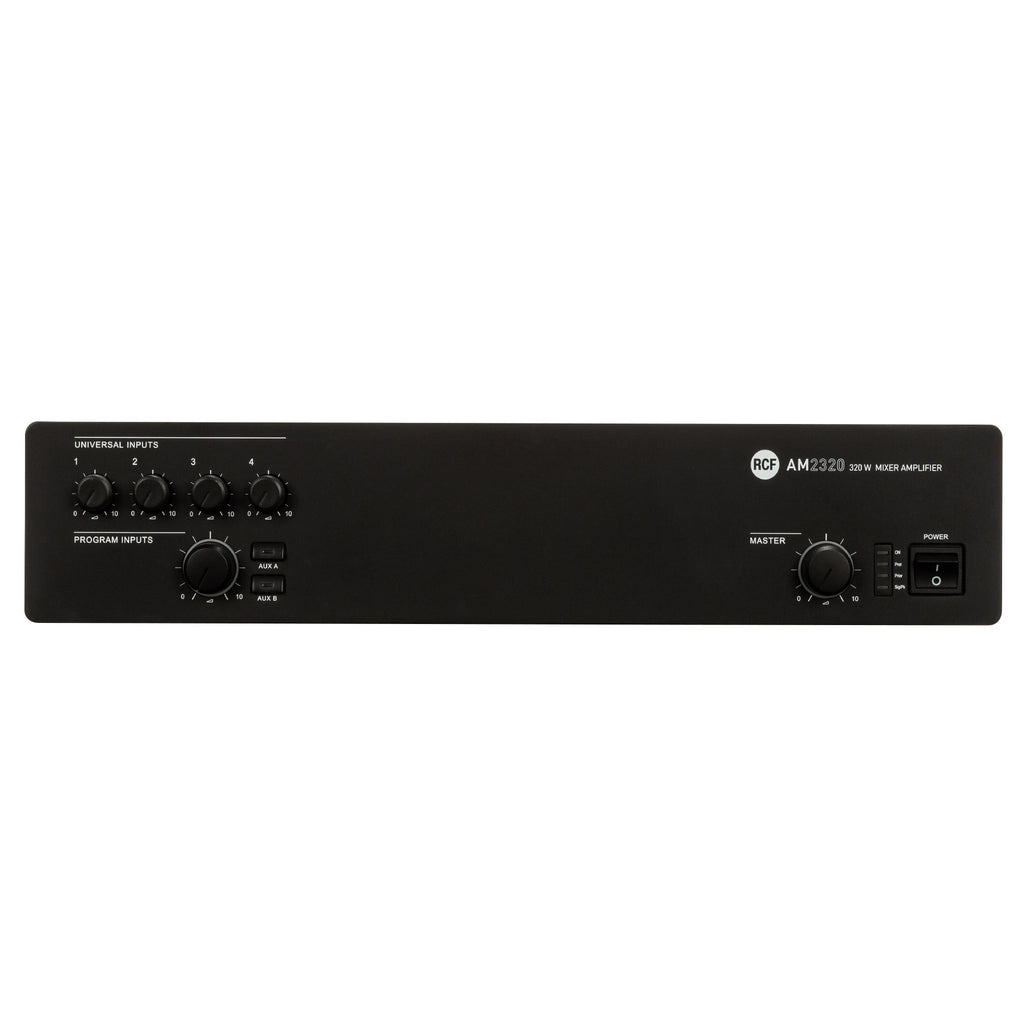

AM 2320 Mixer Amplifier
AM 2320 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 320 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 - 70 V constant voltage line.
Features
- Full digital technology Mixer Amplifier 320 W RMS
- 100 V - 70 V and 4 Ohm outputs
- 4 universal inputs with phantom facility on screw terminal connections
- Presence Control and per-channel High-Pass filters
- XLR connector on input 1
- RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- DigMusic On Hold and PRE outputs
Specifications
Amplifier specifications
| Output Power |
1 x 320 W @ 4 ohm |
| Frequency Response (-3dB) |
50 Hz - 14 Hz |
| Distortion (THD+N) @ 1 kHz nominal power |
<0.3 % |
Input section
| Total number of inputs |
8 |
| Balanced |
7 |
| Unbalanced |
2 |
| Mono |
7 |
| Stereo |
2 |
| Line inputs |
2 |
| Line connectors |
RCA |
| Mic+Line inputs |
4 |
| Mic+Line connectors |
Euroblock, XLR |
| Mic+Line Phantom |
32 V DC |
| VOX |
Yes |
| Paging inputs |
2 |
| Paging connectors |
RJ45 |
| Paging command |
Contact |
| General Purpose Inputs (GPI) |
2 |
Output section
| Signal output number |
2 |
| Signal output connectors |
RCA |
| Power output connectors |
Euroblock |
Processing
| Tone controls |
Yes |
| High-pass filter |
150 Hz |
Configuration and control
| Configuration |
DIP switch, Front panel |
| Priority |
Yes |
| Music on hold |
Yes |
| Chime tone |
Yes |
Protections
| Cooling |
Convection |
| Short circuit |
Yes |
| Thermal |
Yes |
| DC |
Yes |
| Fuses |
Yes |
Power requirement
| Operating voltage |
220-240/115 V~ 50/60Hz |
| Voltage selection |
Internal |
| Power consumption (MAX) |
600 W |
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Metal |
| Color |
Black |
| Rack mounting |
19", 2U |
Size / Weight
| Height |
88 mm / 3.46 inches |
| Width |
442 mm / 17.4 inches |
| Depth |
230 mm / 9.06 inches |
| Weight |
5.4 kg / 11.9 lbs |
Shipping information
| Package Height |
200 mm / 7.87 inches |
| Package Width |
500 mm / 19.69 inches |
| Package Depth |
330 mm / 12.99 inches |
| Package Weight |
6 kg / 13.23 lbs |
