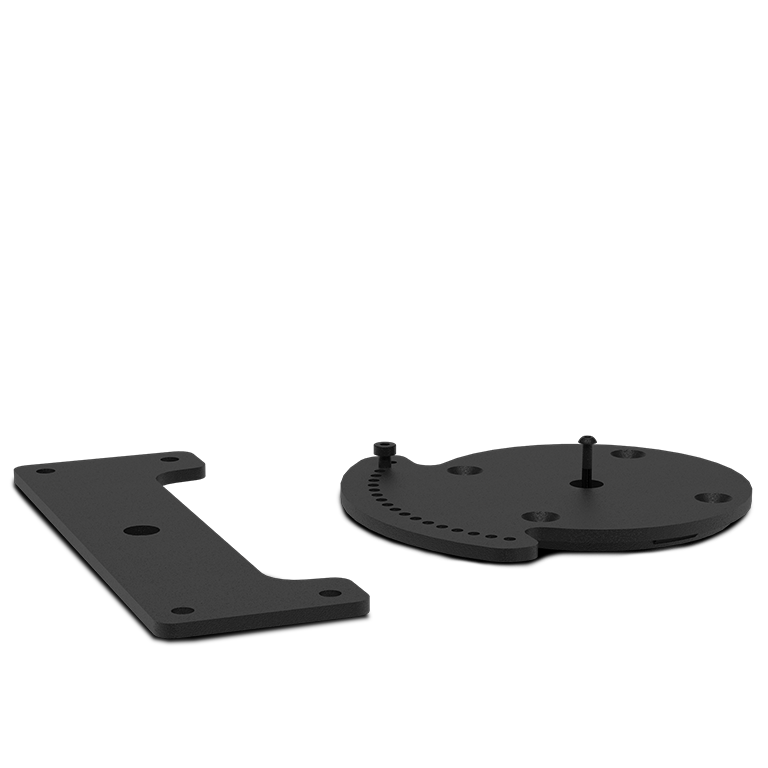

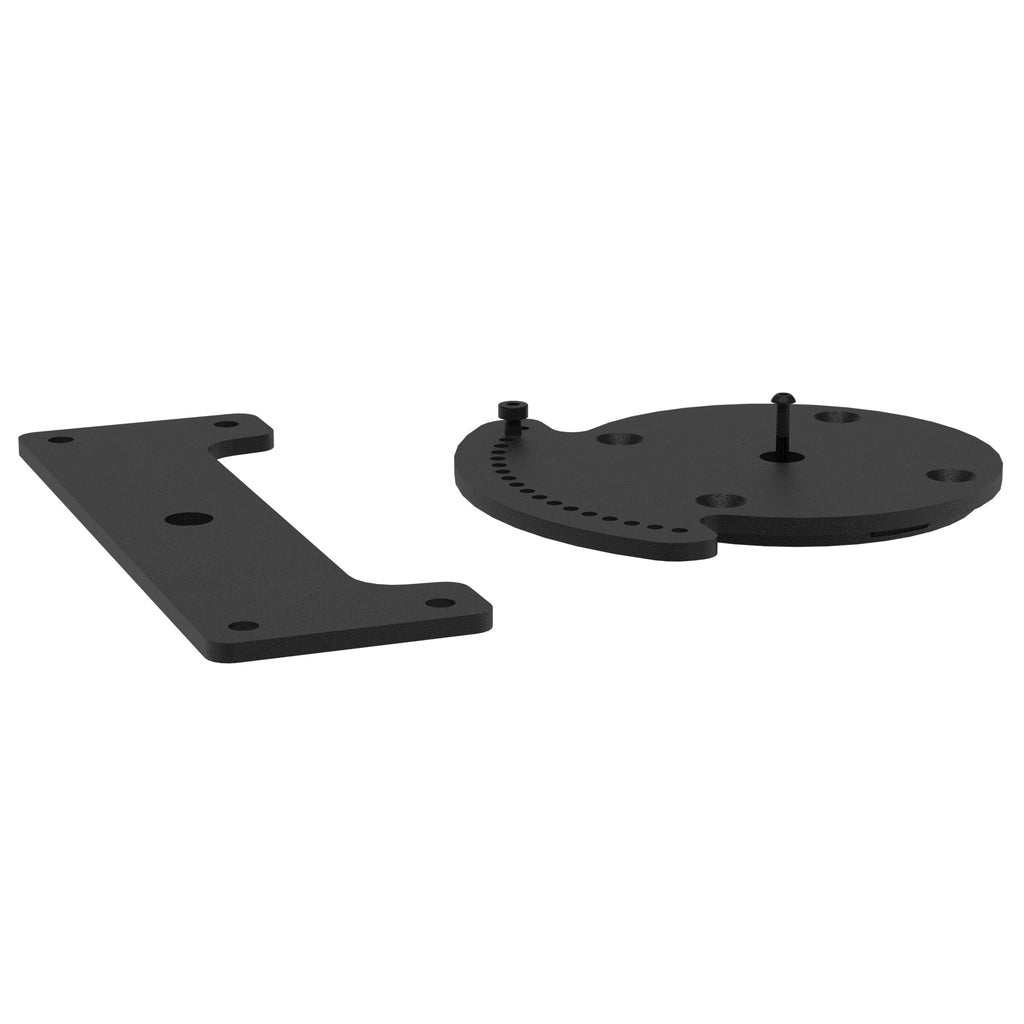

2X PLATE H-BR NX 910-912-915 Adapter Plate
This accessory is required when using the following horizontal wall mounting brackets with NX series speakers: - H-BR 2X COMPACT M 10 with NX 910-A speakers; - H-BR 2X COMPACT M 12 with NX 912-A speakers; - H-BR 2X COMPACT C 45 with NX 915-A speakers.
Features
- This model has been replaced by PLT60702
- Strong steel construction
- Adjustable inclination
- Painted with black, scratch-resistant paint
- Safe and quick loudspeaker installation
Specifications
General specifications
Standard compliance
| Safety agency |
CE compliant |
Physical specifications
| Cabinet/Case Material |
Steel |
| Color |
Black |
Size / Weight
| Height |
17 mm / 0.67 inches |
| Width |
125 mm / 4.92 inches |
| Depth |
110 mm / 4.33 inches |
| Weight |
1.6 kg / 3.53 lbs |
Shipping information
| Package Height |
100 mm / 3.94 inches |
| Package Width |
180 mm / 7.09 inches |
| Package Depth |
180 mm / 7.09 inches |
| Package Weight |
1.7 kg / 3.75 lbs |
