AVAILABLE ON ORDER | ARCHIVED | INSTALLED | Q 15-L | TWO-WAY POINT SOURCE MODULE | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
138 dB |
| Horizontal coverage angle |
22.5° |
| Vertical coverage angle |
90° |
| Directivity index Q |
20 |
| Power section |
| Amplification |
Bi-Amp |
| Crossover Frequencies |
600 Hz |
| Nominal Impedance LF |
8 ohm |
| Power Handling LF |
1350 W |
| Peak Power Handling LF |
5400 W |
| Sensitivity LF |
97 dB |
| Nominal Impedance HF |
Power Handling HF |
| 150 W |
Peak Power Handling HF |
| 600 W |
Sensitivity HF |
| 113 dB |
Protections HF |
| Capacitor on Compression Driver |
Recommended Amplifiers |
| XPS 16K, XPS 16KD, QPS 10K |

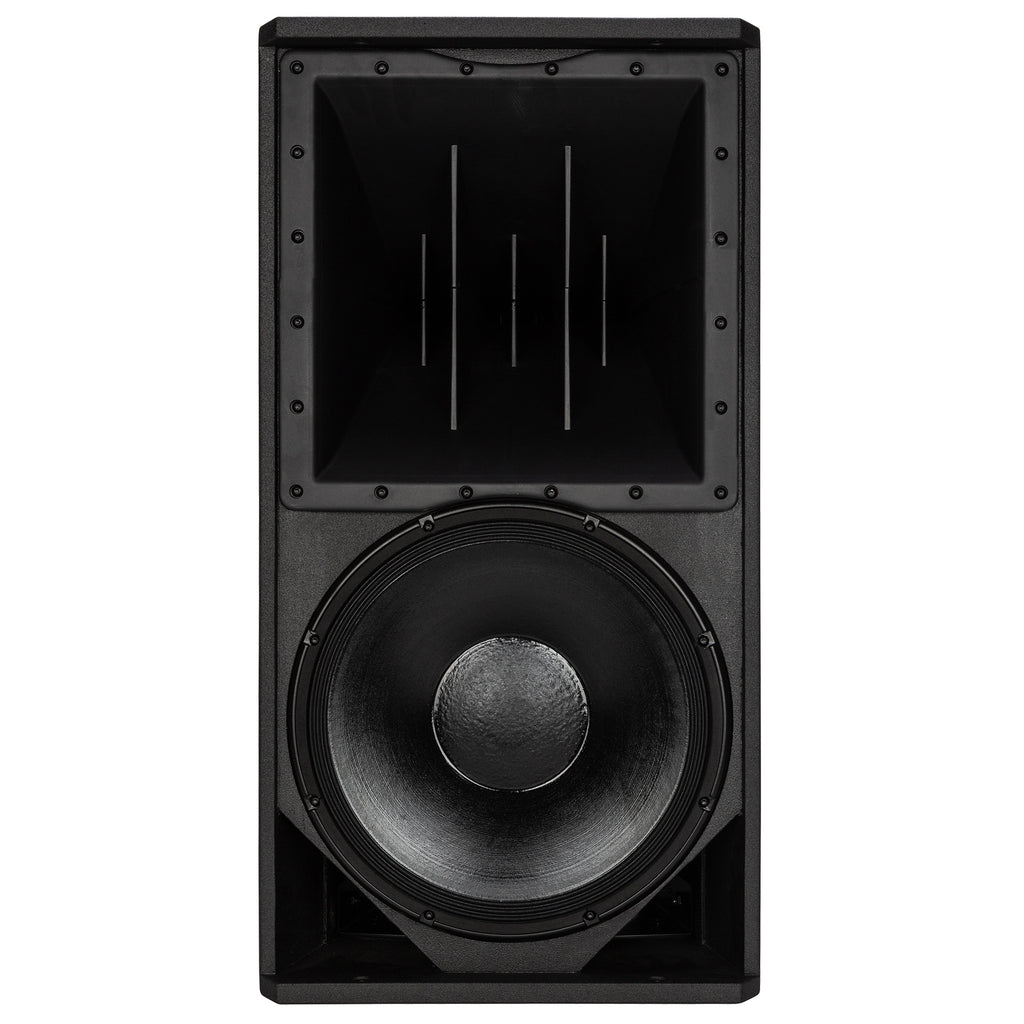

| Transducers |
| Compression Driver |
1 x 1.4'' neo, 4.0'' v.c |
| Woofer |
1 x 15'' neo, 4.0'' v.c |
| Input/Output section |
| Input connectors |
Speakon® NL4 |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
Side and rear array rigging point |
| Handles |
2 |
| Grille |
Steel |
| Color |
Black - RAL 9005 |
| Size / Weight |
| Height |
860 mm / 33.86 inches |
| Width |
446 mm / 17.56 inches |
| Depth |
590 mm / 23.23 inches |
| Weight |
55 kg / 121.25 lbs |
| Shipping information |
| Package Height |
9650 mm / 379.92 inches |
| Package Width |
5850 mm / 230.32 inches |
| Package Depth |
7750 mm / 305.12 inches |
| Package Weight |
59 kg / 130.07 lbs |
