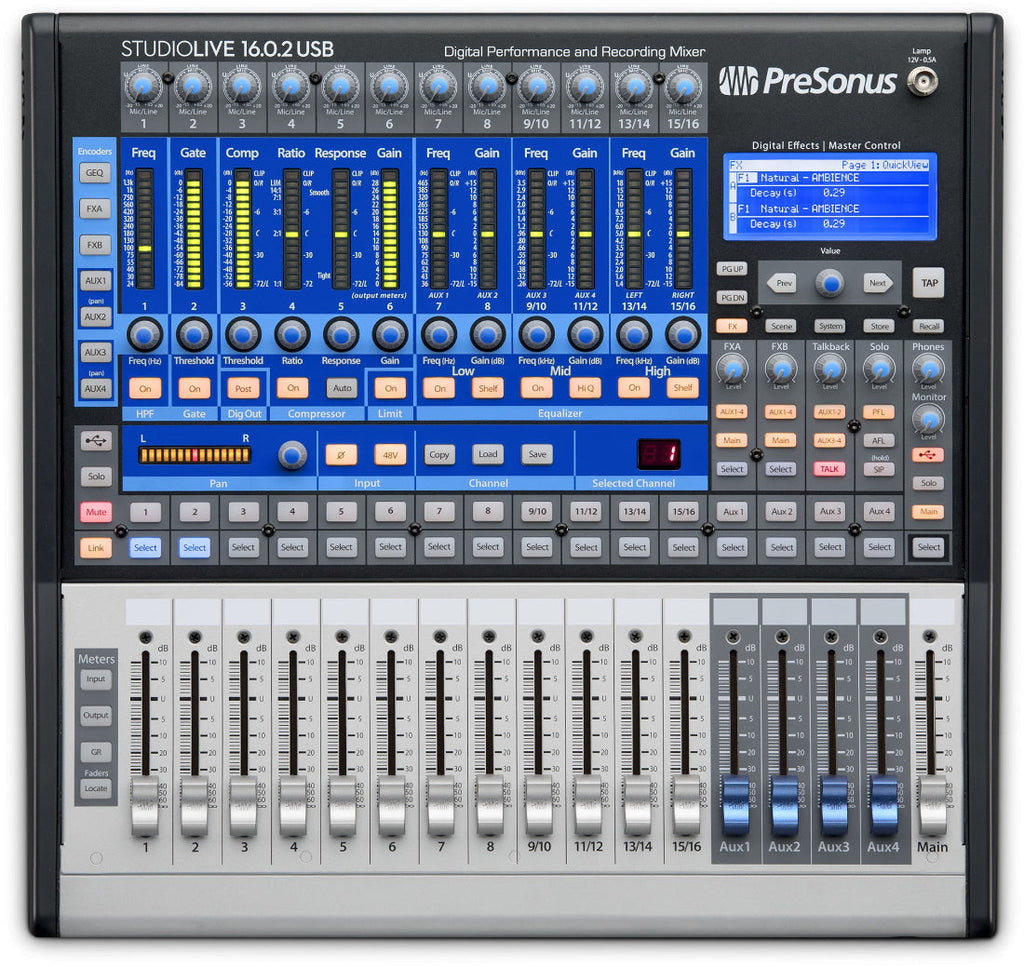

PreSonus StudioLive 16.0.2 USB

PreSonusSKU: STUDIOLIVE-16-0-2-USB

Price:
Sale price$1,299.99

Description



StudioLive 16.0.2 USB

The ease of analog meets the power of digital.

When you’re mixing a live event or have an artist in the studio, you need to be able to work quickly. The StudioLive® 16.0.2 USB’s familiar, easy-to-use interface keeps all critical controls visible and accessible —not buried in menus or layers. Our design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Add to that easily accessed, color-coded function buttons; rotary trim controls; and clearly labeled, individual knobs for EQ and dynamics processing. Aux sends have their own physical controls. Every channel has a big, bright meter display. But don’t let the analog feel fool you: The StudioLive 16.0.2 USB offers the power of modern digital mixing, multitrack recording, wireless remote control, and more.



Features

8 mono mic/line channel inputs, each with:

  • High-headroom Class A XMAX mic preamplifier
  • XLR mic and balanced ¼-inch line inputs
  • 60 mm precision fader

4 stereo line channel inputs, with:

  • High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
  • XLR mic inputs (Ch. 9, 11, 13, and 15)
  • Balanced ¼-inch line inputs (Ch. 9-16)
  • Unbalanced RCA line inputs (Ch. 13-16)
  • 60 mm precision fader (4 stereo)
  • 4 Auxiliary buses (pre/post-fader send)

2 Internal FX buses

2 stereo 32-bit digital effects processors with customizable reverb and delay presets

Fat Channel signal processing on all channels and buses, with:

  • 3-band semi-parametric EQ (individual band on/off)
  • Full-featured compressor
  • Standard downward expander
  • Limiter
  • Phase reverse (12 mic preamplifiers only)
  • Pan with dedicated 15-LED display
  • Stereo link for input channels and aux buses
  • Highpass filter

One 31-band stereo graphic EQ (on main outputs only)

18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)

  • Compatible with most audio software via ASIO, Windows Audio, Core Audio

Scene store and recall

Settings can be copied among channels and buses and saved as user presets.

Software bundle includes:

  • PreSonus® Studio One® Artist digital audio workstation for macOS® and Windows ®
  • PreSonus Capture® live-recording software for macOS and Windows
  • PreSonus UC Surface mixer-control software for macOS, Windows, Android™, and iPadOS®
  • Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android provides wireless remote control of aux mixes
  • Ableton® Live Lite


Lockout mode protects your settings from meddlers and accidents

MIDI Control Mode provides control over:

  • Scene and FX Preset recall
  • Main Volume, FXA, and FXB output levels
  • FXA and FXB assign/unassign to Mains


Computer system requirements:
Below are the minimum computer-system requirements for StudioLive 16.0.2 USB.

macOS®
macOS version 10.13 or later
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates)
Available USB port
Windows®
Windows 10 or later (64-Bit Only)
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
Available USB port
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.

Click here for Studio One’s system requirements.
VST Compatible Logo ASIO Compatible Logo

VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
USB-C® is a registered trademark of USB Implementers Forum
All other trademarks are property of their respective holders
Technical Specifications
Microphone Preamp
Type XLR Female, Balanced
Frequency Response to Direct Output (at unity gain) 20 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain) 20 Hz-20 kHz, ±0.5 dBu
Input Impedance (Balanced) 1 k?
THD to Direct Output (1 kHz at unity gain) <0.005%, +4 dBu, 20 Hz–20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain) 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output +125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) -102 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) -95 dB
Common Mode Rejection Ratio (1 kHz at unity gain) +65 dB
Gain Control Range (± 1 dB) -16 dB to +67 dB
Maximum Input Level (unity gain) +16 dBu
Phantom Power (± 2 VDC) +48 VDC
Line Inputs, Balanced
Type ¼" TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain) 10 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain) 20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance 10 k?
THD to Direct Output (1 kHz at unity gain) <0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain) <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd) -105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd) -95 dB
Gain Control Range (± 1 dB) -20 dB to +20 dB
Maximum Input level (unity gain) +22 dBu
Line Inputs, Unbalanced
Type RCA Female, unbalanced (stereo pair)
Maximum Input Level +22 dBu
Main Outputs
Type XLR Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair)
Rated Output Level +24 dBu
Output Impedance 100?
Aux Outputs
Type ¼” TRS Female, balanced (mono)
Rated Output Level +18 dBu
Output Impedance 100?
Monitor Outputs
Type ¼” TRS Female, balanced (stereo pair)
Rated Output Level z +18 dBu
Output Impedance 100?
System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -87 dBu
Noise Gate (Expander)
Threshold Range -84 dB to 0 dB
Attack Time Adaptive (0.2 - 2.5 ms)
Release Time 70 ms
Expander Attenuation Range 2:1
Compressor
Threshold Range -56 dB to 0 dB
Ratio 1:1 to 14:1
Response Time (Attack/Release 0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
Auto Attack and Release Attack = 10 ms, Release = 150 ms
Curve Types hard and soft knee
EQ
Type 2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass) 36 to 465 Hz, ±15 dB
Mid 260 Hz to 3.5 kHz, ±15 dB
High (High-pass or Bandpass) 1.4 kHz to 18 kHz, ±15 dB
Digital Audio
Host Interface USB 2.0
ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
Internal Processing 32-bit, floating point
Sampling Rate 44.1, 48 kHz
A/D/A Bit Depth 24 bits
Reference Level for 0 dBFS +18 dBu
Clock
Jitter <20 ps rms (20 Hz - 20 kHz)
Jitter Attenuation >60 dB (1 ns in ? 1 ps out)
Power
Connector IEC
Input-Voltage Range 100 to 240 VAC (factory-configured for country of destination)
Power Requirements (continuous) 100W
Physical
Length 15.56 inches (397 mm)
Width 16 inches (406 mm)
Maximum Height 5.5 inches (140 mm)
Weight 20 lbs.
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
