Description

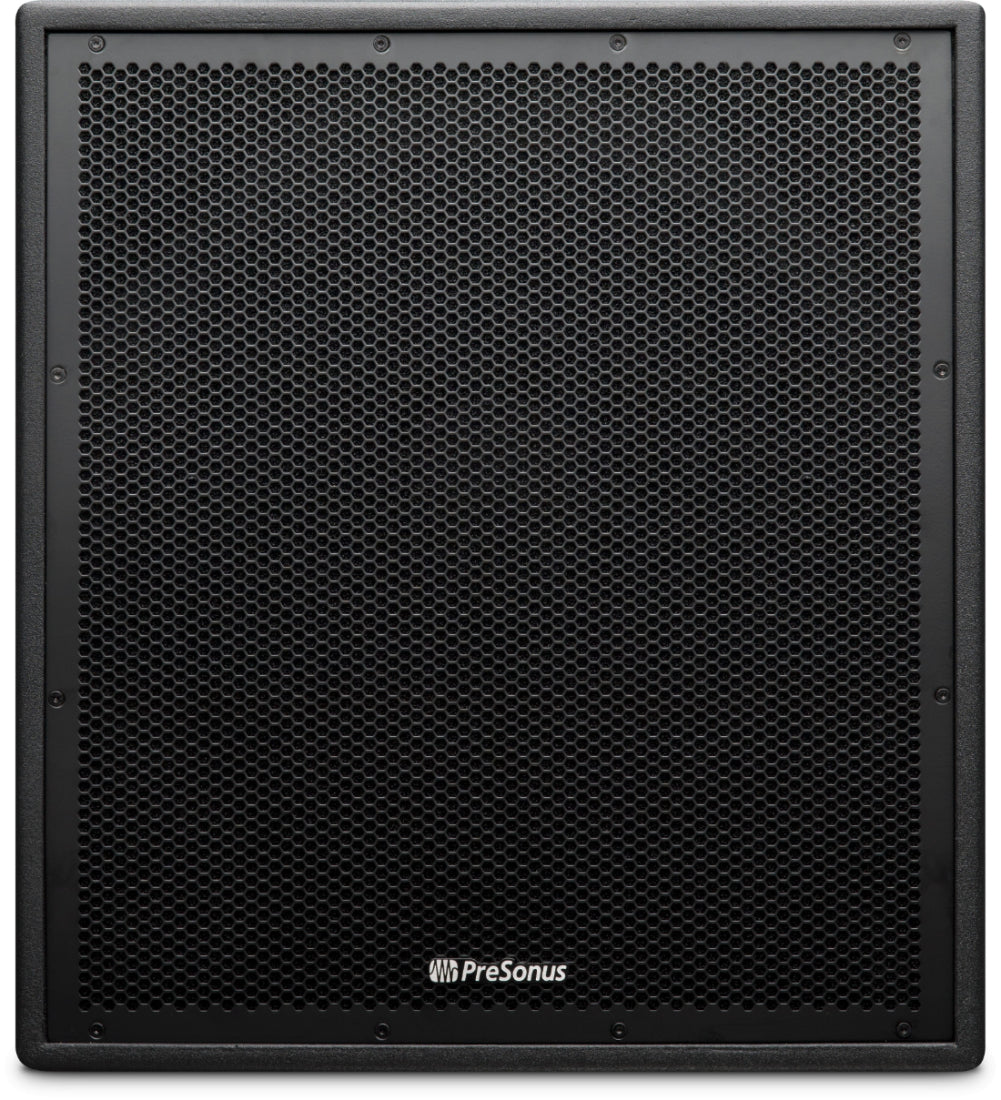

CDL18sLow-end punch that never makes you guess.A terrific complement for any full-range loudspeaker and the perfect companion for the PreSonus® CDL12 Constant Directivity loudspeaker, the CDL18s delivers a tight, coherent low-end, driven by an integrated 1000-watt Class D power amp, and features a unique ported design that maximizes efficiency in a compact form-factor. The Dante®-enabled CDL18s provides the articulate sub-bass frequency reproduction demanded by audio professionals thanks to its custom 18-inch low-frequency transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown together in a vertical array, or combined for ground-stacked applications, the CDL18s and CDL12 form a complete, coherent loudspeaker system with an even response across the frequency spectrum.
|
Technical Specifications Acoustic Performance Configuration Active Subwoofer Frequency Response (-3 dB) 42 Hz – 150 Hz (Variable) Frequency Response (-10 dB) 36 Hz – 144 Hz Maximum Peak SPL 135 dB Crossover Frequency 90 Hz Transducer LF Transducer 1x18" Ferrite magnet Voice Coil Diameter 4" Amplifier Type Class D Total Power Output 2,000W Peak, 1,000W Program (500W RMS) LF Power 2,000W Peak, 1,000W Program (500W RMS) Cooling Free air convection Rated THD <0.05% (20 Hz - 20 kHz) Dynamic Range 119 dB (A-weighted) Bandwidth 20 Hz - 20 kHz Connections and Controls Input Channels 1 Line Input Connector Types (XLR) Line Input Impedance 40 k? Maximum Input +4 dBu Output Connector 1 XLR, Direct out Controls Preset Select, Polarity Invert Indicators Over Temperature, Signal, -3 dB, Limiter, Clip, Network Status DSP Effects Compression, Polarity Invert, Limiting, Delay, 8-band EQ and preset selection via WorxControl Bit Depth 24-bit Sample Rate 48 kHz Enclosure Material 15 mm eucalyptus plywood Finish Chemline™ Polyurea Grille Powder-coated steel Dimensions (HxWxD) 23.2” x 20.8” x 24” (590 mm x 529 mm x 610 mm) Unit Weight 105 lbs. (47.6 kg) Handles 2 (one on each side) Safety Amplifier Protection Over-current, DC, over/under-voltage, over-temperature, high frequency Transducer Protection Limiter Power AC Power Input 90-260V~, 50-60 Hz AC Power Consumption (1/8 Power) 4.2 amps Suspension Mounting Rigging Points M20 threaded pole receiver, integrated rigging (10:1 load) Optional Accessories Rigging CDL Rigging Grid, CDL Rigging Extension Bar, CDL Rigging Sling Other ULT18-CSTR 4” Caster Kit, CDL18s-Cover Dust Cover As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification. |
