PreSonus Blue Tube DP V2

PreSonusSKU: BLUE-TUBE-DP-V2

Price:
Sale price$254.99

Description

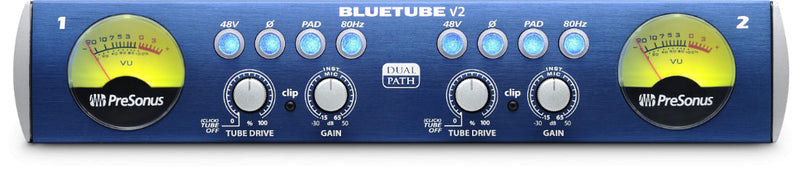

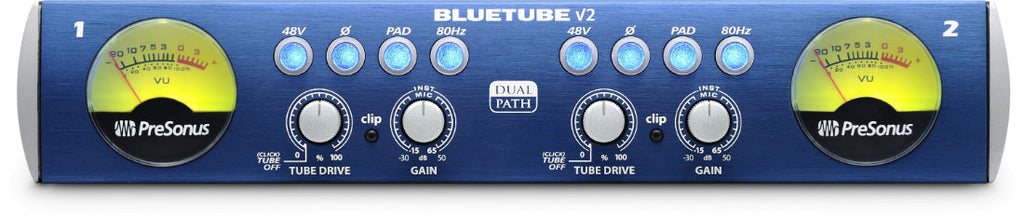

BlueTube DP v2

A dual-personality preamp with an amazing variety of tones.

Compact, affordable, and capable of a stunningly wide range of tones, the BlueTube DP V2 dual-path mic/instrument preamplifier offers two independent channels, each with an XMAX Class A solid-state preamp, followed in the signal path by a 12AX7 vacuum-tube stage. A Tube Drive control provides a wide range of sounds: When clicked off, you’re using the solid-state preamp for quiet, transparent amplification; when engaged, your signals flow through the tube preamp, and you can achieve anything from gentle warmth to edgy distortion. Equipped with instrument and mic inputs and built tough for serious gigging, the BlueTube DP V2 is a great choice for guitarists, bassists, singer/songwriters, and more.





Features

2 input channels, each with:

  • High-headroom Class A XMAX mic preamplifier with 80 dB gain range
  • 12AX7 vacuum tube gain stage
  • Tube Drive tube-saturation control
  • 48V phantom power
  • 80 Hz high-pass filter
  • -20 dB pad to reduce hot input levels
  • Polarity-reverse switch
  • Illuminated analog VU input-level meter

Input/Output

  • 2 balanced combo mic/unbalanced instrument inputs
  • 2 balanced XLR main (L/R) line outputs
  • 2 unbalanced ¼-inch main (L/R) line outputs

Physical

  • Compact 1/2U chassis
  • External 12 VDC, 1A power supply

Technical Specifications
Inputs
Connector Type Neutrik® Combo
XLR Microphone Impedance 1.3 k?
1?4” Instrument (Hi-Z) Impedance 1 M?
THD+N (unweighted), solid-state <0.005%
THD+N (unweighted), tube stage 0.01% to 30%
Signal-to-Noise >95 dB
Power-Supply Rejection >98 dB
Outputs
Connector Type XLR and ¼” TS
Impedance 51?
Power
External Adapter Type +12 VDC, 1A, center pin positive
Physical
Dimensions 1/2U rack-mountable (screw-mount to standard rack tray, not included)
Height 1.75” (44.45 mm)
Depth 5.5” (139.7 mm)
Width 9.5” (241.3 mm)
Road-rugged construction with all-metal chassis and metal knobs
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
