Description

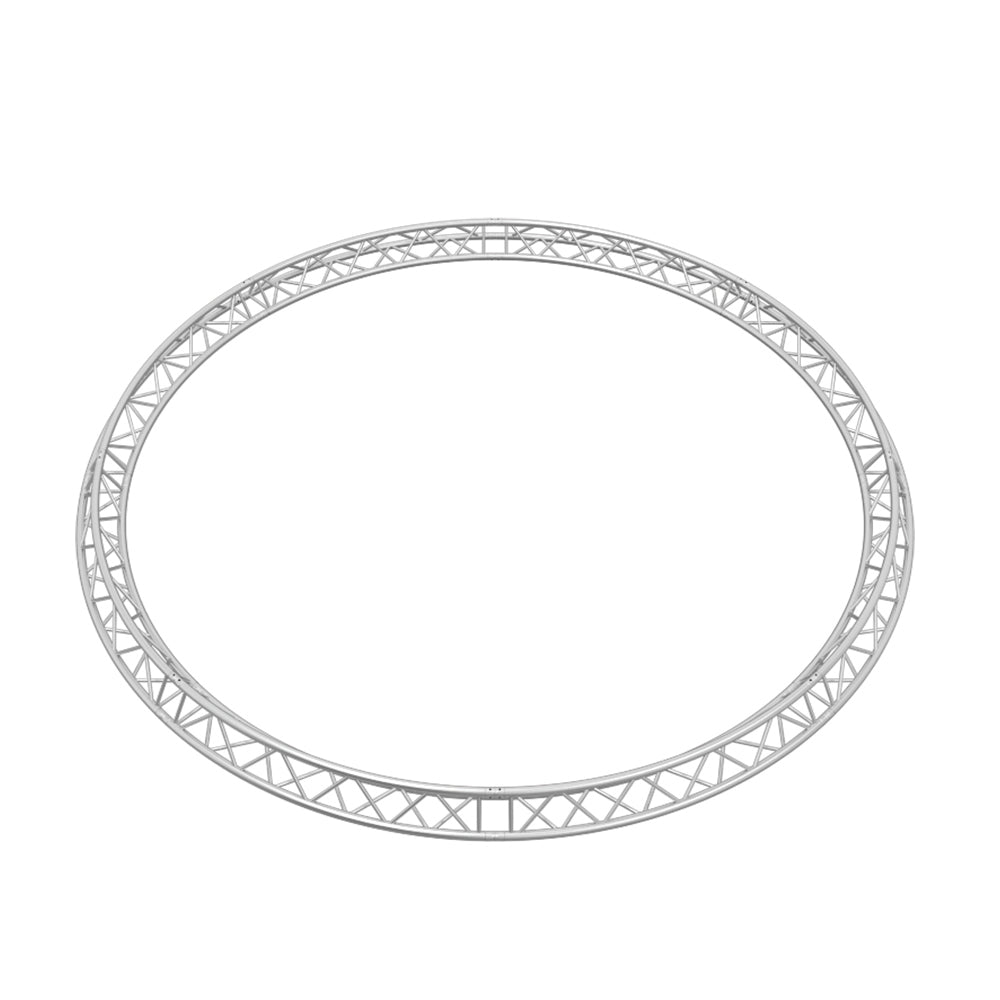

PRODJ-TR-C9-30-KIT: 29.52 ft OD F33 Triangular Truss Circle Kit, 12 x 30 Degree Arcs
F33 Triangular Truss: 11.42" Triangular Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
Specifications
- 29.52ft (10M) OUTSIDE DIAMETER
- 27.62ft INSIDE DIAMETER
- 11 7/16" (290mm) OVERALL WIDTH
- 2" (50mm) OUTER DIAMETER TUBING
- 3/4" (20mm) DIAGONAL BRACING
- 0.08" (2mm) WALL THICKNESS

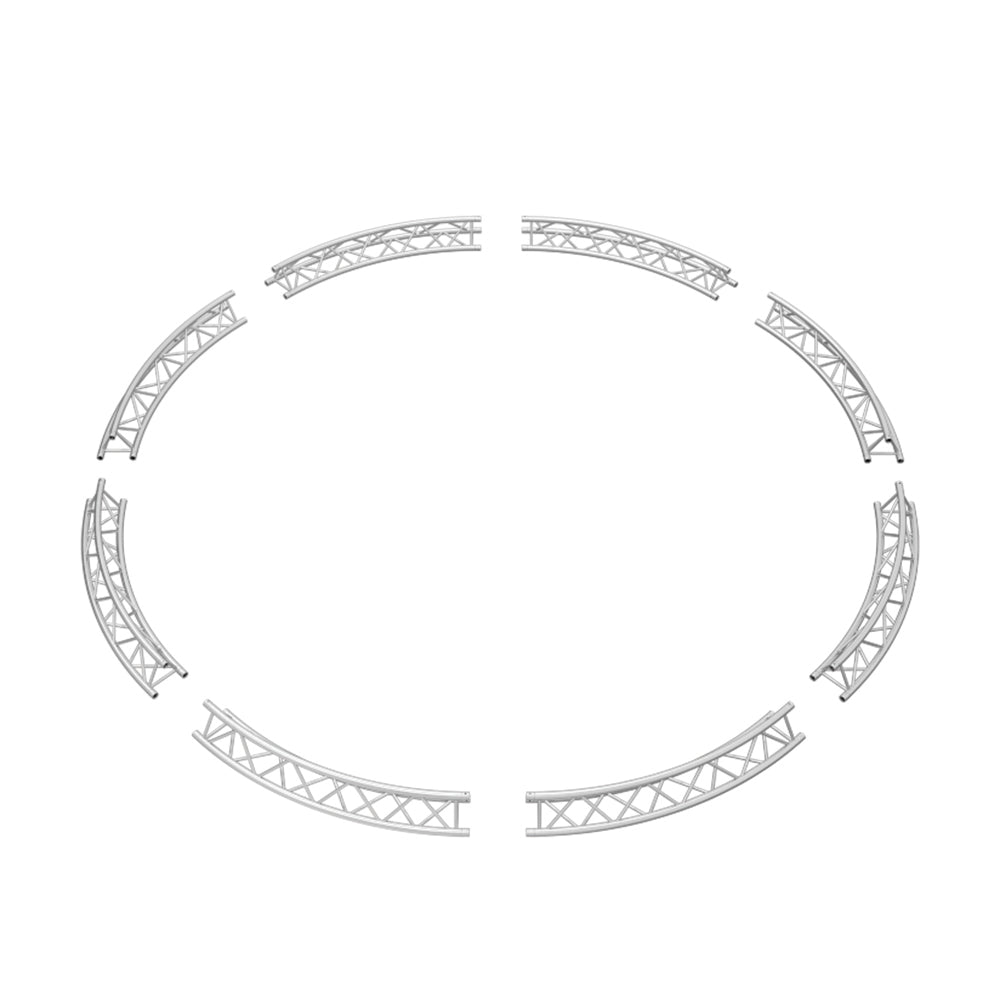

- Kit Components: 12x TR-C9 ARC30
- Unit Weight: 147kg/324lb
