PRODJ-TR-C1.5-180-KIT TR-C1.5-180; 4.92ft OD TRI CIRCLE-2x180
PRODJ-TR-C1.5-180-KIT TR-C1.5-180; 4.92ft OD TRI CIRCLE-2x180
Roll over image to zoom in Click on image to zoom
PRODJ-TR-C1.5-180-KIT TR-C1.5-180; 4.92ft OD TRI CIRCLE-2x180
PRODJ-TR-C1.5-180-KIT TR-C1.5-180; 4.92ft OD TRI CIRCLE-2x180

PRODJ-TR-C1.5-180-KIT TR-C1.5-180; 4.92ft OD TRI CIRCLE-2x180

PRODJSKU: PRODJ-TR-C1.5-180-KIT
Price:
$1,133.00

Description

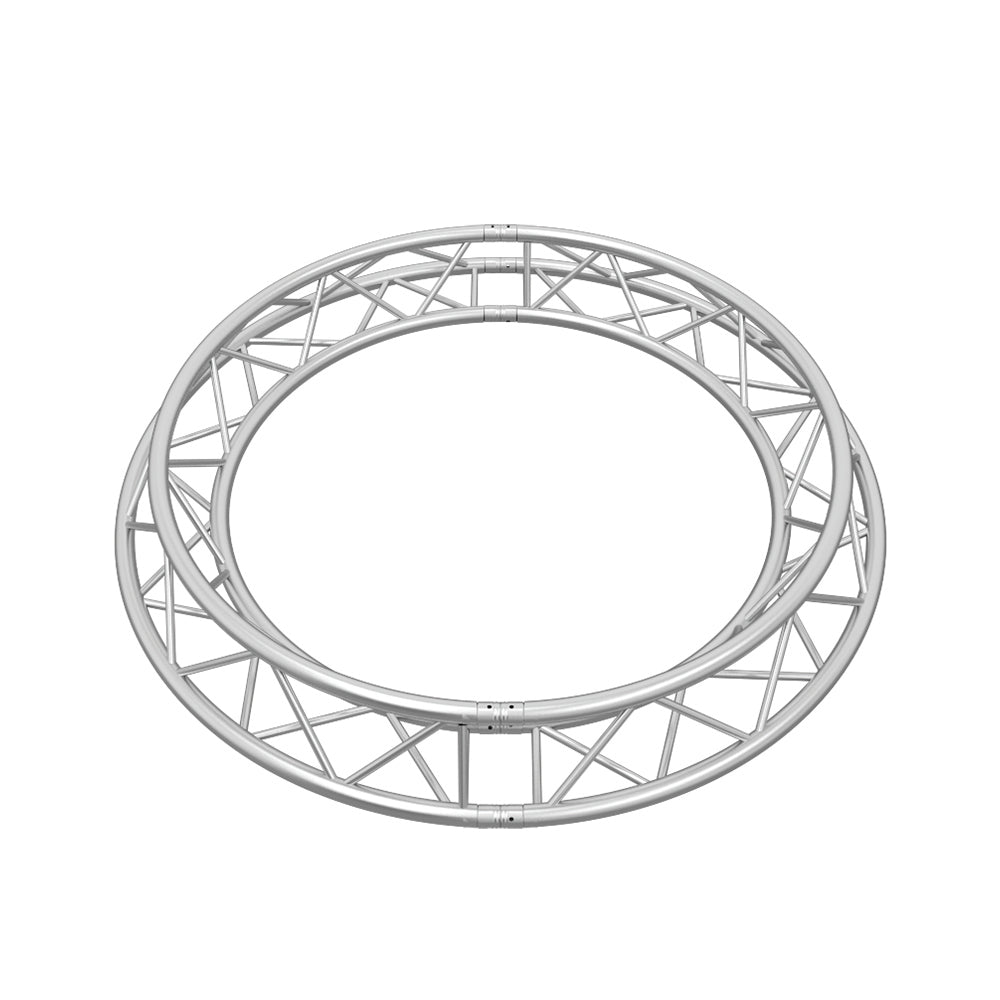

PRODJ-TR-C1.5-180-KIT: 4.92 ft OD F33 Triangular Truss Circle Kit, 2 x 180 Degree Arcs

F33 Triangular Truss: 11.42" Triangular Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.

Specifications

  • 4.92ft (1.5M) OUTSIDE DIAMETER
  • 3.02ft INSIDE DIAMETER
  • 11 7/16" (290mm) OVERALL WIDTH
  • 2" (50mm) OUTER DIAMETER TUBING
  • 3/4" (20mm) DIAGONAL BRACING
  • 0.08" (2mm) WALL THICKNESS

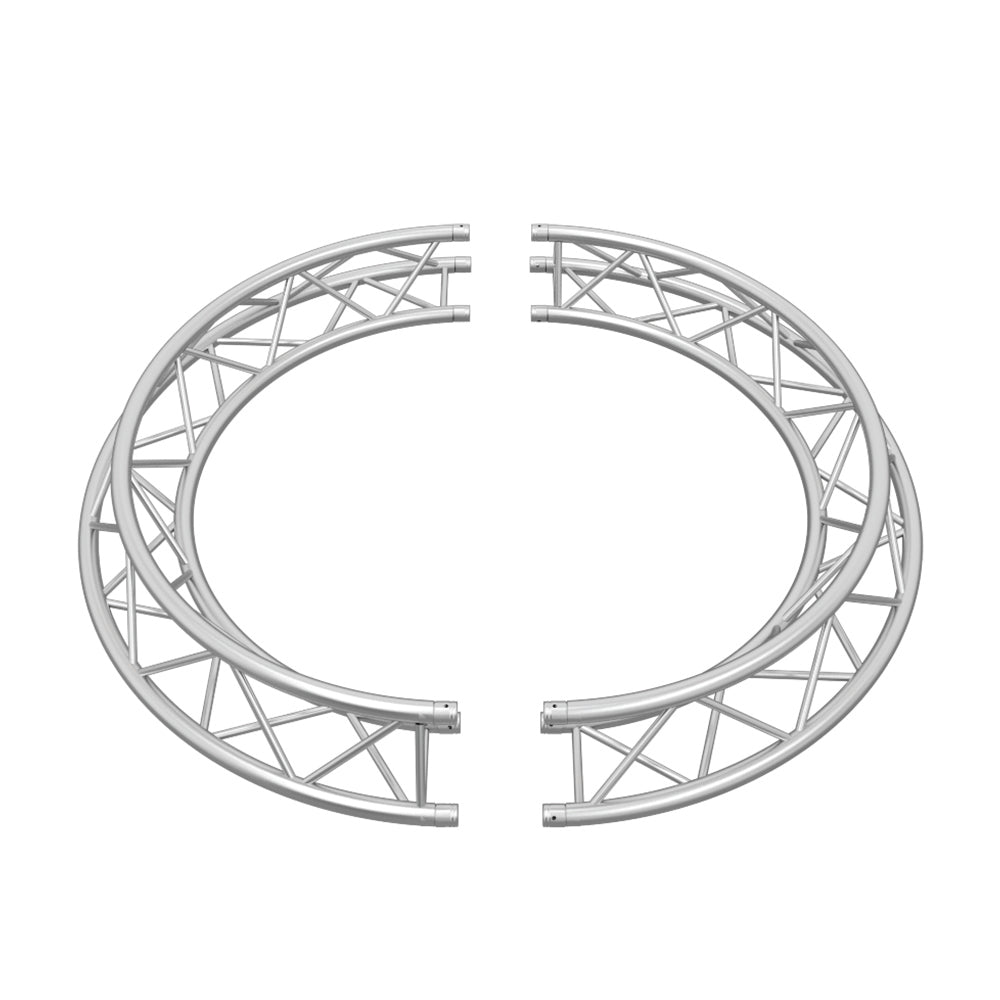

  • Kit Components: 2x TR-C1.5 ARC180
  • Unit Weight: 20kg/44lb
