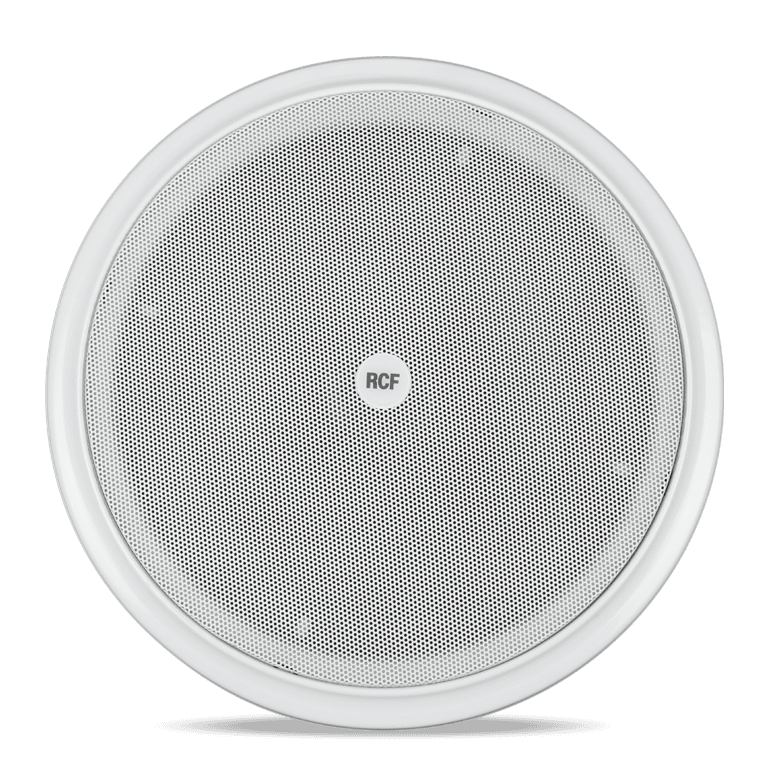

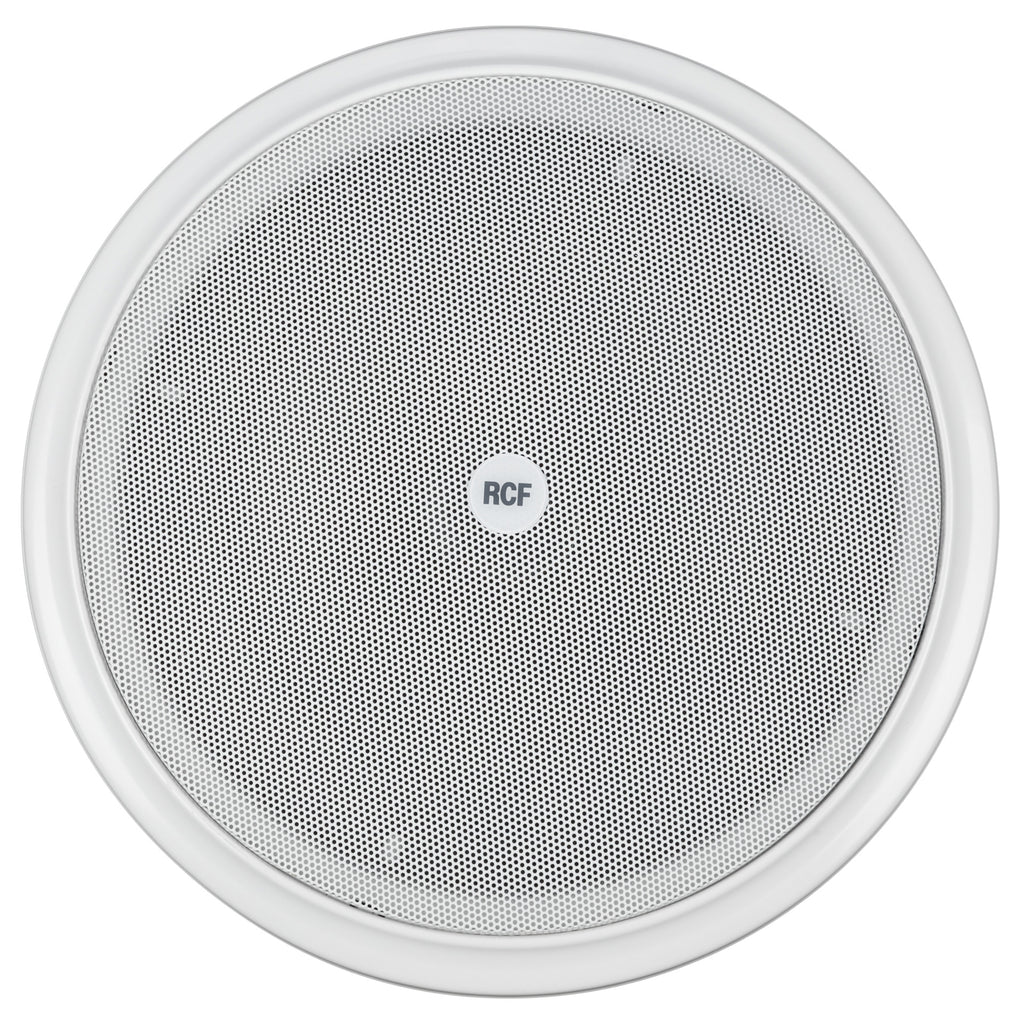

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | PL 82EN | TWO-WAY CEILING SPEAKER FIRE DOME | 8" coaxial woofer with 0.75" dome tweeter.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
130 Hz - 20000 Hz |
| Max SPL @ 1m |
106 dB |
| Max SPL @ 4m |
94 dB |
| Coverage angle |
160° |
| System Sensitivity |
System Sensitivity 1W @ 4m |
| 82 dB |
| Power section |
| Amplification |
Full Range |
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Dome Tweeter |
1 x 0.75'' |
| Woofer |
1 x Coaxial 8'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 20 W - 500 ohm |
Power selection 2 |
| 10 W - 1000 ohm |
Power selection 3 |
| 5 W - 2000 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-051/2017 |
| Physical specifications |
| Cabinet/Case Material |
Metal |
| Hardware |
Steel back cover |
| Grille |
Steel |
| Color |
White - RAL 9016 |
| Size / Weight |
| Depth |
152 mm / 5.98 inches |
| Recessed Depth |
125 mm / 4.92 inches |
| Diameter |
272 mm / 10.71 inches |
| Cut out diameter |
240 mm / 9.45 inches |
| Weight |
3.42 kg / 7.54 lbs |
| Shipping information |
| Package Height |
180 mm / 7.09 inches |
| Package Width |
300 mm / 11.81 inches |
| Package Depth |
Package Weight |
