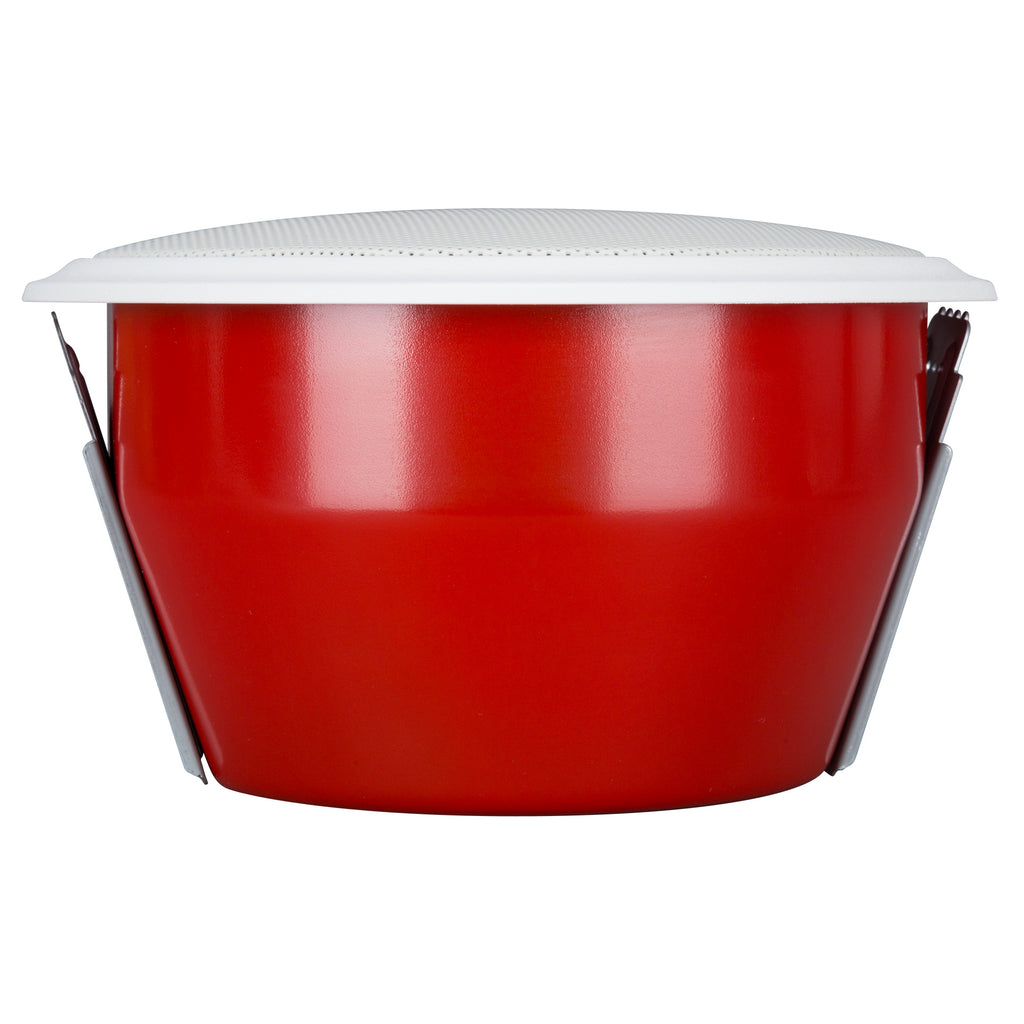

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | PL 70EN | CEILING SPEAKER WITH FIRE DOME | 6" fullrange transducer.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
230 Hz - 20000 Hz |
| Max SPL @ 1m |
99 dB |
| Max SPL @ 4m |
87 dB |
| Coverage angle |
131° |
| System Sensitivity |
93 dB |
| System Sensitivity 1W @ 4m |
81 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Fullrange |
1 x 6.0'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 6 W - 1667 ohm |
Power selection 2 |
| 3 W - 3333 ohm |
Power selection 3 |
| 1.5 W - 6667 ohm |
Power selection 4 |
| 0.75 W - 13333 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0487/W |
| Physical specifications |
| Cabinet/Case Material |
Metal |
| Hardware |

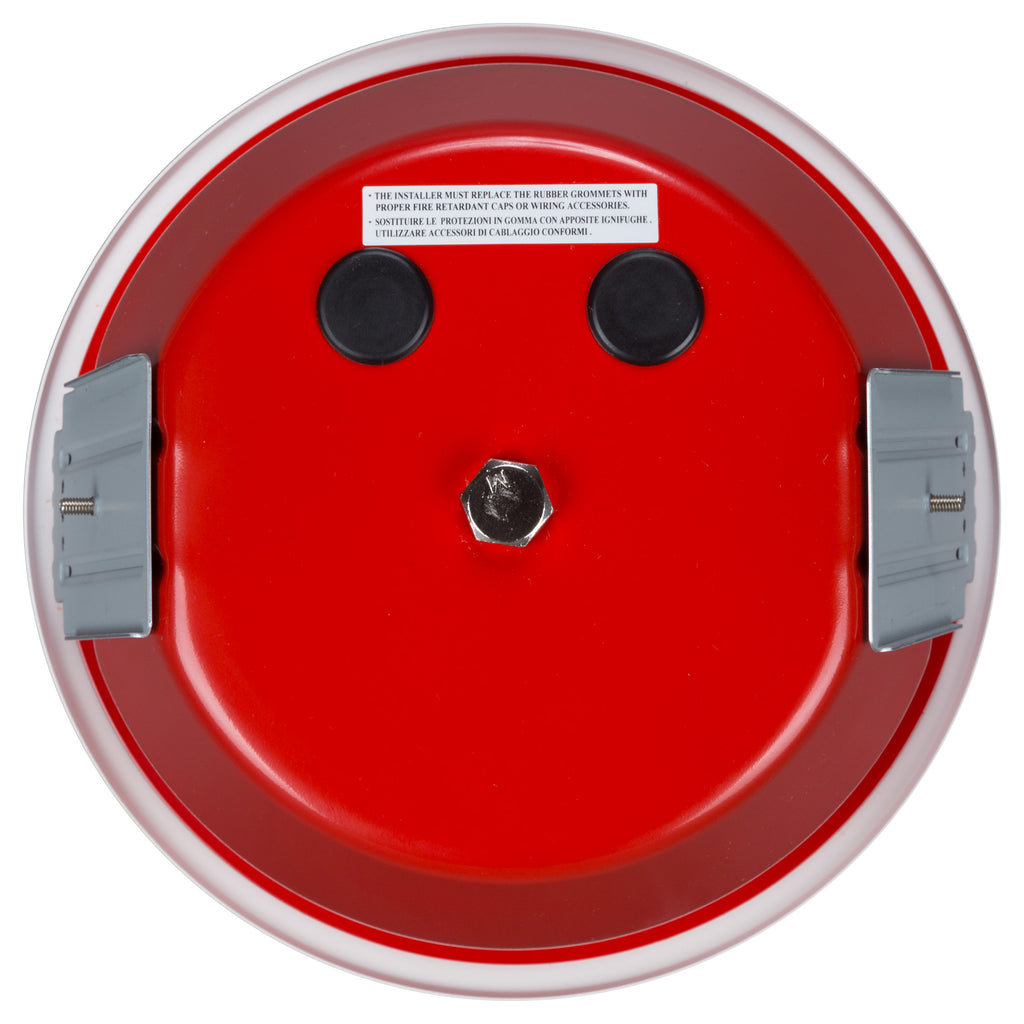

Steel back cover |

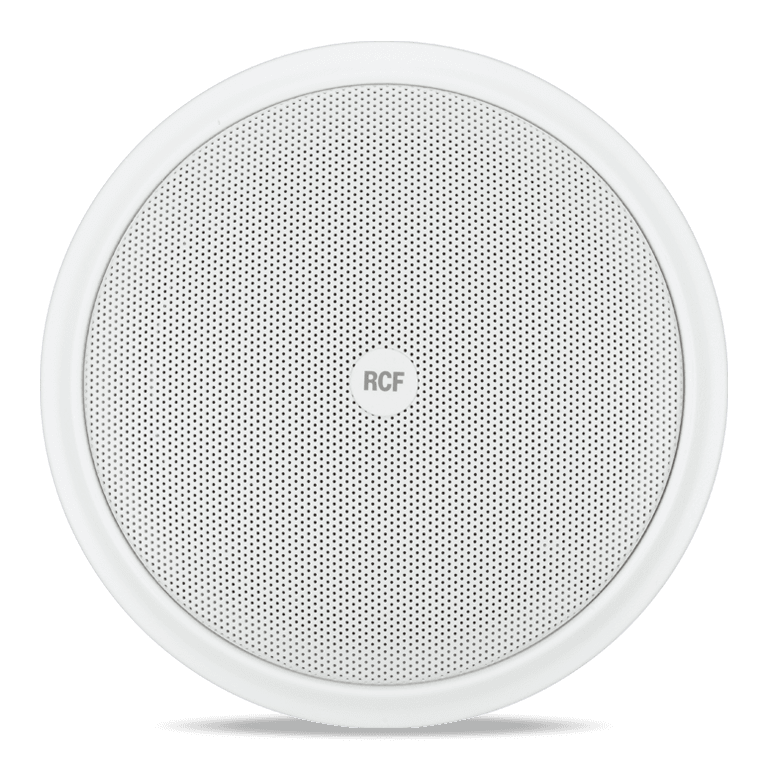

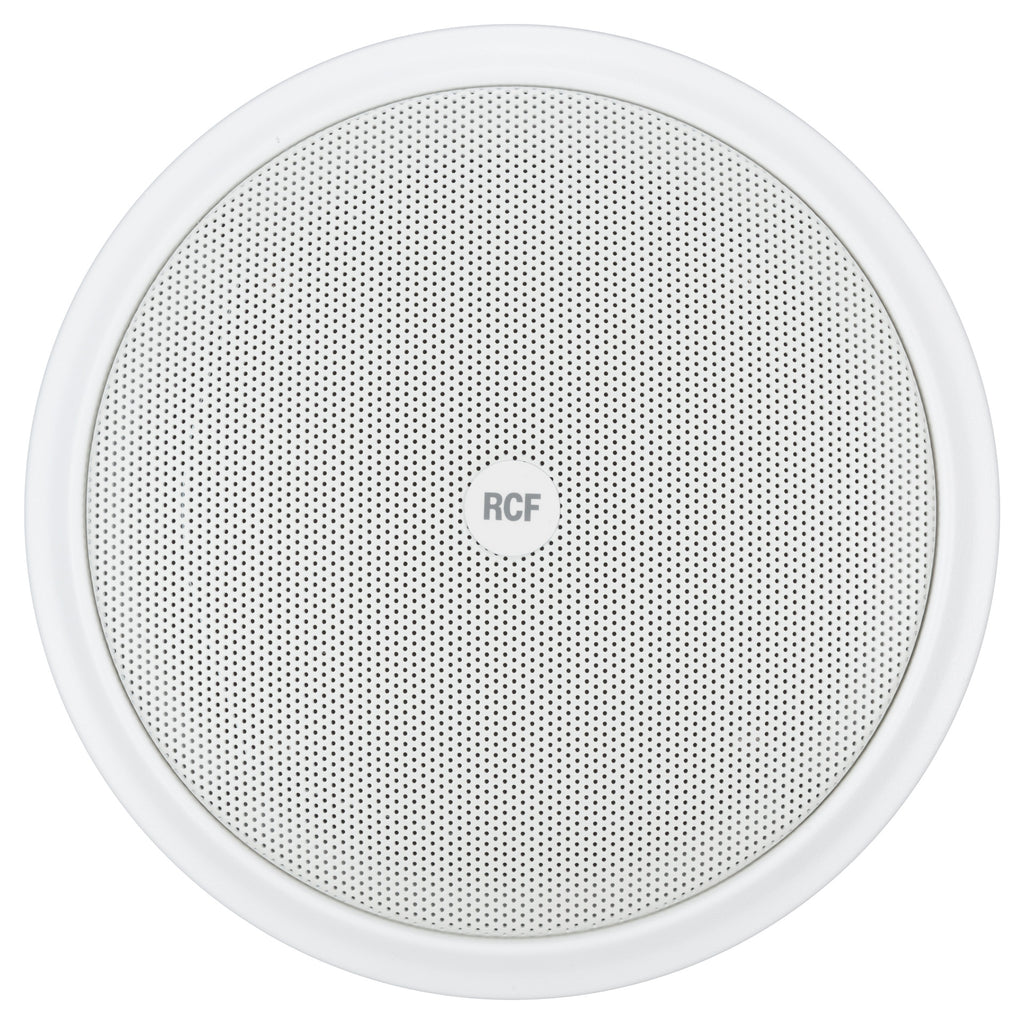

| Grille |
Steel |
| Color |
White - RAL 9003 |
| Size / Weight |
| Height |
137 mm / 5.39 inches |
| Recessed Depth |
124 mm / 4.88 inches |
| Diameter |
230 mm / 9.06 inches |
| Cut out diameter |
199 mm / 7.83 inches |
| Weight |
2.03 kg / 4.48 lbs |
| Shipping information |
| Package Height |
165 mm / 6.5 inches |
| Package Width |
260 mm / 10.24 inches |
| Package Depth |
265 mm / 10.43 inches |
| Package Weight |
