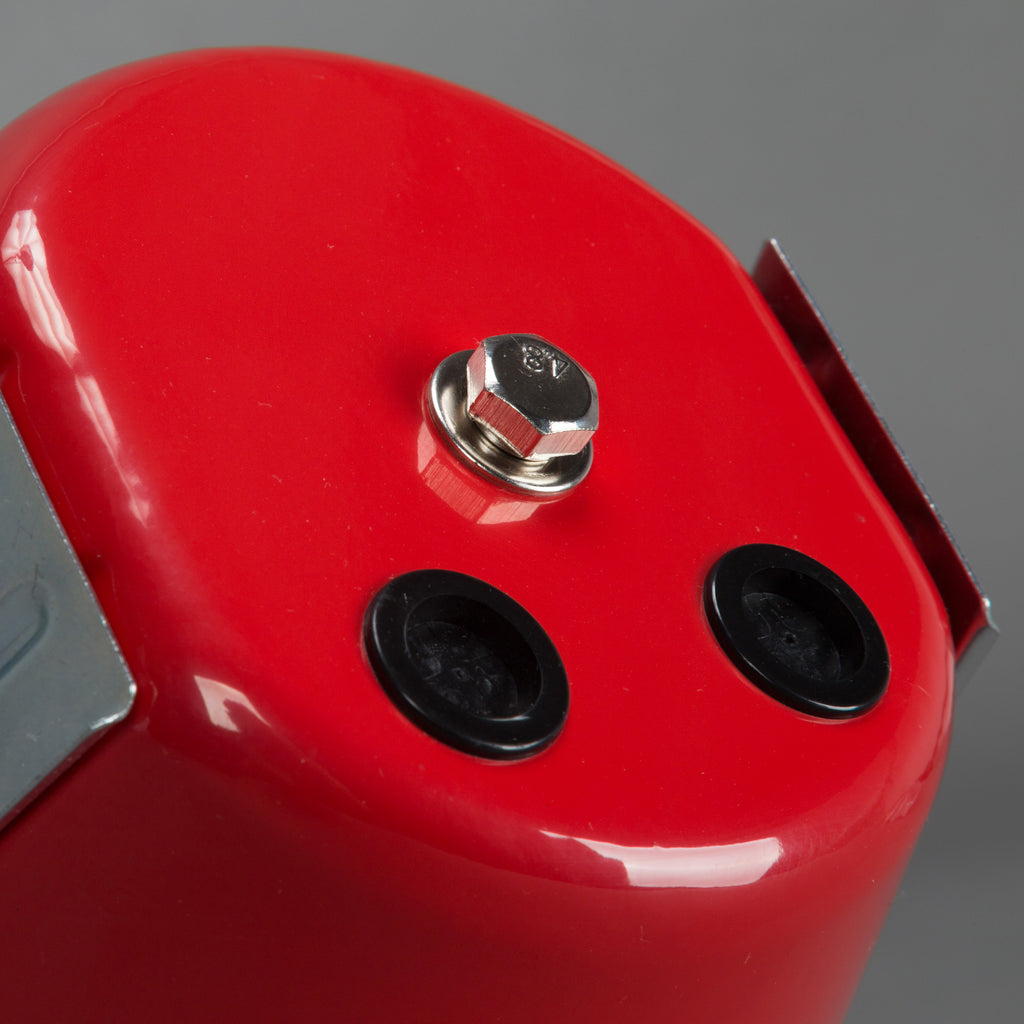

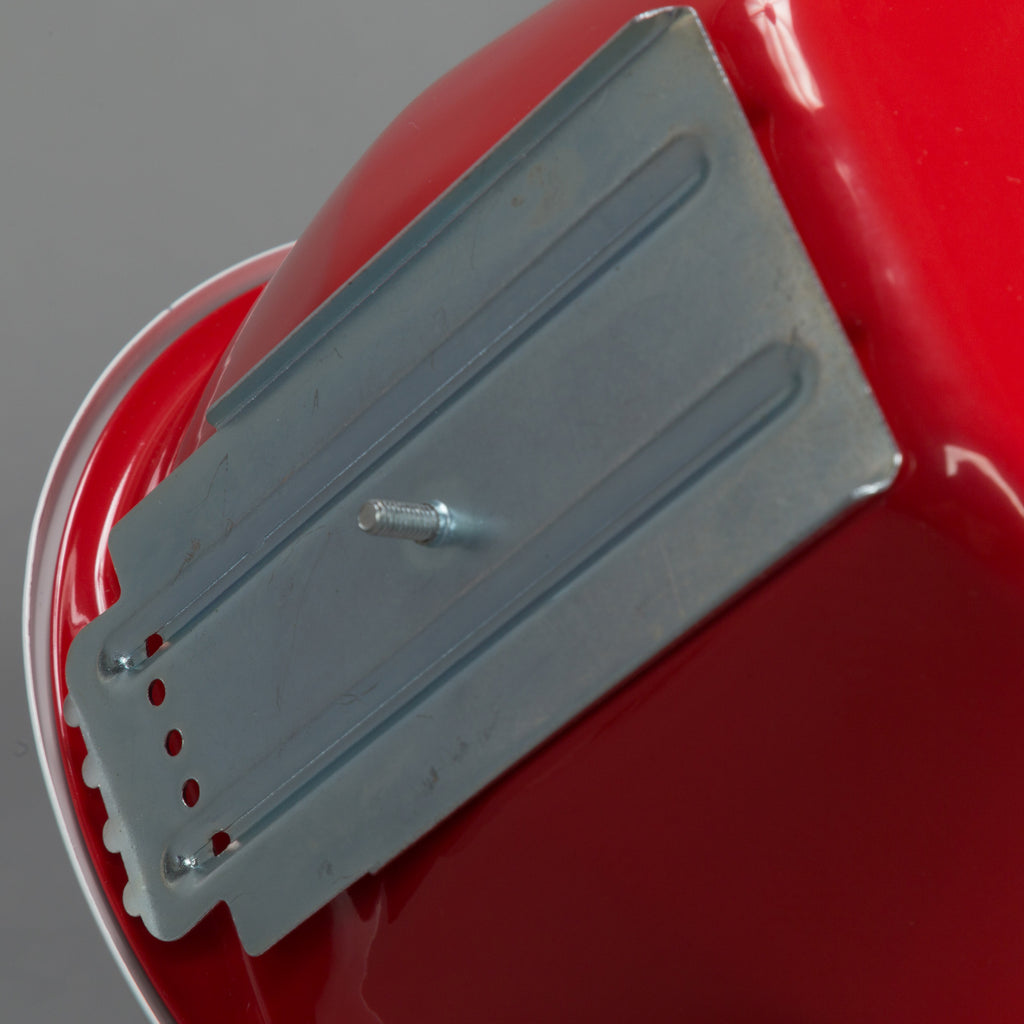

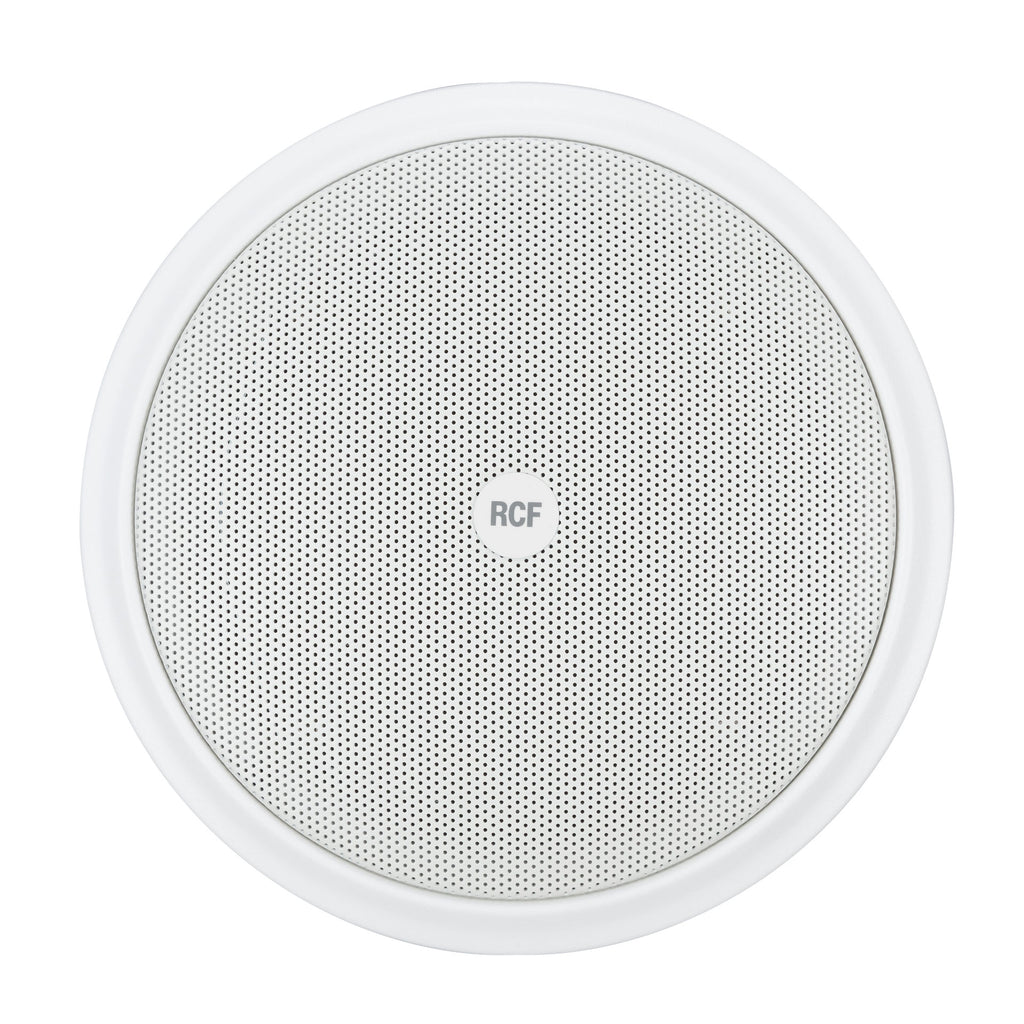

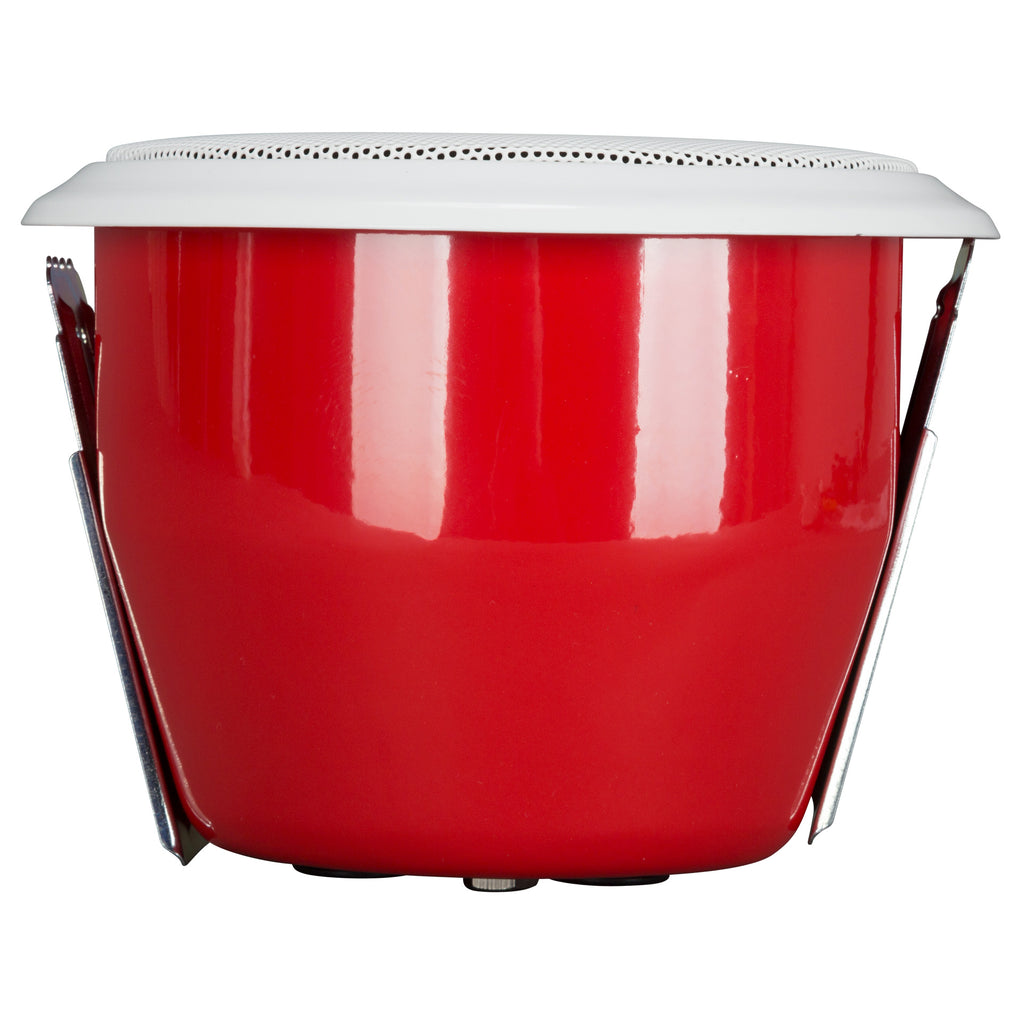

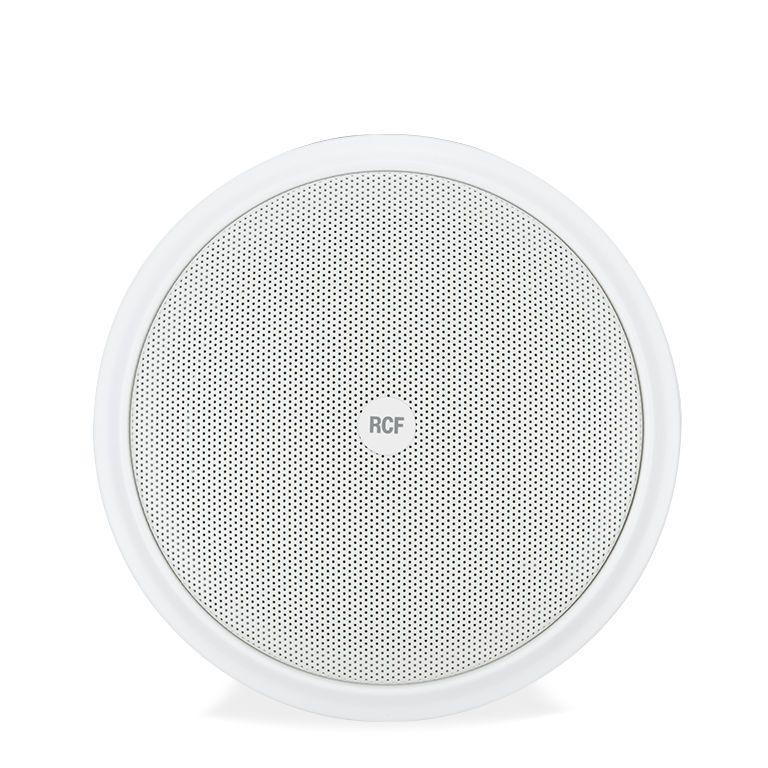

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | PL 50EN | CEILING SPEAKER WITH FIRE DOME | 5" fullrange transducer.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
130 Hz - 15000 Hz |
| Max SPL @ 1m |
100 dB |
| Max SPL @ 4m |
88 dB |
| Coverage angle |
160° |
| System Sensitivity |
92 dB |
| System Sensitivity 1W @ 4m |
80 dB |
| Power section |
| Amplification |
Full Range |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Fullrange |
1 x 5.0'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 6 W - 1667 ohm |
Power selection 2 |
| 3 W - 3333 ohm |
Power selection 3 |
| 1.5 W - 6667 ohm |
Power selection 4 |
| 0.75 W - 13333 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
0068-CPR-051/2017 |
| Physical specifications |
| Cabinet/Case Material |
Metal |
| Hardware |

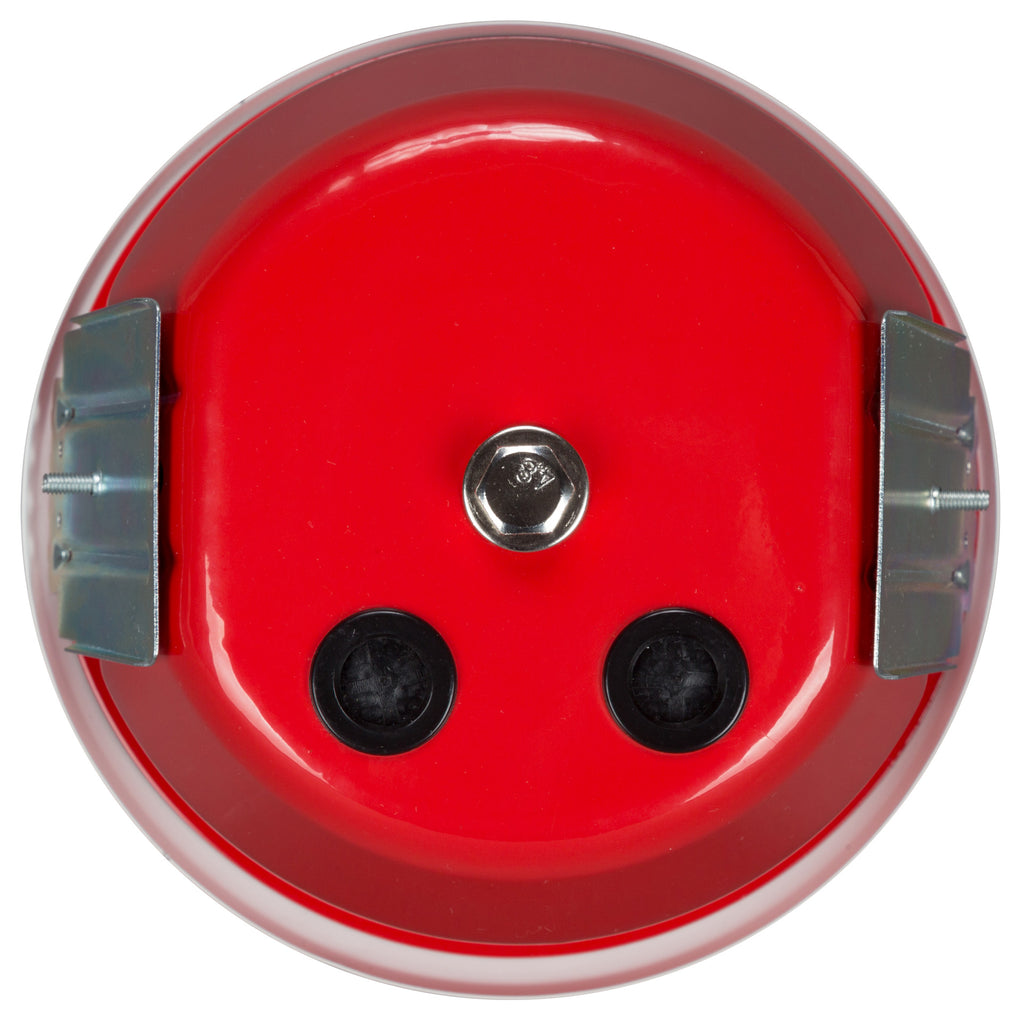

Steel back cover |
| Grille |
Steel |
| Color |
White - RAL 9016 |
| Size / Weight |
| Depth |
143 mm / 5.63 inches |
| Recessed Depth |
125 mm / 4.92 inches |
| Diameter |
181 mm / 7.13 inches |
| Cut out diameter |
155 mm / 6.1 inches |
| Weight |
1.35 kg / 2.98 lbs |
| Shipping information |
| Package Height |
160 mm / 6.3 inches |
| Package Width |
190 mm / 7.48 inches |
| Package Depth |
Package Weight |
