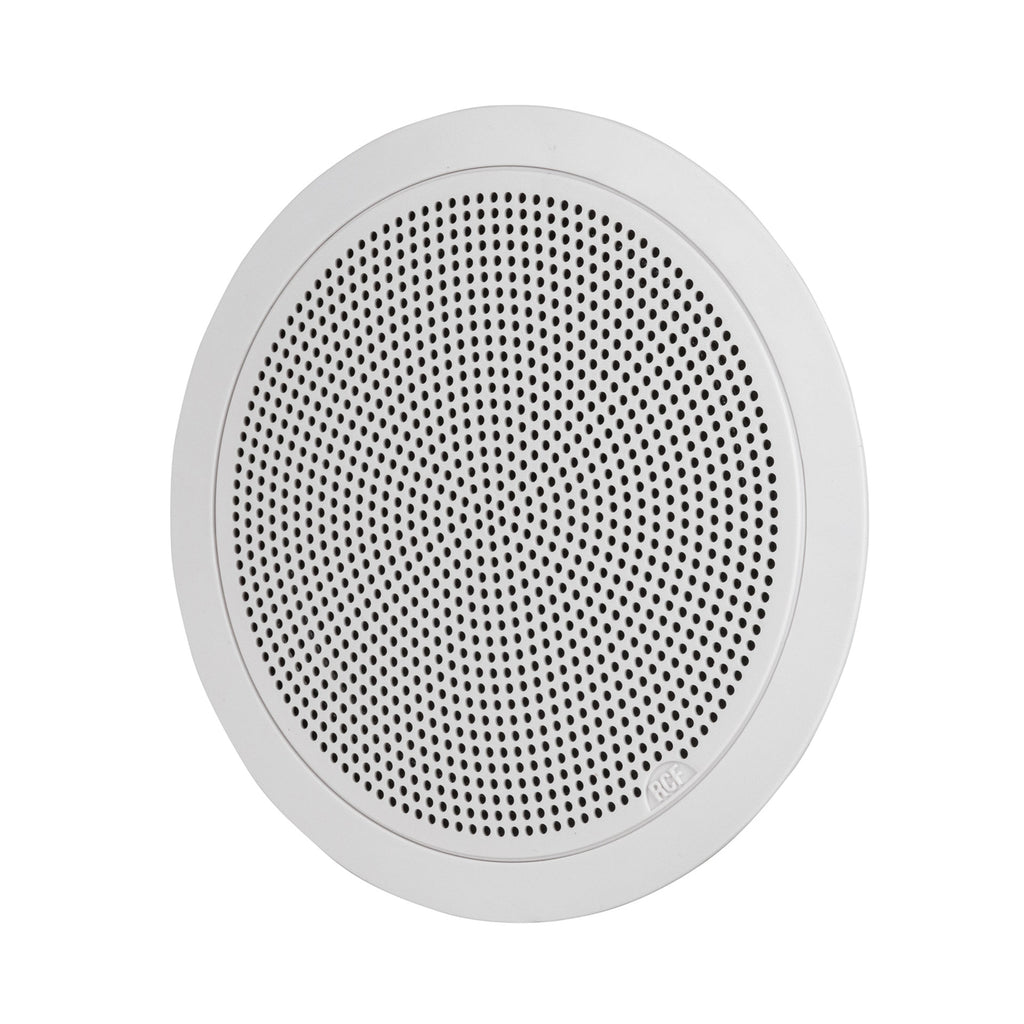

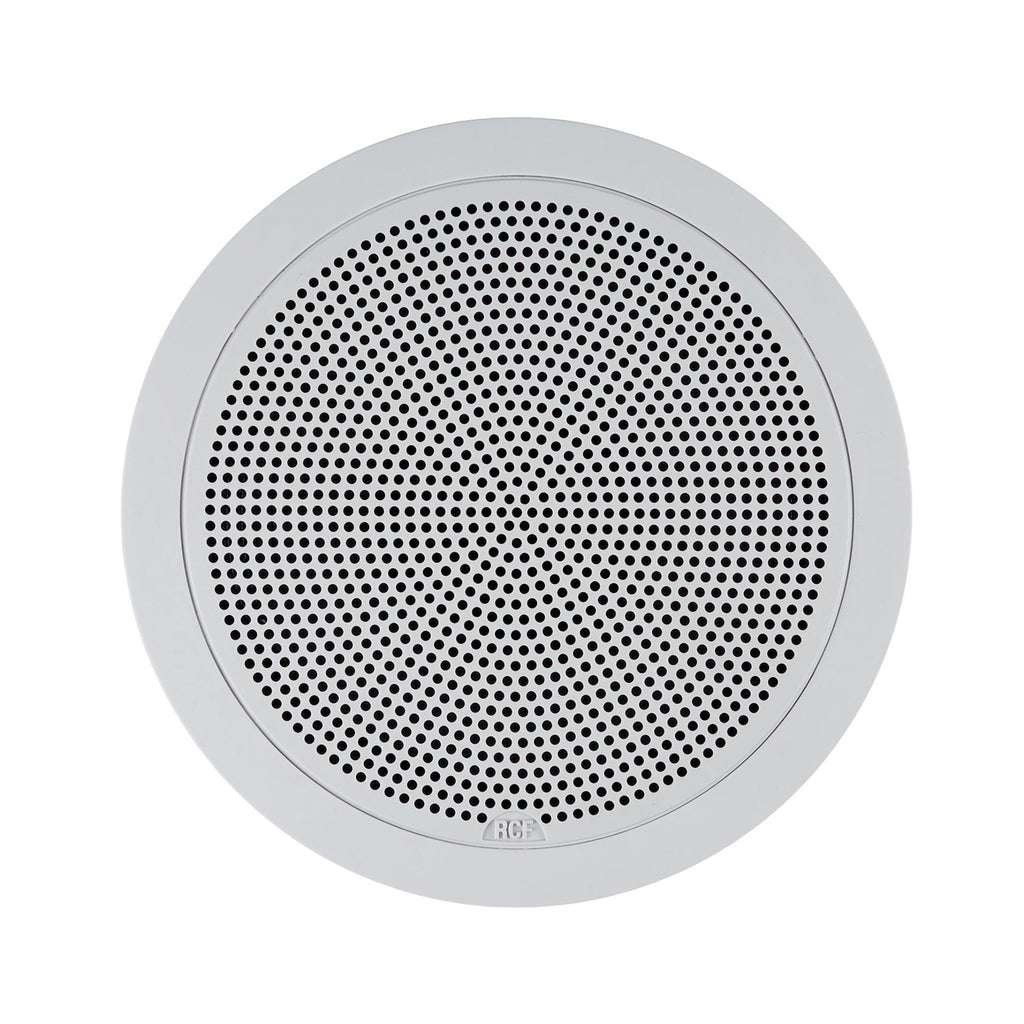

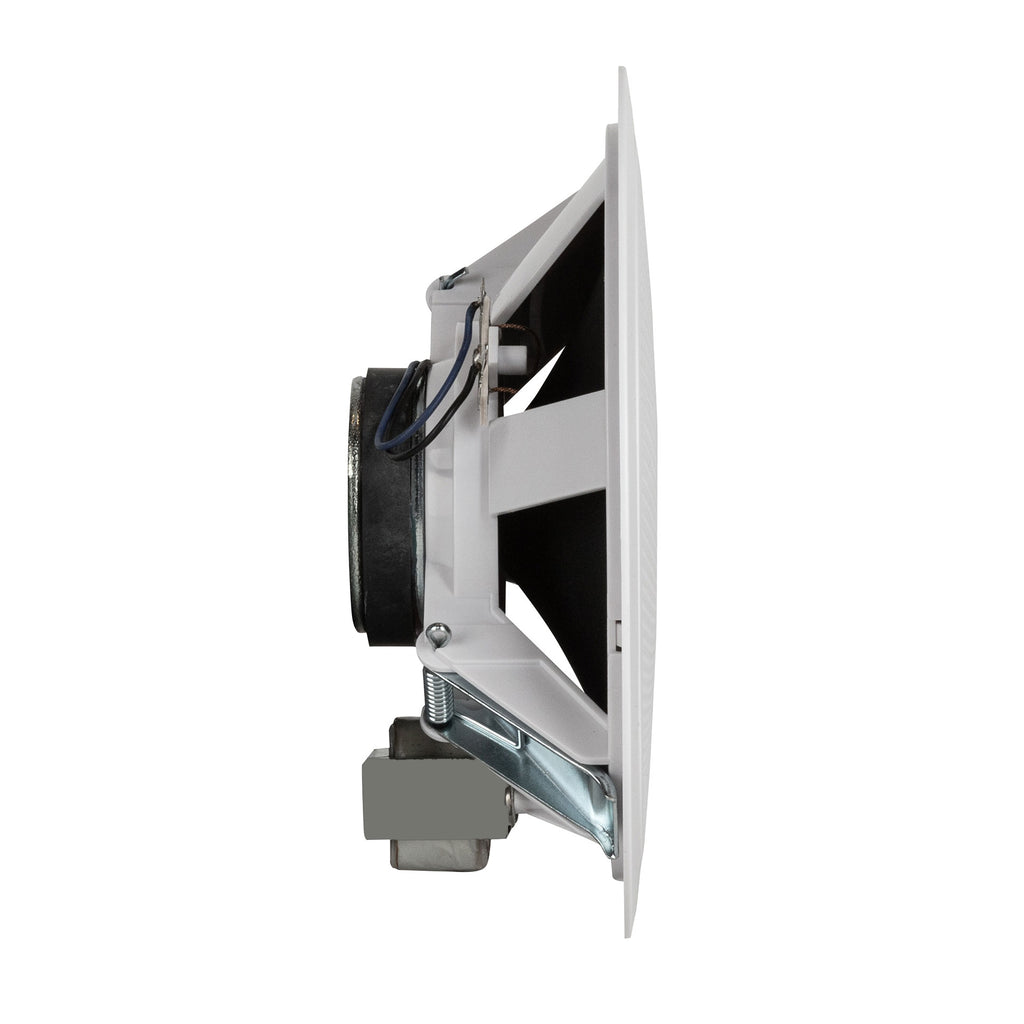

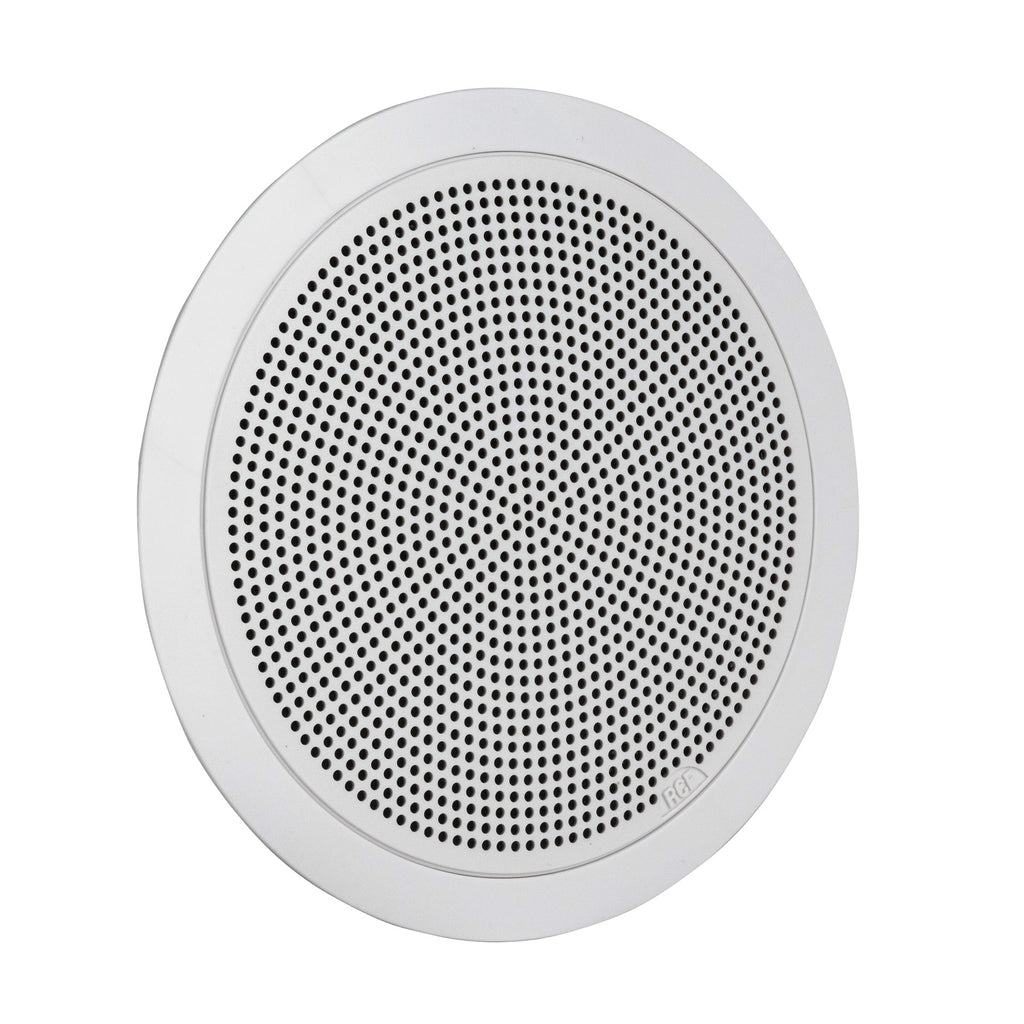

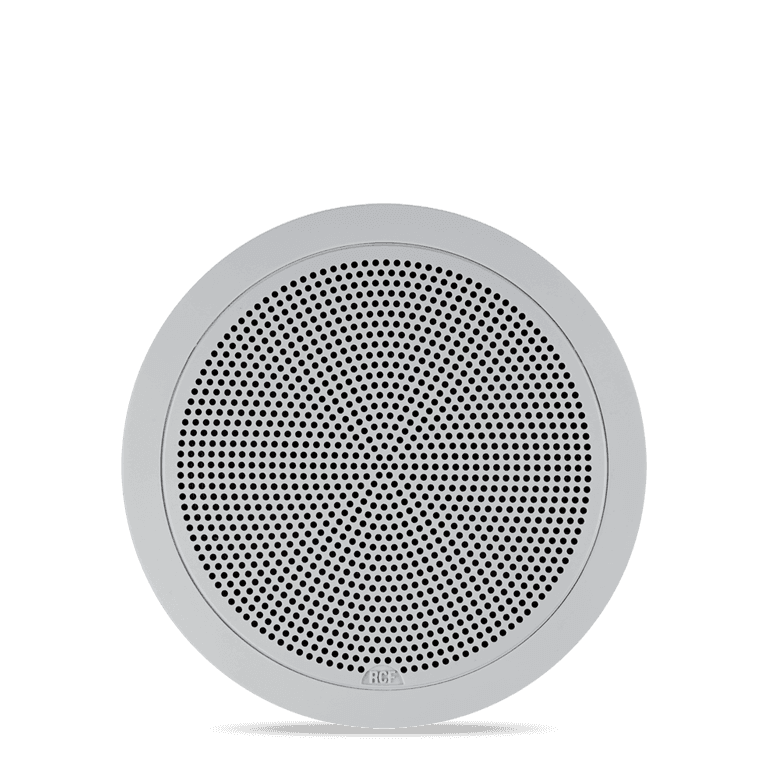

COMMERCIAL | INSTALLED | PL 50 | CEILING SPEAKER | 6" fullrange transducer | Power selectable (100 V): 6 W – 3 W
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
100 Hz - 20000 Hz |
| Max SPL @ 1m |
98 dB |
| Coverage angle |
150° |
| System Sensitivity |
90 dB |
| Power section |
| Amplification |
Full Range |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Recommended Amplifiers |
| DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
| Transducers |
| Fullrange |
1 x 6.0'' |
| Input/Output section |
| Input connectors |
Screw Terminals |
| Output connectors |

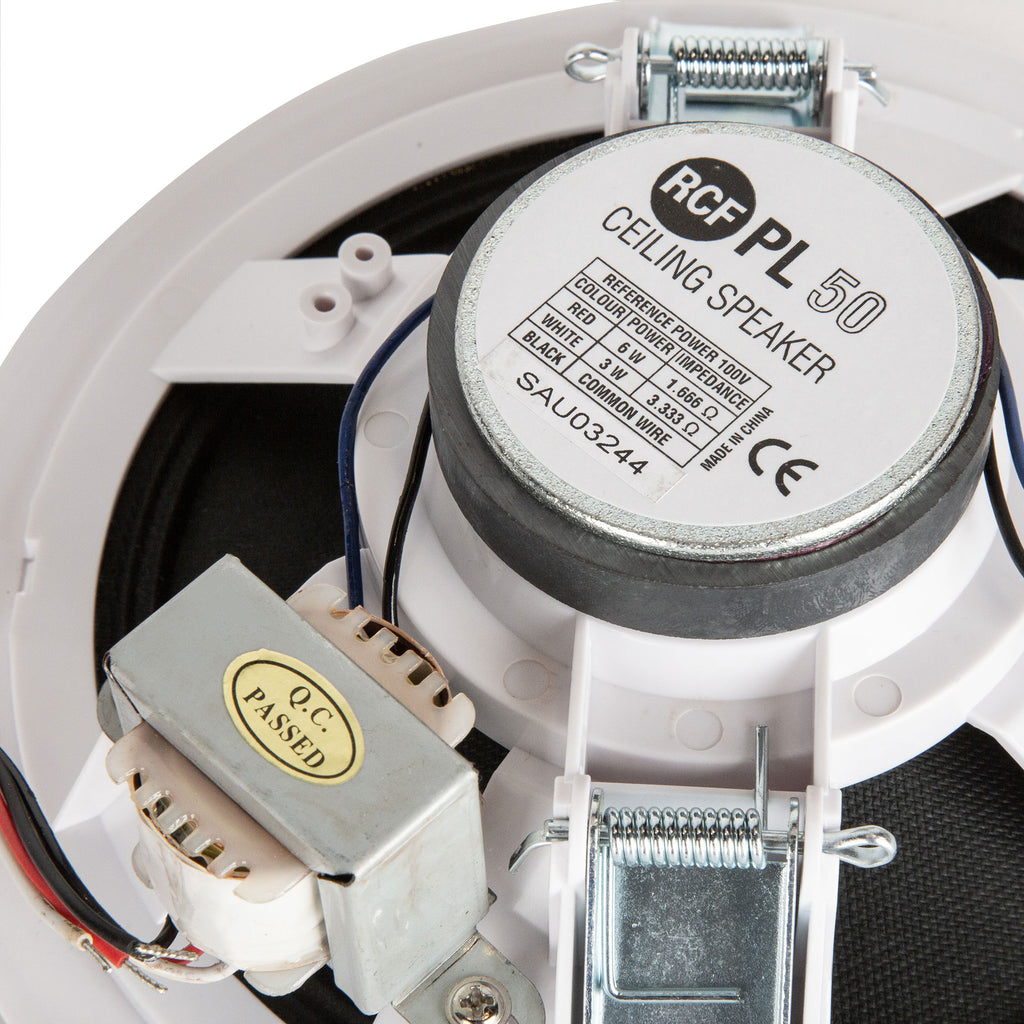

Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 6 W - 1667 ohm |
Power selection 2 |
| 3 W - 3333 ohm |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plastic |
| Hardware |
Metal |
| Grille |
Color |
| White - RAL 9003 |
| Size / Weight |
| Depth |
65 mm / 2.56 inches |
| Recessed Depth |
59 mm / 2.32 inches |
| Diameter |
186 mm / 7.32 inches |
| Weight |
0.5 kg / 1.1 lbs |
| Shipping information |
| Package Height |
80 mm / 3.15 inches |
| Package Width |
200 mm / 7.87 inches |
| Package Depth |
Package Weight |
| 0.6 kg / 1.32 lbs |
