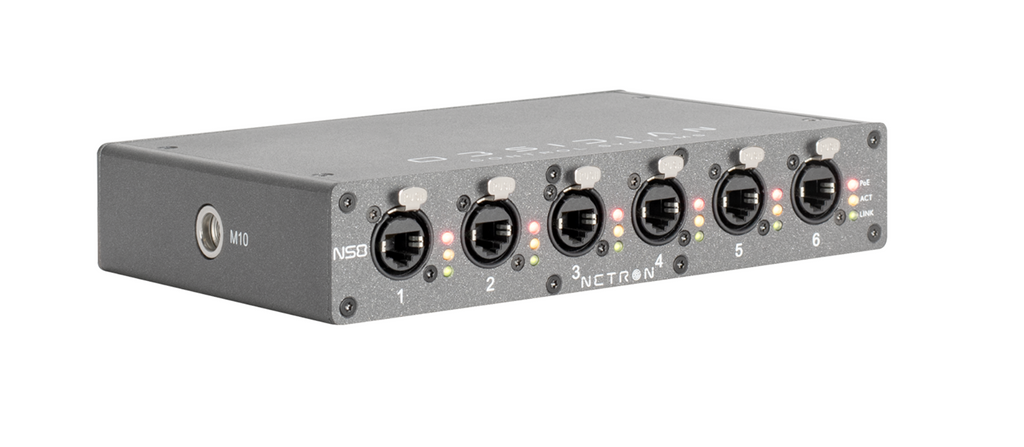

Elation NS8

Save $130.00
Elation LightingSKU: NWS008

Price:
Sale price$520.00 Regular price$650.00

Description

Features:

  • Gigabit Network Switch optimized for data intensive entertainment applications
  • Artnet and sACN support
  • X-Net, HogNet, MA-Net and various other protocols
  • Factory and user presets for plug and play setups
  • POE+ support
  • POE power switch
  • Remote configuration via internal webpage
  • Convection cooled design
  • Powder-coated aluminum ½ rack housing


Specifications:
Mounting
Standalone

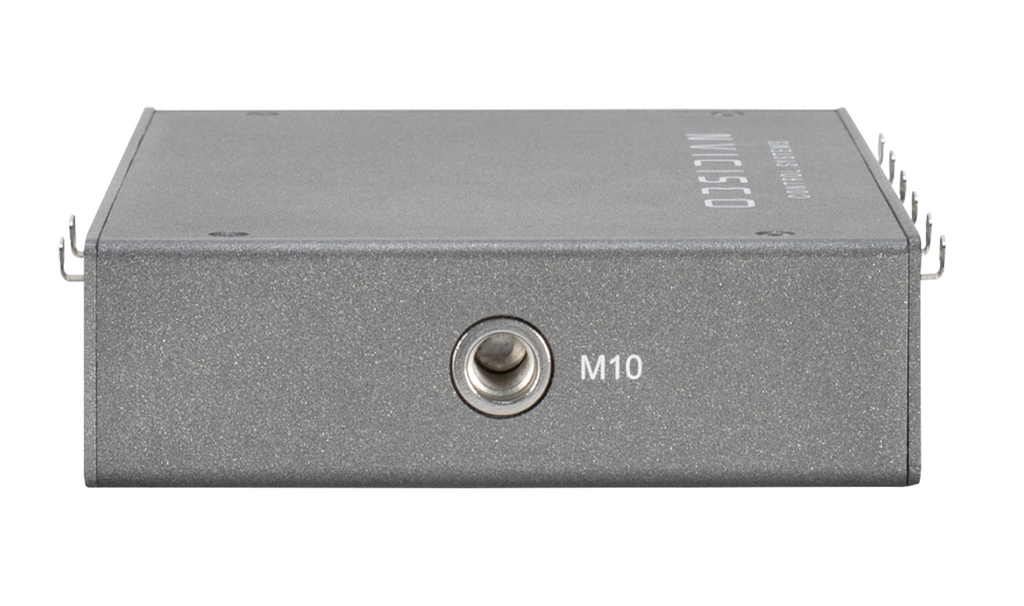

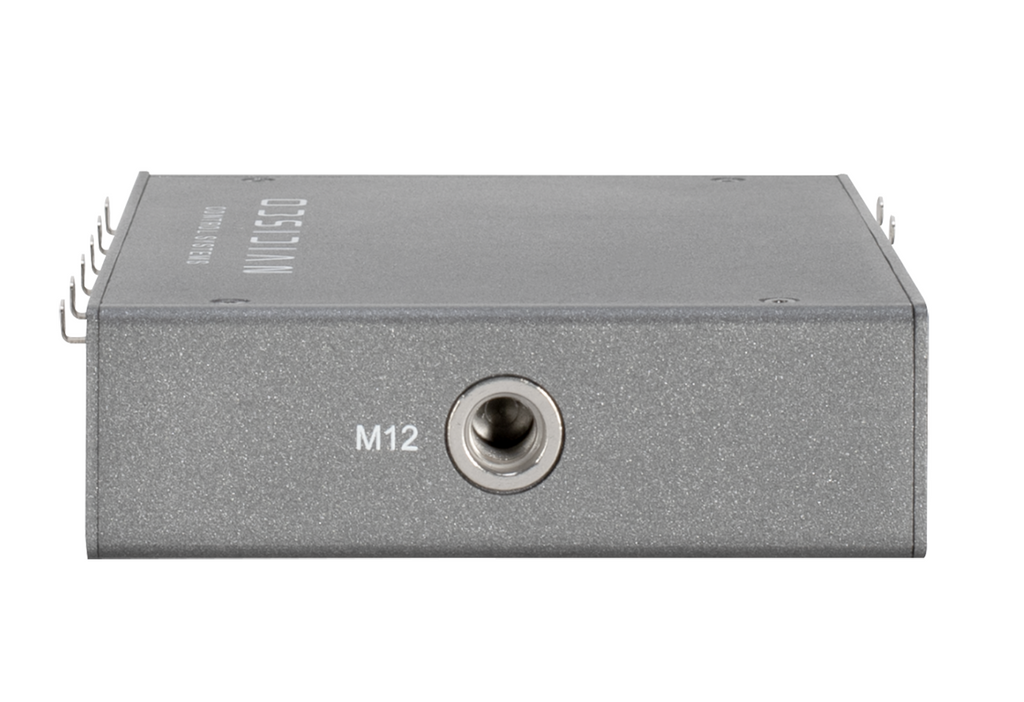

Truss-mount (M10 or M12 mounting hole)

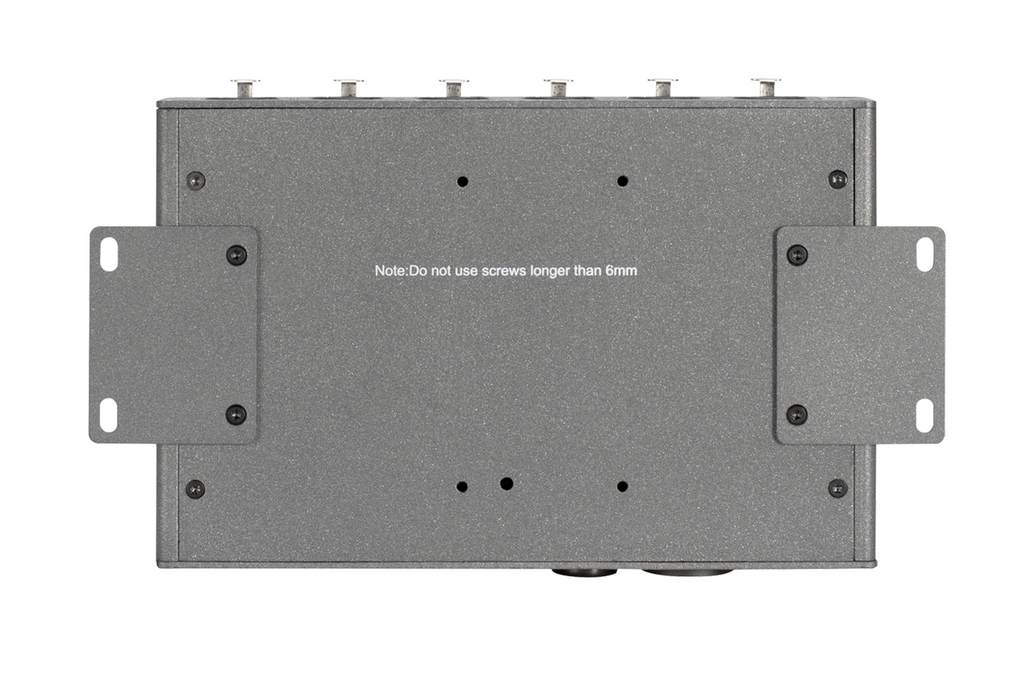

Wall-mount horizontal or vertical (included)

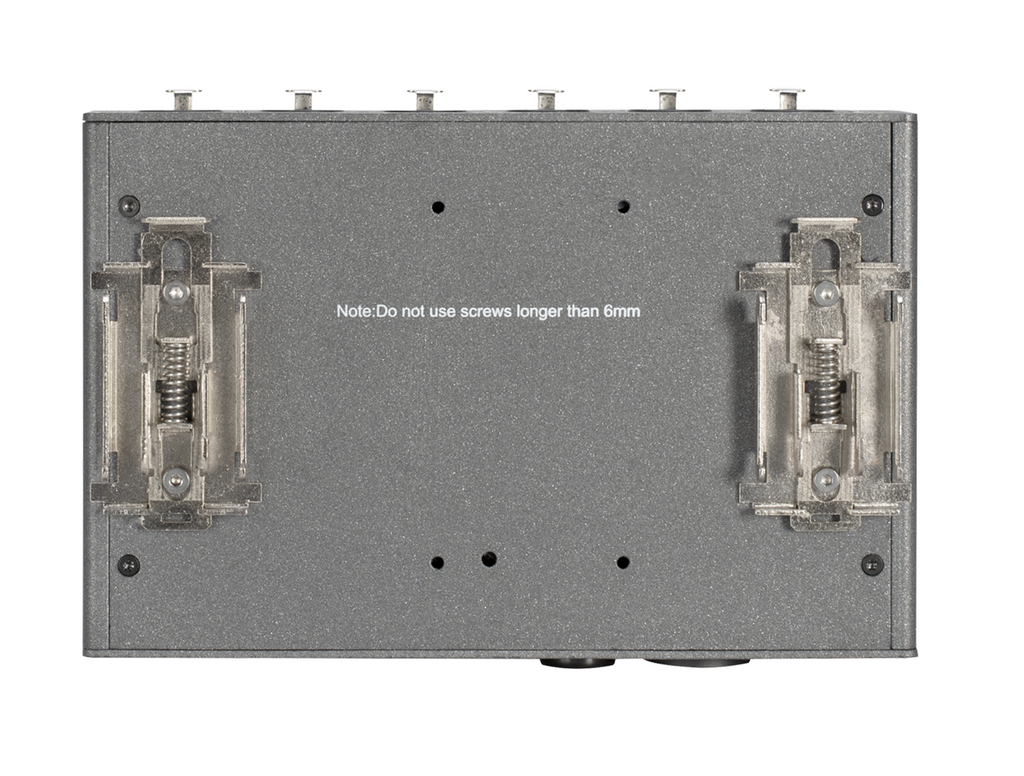

DIN Rail horizontal or vertical (included)
1/2 Rack-mount option (requires NET Shelf)

Connections

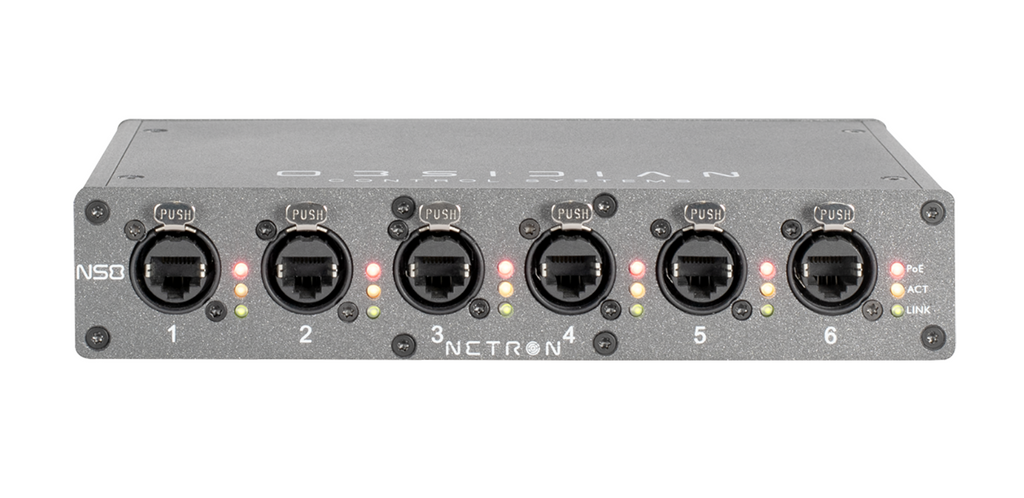

Front
(6) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link

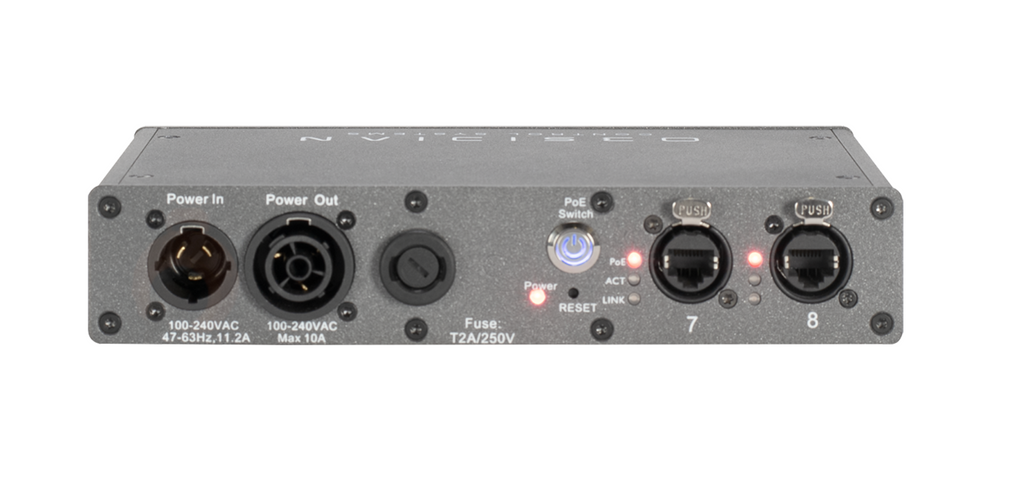

Back
Locking Power In/Thru
(2) Locking RJ45 Ethernet network connections
LED Feedback for Activity and Link
POE Power Switch

Physical
Length: 139 mm (5.5 in.)
Width: 215 mm (8.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

Electrical
100-240 V nominal, 50/60 Hz, 130W
POE 802.3at
120W Total POE Budget

Approvals / Ratings
cETLus / CE / IP20

Included Items
1.5m Seetronic power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps
