Elation EP1

Save $90.00
Elation LightingSKU: NRE125

Price:
Sale price$350.00 Regular price$440.00

Description

Features:

  • RDM, ArtNet and sACN support
  • Factory and user presets for plug and play setup
  • POE or USB-C powered
  • 1.3” OLED Display with rotary knob
  • Remote configuration via internal webpage
  • Powder-coated compact metal housing
  • In-wall, Truss and Standalone mounting
  • Unlocks ONYX NOVA 4-Universe License


Specifications:
Mounting
Standalone (backbox included)

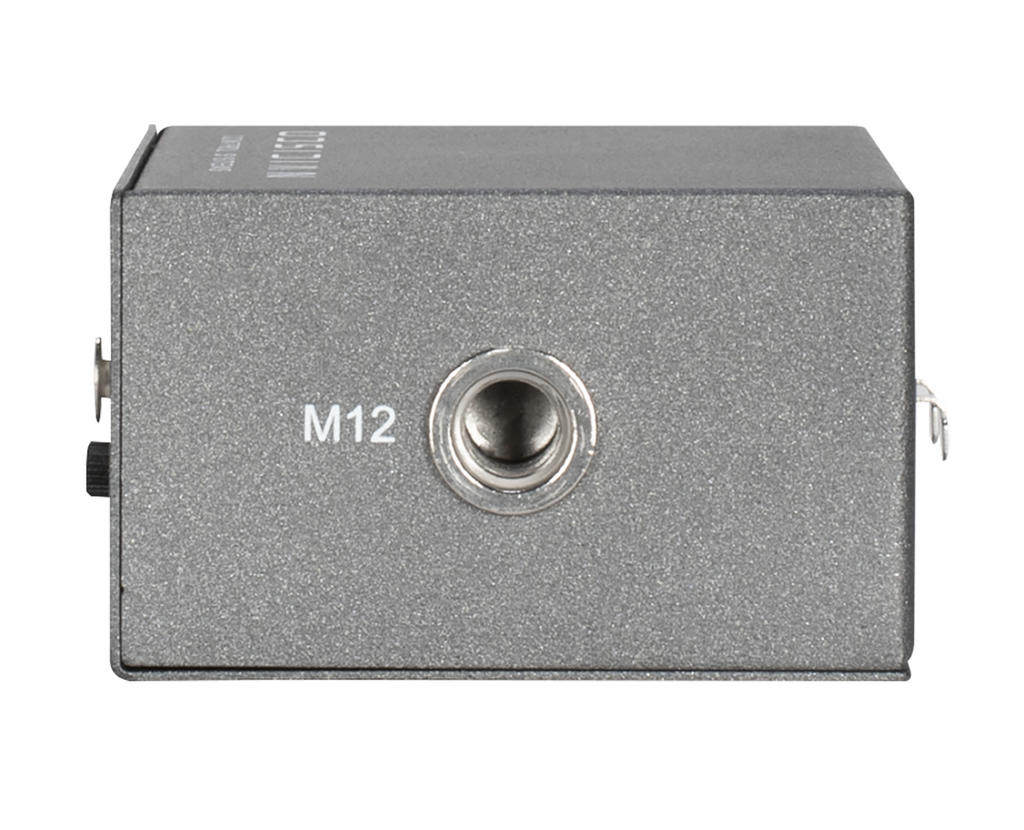

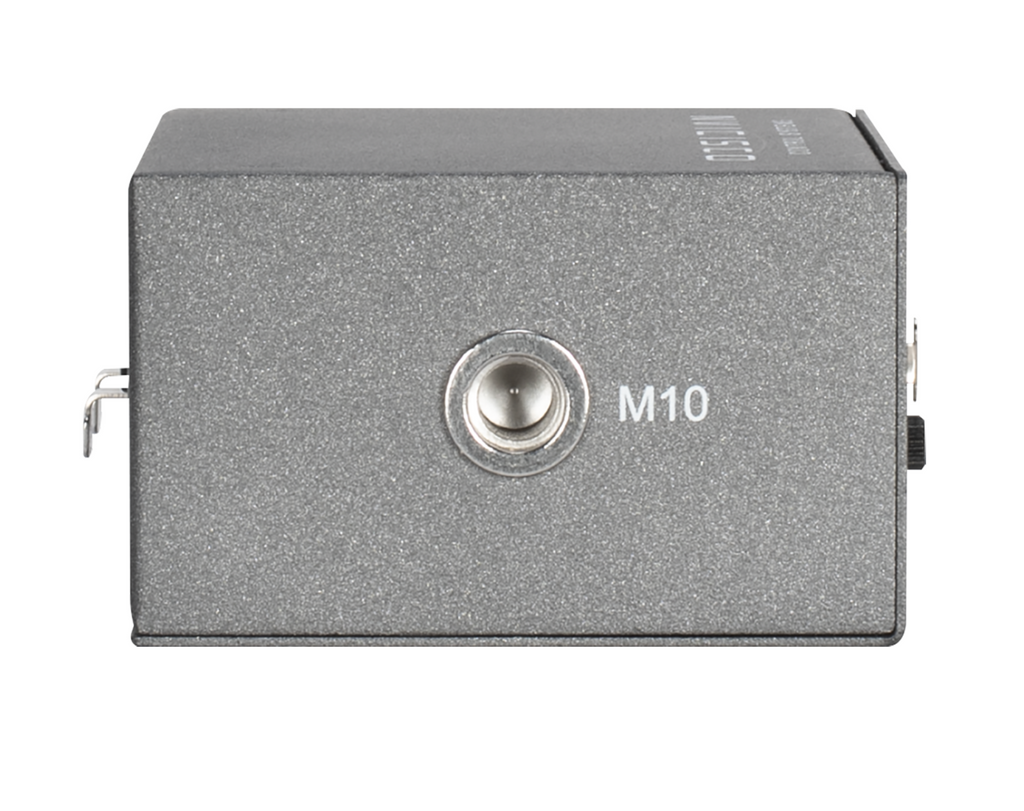

Truss-mount (M10 + M12 mounting hole)
In-Wall 1-Gang (US)Â

Connections

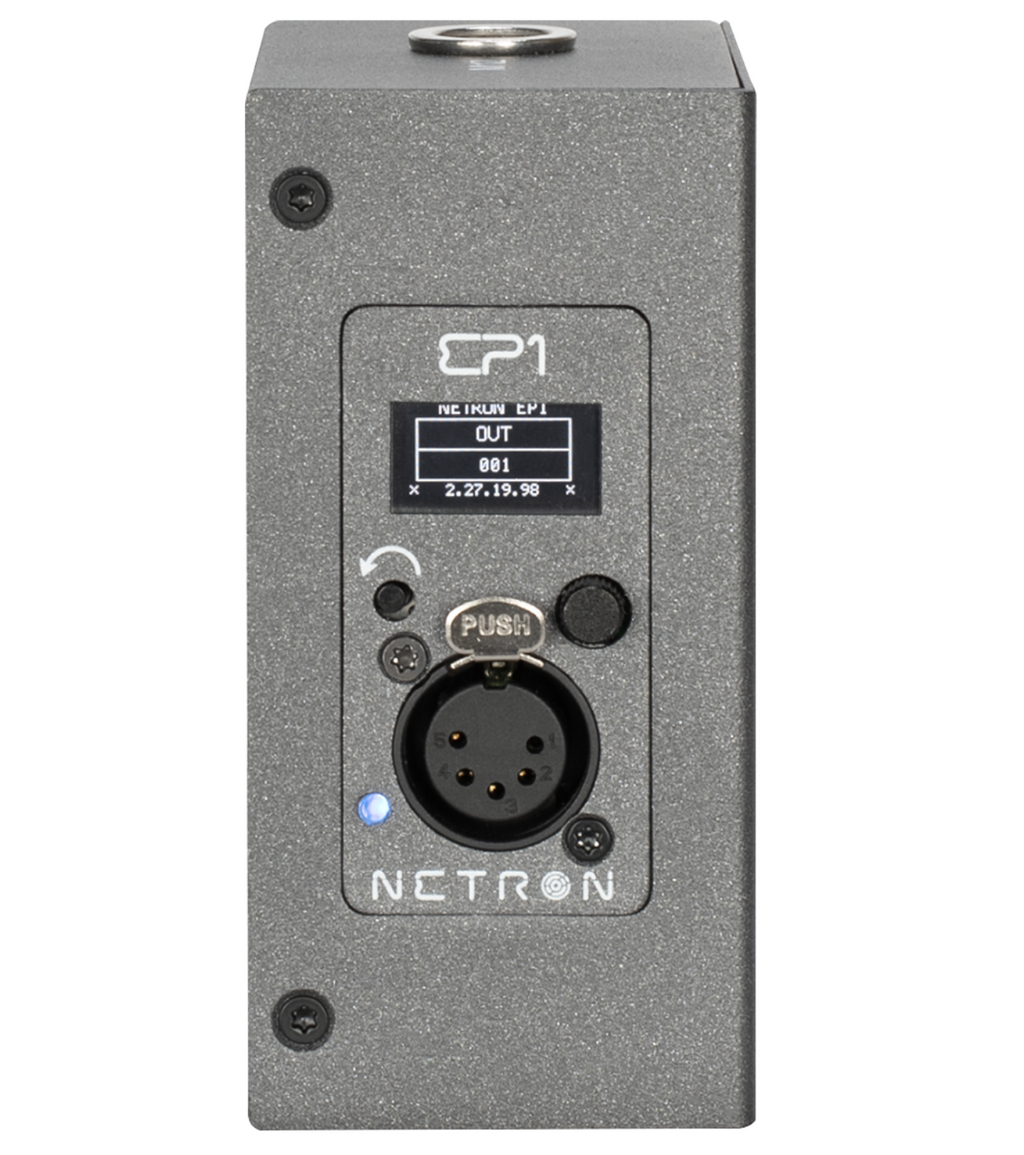

Front
(1) 5pin DMX/RDM optically isolated port
Bidirectional for DMX In and Output

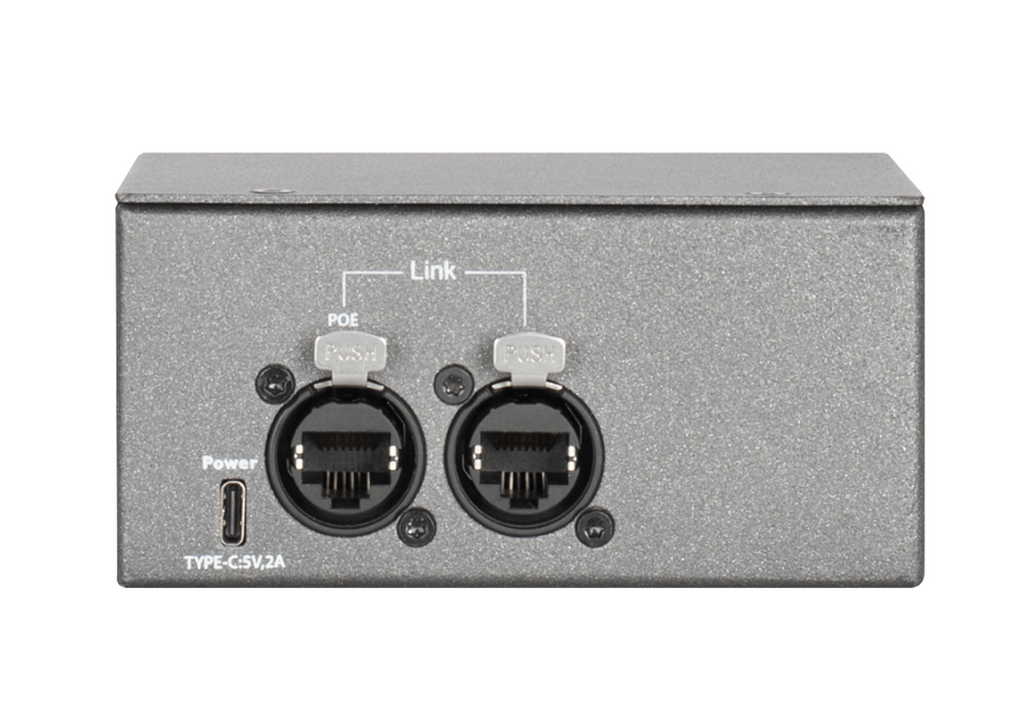

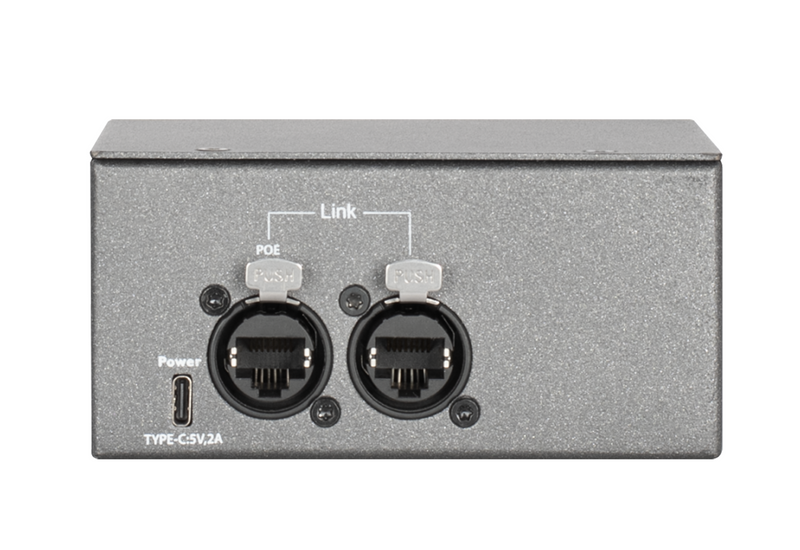

Side
(2) Locking RJ45 Gigabit Ethernet (1xPOE)
USB-C power option (5V, 2A)

Physical
Standalone
Length: 3.5 in. (90mm)
Width: 2.2 in. (55mm)
Height: 4.5 in. (114mm)
Weight: lbs. (kg)

Electrical
USB-C 5V
POE 802.3af
Power Consumption: 2.8W

Approvals / Ratings
CE / UKCA / IP20

Included Items
1.5m Obsidian USB-C cable
Standalone Enclosure (M10 or M12 bolt hole)
Netron Decora 1-Gang wall plate
