Elation EP4

Save $120.00
Elation LightingSKU: NRE023

Price:
Sale price$450.00 Regular price$570.00

Description

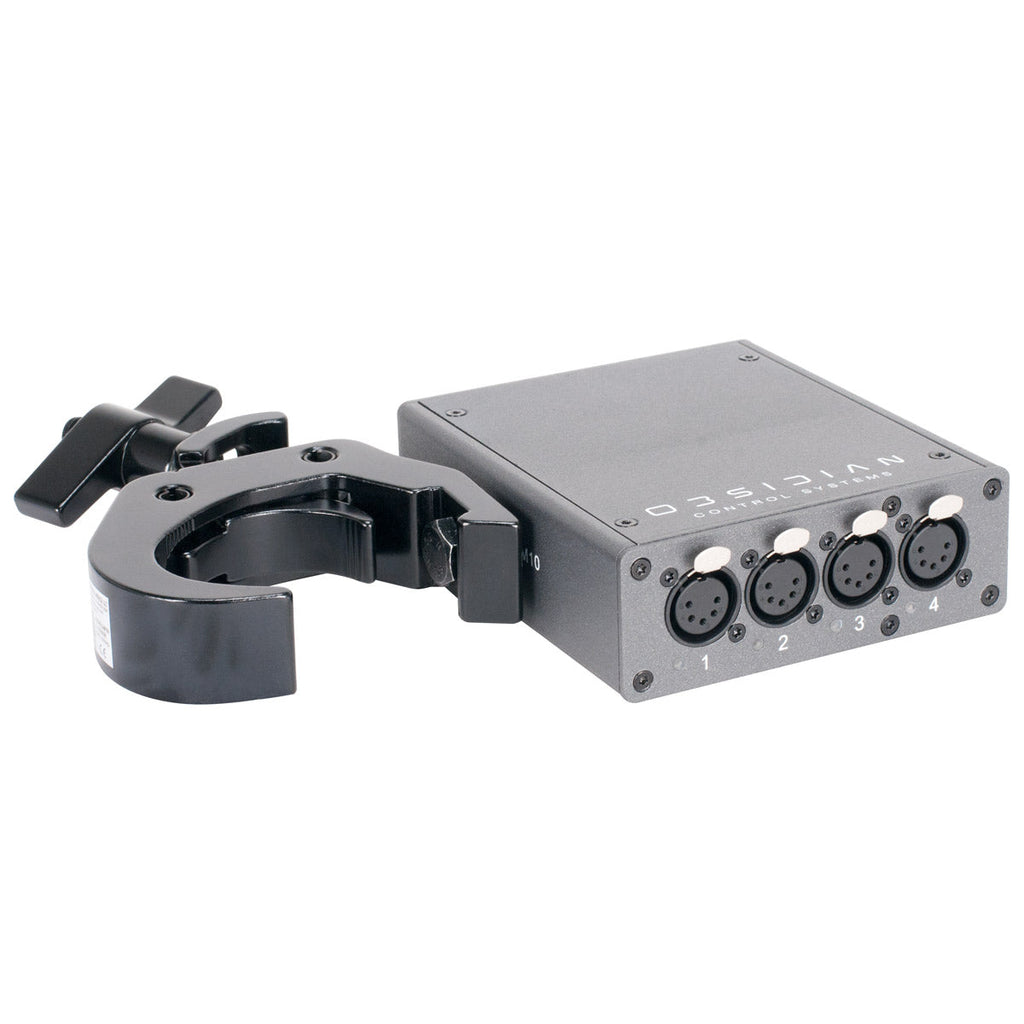

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

Features:

  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated compact aluminum housing
  • Connect to ONYX PC for a full four Universe Solution


Specifications:
Mounting
Standalone

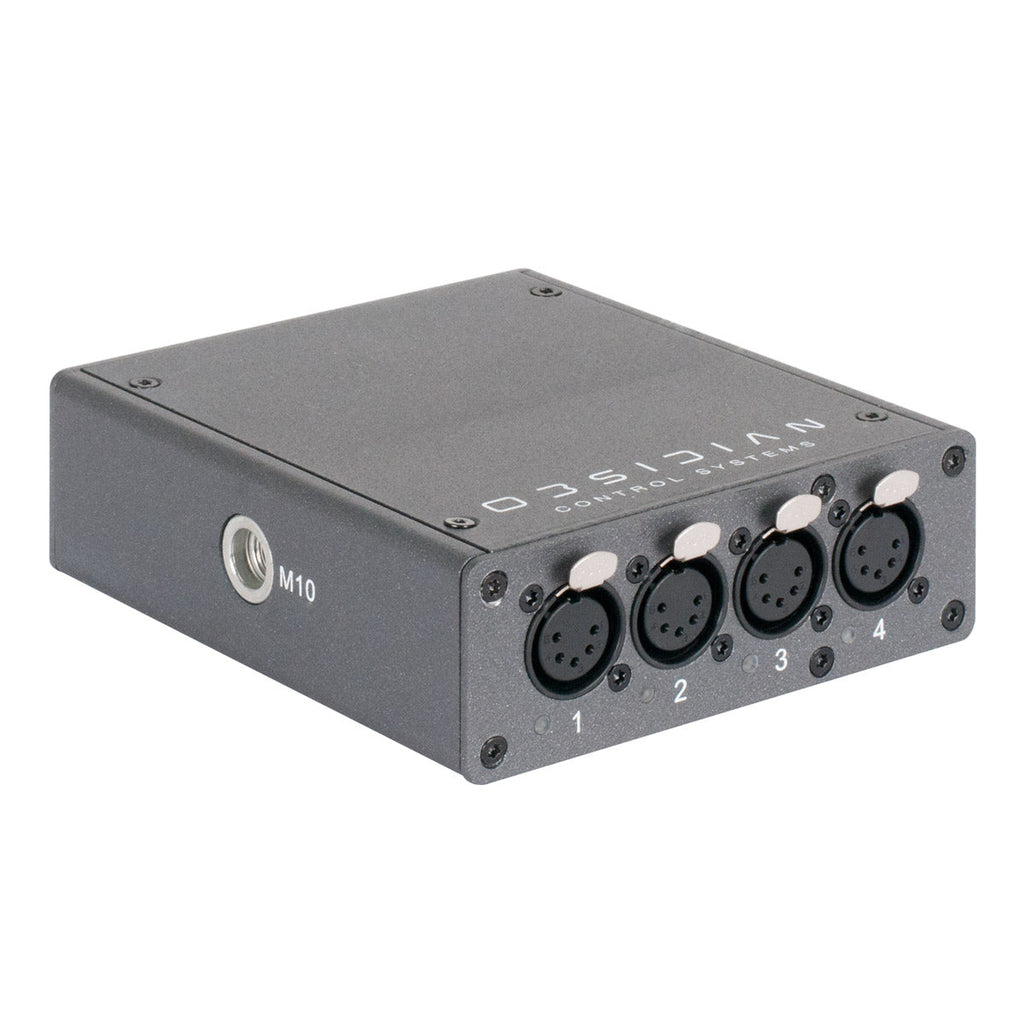

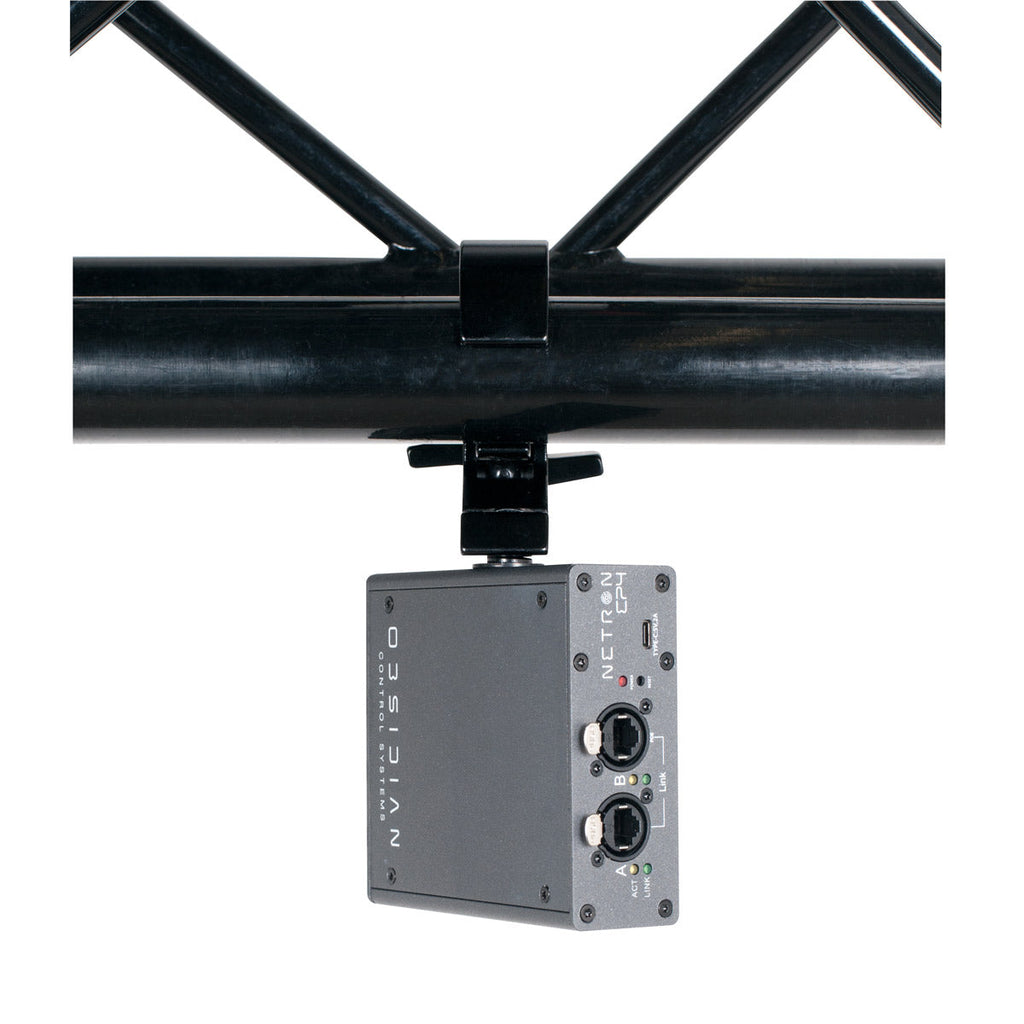

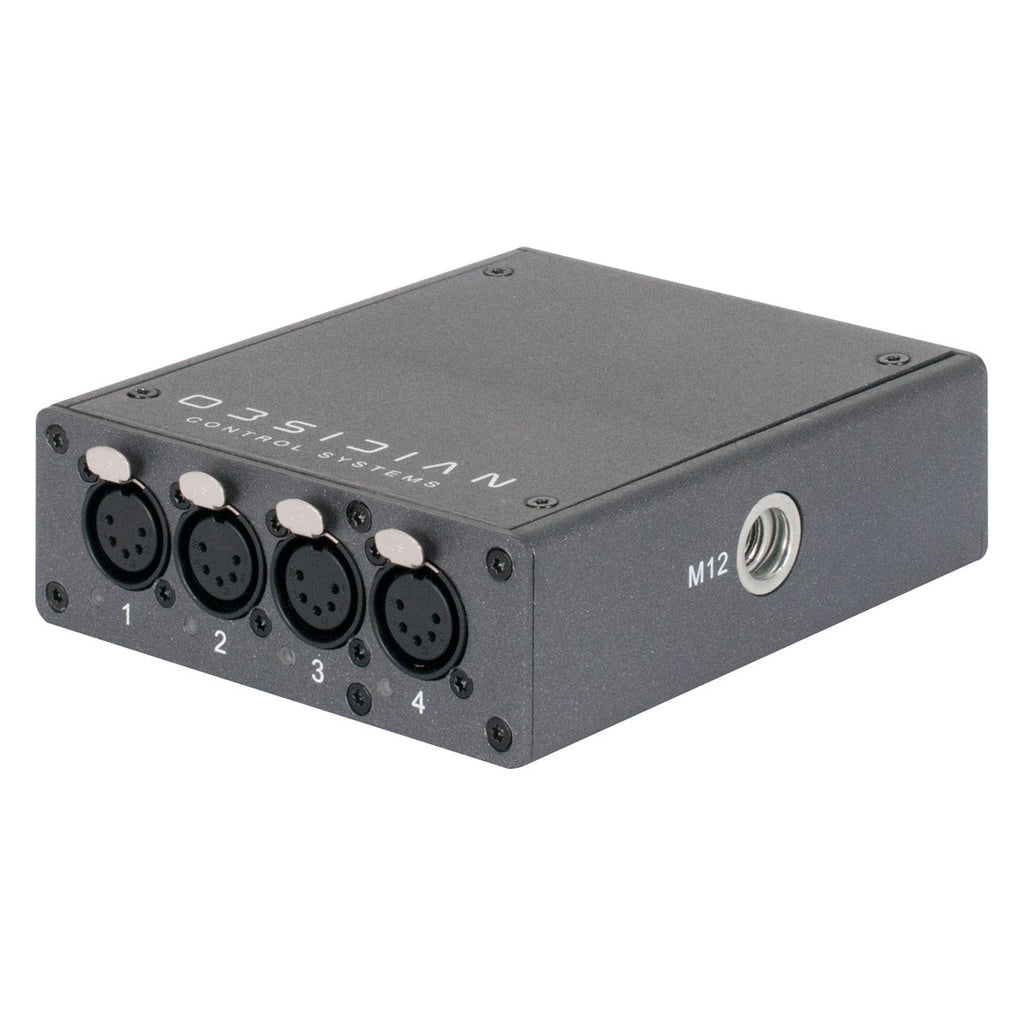

Truss-mount (M10 or M12 mounting hole)

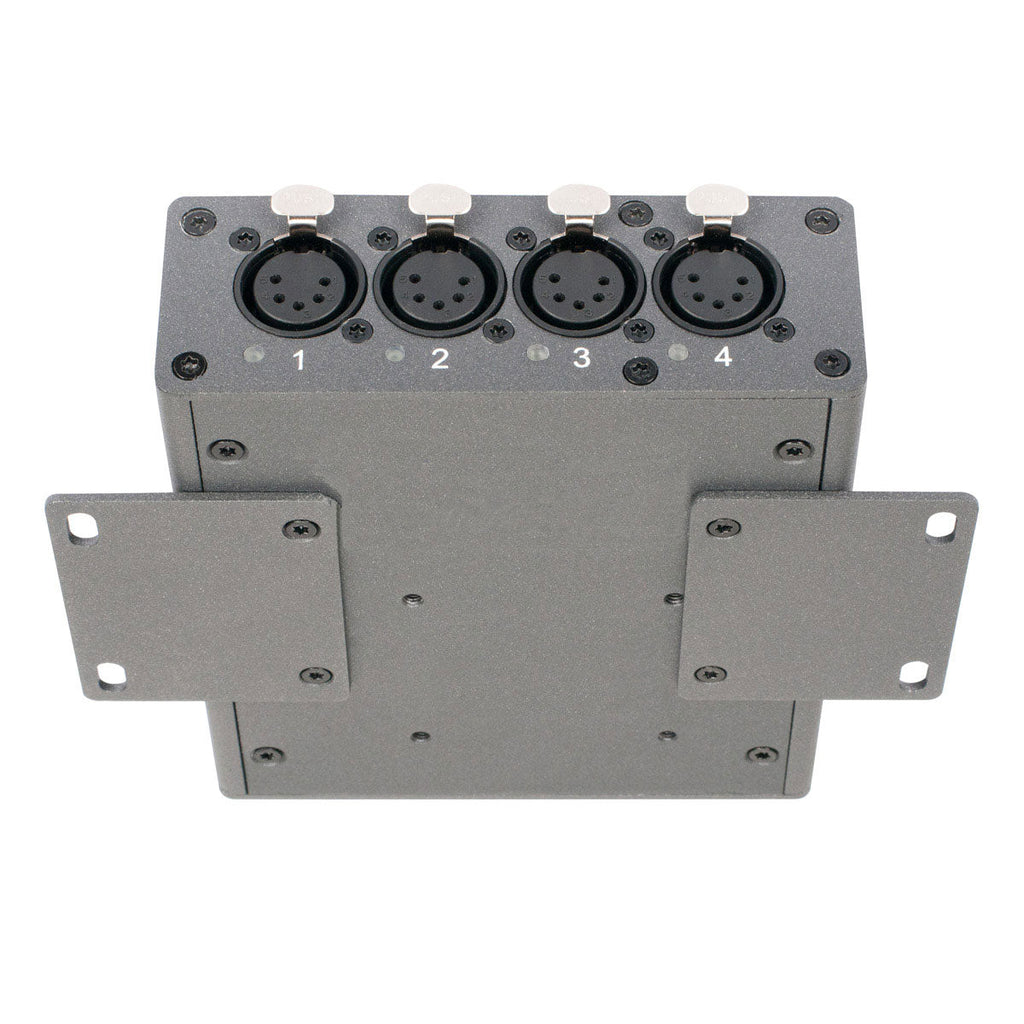

Wall-mount horizontal or vertical (included)

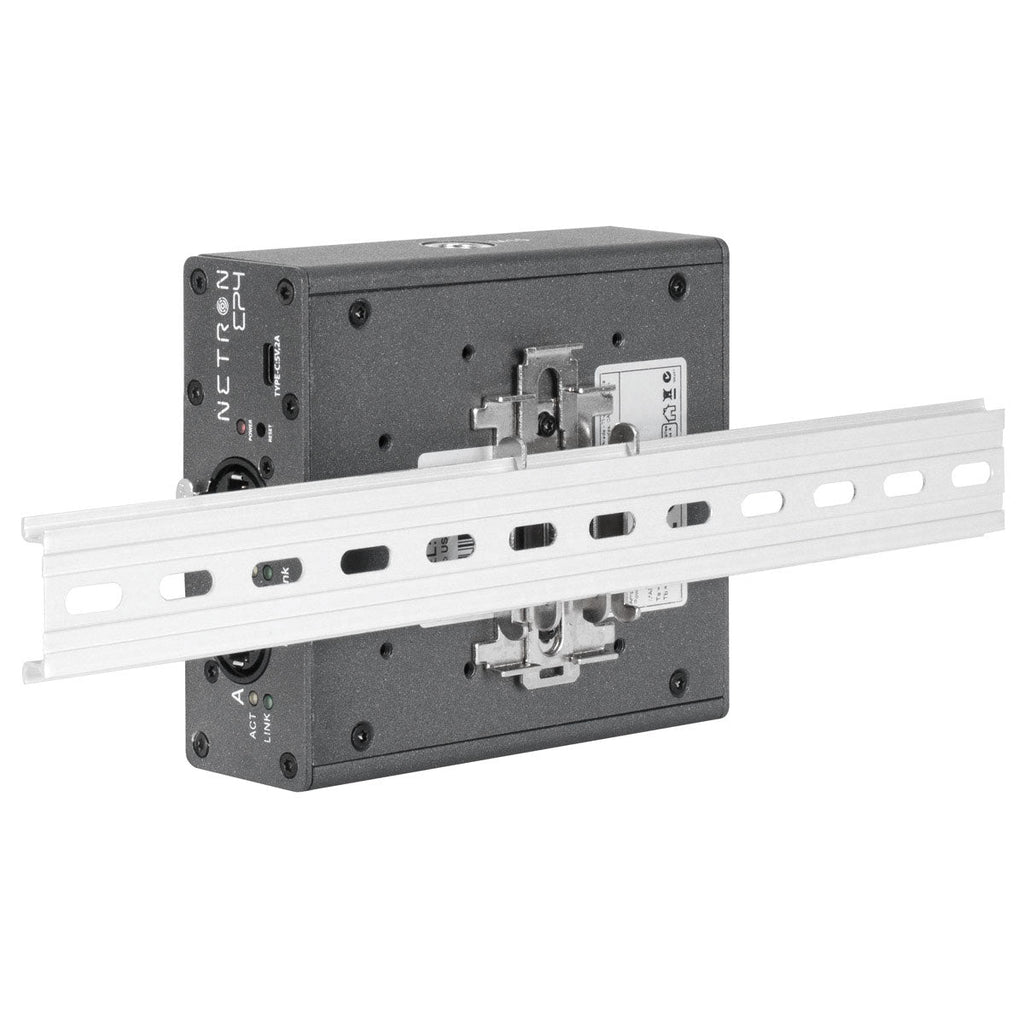

DIN Rail horizontal or vertical (included)

Connections

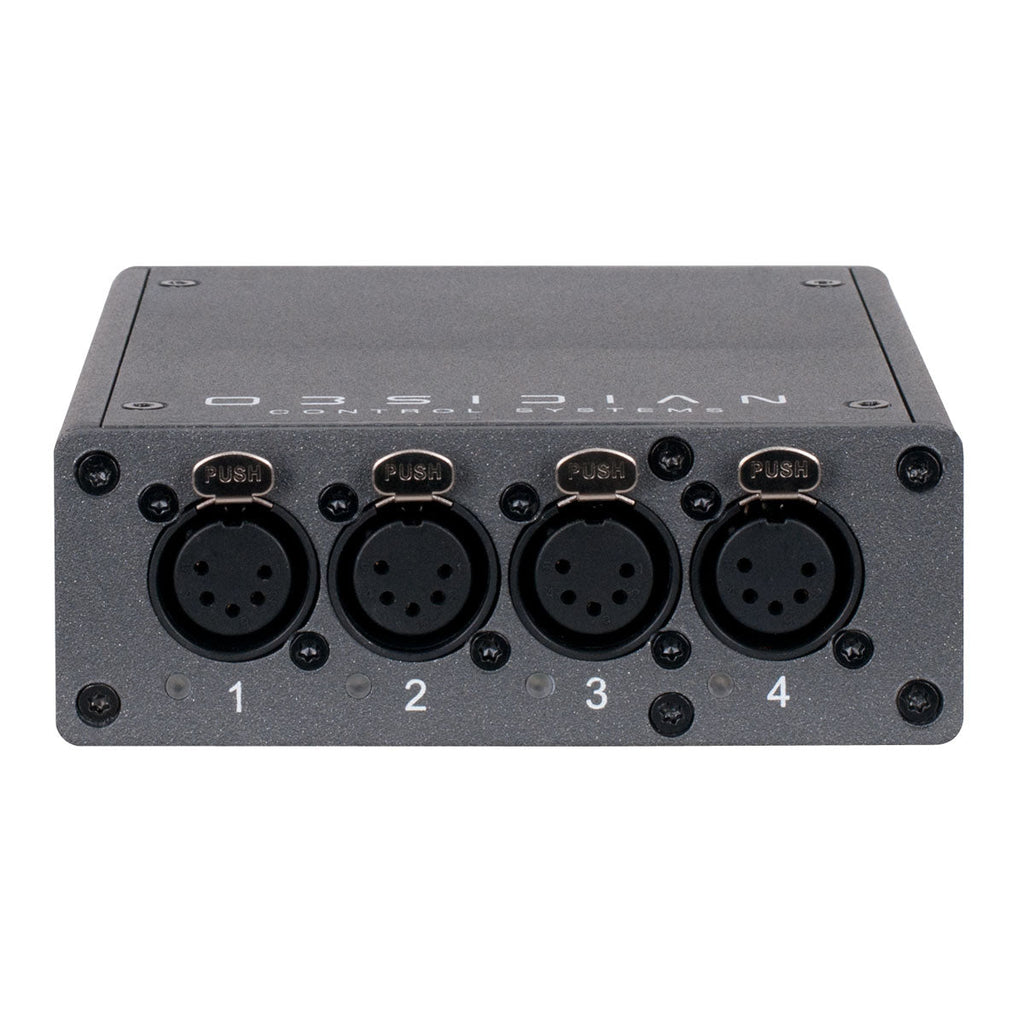

Front
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output

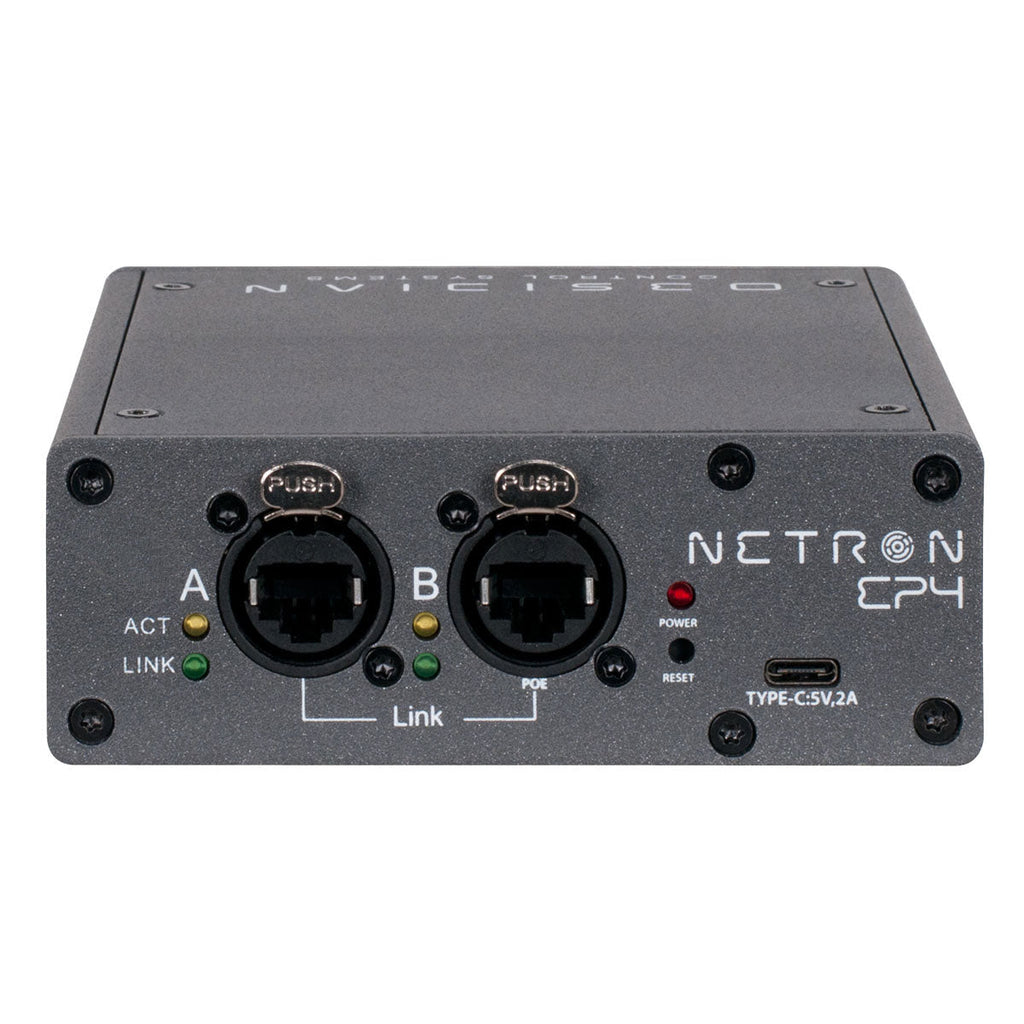

Back
(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)

Physical
Length: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)

Electrical
USB-C 5V
POE 802.3af
Power Consumption 3.8W

APPROVALS / RATINGS
CE | FCC | IP20

Specifications and documentation subject to change without notice.
