Elation EN4

Save $130.00
Elation LightingSKU: NRE012

Price:
Sale price$490.00 Regular price$620.00

Description

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.

As a four Universe Node the EN4 is ideally suited for the powerful ONYX Free Edition.

Features:

  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setups
  • Line Voltage or POE powered
  • 1.8” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated aluminum ½ rack housing
  • Connect to ONYX PC for a full four Universe Solution


Specifications:
Mounting
Standalone

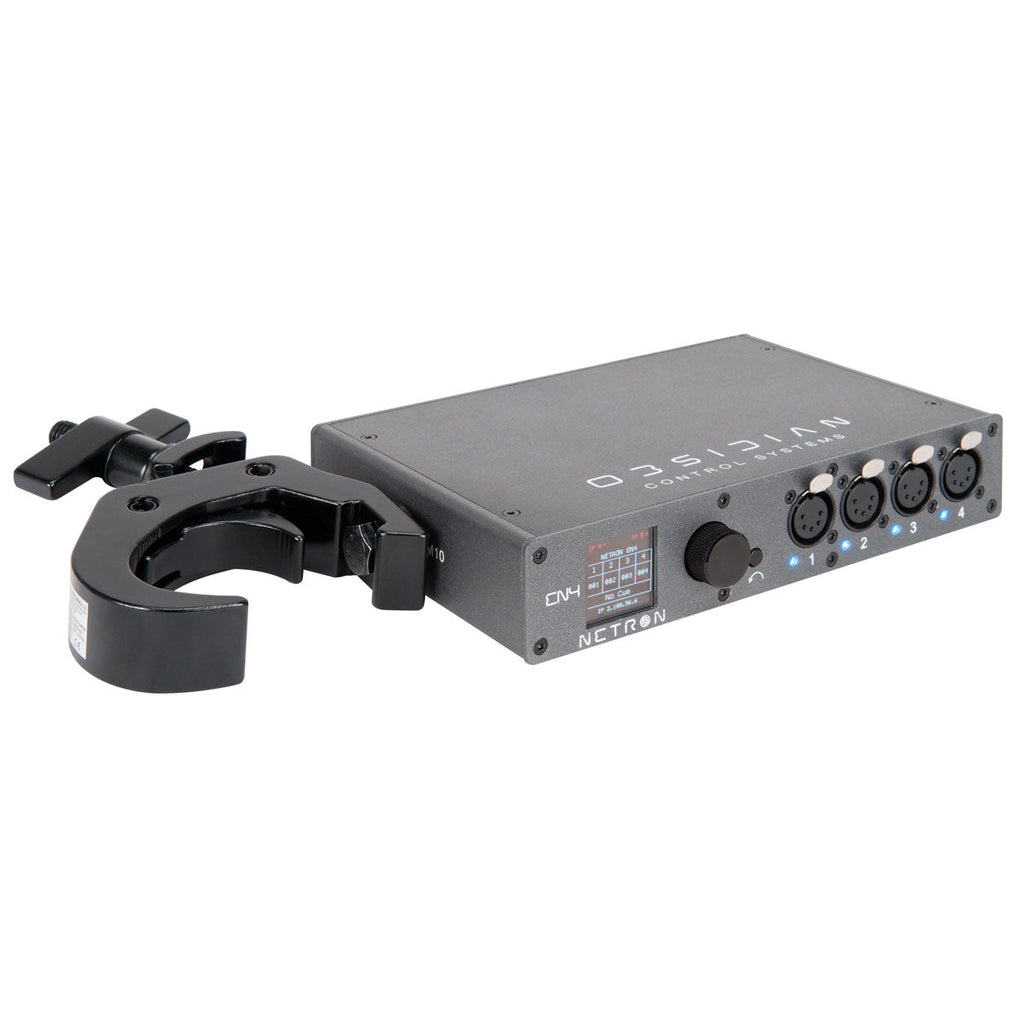

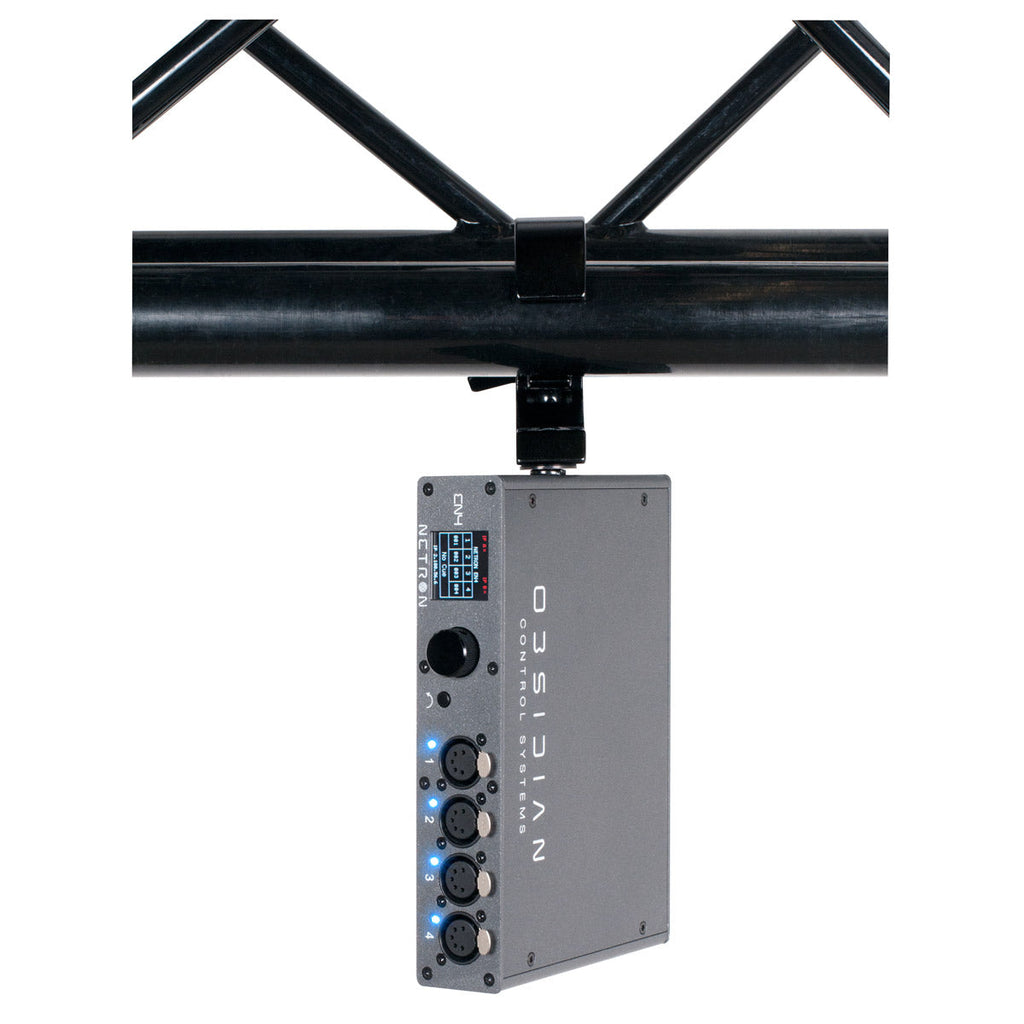

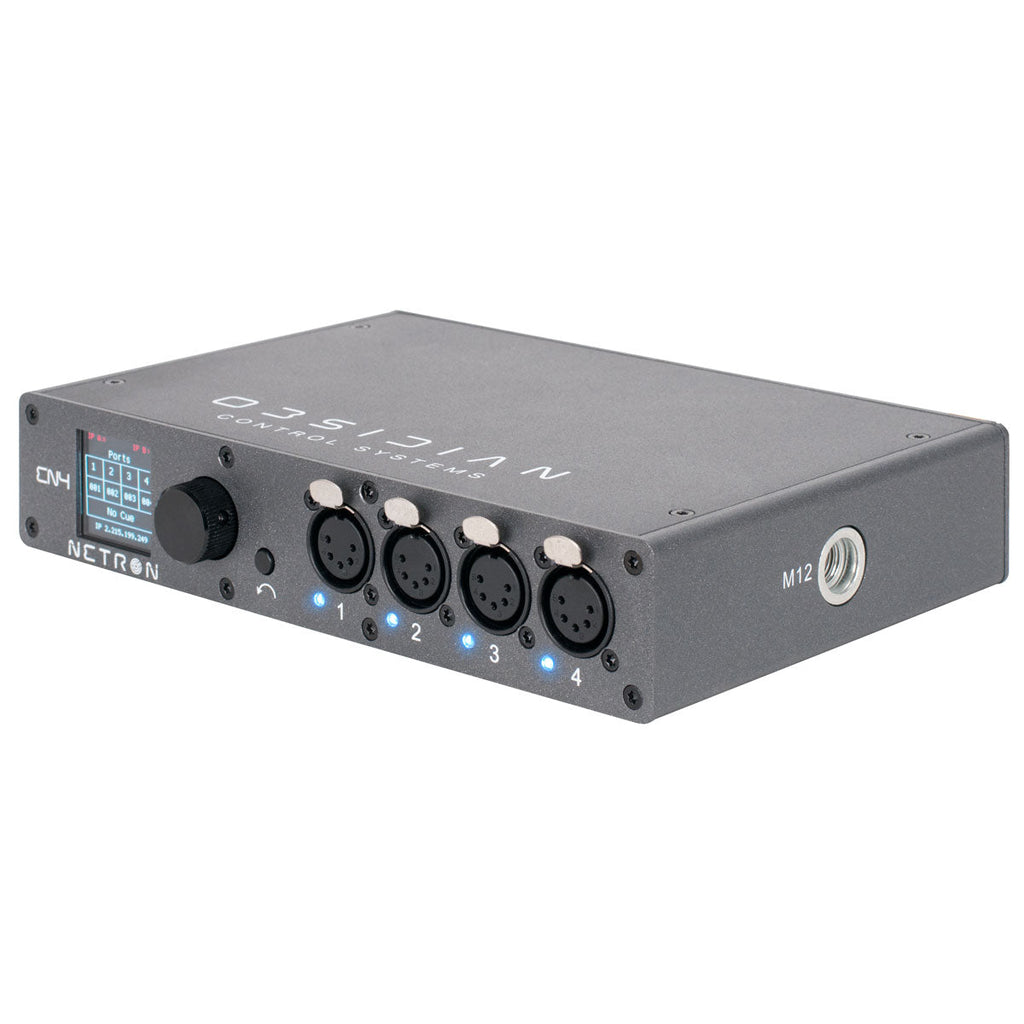

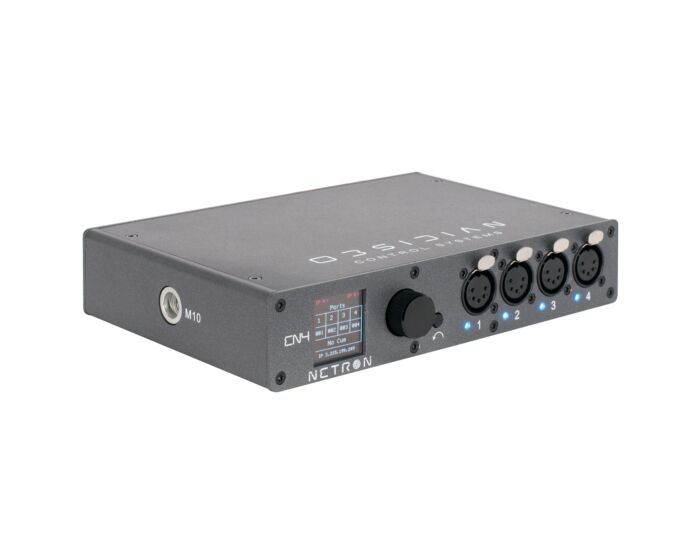

Truss-mount (M10 or M12 mounting hole)

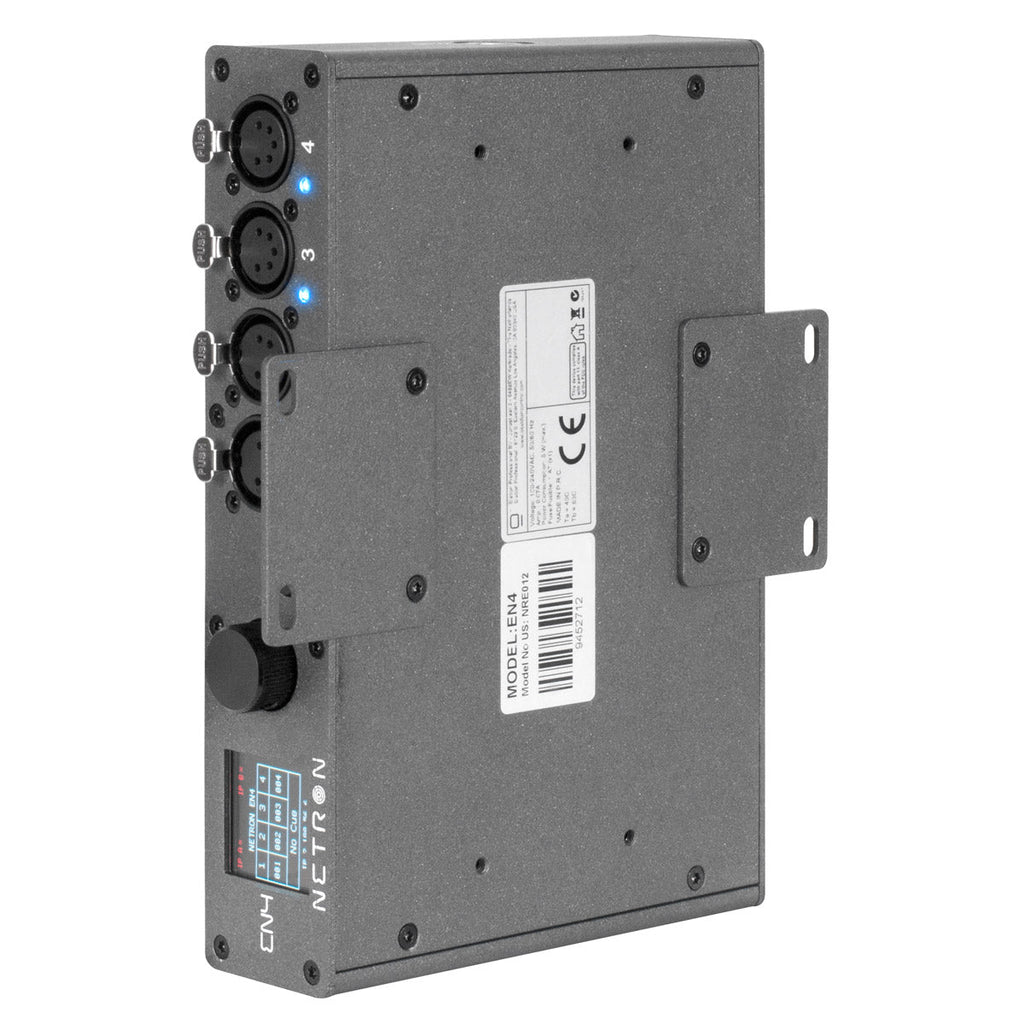

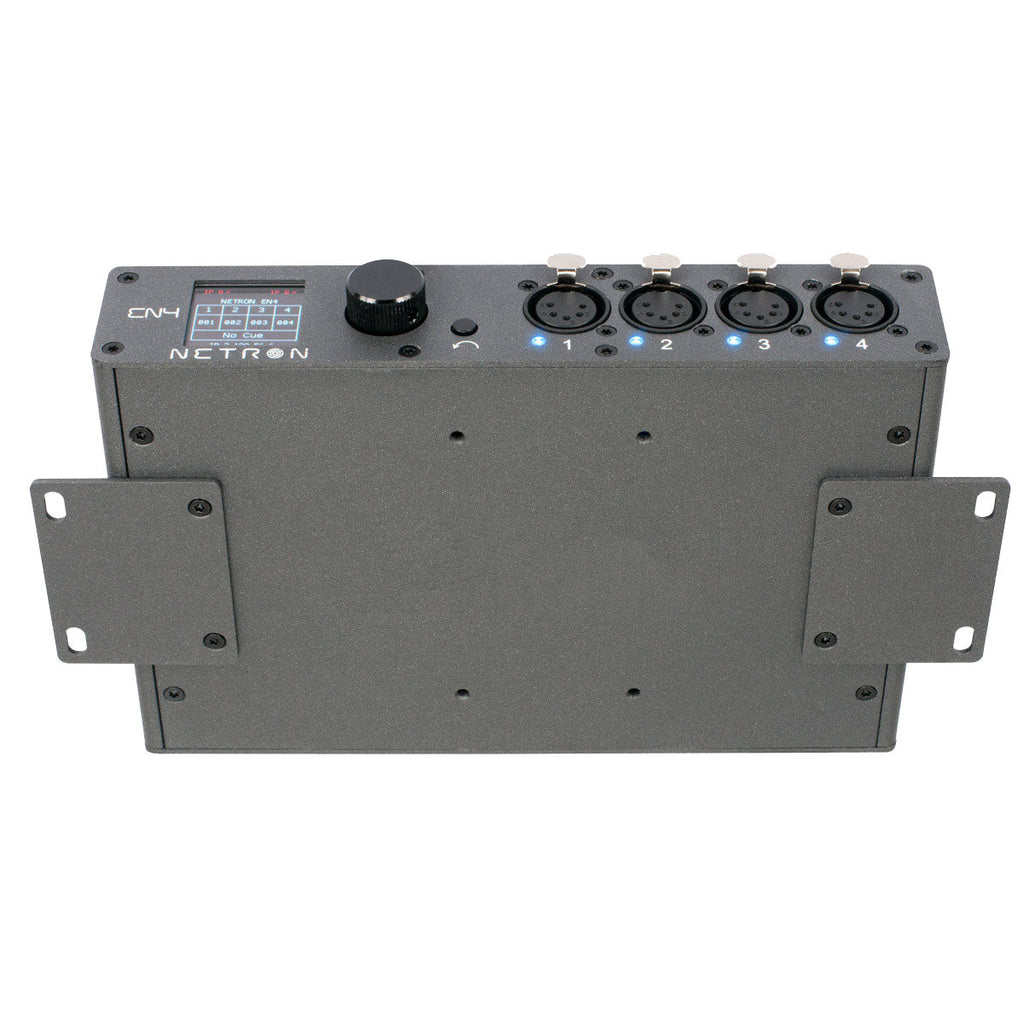

Wall-mount horizontal or vertical (included)

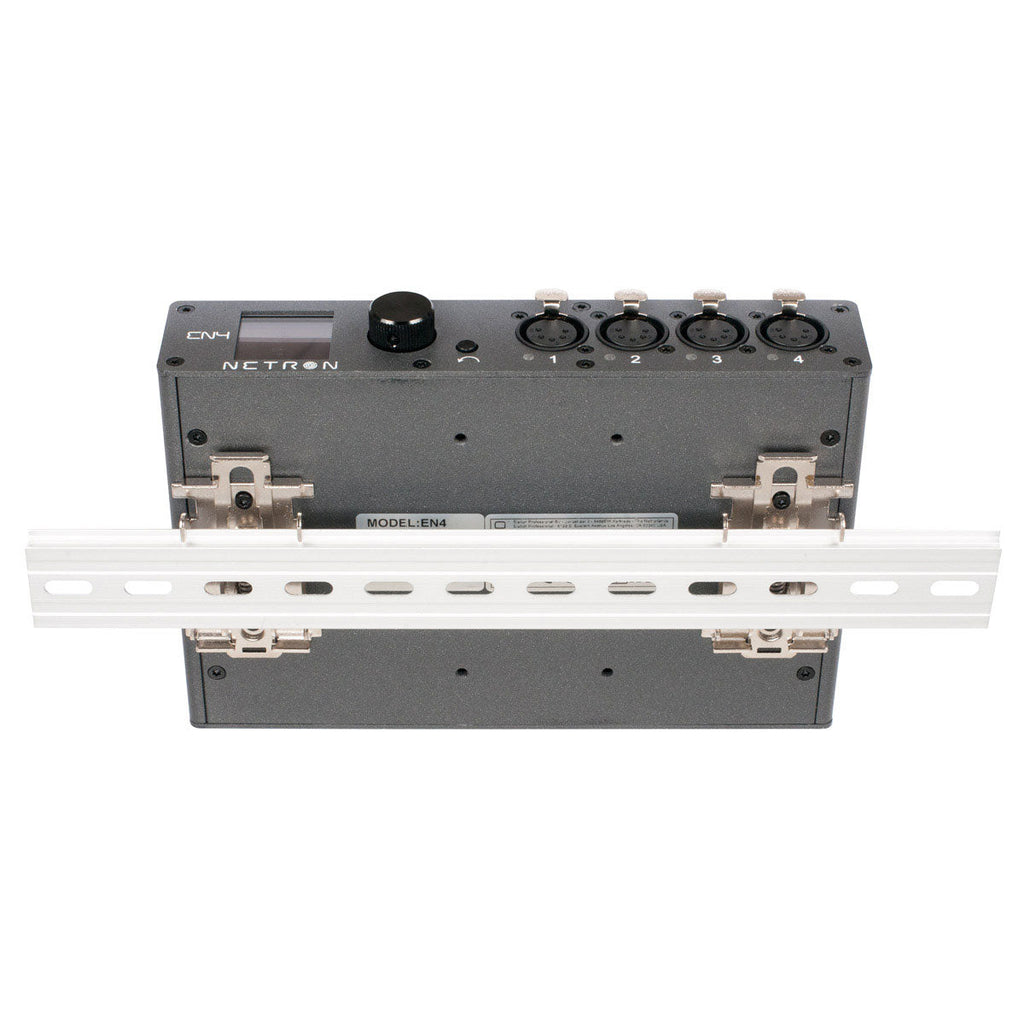

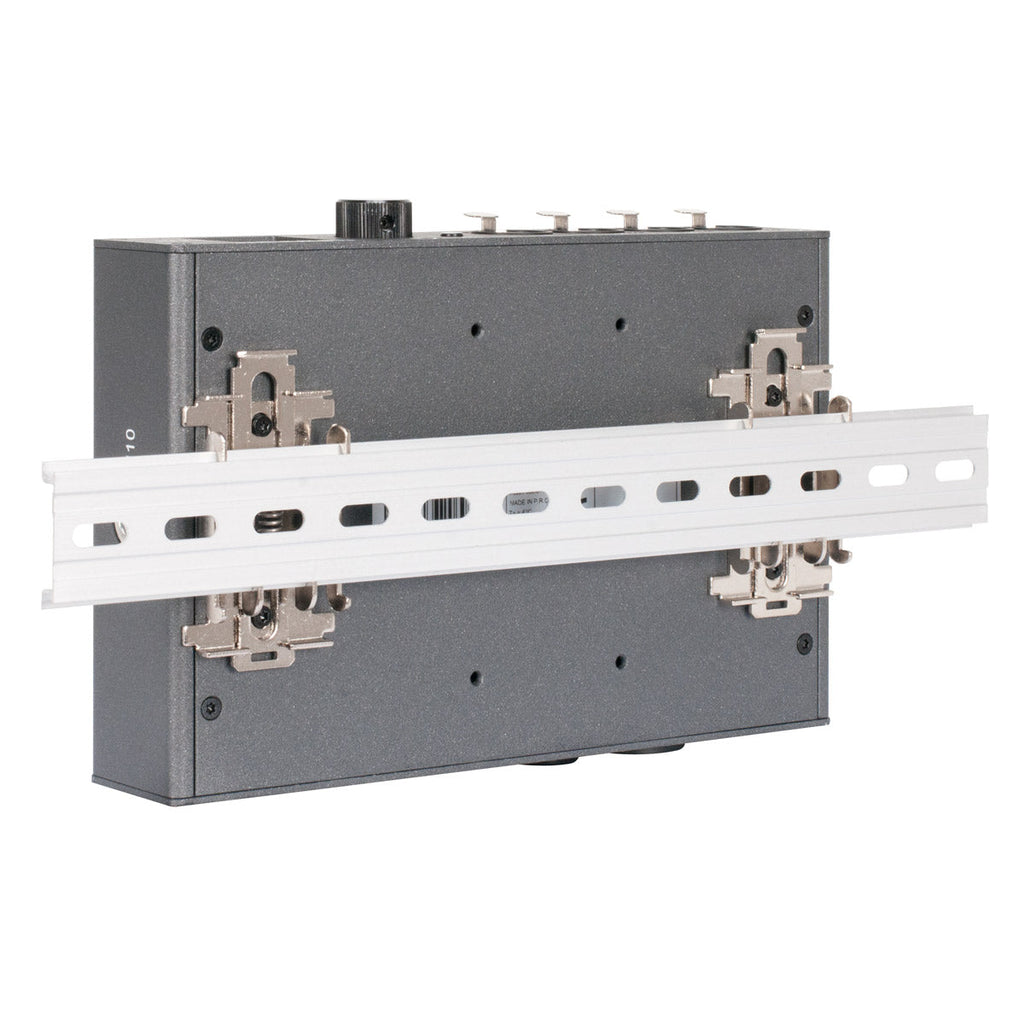

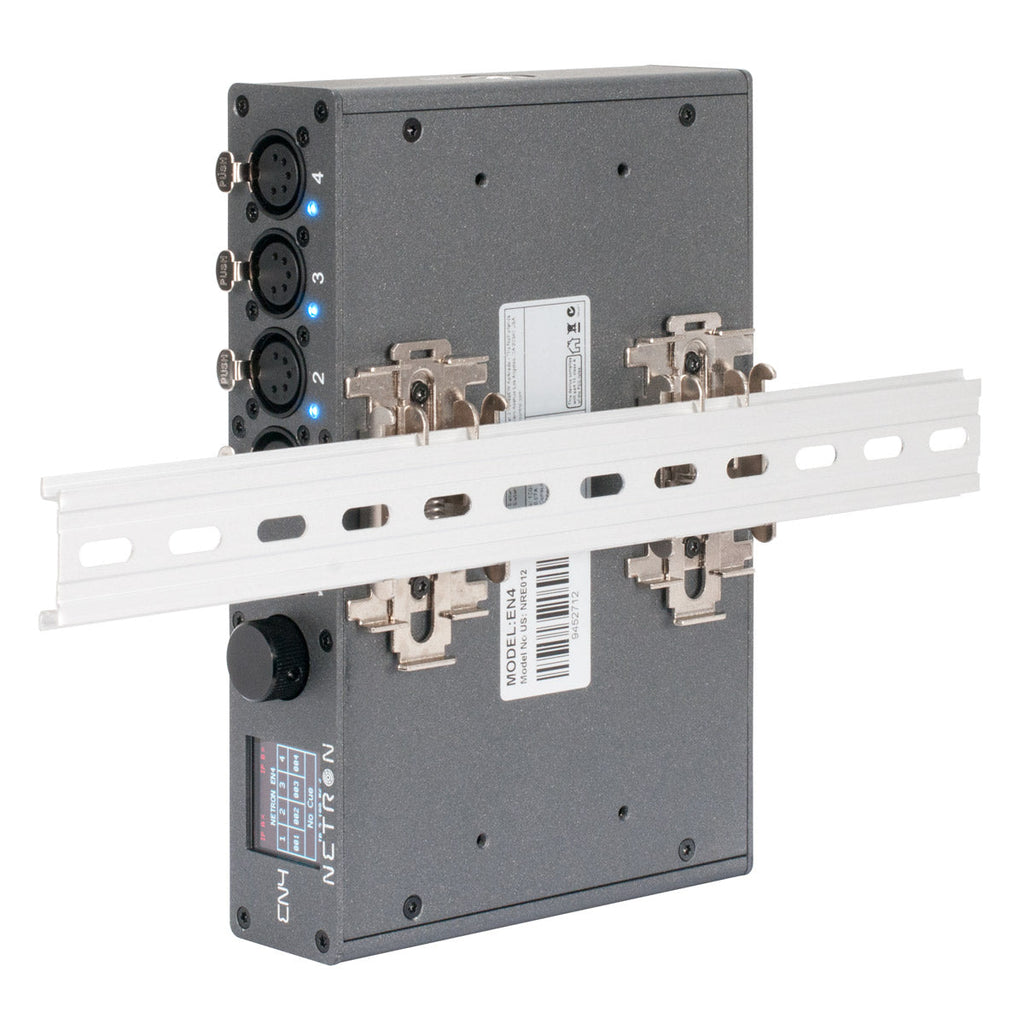

DIN Rail horizontal or vertical (included)

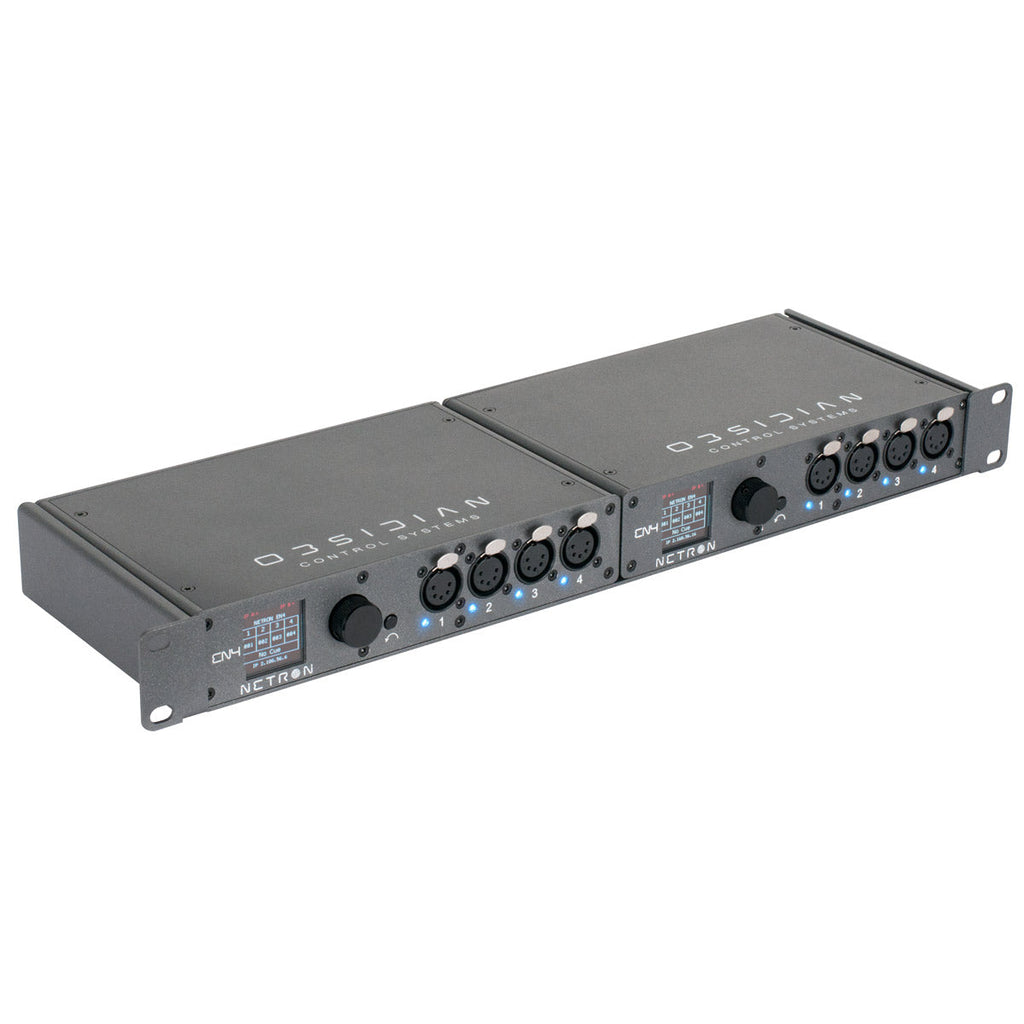

Rack-mount option (requires NET Shelf)

Connections

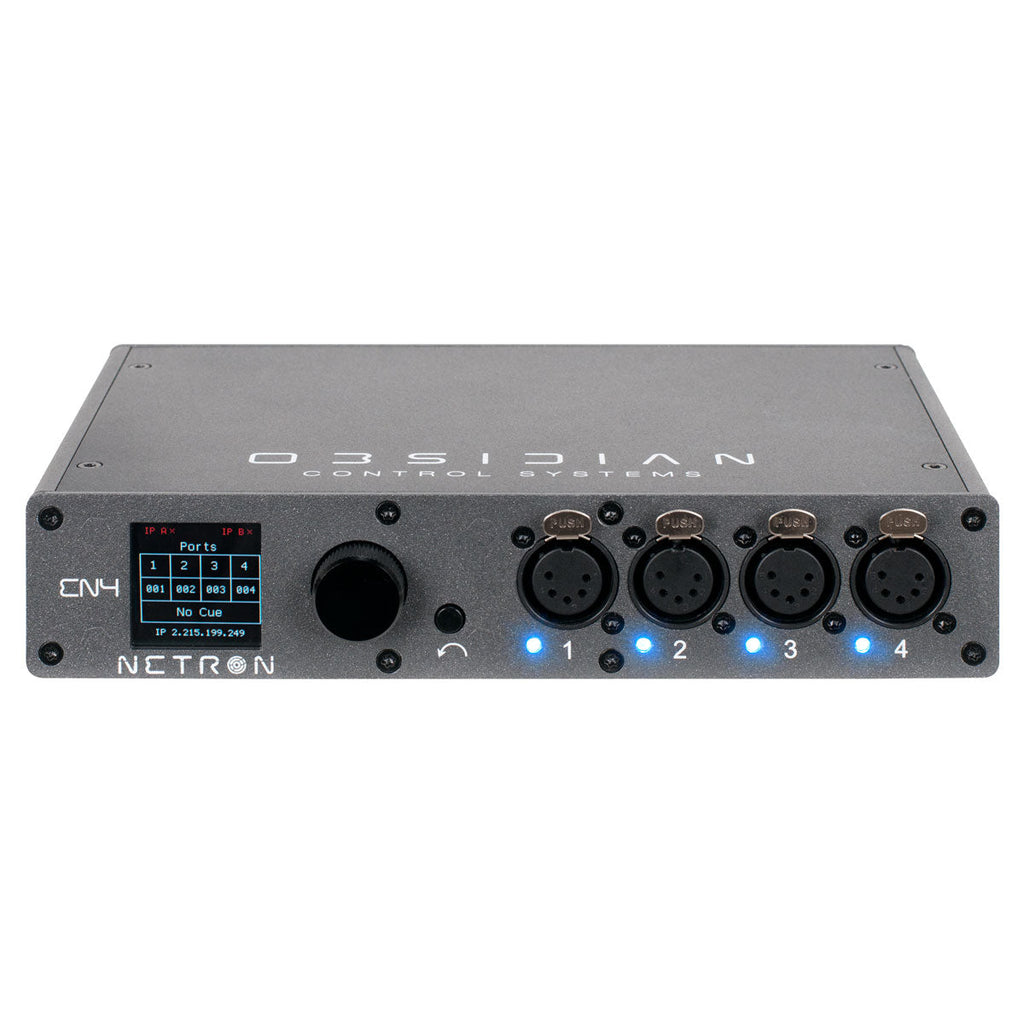

Front
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

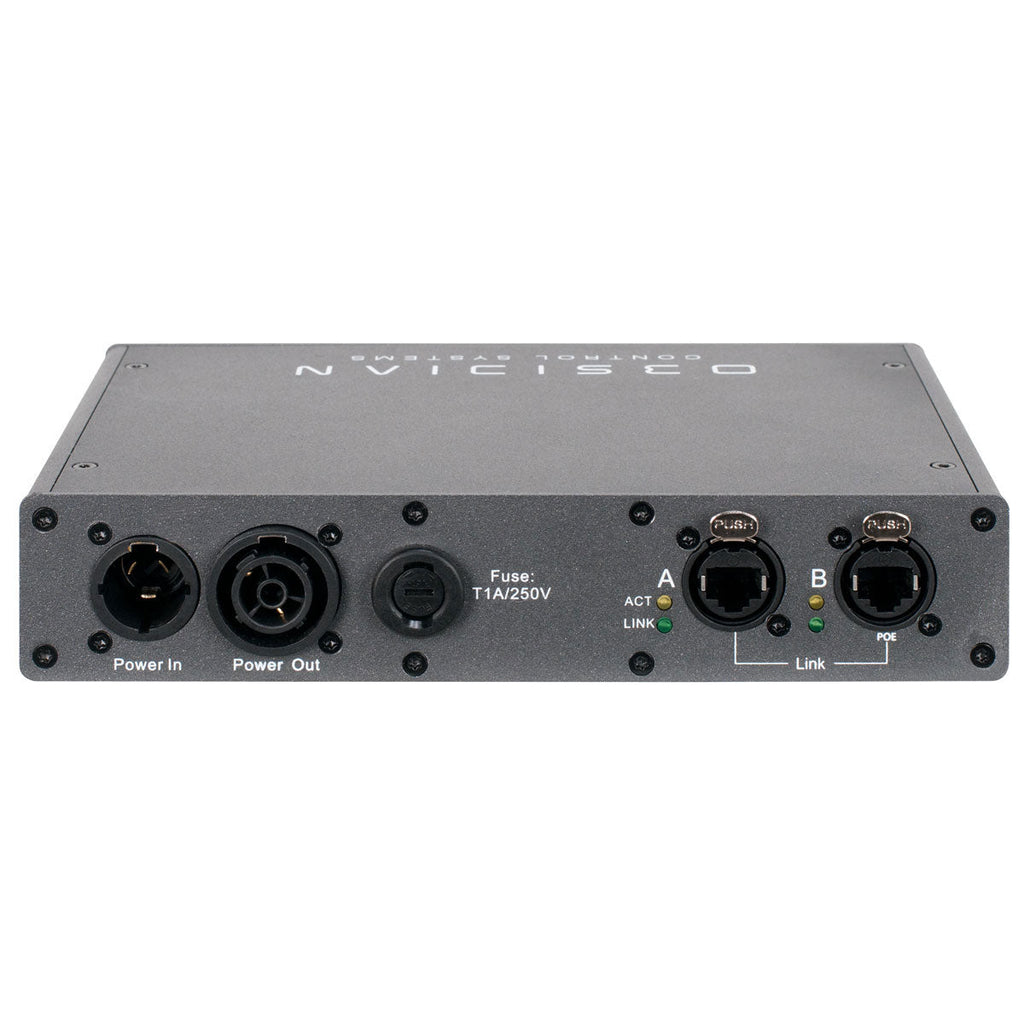

Back
Locking Power In/Thru
(2) Locking RJ45 Ethernet network connections (1x POE)

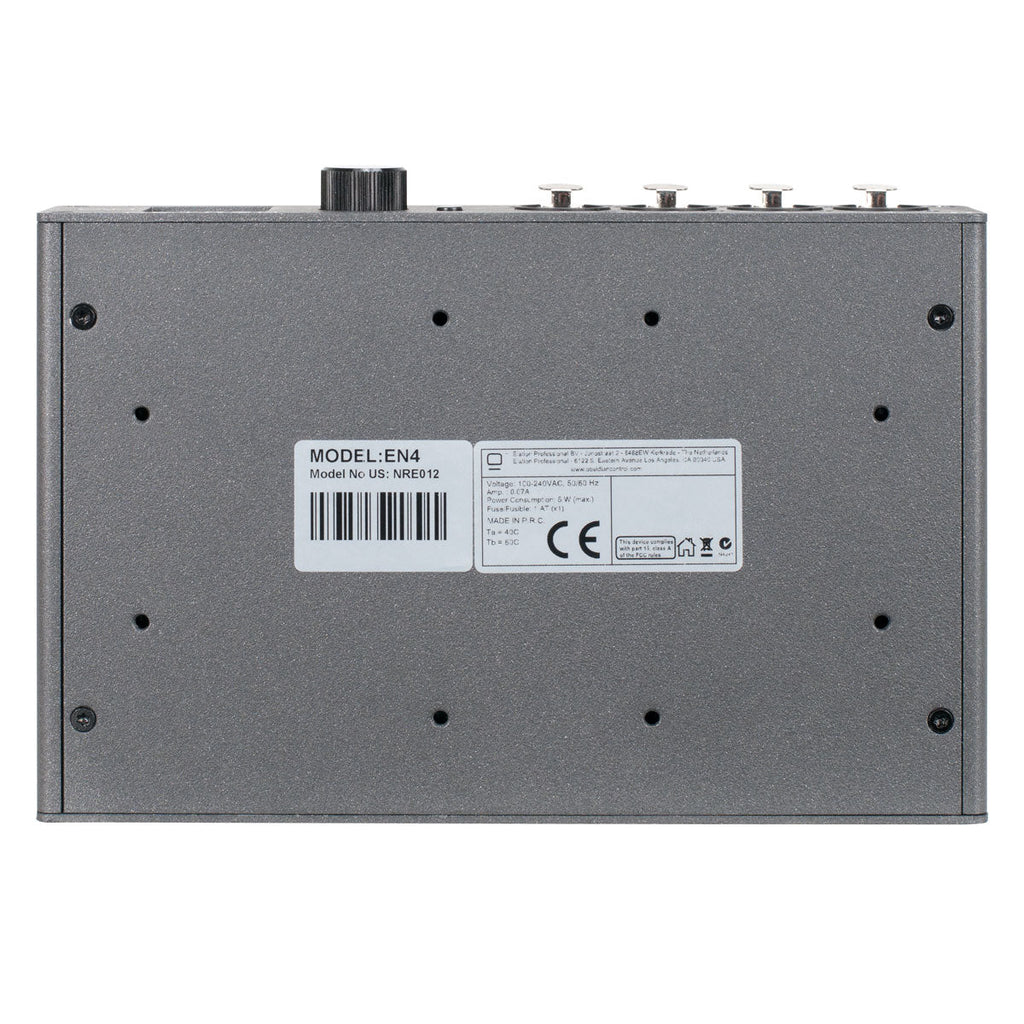

Physical
Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

Electrical
100-240 V nominal, 50/60 Hz,10W
POE 802.3af
Power Consumption 5W

APPROVALS / RATINGS
CE | cETLus | FCC | IP20

Specifications and documentation subject to change without notice.
