Elation RDM645

Save $124.00
Elation LightingSKU: NRD112

Price:
Sale price$496.00 Regular price$620.00

Description

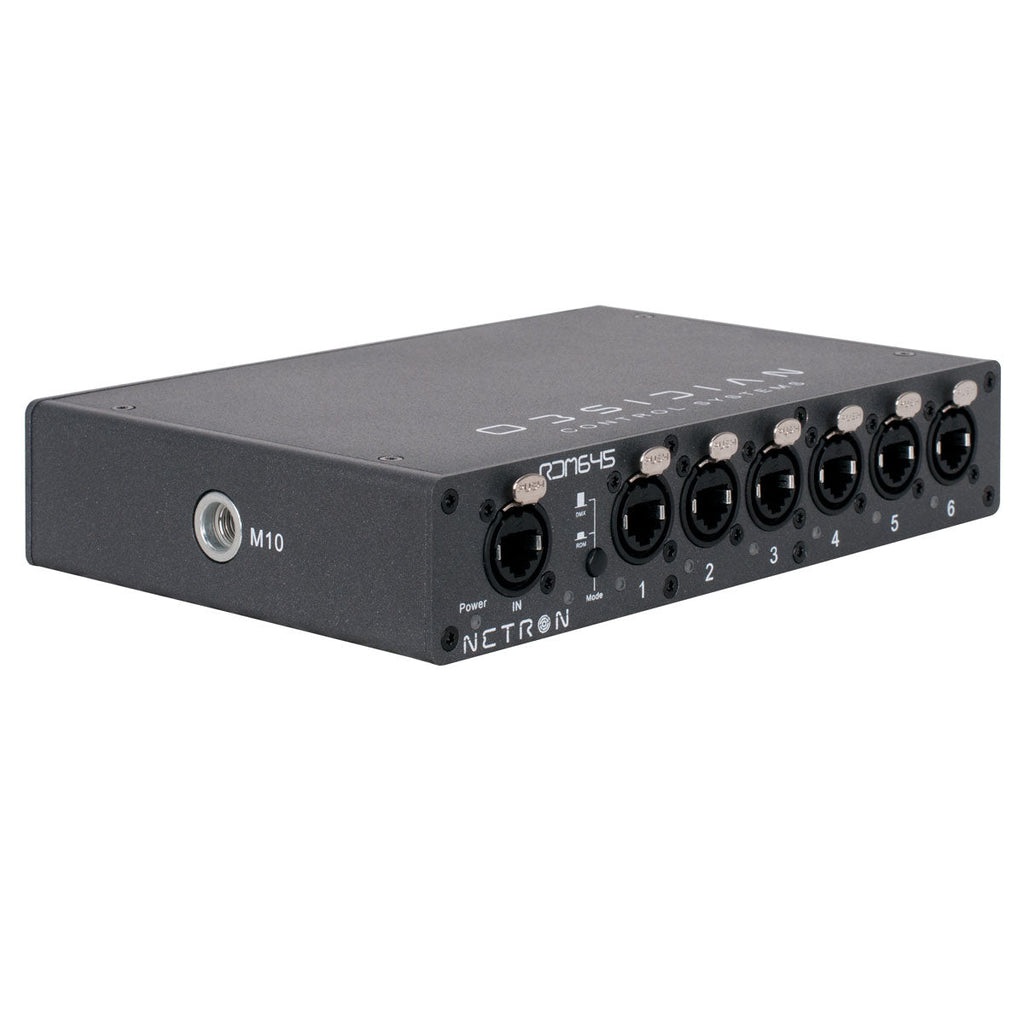

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.

Features:

  • (6) Locking RJ45 Ethernet DMX outputs
  • DMX and RDM compliant
  • Optically isolated ports
  • Power / DMX Through connectors
  • Powder-coated aluminum ½ rack housing


Specifications:
Mounting
Standalone

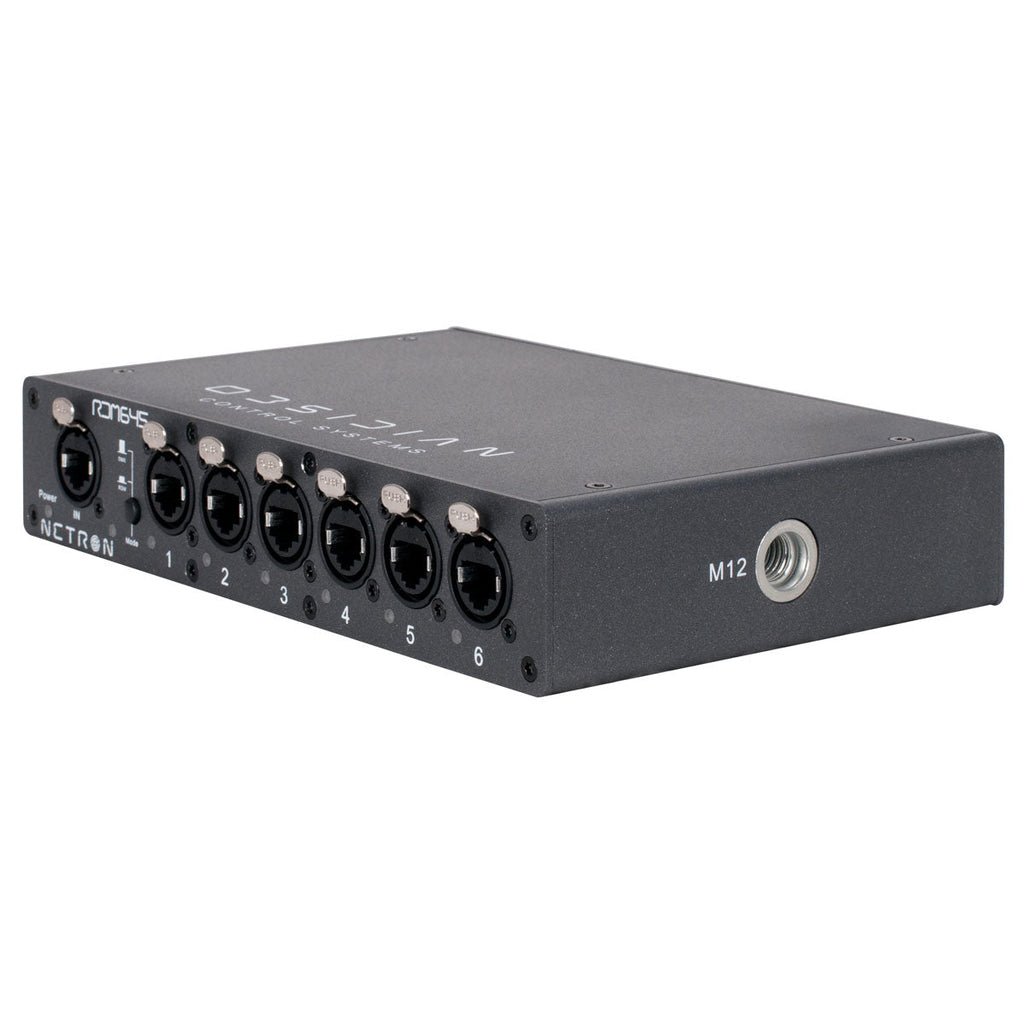

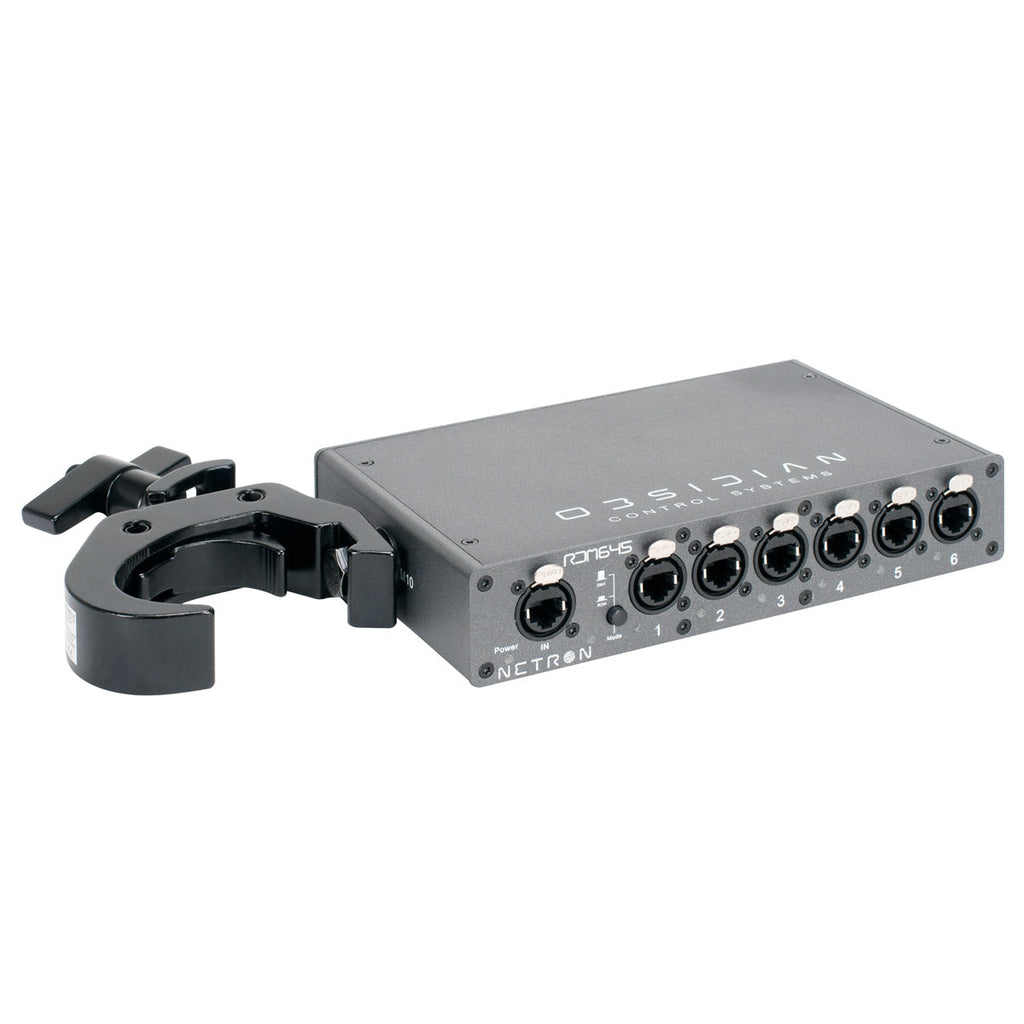

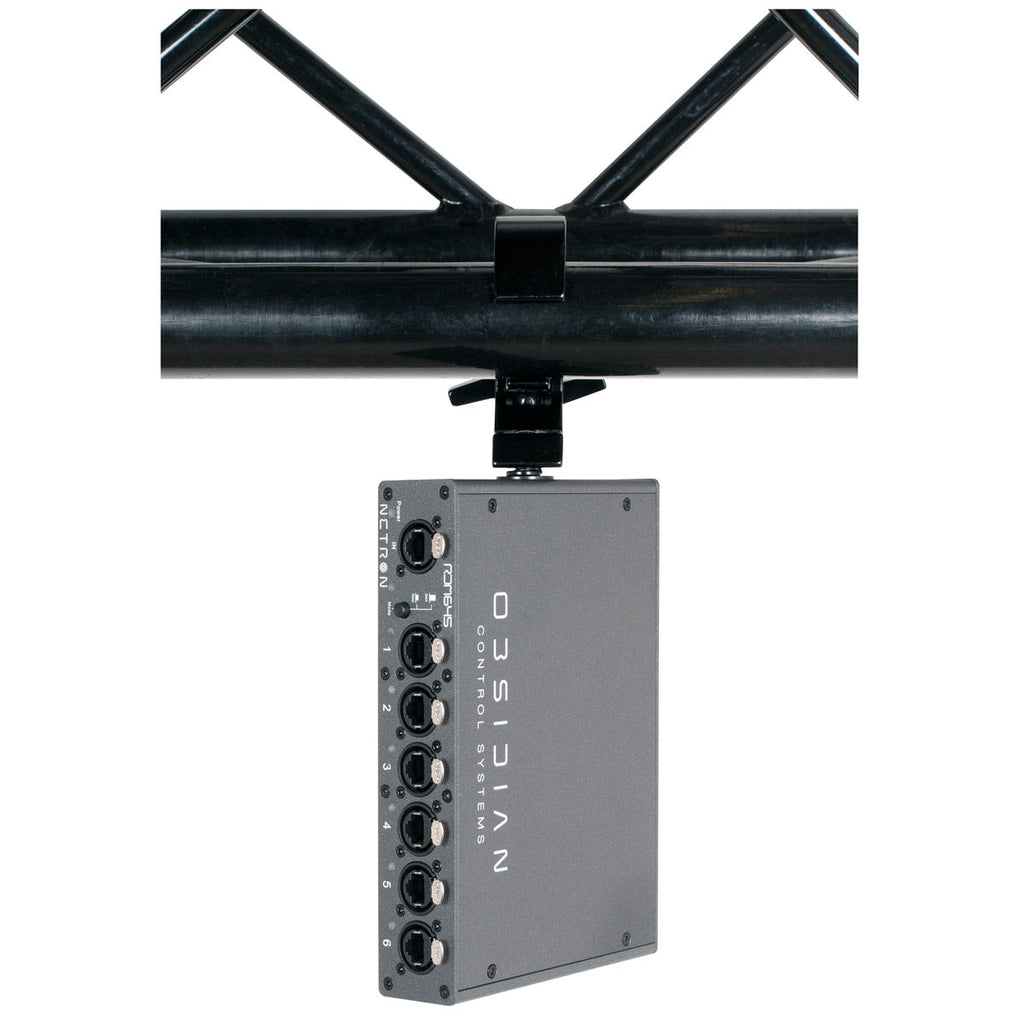

Truss-mount (M10 or M12 mounting hole)

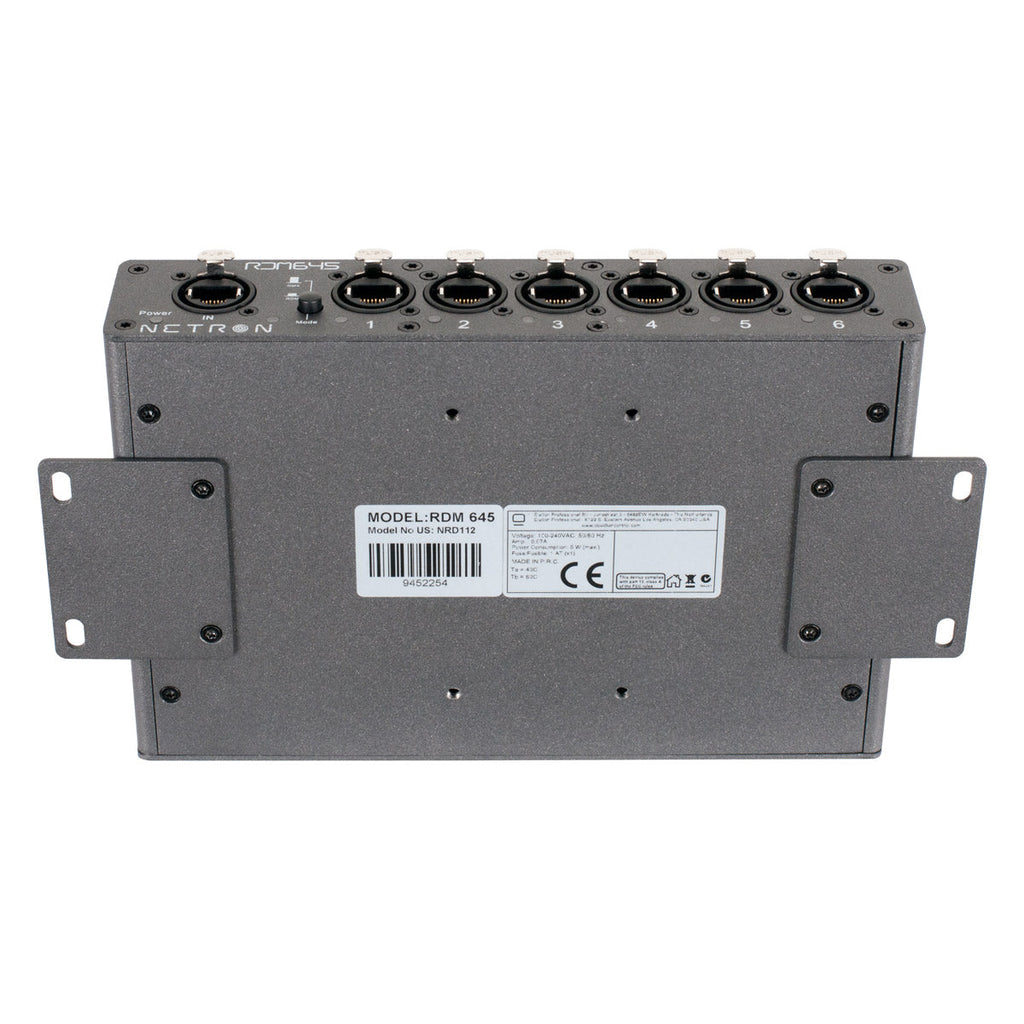

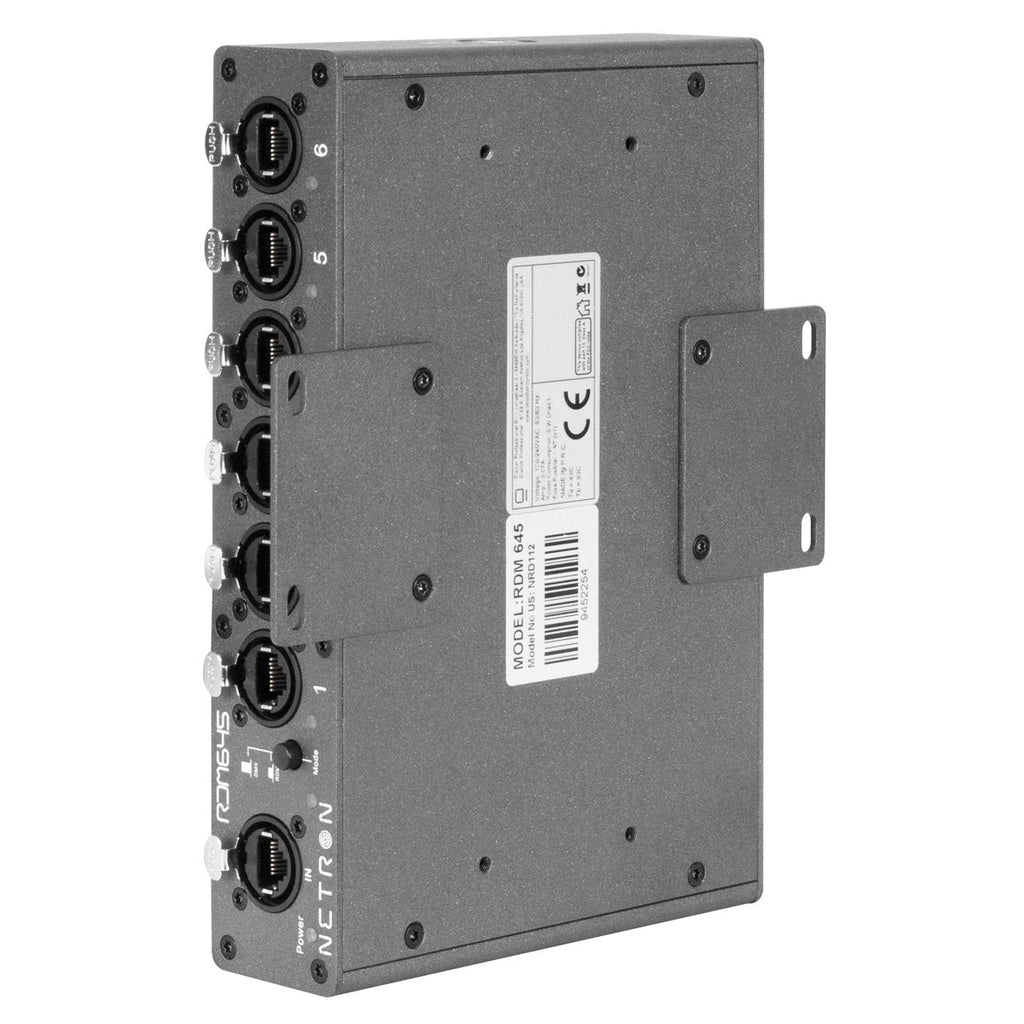

Wall-mount horizontal or vertical (included)

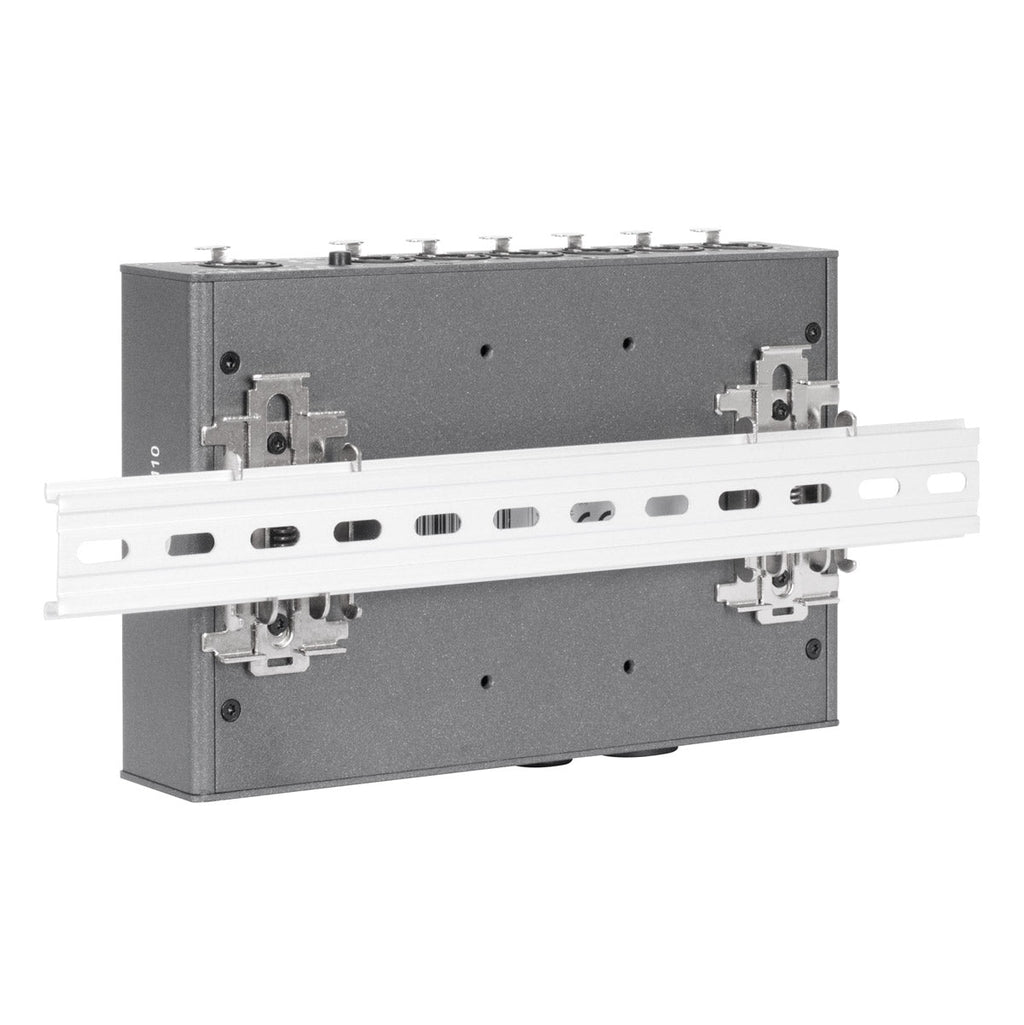

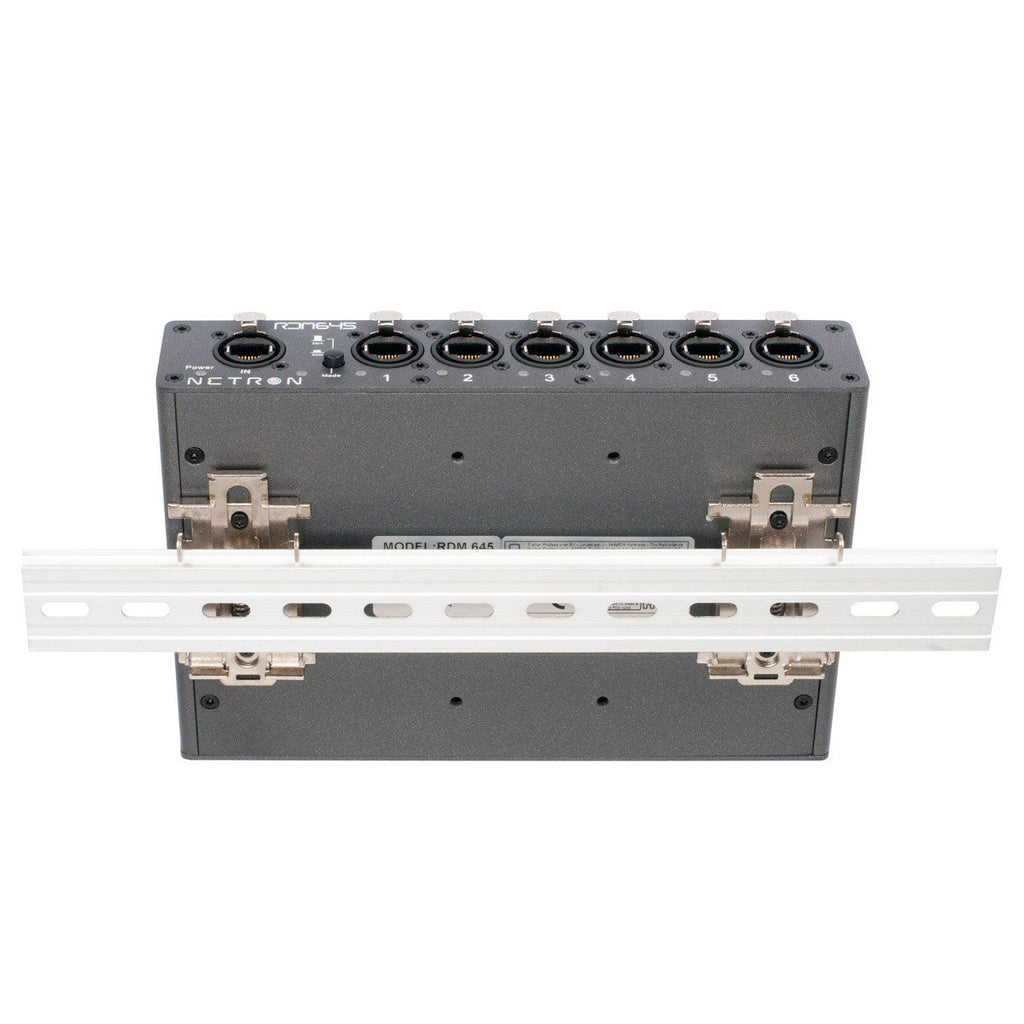

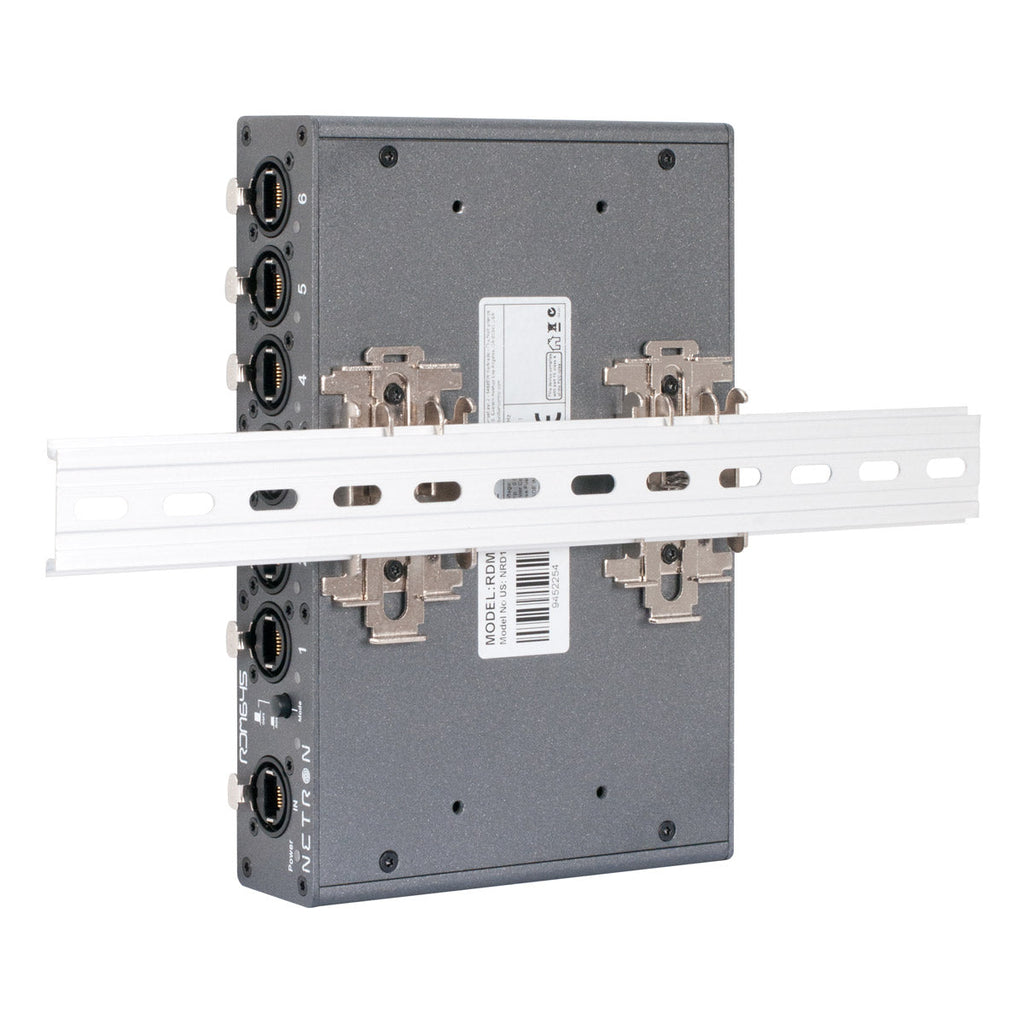

DIN Rail horizontal or vertical (included)

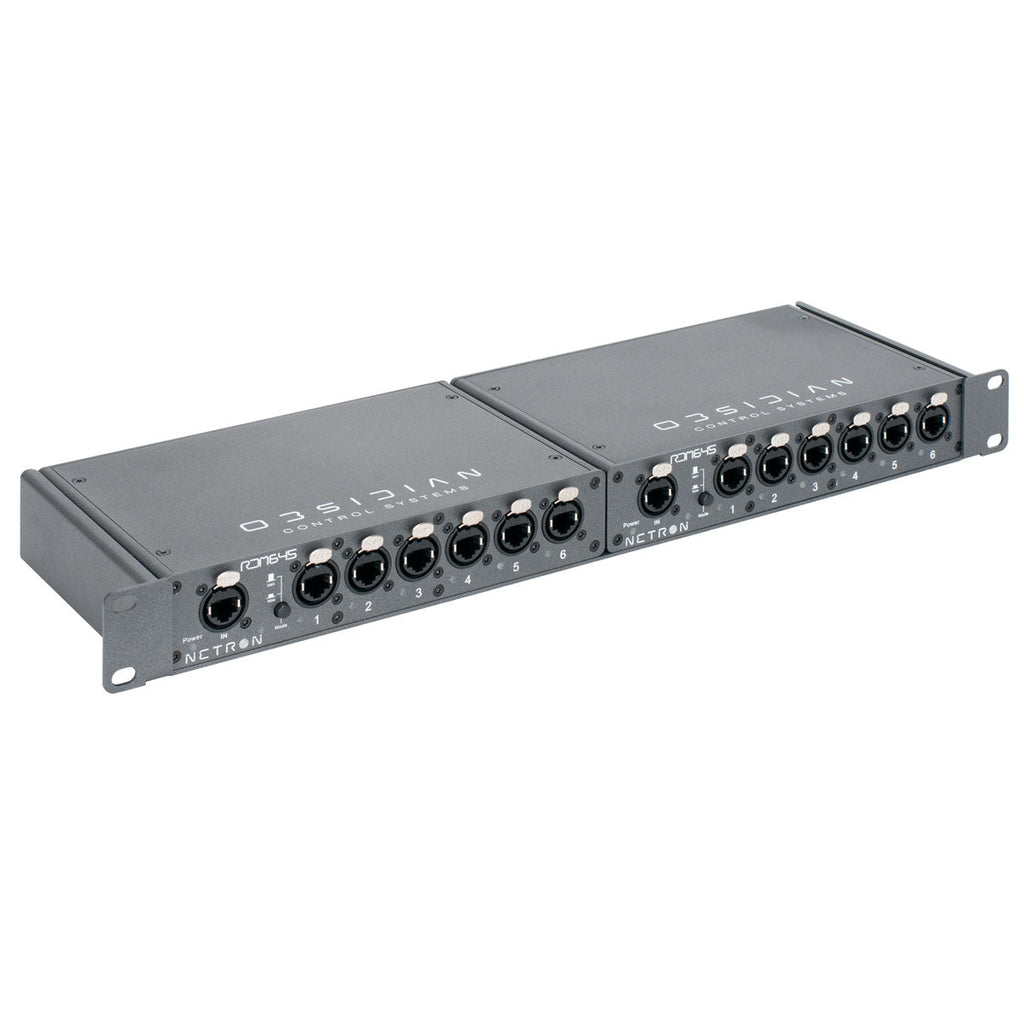

Rack-mount option (requires NET Shelf)

Connections

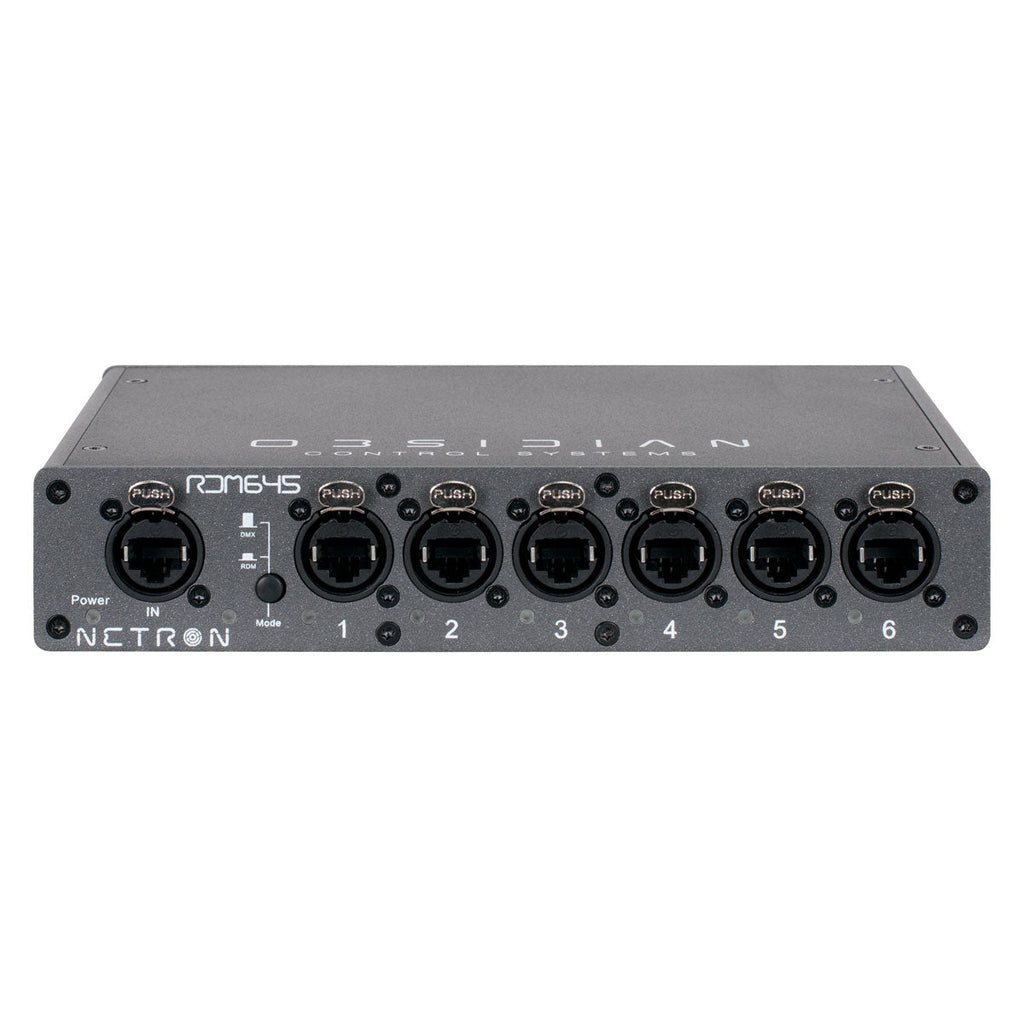

Front
Locking RJ45 Ethernet DMX Input
(6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
RDM Enable

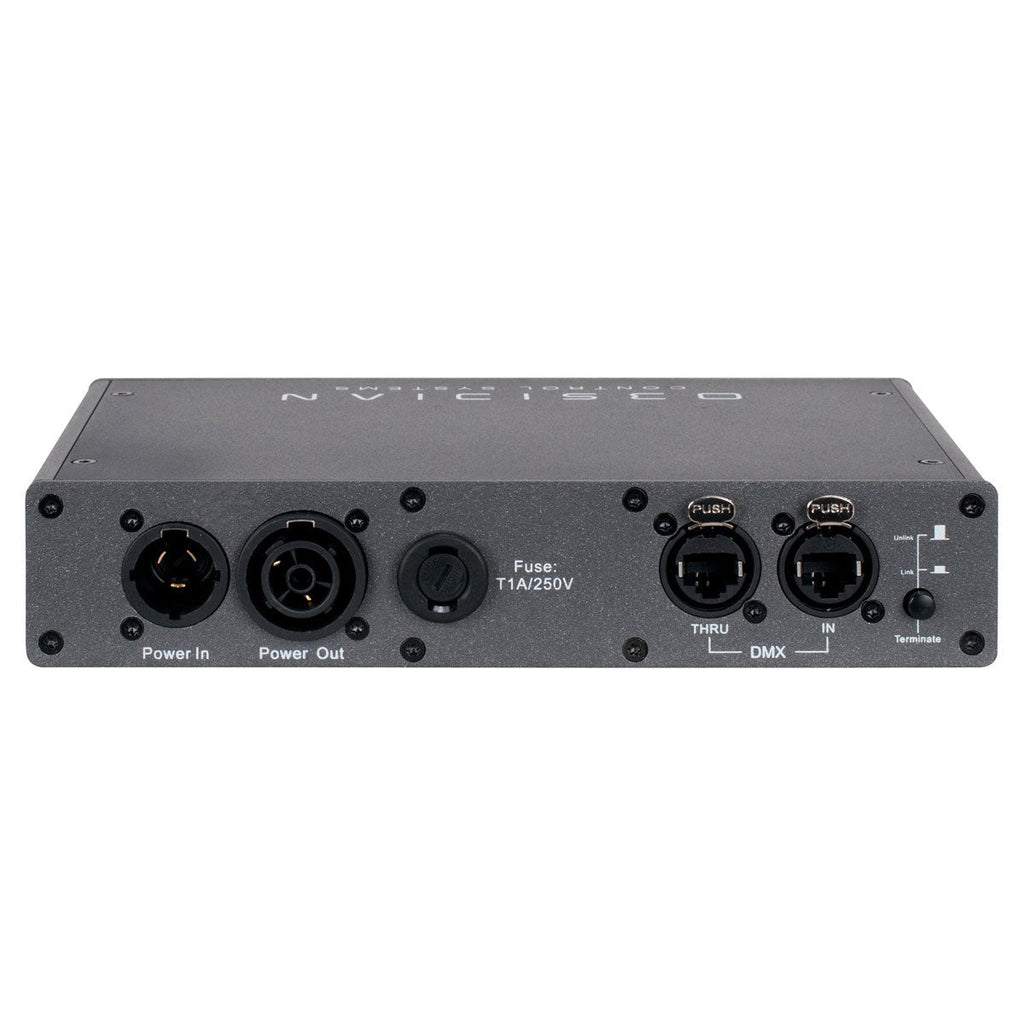

Back
Locking RJ45 Ethernet DMX Input (parallel with front)
Locking RJ45 Ethernet DMX Through
Terminate
Locking Power In/Thru

Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

Electrical
100-240 V nominal, 50/60 Hz, 10W

Included Items
1.5m Locking power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps

APPROVALS / RATINGS
CE | cETLus | FCC | IP20

Specifications and documentation subject to change without notice.
