Description

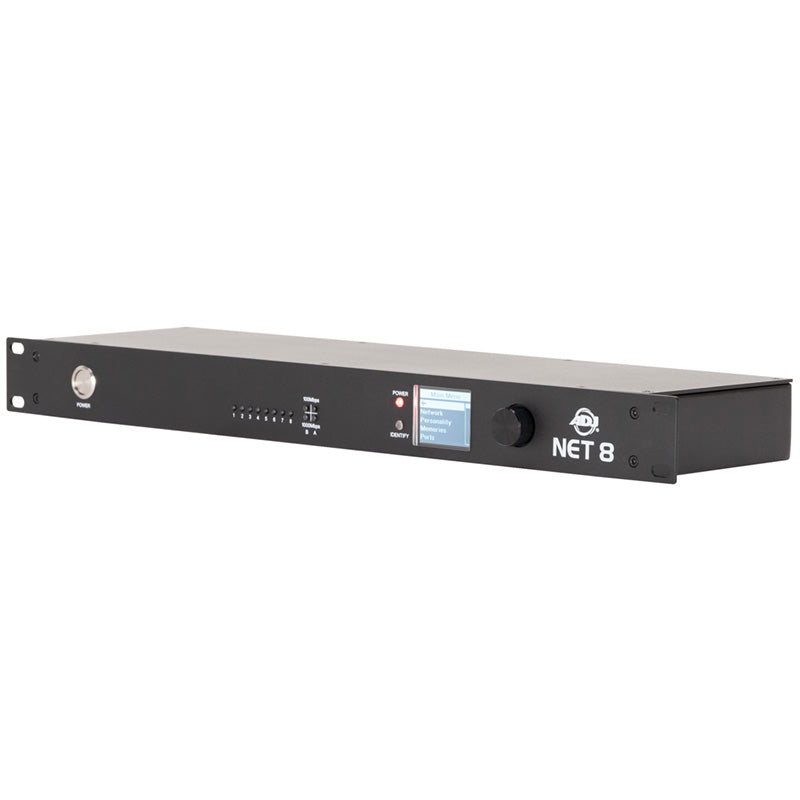

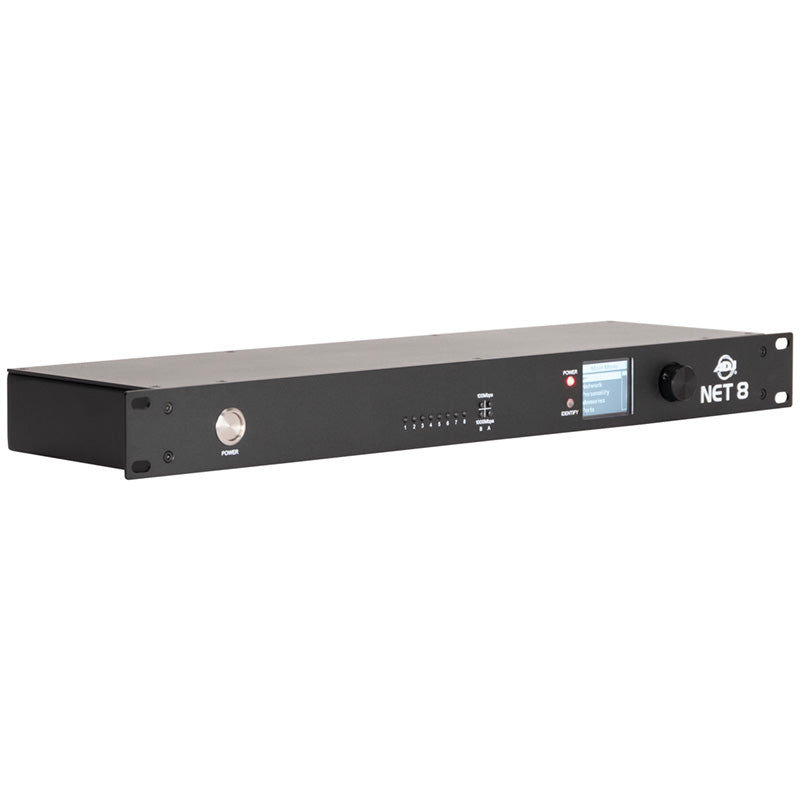

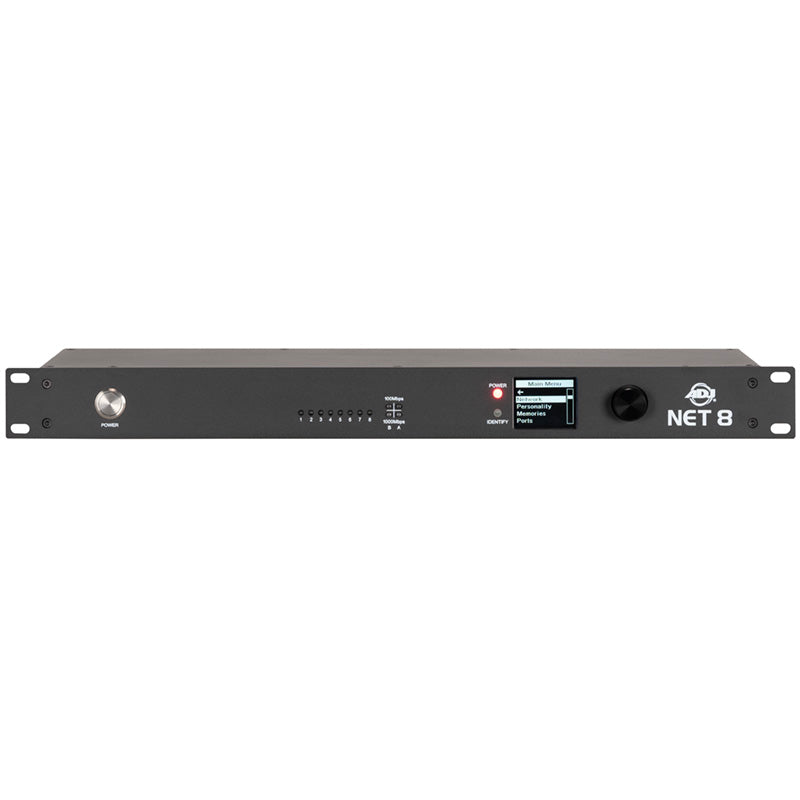

ADJ's NET 8 is a versatile 8-port DMX over Ethernet node that can be mounted in a 19-inch rack case. It is compatible with DMX-512, RDM, Art-Net and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance.
NET 8
AVAILABLE NOW
ADJ Lighting's NET 8, a cutting-edge 8-port DMX over Ethernet node that revolutionizes your lighting control experience. This versatile node supports Art-Net, sACN, DMX and RDM protocols, providing a seamless integration platform for your dynamic lighting setups. Whether you prefer traditional Line Voltage or the convenience of Power over Ethernet (PoE), NET 8 empowers you with flexible power options to suit diverse installation scenarios.Configuring NET 8 is a breeze, offering the choice between DHCP or Static IP Address settings. This adaptability ensures that the node seamlessly integrates into your existing network infrastructure. What sets NET 8 apart is its user-friendly interface, allowing configuration adjustments from the unit menu or the convenience of a web browser. Whether you're on-site or managing your lighting system remotely, NET 8 puts control at your fingertips. NET 8 is a one space, 19-inch rack mountable node that helps you expand from one DMX universe to eight (when used with an Artnet compatible lighting controller).
Click here to read the NET 8 press release.
Specifications
Features:
- Art-Net / sACN /DMX, 8 Port Node
- Line Voltage or Power over Ethernet (PoE) powered
- DHCP or Static IP Address
- 1.7"LCD Display
- Configurable from unit menu or web browser
- (8) DMX Output Indicators
- (4) Network Status Indicators
Protocols:
- DMX512
- RDM
- Art-Net
- sACN

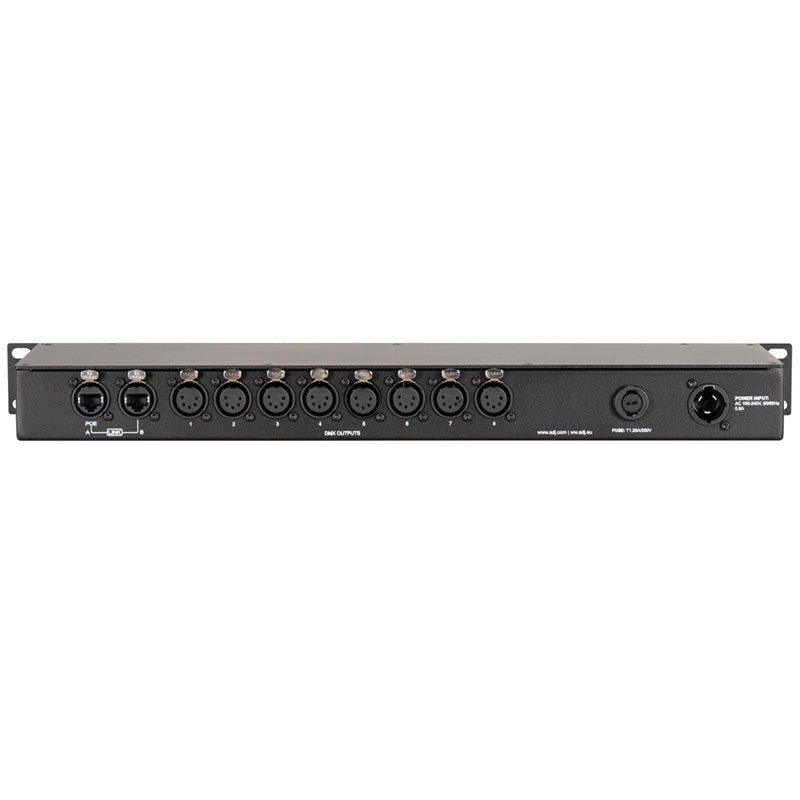

Connections:
- 2x Indoor RJ45 Input Output
- 8x 5-pin XLR Input / Output
Dimensions Weight:
- Length: 5.7" (144mm)
- Width: 19" (483mm)
- Height: 1.7" (44mm)
- Weight: 4.76lbs. (2.16kg)
Power:
- AC Input 100-240V,50/60Hz
- PoE 802.3af
- AC Power: 15W
- PoE Power: 15W
- Power Consumption: 5.7W @ 120V and 5.9W @ 230V
- Power Input Protection: Fuse, T1.25A/250V (5.2x20mm)
Thermal:
- Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
- Humidity: <75%
- Storage Temperature: 77°F (25°C)
Certifications IP Rating:
- CE
- cETLus (Control # 5014475)
- FCC
- IP20
Included Accessories:

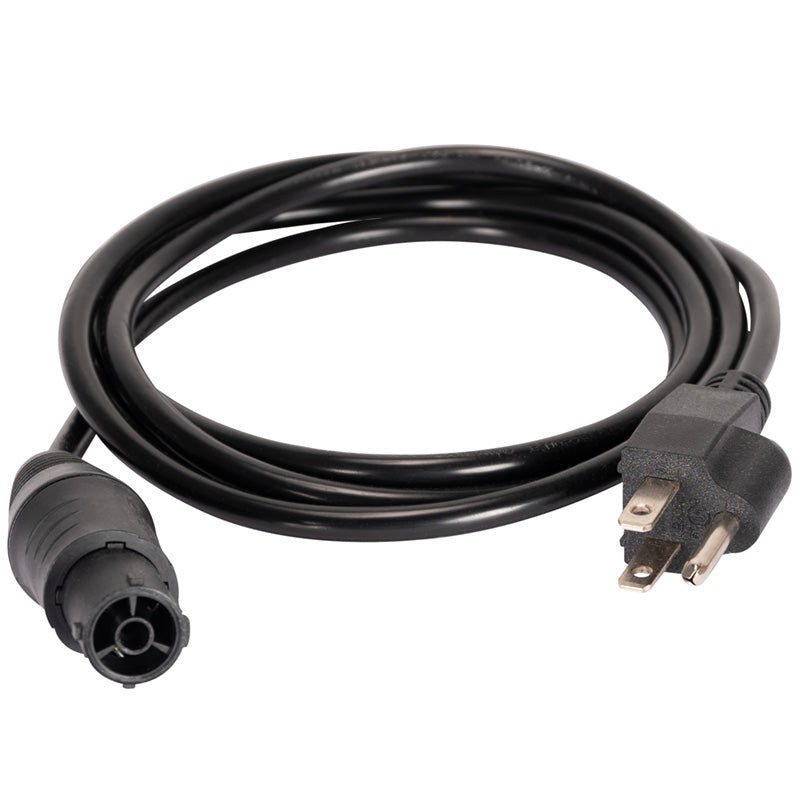

- IP65-rated Locking Power Cable
Specifications subject to change without notice.
