Description

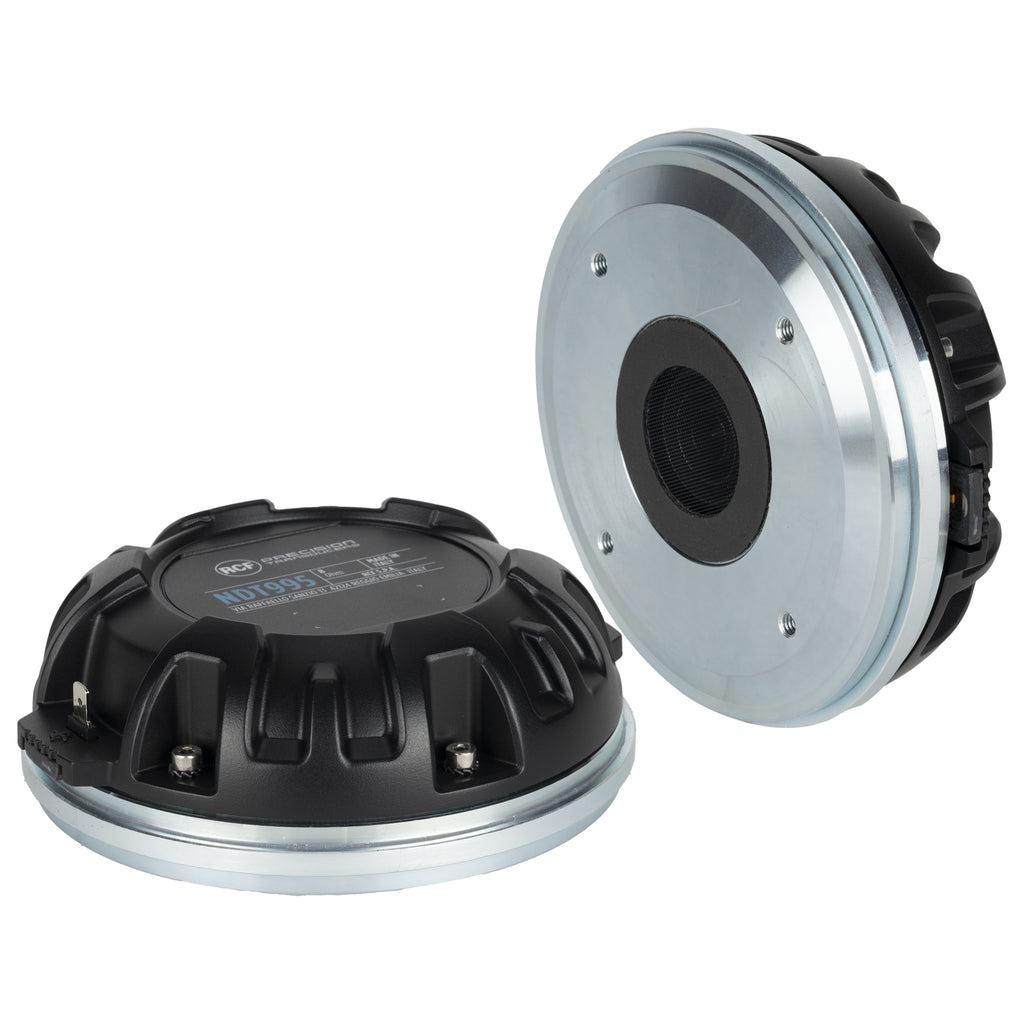

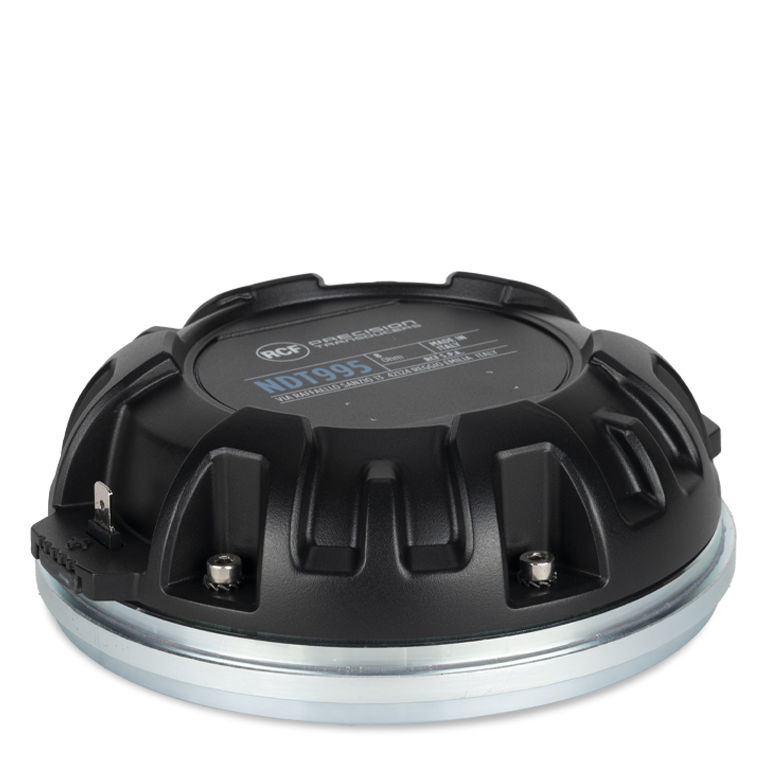

The 4-inch pure titanium dome NDT995 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly with a copper demodulation ring to reduce harmonic and intermodulation distortion. The 4" class-leading design utilizes a Kapton former, inside-outside ultralight edge wound aluminum wire and a 4-slot phase plug to deliver minimum distortion across its operating bandwidth. The high sensitivity at 110 dB, 280 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 650 Hz make it ideal for integration with waveguides in two-way high-powered systems.
Features
- 4.0 inch, Titanium dome, polyimide surround
- 280W continuous program power handling @ 8O
- Frequency range: 500Hz - 20kHz
- Kapton former, inside/outside edge wound aluminum voice coil
- 4-slot optimized geometry phase plug
- Copper inductance ring for extended response
- Low recommended crossover point
Specifications
| General specifications | |
| Exit Throat Diameter | 1.4 inch / 36 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 280 W |
| Power handling capacity | 140 W |
| Sensitivity | 110 dB |
| Frequency range | 500 - 20000 Hz |
| Diaphragm Material | Pure Titanium |
| Suspension Material | Polyimide |
| Suspension Design | Flat |
| Minimum Impedance (ohm) | 8.50 ohm |
| Voice Coil Diameter | 4.0 inch / 102 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Direct Drive Kapton |
| Number of layers | 1 |
| Kind of layers | inside/outside |
| Flux Density | 2.0 T |
| Phase Plug Design | 4 slot |
| Phase Plug Material | Aluminum |
| Magnetics | Neodymium |
| Voice Coil Demodulation Ring | Copper |
| Thiele - small parameters | |
| Bl factor (Bl) (T x m) | 17.60 T x m |
| Mounting information | |
| Overall diameter | 146 mm / 5.75 inches |
| Overall height | 55 mm / 2.17 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 2.72 kg / 6 lbs |
| Shipping information | |
| Package Height | 79 mm / 3.11 inches |
| Package Width | 169 mm / 6.65 inches |
| Package Depth | 171 mm / 6.73 inches |
| Package Weight | 2.92 kg / 6.44 lbs |
