Description

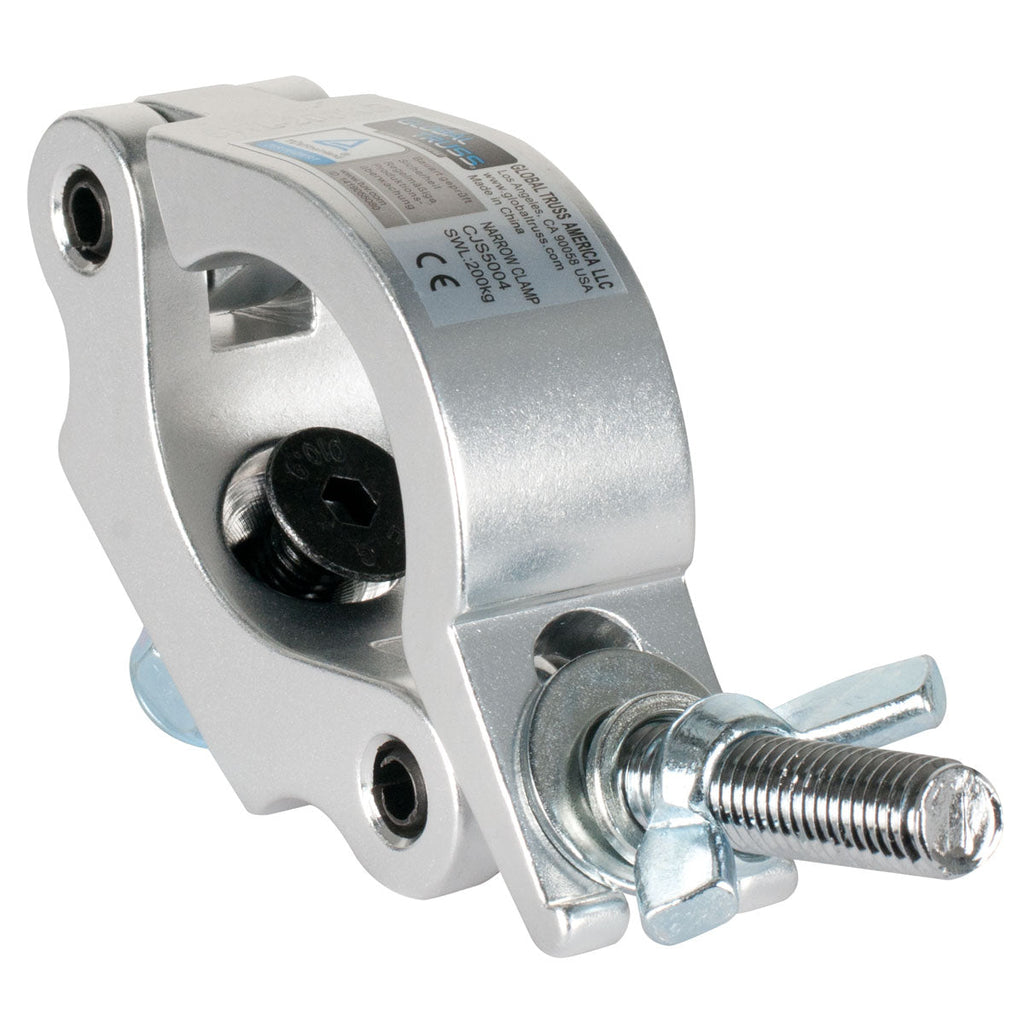

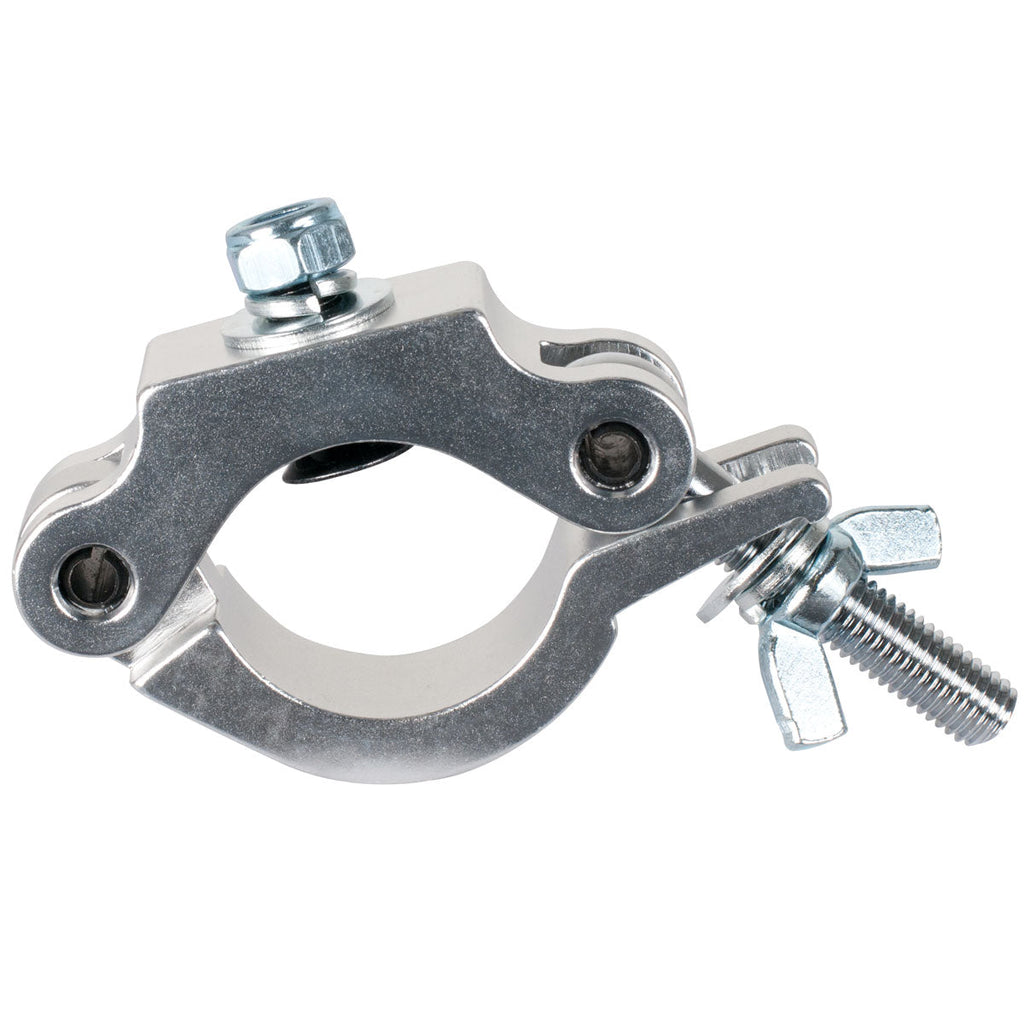

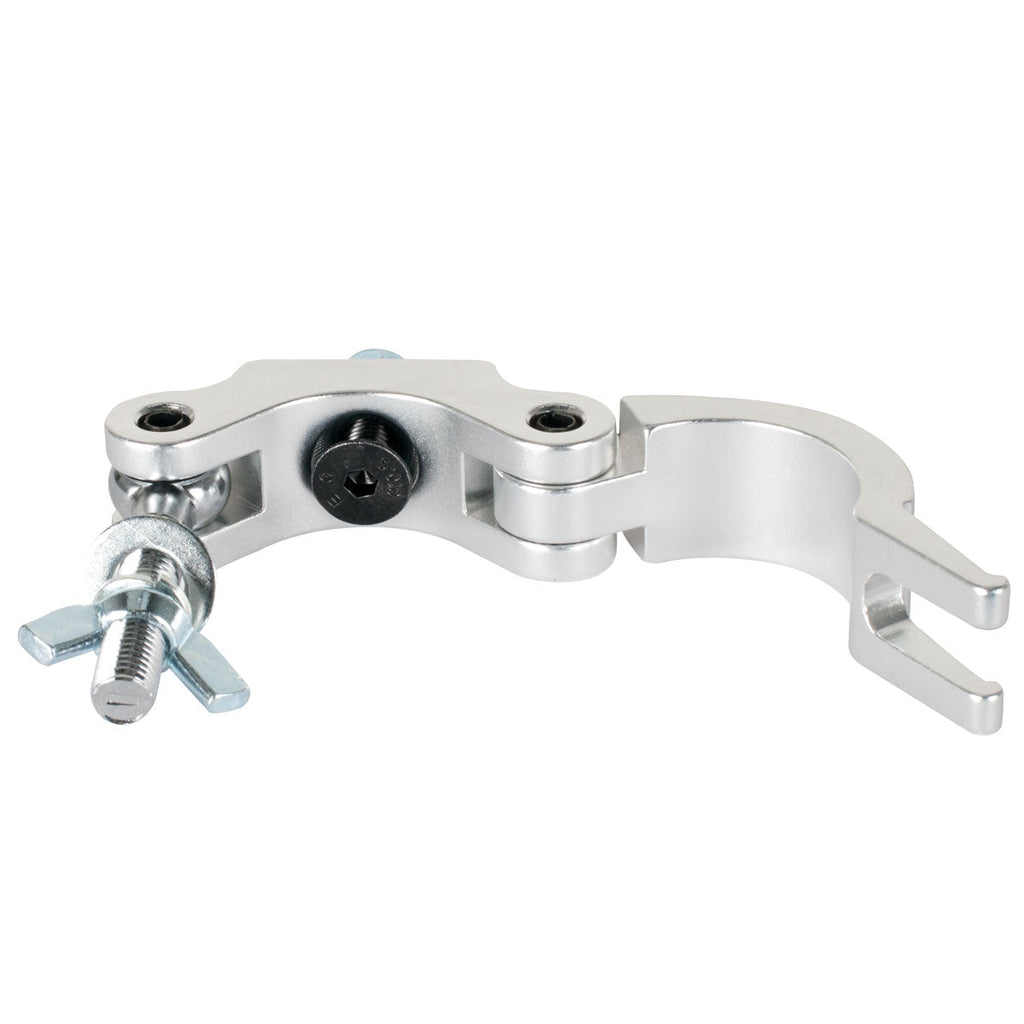

The Narrow Clamp is a compact, medium-duty clamp designed for secure mounting on 50mm tubing. It fits 48-51mm diameters and is compatible with F31, F32, F33, F34, and DT44P truss systems. It supports up to 440 lbs (200 kg).
The Narrow Clamp (SKU: CLM0521) is a medium-duty truss clamp designed for secure, space-saving mounting on 50mm tubing - ideal when you need strong grip without a bulky profile. Built to fit 48-51mm tube diameters, it’s compatible with F31, F32, F33, F34, and DT44P truss, making it a versatile choice for common rigging setups.
With a 30mm profile width and rugged hardware (M10 x 25mm bolt, 1.5 coarse thread pitch), this clamp delivers dependable holding power with a maximum load rating of 200 kg (440 lbs). Despite its strength, it stays lightweight at just 0.78 lbs, keeping your rig efficient without sacrificing durability.
Specifications
- &• Medium Duty Clamp For 50mm Tubing
- &• Compatible with F31-F32-F33-F34-F44P Truss
- &•Minimum Tubing Diameter 48mm
- &•Maximum Tubing Diameter 51mm
- &•Max Load Capacity 200 kgs. - 440 lbs.
- &•TUV Approved
- &•Unit Weight 0.78 lbs.
