Description

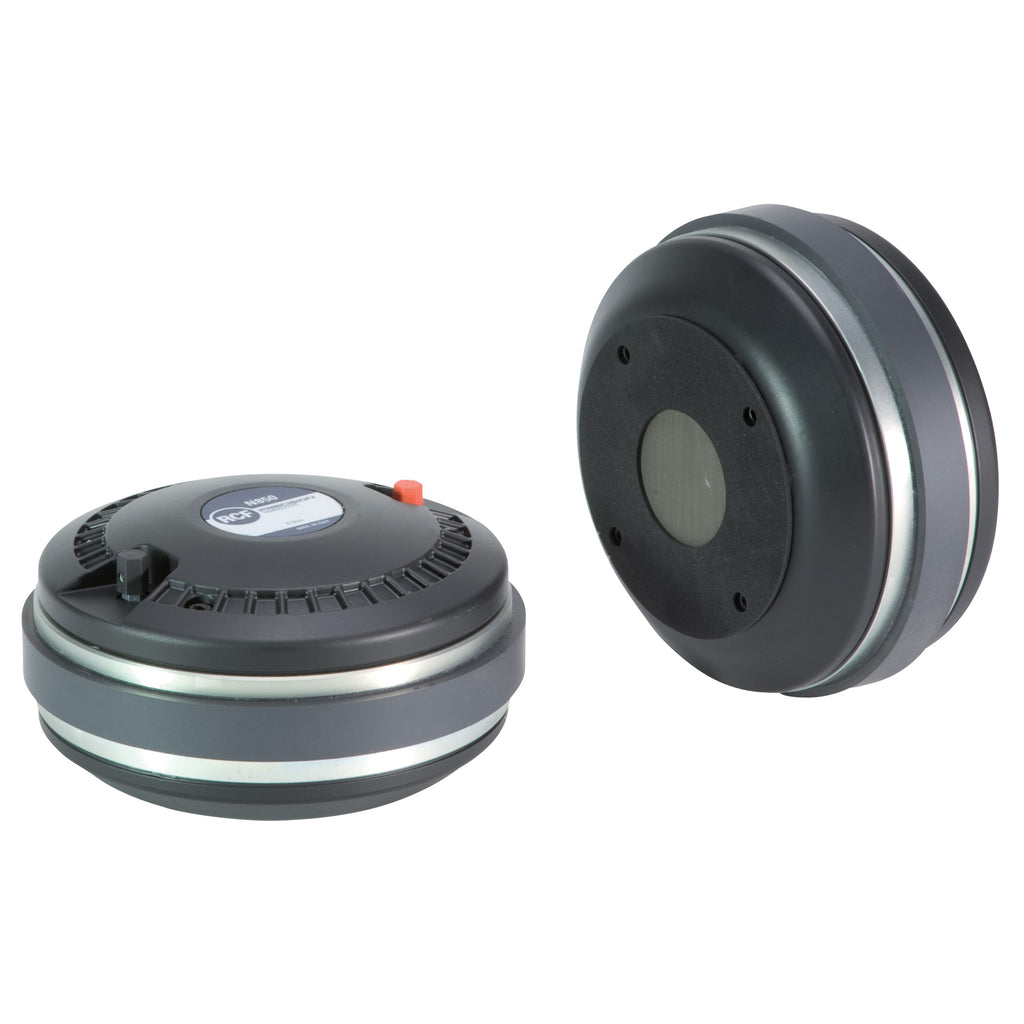

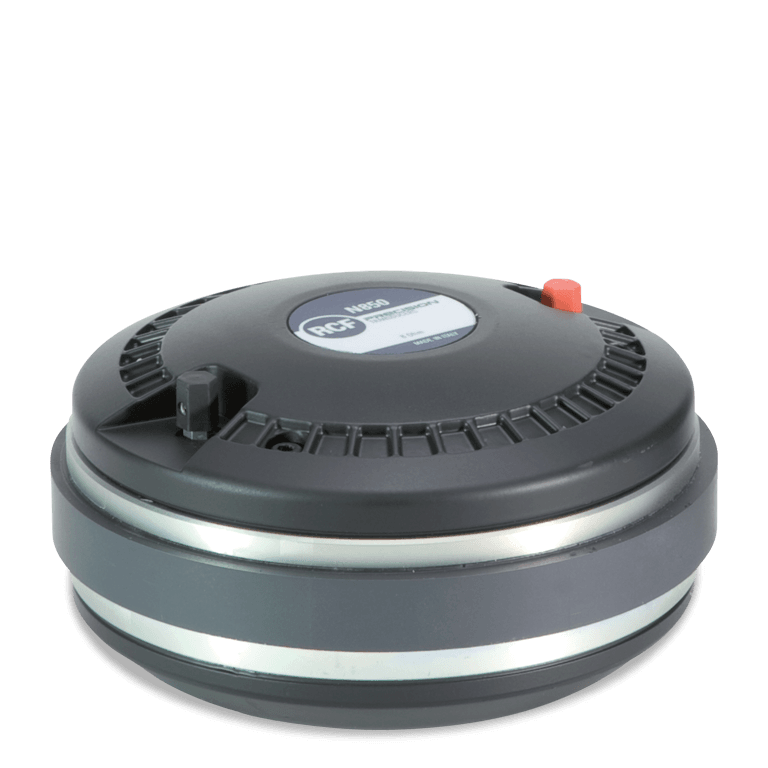

The N850 is a high quality 3-inch diaphragm compression driver with a 2-inch exit throat. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on Mylar vented design. The front aluminium adaptor guarantee a very smooth transition from the phase plug to 2-inch output interface.
Features
- 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Aluminium rear cover and front adaptor
- Copper inductance ring for extended response
- Vented suspension system
Specifications
| General specifications | |
| Exit Throat Diameter | 2.0 inch / 51 mm |
| Related Impedance | 8 ohm |
| Program Power (watt) | 180 W |
| Power handling capacity | 90 W |
| Sensitivity | 109 dB |
| Frequency range | 500 - 20000 Hz |
| Diaphragm Material | Pure Titanium |
| Suspension Material | Mylar |
| Suspension Design | Radial |
| Minimum Impedance (ohm) | 8.80 ohm |
| Voice Coil Diameter | 3.0 inch / 76 mm |
| Voice Coil Winding Material | Edgewound Aluminum |
| Voice Coil Former Design | Straight - Kapton |
| Number of layers | 1 |
| Kind of layers | outside |
| Flux Density | 1.8 T |
| Phase Plug Design | 3 slot |
| Phase Plug Material | PP Composite |
| Magnetics | Ceramic |
| Voice Coil Demodulation Ring | Copper |
| Mounting information | |
| Overall diameter | 180 mm / 7.09 inches |
| Overall height | 95 mm / 3.74 inches |
| Mounting | 4 x 6 mm threaded holes at 90° |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Weight | 6 kg / 13.23 lbs |
| Shipping information | |
| Package Height | 114 mm / 4.49 inches |
| Package Width | 203 mm / 7.99 inches |
| Package Depth | 205 mm / 8.07 inches |
| Package Weight | 7 kg / 15.43 lbs |
