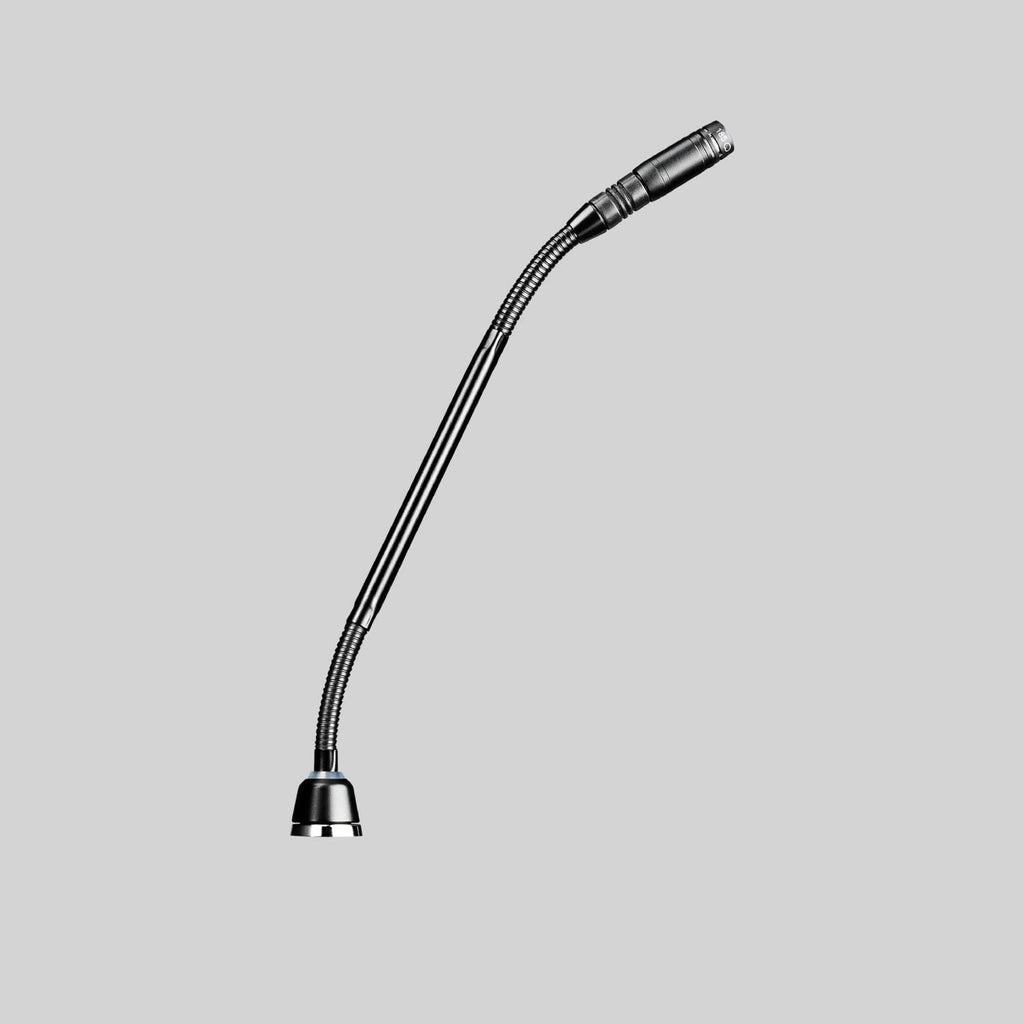

Shure MX410R/C, Microflex 10-Inch Modular Gooseneck Microphone, Gooseneck W/preamp

The MX410 surface mount version is a gooseneck microphone with a Bi-Color LED as status display. It has a 10" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

• Gooseneck length: 10 inch / 25.4 cm
• Low profile, aesthetic design
• Wide dynamic range and smooth frequency response
• RF filtering with CommShield™ technology
• Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
• Capsule options: None, Cardioid, Supercardioid
• Preamplifier Options

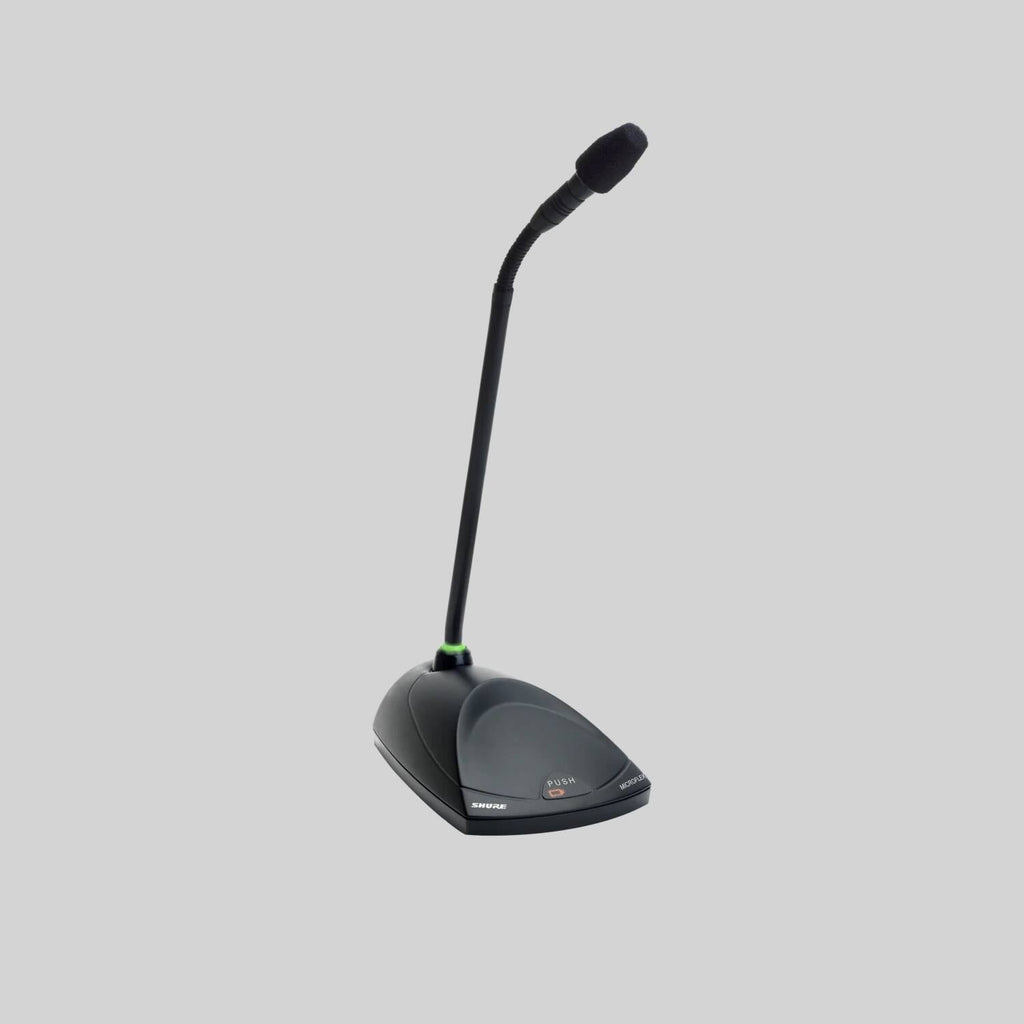

  • MX400DP Desktop Base for MX405 and MX410 models
  • MX890  Wireless Desktop Base for MX405 and MX410 models
  • MX400SMP Surface Mount Preamp for MX405 and MX410 models

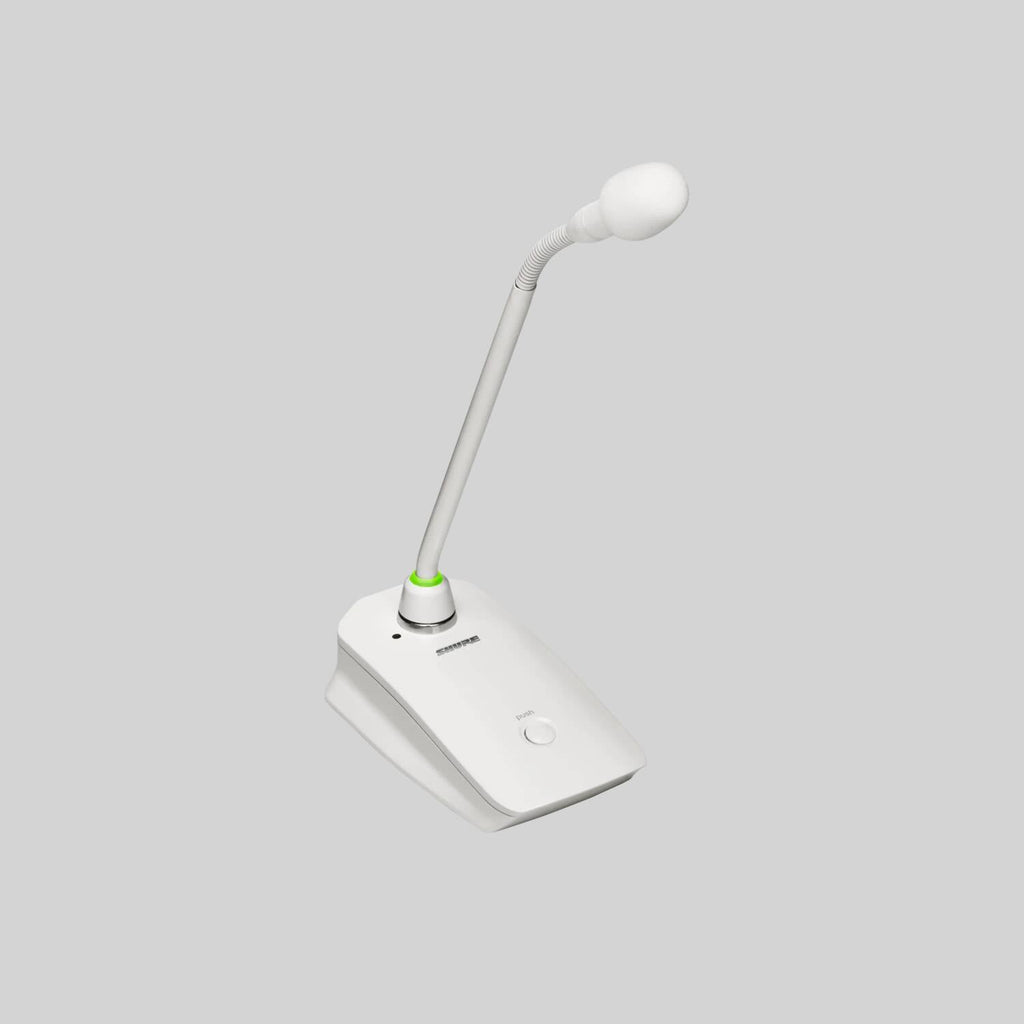

  • MXW8 Wireless Desktop Base for MX405, MX410 and MX415 models
  • ULXD8  Wireless Desktop Base for MX405, MX410 and MX415 models

Specifications

• Impedance: 170

Dimensions and Weight

• Width: 0.295 in (7.5 mm)
• Height: 9.882 in (251.0 mm)
• Depth: 0.295 in (7.5 mm)
• Weight: 0.15 lb (68 g)

Output Impedance: EIA Rated at 150 Ω (170 Ω actual) Sensitivity (at 1 kHz , open circuit voltage): Cardioid-35dBV/Pa / 18mV/Pa; Supercardioid-34dBV/Pa / 21mV/Pa Maximum SPL (1 kHz at 1% THD, 1 kΩ load) Cardioid: 121 dB Supercardioid: 120 dB Equivalent Output Noise (A-weighted) Cardioid: 28 dB SPL Supercardioid: 27 dB SPL Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) Cardioid: 66 dB Supercardioid: 68 dB Dynamic Range (1 kΩ load at 1 kHz): 93 dB Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V) Polarity 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. Logic Connections LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ). Mute Switch Attenuation: -50 dB minimum Environmental Conditions Operating Temperature: -18-57 °C (0-135 °F) Storage Temperature: -29-74 °C (-20-165 °F) Relative Humidity: 0-95% Power Requirements: 48-52 Vdc phantom, 8.0 mA
